Accuphase E 5000 Integrated Amplifier
Accuphase E 5000 Integrated Amplifier
Accuphase

Accuphase E 5000 Integrated Amplifier

Regular price $0.00 $0.00 Unit price per

Shipping : FREE in Canada

We are an Accuphase Full Line Authorized Dealer. Accuphase does not allow dealers to post pricing on websites.

Please contact us for pricing as well as additional information on any product of interest.

Thank you.

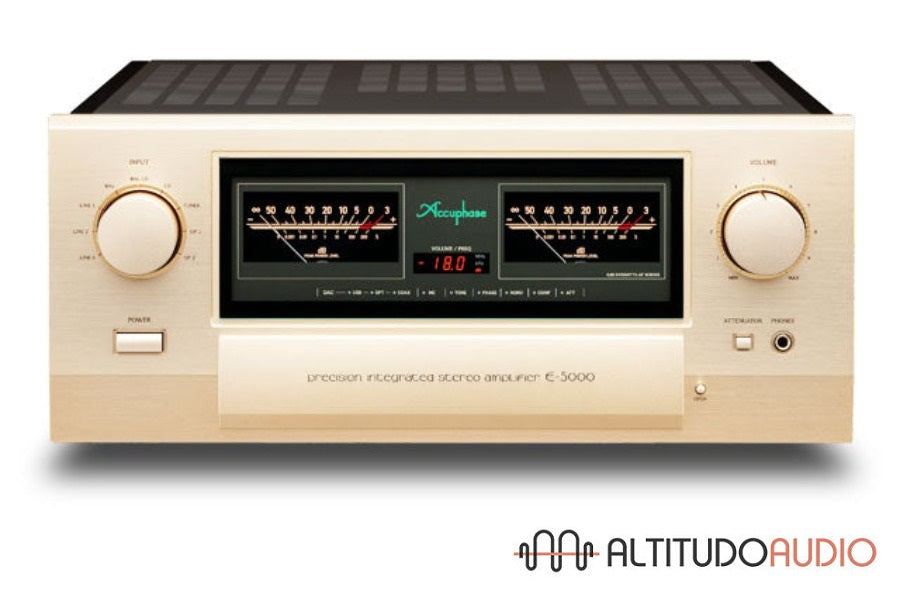

Class AB iflagship ntegrated amplifier developed to mark Accuphase’s 50-year
anniversary. The preamplifier section features our superior Balanced AAVA volume control, while the power
amplifier section includes an instrumentation amp and power transistors in a five-fold push-pull arrangement
driven in Class AB. These circuits create a balanced circuit from input to output. With its precisely balanced circuits and solidly built output stage, the E-5000 integrated amplifier presents every piece of music in exquisite detail.

  • Balanced AAVA volume control
  • Highly reliable logic-control signal switching relays

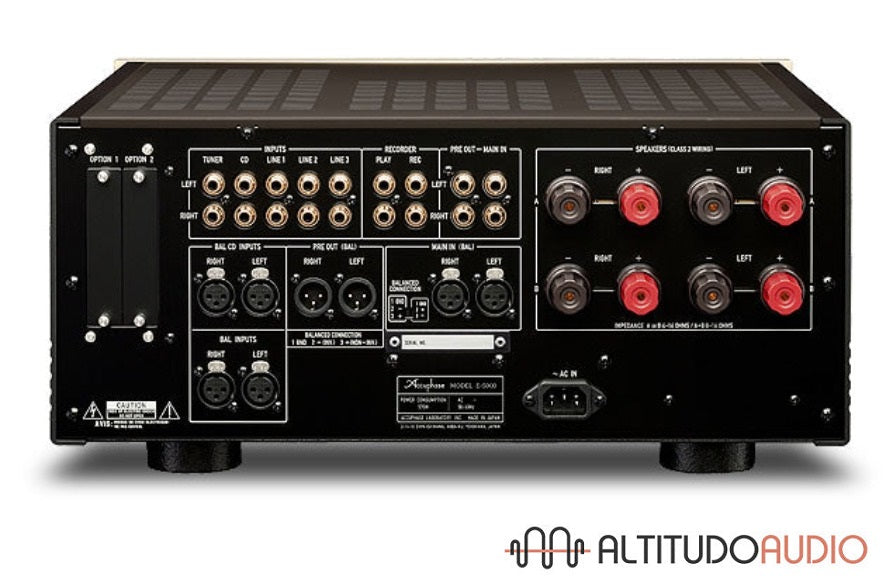

  • Ample input connectors (Five line level and two balanced)
  • Line level input and output connectors for a recorder
  • Individual phase setting for each input
  • Stereo signal can be switched to monophonic operation
  • Left / right balance control through Balanced AAVA
  • Volume attenuator that can instantly reduce sound as low as –20 dB
  • Loudness compensator to adjust audible sonic balance
  • Tone controls using summing active filters
  • Power amplification stage employs instrumentation amplifier principle
  • Current feedback amplification circuit topology assures excellent phase characteristics in high range
  • Speaker output protection circuit guards against short-circuiting
  • Protection circuitry using low impedance, highly reliable MOS-FET switches
  • Two massive speaker connectors for output switching and simultaneous output
  • Line level and balanced outputs at the preamplifier section support bi-amping connection
  • Line level and balanced inputs at the power amp section allow use as a power amplifier
  • Dedicated, high-quality headphone amplifier constructed with discrete components
  • Two expansion slots for option boards



Specifications:

Continuous Average Output Power (both channels driven, 20-20,000 Hz): 320 watts per channel into 4 ohm,  240 watts per channel into 8 ohms.

Intermodulation Distortion: 0.01%g

Frequency Response: HIGH LEVEL INPUT/POWER INPUT 20 - 20,000 Hz +0, -0.5 dB (for rated continuous average output), 3 - 150,000 Hz +0, -3.0 dB (for 1 watt output)

Damping Factor: 1000 (For rated output with 8-ohm load, 50 Hz)

Output Voltage, Output Impedance (at rated continuous average output): PRE OUTPUT: 1.74 V, 50 ohms

Gain: HIGH LEVEL INPUT → PRE OUTPUT : 18 dB, POWER INPUT → OUTPUT: 28 dB

Tone Controls Turnover frequency and adjustment range: BASS: 300 Hz ±10 dB (50 Hz), TREBLE: 3 kHz ±10 dB (20 kHz)

Loudness Compensation: +6 dB (100 Hz)

Attenuator: -20 dB

Power Level Meters: Logarithmic compression, peak reading meters, output dB/% scale

Load Impedance: 4 - 16 ohms

Stereo Headphones: Suitable impedance: 8 ohms or higher

Power Requirements: AC 120 V/220 V/230 V 50/60 Hz (Voltage as indicated on rear panel)

Power Consumption: 98 watts idle 570 watts in accordance with IEC 60065

Maximum Dimensions: Width 465 mm x Height 211 mm x Depth 502 mm

Mass: 33.8 kg net, 45 kg in shipping carton
