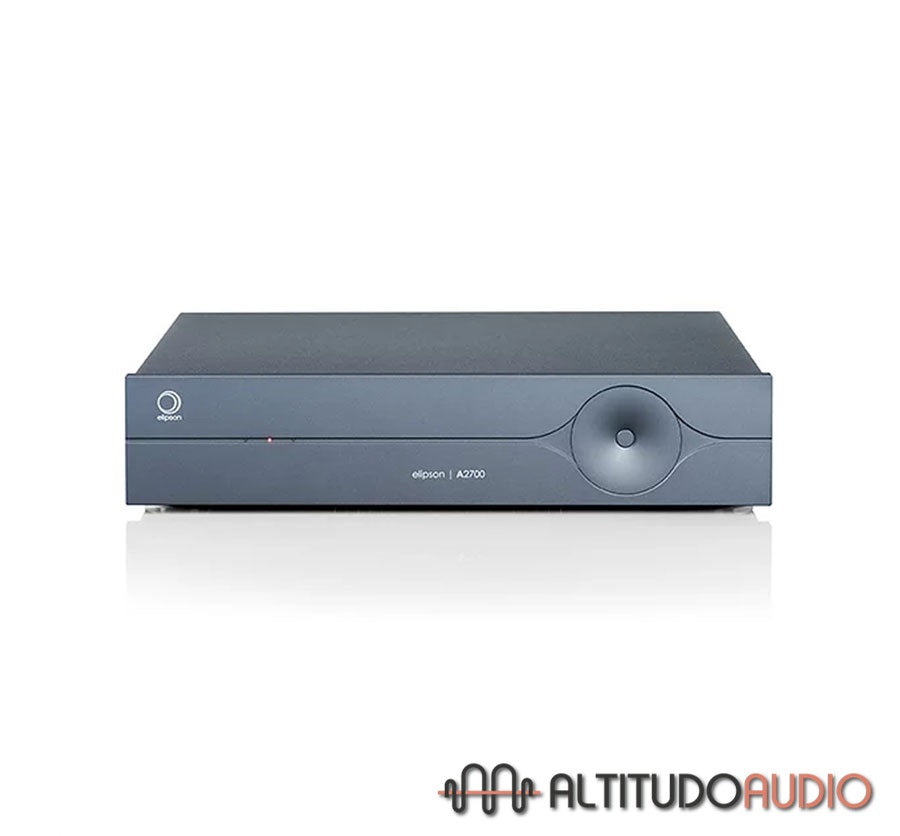

A2700 Power Amplifierfloor demo with cardas binding posts upgrade
A2700 Power Amplifierfloor demo with cardas binding posts upgrade
Elipson

A2700 Power Amplifierfloor demo with cardas binding posts upgrade

$3,500.00 $5,000.00

Shipping : FREE in Canada

It amplifies any signal in its entirety with disconcerting ease thanks to its high amplification capacity: 400 W RMS under 8 Ohms, 700 W RMS under 4 Ohms and especially 900W in impulse mode under 2 Ohms.

Modular, it can be bridged in mono and offer 1400 W RMS (2500 W peak) under 8 Ohms, and this, without thermal runaway So this amplifier can drive all the speakers of the market.

Beyond its power and its modularity, it is also the techniques used that impress: oriented towards the minimisation of background noise and distortion, as these are essential elements in the respect of the intensity of the notes in the service of musicality.

An iron fist in a velvet glove, that's really what characterizes our amplifier, allowing you to find the live experience of a concert in all its complexity and finesse.

Our range is entirely made in France in our Burgundy factory.



  • CHARACTERISTICS

    TECHNICAL DATA

    RMS power Wrms / channel / 8 Ω Class D : 400 W @ THD=1 % (clipping) 2 channels on

    Harmonic Distortion (THD) at 100 W @ 8 Ω : < 0,005 % @ 1kHz

    Harmonic Distortion (THD) at 1 W @ 8 Ω : < 0.003 % @ 1kHz

    Intermodulation Distortion (IMD SMPTE) at 100 W : < 0.01%.

    RMS power Wrms / channel / 4 Ω : 710 W @ THD=1 % (2 x 750 W peak with CF*=12 dB)

    RMS power Wrms clamped mode 8Ω : 1400 W / 2500 W peak with CF=12 dB

    Impulse power : 2 x 900 W under 2 Ohms with CF=12 dB

    Power consumption (230 Vac / 120 Vac) : 250 W with PF* = 0,96 at Pmax/8 at 4 Ω 2 channels

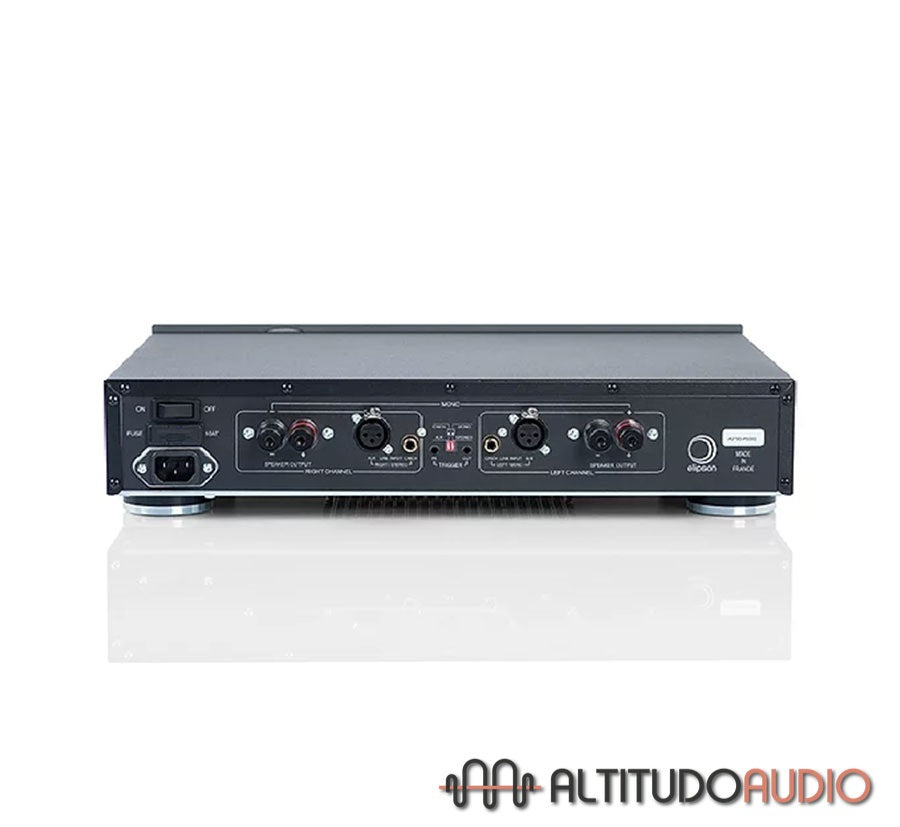

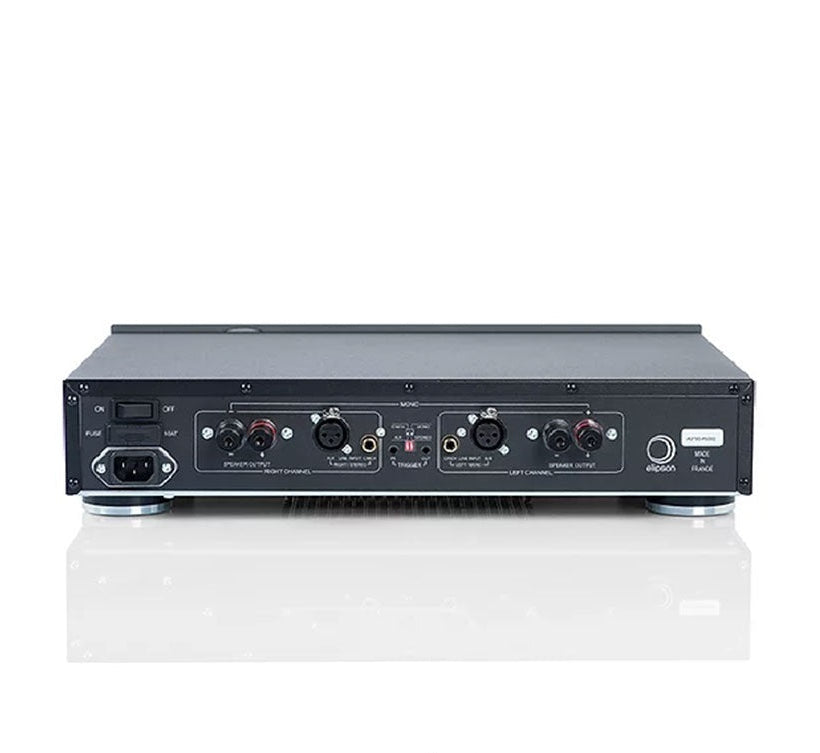

    Number of inputs : 1 x RCA Stereo + 1 x XLR Stereo + trigger In and Out

    Input impedance : 1 MΩ

    Sensitivity (V) : 9,5 dBu (sym), 3,5 dBu (asym) (2,3 V /1,15 V)

    Rise time (μs) : 5ms at Pmax 8 Ω

    Bandwidth : 2 Hz - 60 kHz @ -3 dB at 4 Ω

    Damping Factor : 1000 at 8 Ohms between 20 Hz and 2 kHz

    Signal to Noise Ratio (Dynamic) : 119 dB (balanced input) at Pmax in stereo

    Max Operating Temperature : 40° C

    Output configurations : Stereo / Mono bridge



    Clipping LED and protection LED (current, power, temperature) per channel. Trigger input and output for stand-by and operation by isolated voltage (5 to 12 V). * CF = peak factor (10 log (P peak/P average)) ** PF = power factor (cos phi)



    GENERAL

    Stand-by power consumption : < 0,5 W



    DIMENSIONS / WEIGHT

    Dimensions : W x H x D: 95 x 430 x 302/333* mm *with connectors

    Weight : 6,5 kg
