RS 500 Subwoofer Amplifier

Regular price $2,400.00 $0.00 Unit price per

Shipping : FREE in Canada

RS 500

Subwoofer Amplifier

The AudioControl RS 500 DSP controlled subwoofer amplifier is the ultimate bass amplification solution for any home cinema, multi-zone audio, or 2.1 channel music system.

The RS Series amplifiers deliver constant power at all common impedances. Like other models in the AudioControl lineup, RS Series amplifiers offer IP and IR control, as well as loop outputs with an optional high-pass filter.

These features, coupled with the power of AudioControl’s multi-award-winning DSP engine that puts graphic and parametric EQs, crossover, delay and phase control at your fingertips for precise calibration and tuning, make the RS Series amplifiers a definitive choice to power any subwoofer in entertainment systems that demand the very best.

Features:

  • 500 Watts at 8/4/2 Ohms
  • Digital Signal Processing (DSP) Performance
  • Six-band Graphic EQ
  • Eight-band Parametric EQ
  • Crossover with Subsonic Filter
  • Built-In Speaker Optimization Profiles
  • Ethernet Port for Status Monitoring, Source Switching and 12 Volt Trigger Control
  • Network Programmable Graphic & Parametric Equalization with User Memories
  • Digital Signal Sense
  • AudioControl LightDrive Anti-Clipping Speaker Protection
  • Balanced Inputs/Thru
  • Unbalanced Input/Thru
  • LFE Input/Thru
  • Speaker Level Inputs
  • Home and Commercial Installations

Power and Control at your Fingertips:

The RS Series subwoofer amplifiers feature on-board digital signal processing, graphic & parametric equalization, network monitoring and programming, plus the addition of volume control, and EQ presets.

Main:

Main

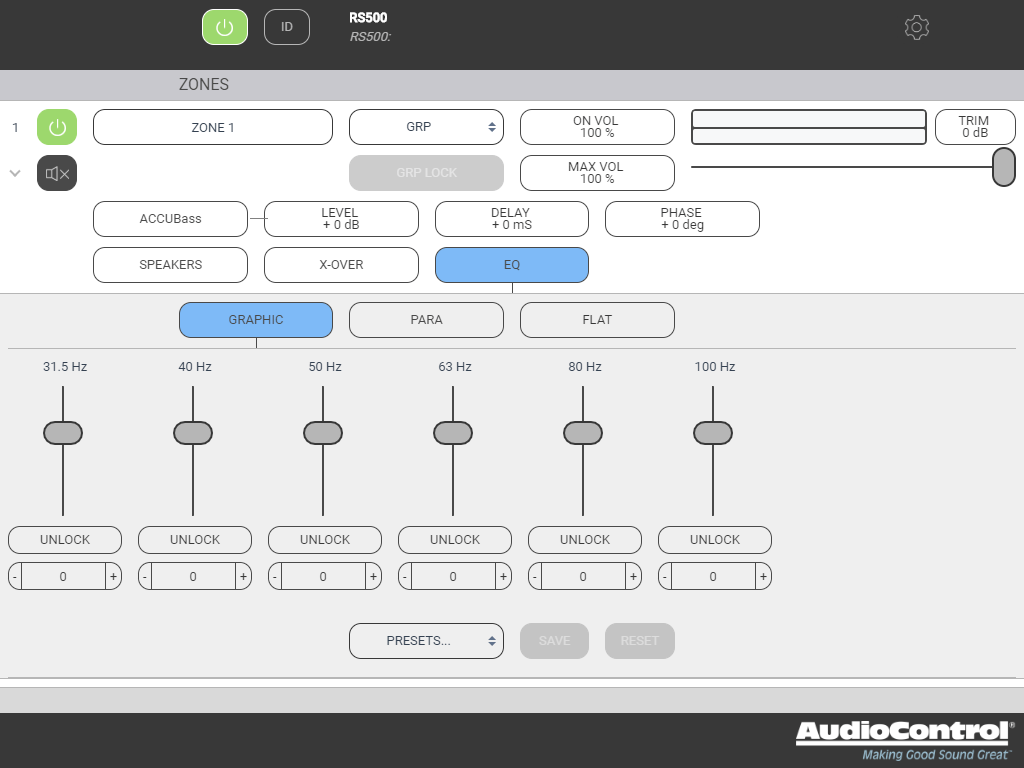

Graphic EQ:

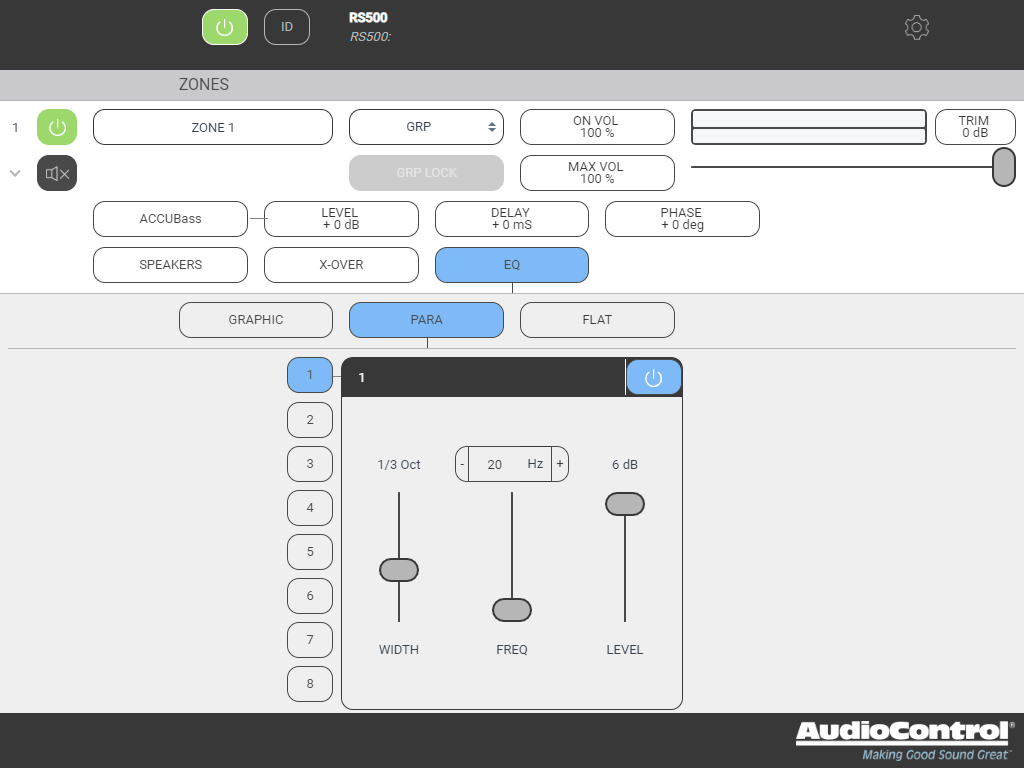

Parametric EQ:

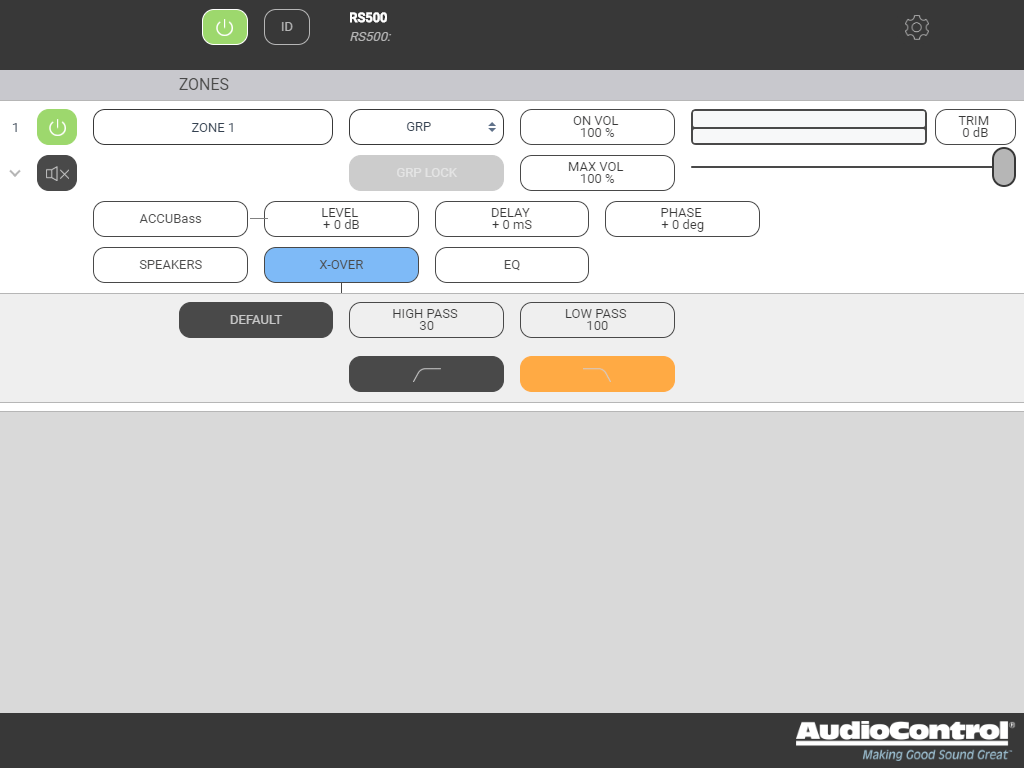

Crossover:

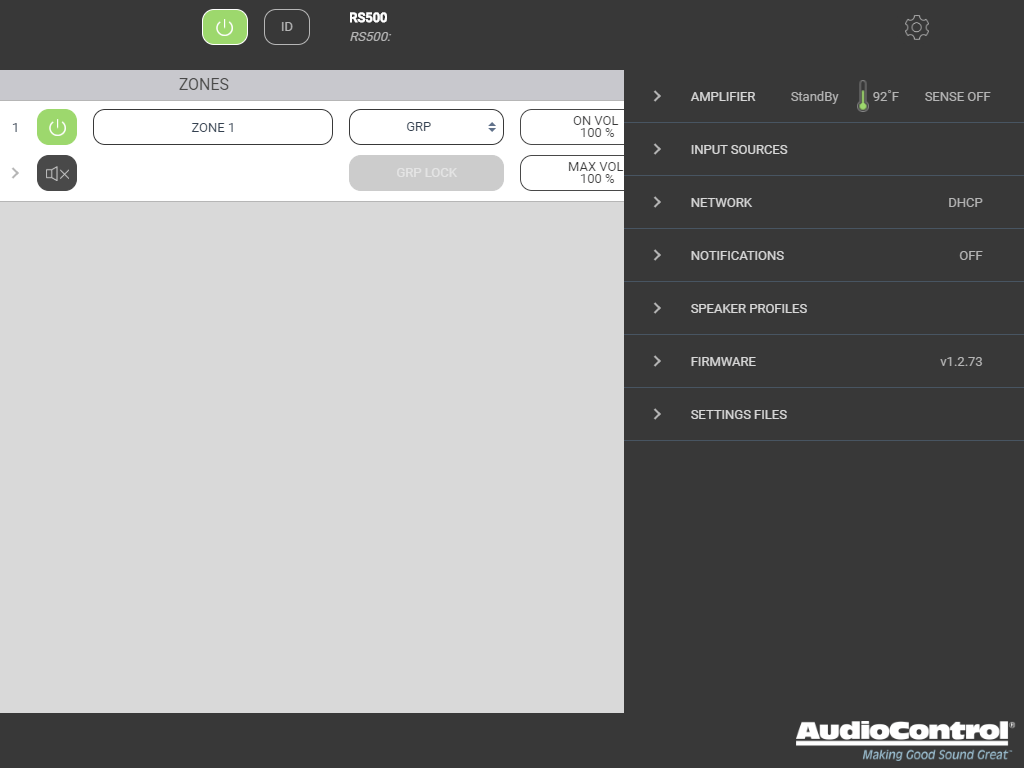

Setup:

speaker optimization profiles

AudioControl has partnered with a growing number of prominent architectural loudspeaker manufacturers to implement speaker performance profiles directly accessible from RS Series onboard DSP. Each speaker manufacturer has provided critical performance data to AudioControl, enabling tailored profiles to be created and stored in software form. Factoring in the individual room acoustics for each home, these speaker profiles achieve an important step in providing the custom integrator the tools to deliver a premium entertainment experience by calibrating systems for their clients.

Specifications:

inputs

  • Audio Inputs: 1 Balanced, 2 Unbalanced, 1 LFE, 2 Speaker Level
  • Nominal sensitivity: 0.5V to 4V (user selectable)
  • Signal to Noise (A-wtd ref full output): 98 dB
  • Frequency Response: 15 Hz – 350 Hz

outputs

  • Amplifier Channels: 1
  • Continuous power output:  500W
  • Minimum Speaker Load: 2Ω
  • Loop/Thru Audio Outputs: 1 Balanced, 2 Unbalanced, 1 LFE
  • Total Harmonic Distortion: 0.1%

control

  • Remote Power Trigger: +12 VDC or Dry Contact Closure
  • Network Connection/Protocol: 10BaseT Ethernet TCP/IP
  • Communication Protocol: HTTP or Telnet
  • 12 Volt Trigger Outputs: 1
  • IR Receiver Inputs: 1

weights & dimensions

  • Dimensions (including terminals and feet): 17”W x 17.5”D x 1.75”H (1U)
  • Weight: 14.9 lbs. (6.8 kg)

in the box: RS 500, power cord, user manual, warranty
