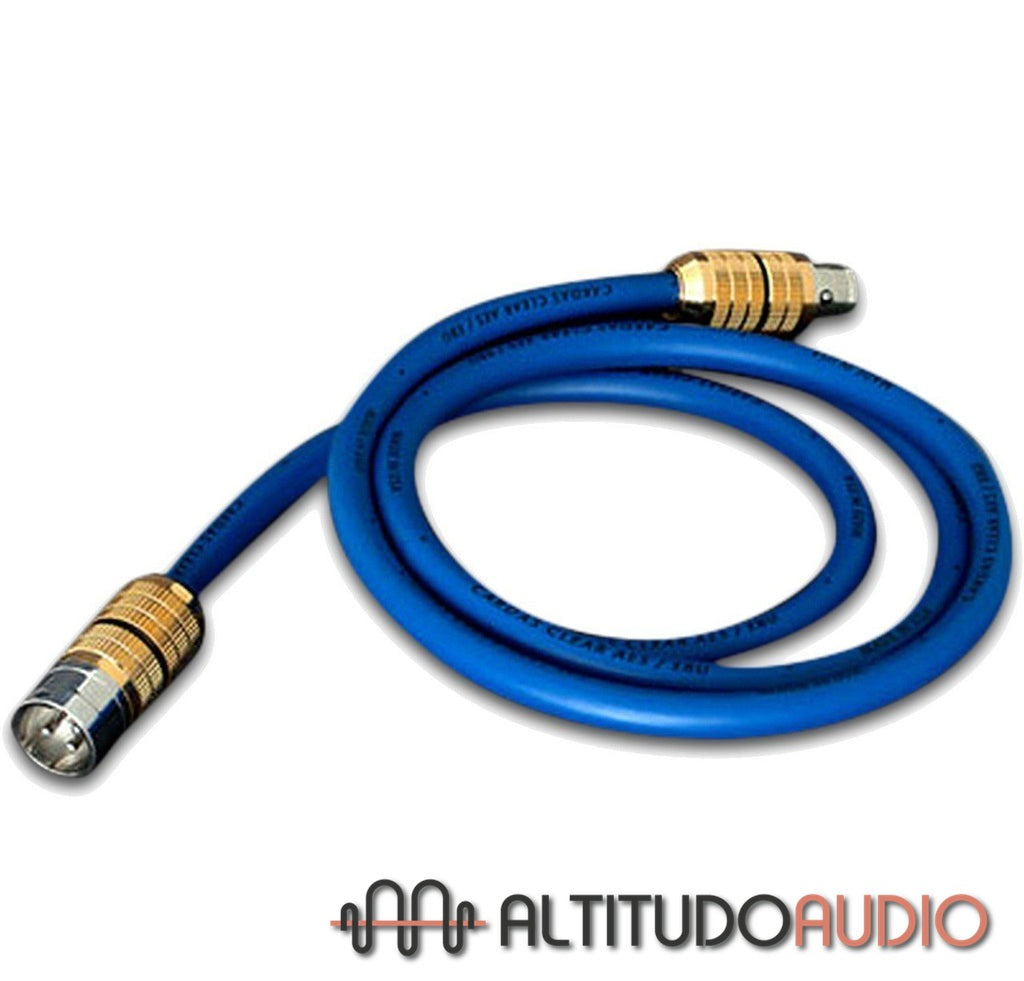

Cardas Clear AES/EBU Digital Cable

Clear AES/EBU
Performance
The use of our Matched Propagation technology in
digital cables has been nothing short of a game changer
for digital audio transmission. More open, more dynamic,
and completely neutral tonal balance. This is a reference
level AES/EBU cable that compromises nothing.

Standard Terminations: Cardas CG XLR’s. Hand terminated in Bandon, Oregon.
Design/Construction
Conductors: Matched Propagation Kevlar core, ultra-fine Grade 1, 99.9999% pure oxygen free copper with SPN clear coat
(Litz), gauge sizes scaled to Golden Ratio proportions and range from 41 AWG to 39 AWG. Cross-field layer geometry,
insulated in ultra-thin extruded PTFE jacket.
Geometry: Equilateral triad 3 conductors with anti-static LDPE air-tubes bound with carbon impregnated PTFE tape wrap.
Specific geometry to achieve the 110-ohm AES/EBU standard. Finished in an ultra-soft extruded TPR jacket.

Gauge: 3x25.5 AWG
Outside Diameter: 0.355”/9.01mm
