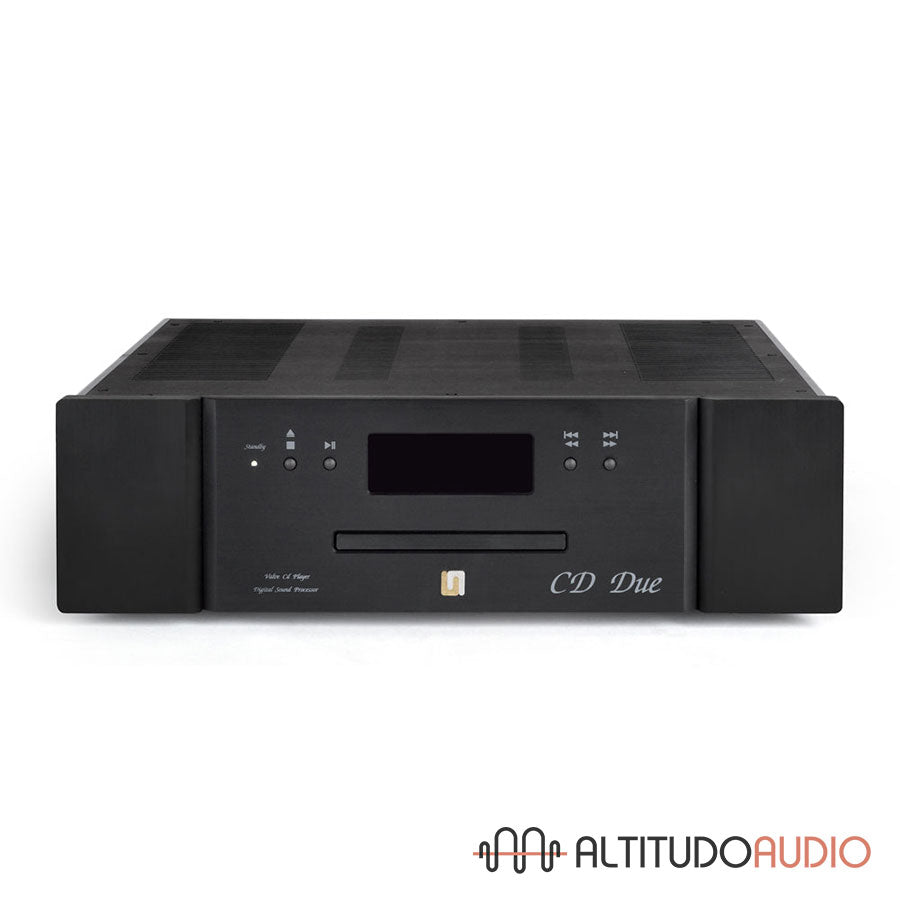

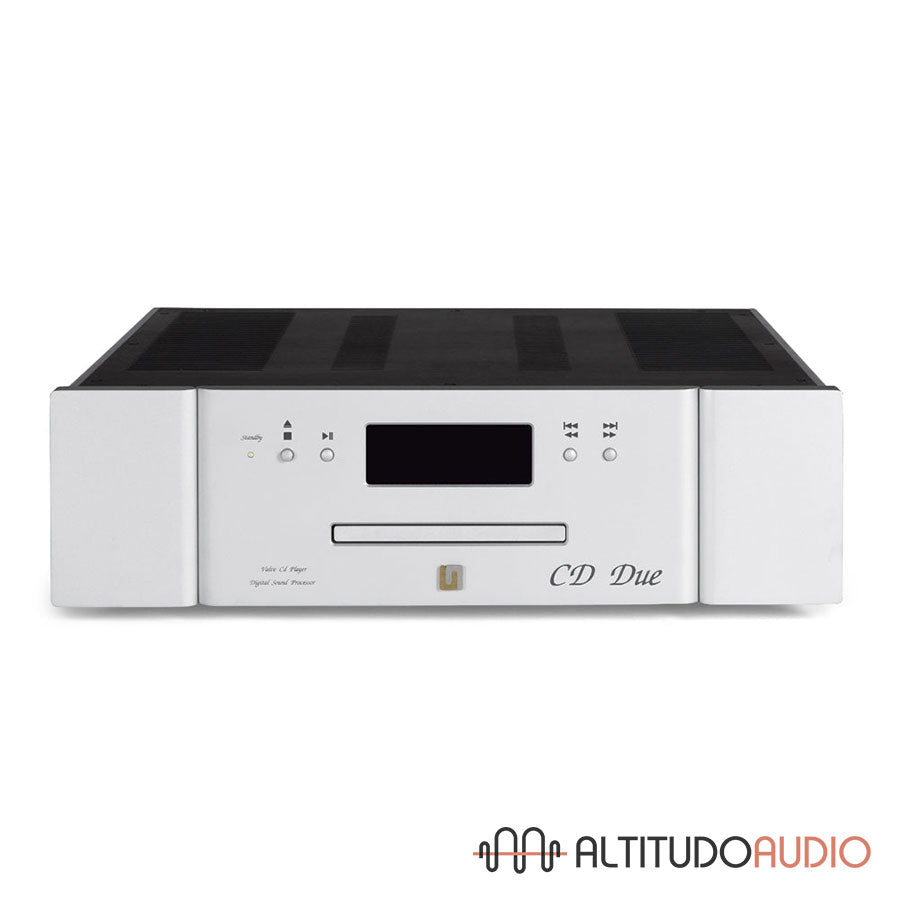

Unison Research Unico CD DUE
Unison Research Unico CD DUE
Unison Research Unico CD DUE
Unison Research

Unison Research Unico CD DUE

Regular price $5,420.00 $0.00 Unit price per

Shipping : FREE in Canada

Available for pre-order

FLAGSHIP CD PLAYER / DAC

State of the art design. The Unico CD Due brings Unison Research right into the popular and versatile digital audio world. Not simply a CD player, the Unico CD Due combines a high-level DAC with a top-end CD mechanism. It’s feature-rich, flexible and customizable to the listener’s preference. A variety of external sources can be connected to the Unico CD Due, including a laptop or computer for playing all known audio formats, including DSD – via USB.

Digital Inputs
1 x USB
Standard: USB 2.0 Audio Class
Sampling Frequencies: 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384, DSD64, DSD128, DSD256 Ready
Resolution: 16 to 32 bits

1 x S/PDIF
Sensitivity: 0.5Vpp on 75 Ohms
Sampling Frequencies: 44.1, 48, 88.2, 96, 176.4, 192, DSD64 (DoP)
Resolution: 16 to 24 bits

1x AES/EBU
Sensitivity: 2Vpp on 110 Ohms
Sampling Frequencies: 44.1, 48, 88.2, 96, 176.4, 192
DSD64 (DoP)
Resolution: 16 to 24 bits

1x Toslink™:
Sampling Frequencies: 44.1, 48, 88.2, 96 (176.4 and DSD64 DoP with high efficiency transmitters)
Resolution: 16 to 24 bits

1 x Bluetooth™ Receiver
Standard: BT 3.0
Profiles: A2DP, SSP (HID supported with Android smartphones through SPP)
Sampling Frequencies: 44.1kHz, 48kHz
Resolution: 16 bits

Digital Output
1 x S/PDIF
Output voltage: 0.5Vpp on 75 Ohms

1 x AES/EBU
Output voltage: 2Vpp on 110 Ohms

1 x Toslink™

Transport
8829CD-KHM DVD-Loader , Only audio CD

Display
128 X 64 White OLED graphic display, (can be turned off)

Digital to Analog stage
DAC: ESS Sabre ES9018K2M with jitter eliminator
SNR: 125dB (0dBFS, 1kHz, 192kHz, “A” weighted)
THD+N: 0.0003% (0dBFS, 1kHZ, 20Hz-20kHZ)
Timing: low phase noise, high precision crystal
oscillators

IV converter:
AD8597/AD8599 ultra-low distortion, ultra-low noise, use high-quality components like Wima capacitor and Vishay resistor

Audio Output Stage:
channels: 2
Output stage: Double Triode, pure class-A, differential Totem-pole
Valve complement: 4 x ECC83 (12AX7)

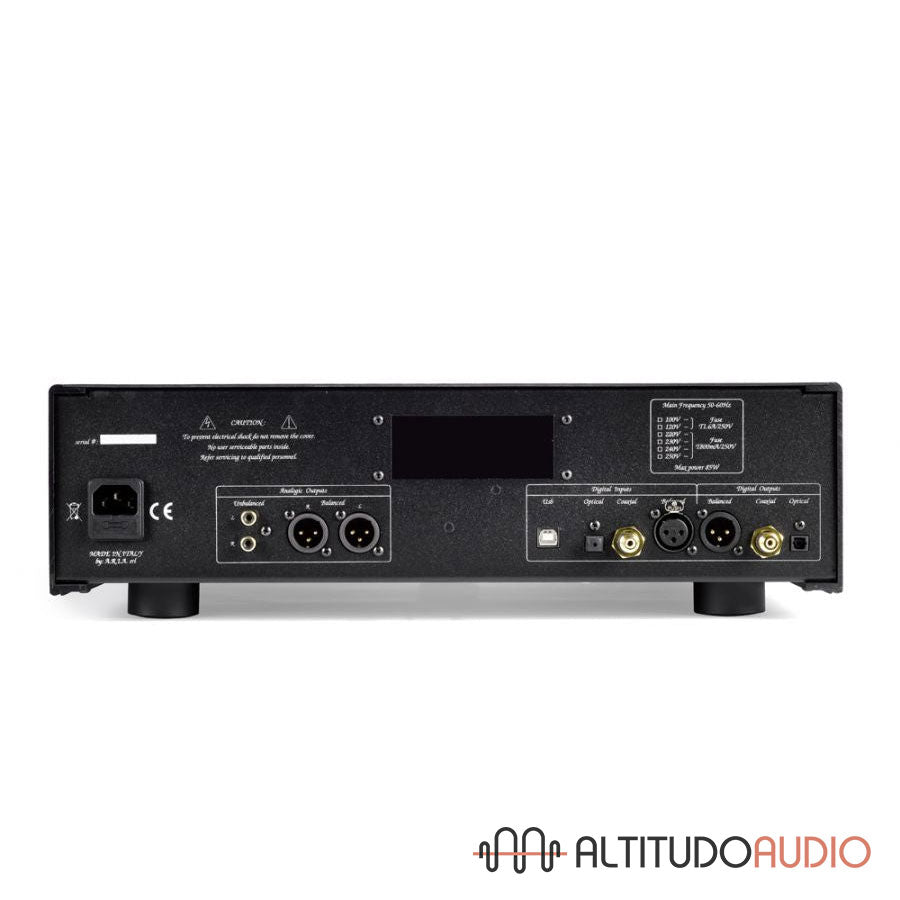

Output audio connectors: 1 x RCA stereo, 1 x XLR stereo
Optional buffer: AD8597/AD8599 output buffer can be activated
by remote control normally bypassed by relay


General Specification:
Remote control: 1 x Infrared in wood and metal
Disc Formats: CD Audio
Power consumption: 100W max

      Dimensions: 17.7 w x 16.0 d x 5.1 h in.
      Weight: 22 lbs.
      Warranty: 2 yrs. limited electronics, tubes: 30 days
