German Physiks

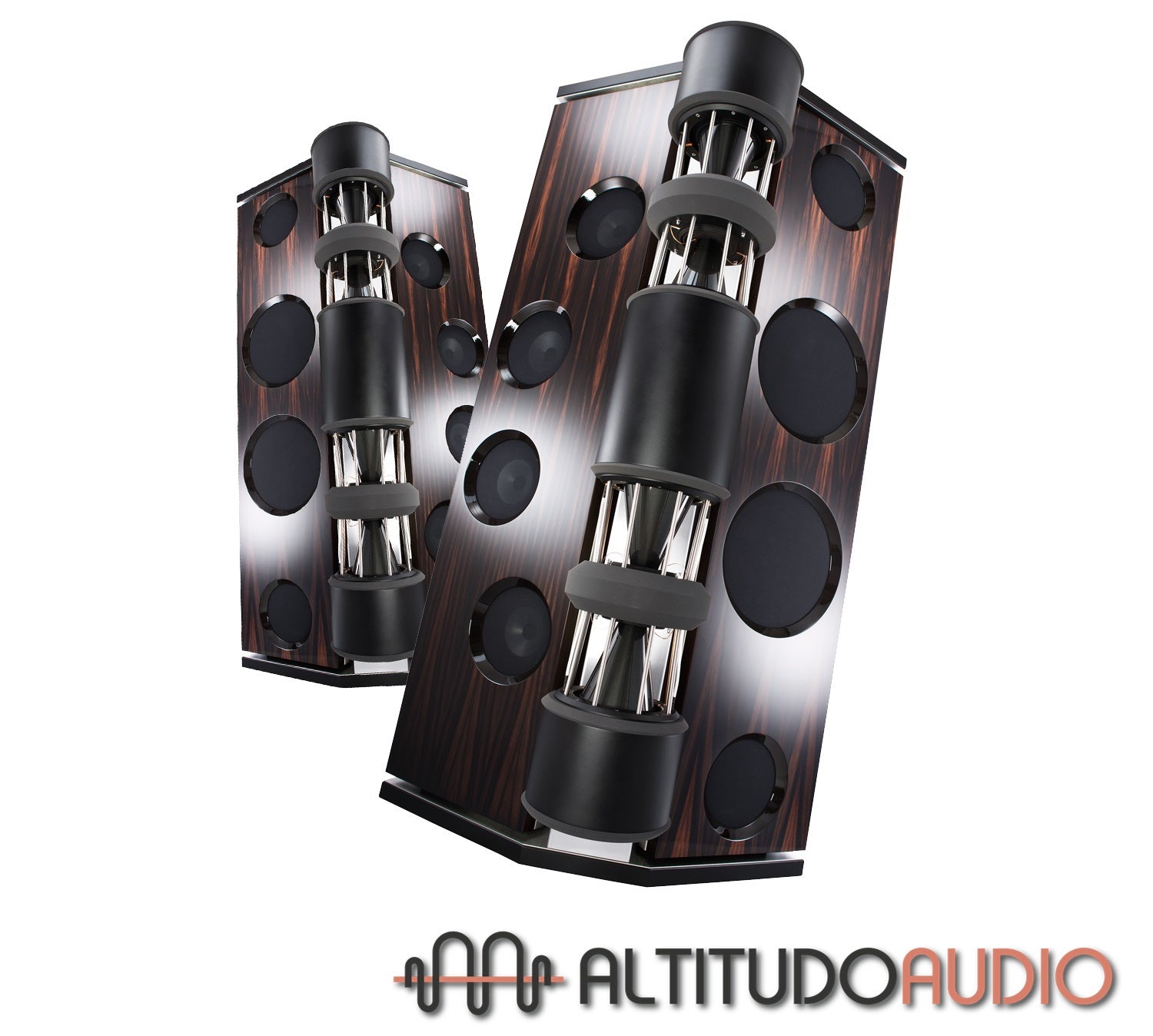

The Emperor MK II Omnidirectional Loudspeaker

Regular price $377,000.00 $0.00 Unit price per

Shipping : FREE in Canada

Note 1: Assembly & set-up by a German Physiks engineer service available. Price on request.
Note 2: Includes German Physiks Emperor Extreme electronic crossover.

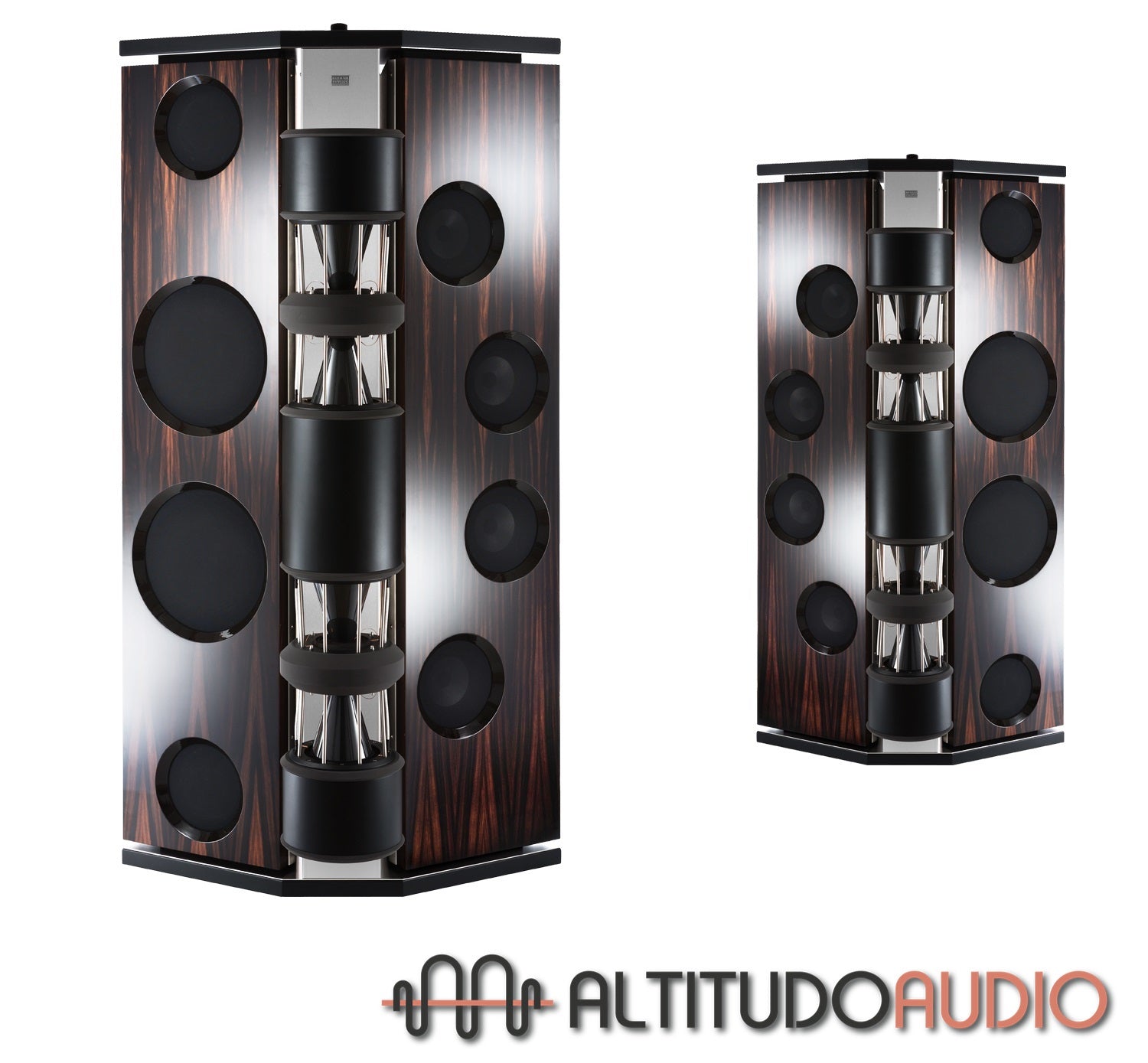

The Emperor MK II is based on our flagship Gaudi design. It uses the Gaudi’s moveable four DDD driver array, combined with two 12-inch woofers and four 6-inch long-throw sub-woofers. It is supplied with the new German Physiks Emperor Extreme digital crossover to allow it to be tri-amped, enabling the full potential of this outstanding design to be realized. It provides exceptional detail with live-music like dynamics and sound levels, thereby bringing the listener closer to the reality of a live performance.


The Emperor MK II allows music lovers to enjoy Gaudi levels of performance in rooms that would not accommodate its bigger stable-mate

Although physically smaller than the Gaudi, the Emperor MK II is still a big loudspeaker, with all the advantages that brings. Its massive bass system produces well-controlled and clean bass all the way down to 18Hz, but is agile enough to integrate perfectly with the speed of the DDD drivers. The coherence of the DDD drivers allows the Emperor to generate very detailed and life like stereo images. This, combined with the ability to produce “live music” like dynamics and sound levels (up to 117dB), enables the Emperor to reproduce the emotion and immediacy of the music and so create a very strong impression that you are listening to real musicians, rather than a hi-fi system.

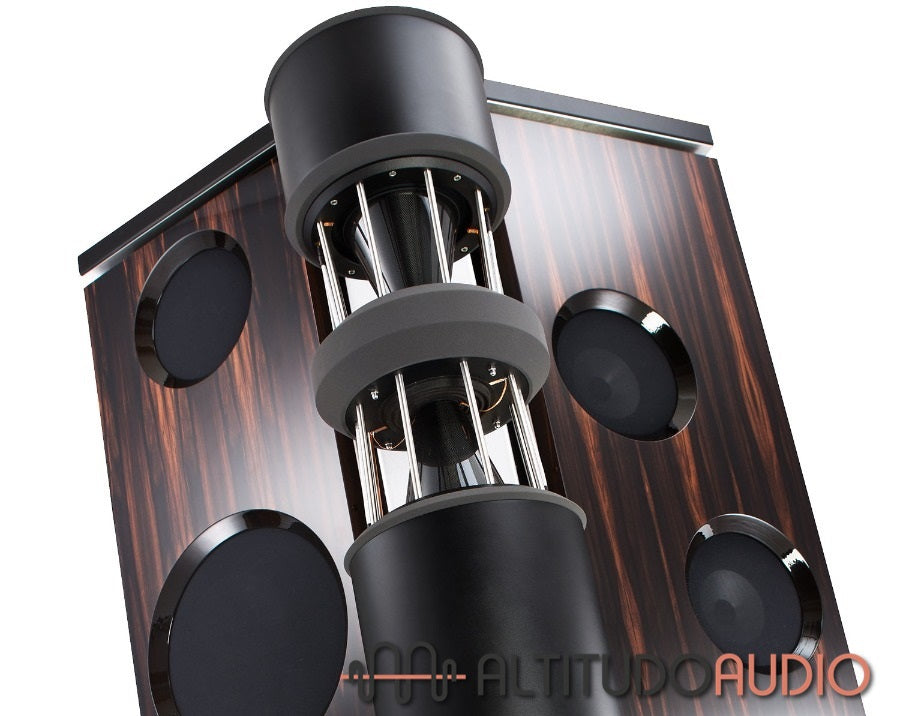

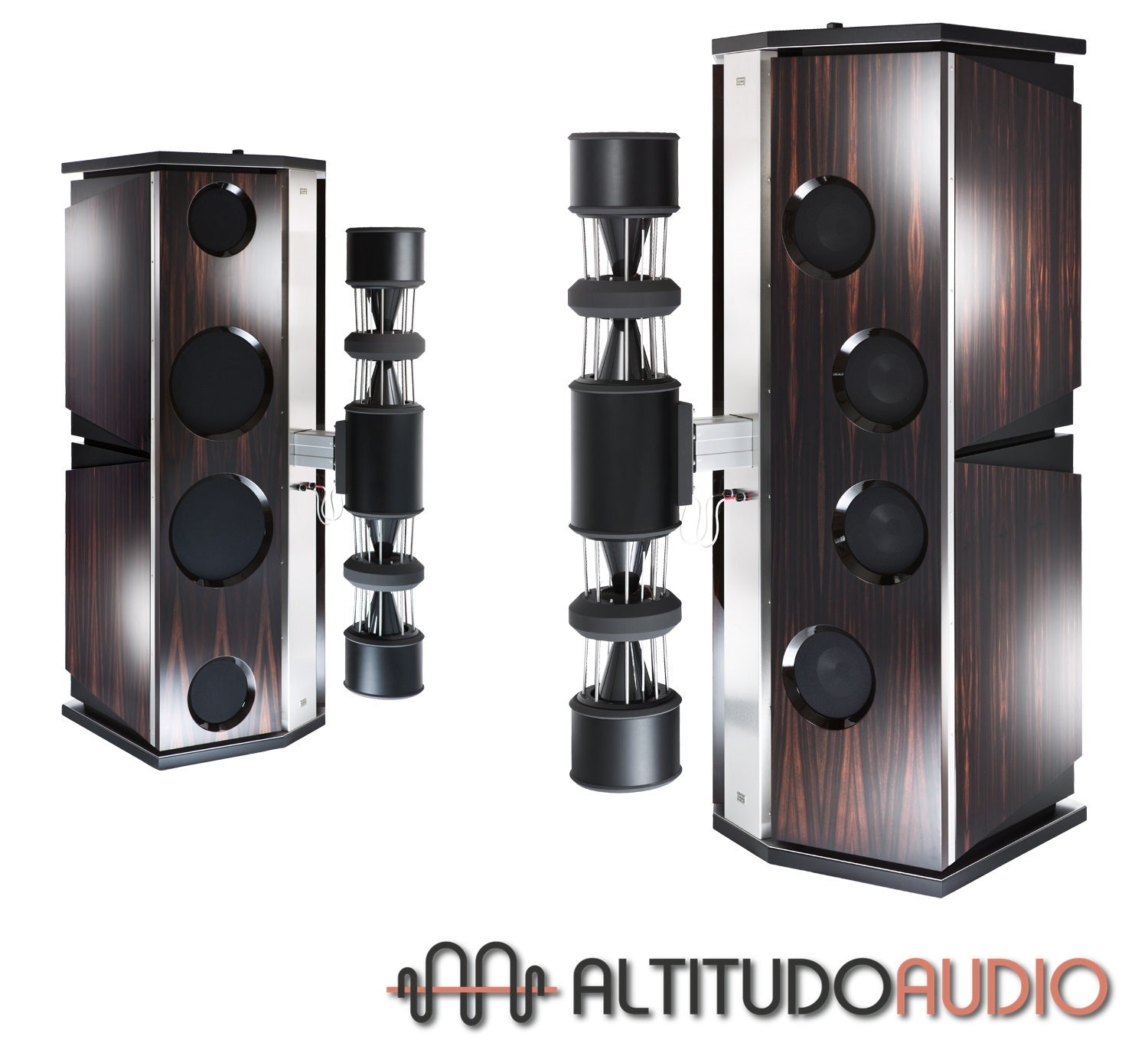

User Adjustable DDD Driver Array

The Emperor uses the same four DDD driver array as the Gaudi. This is mounted on a telescopic arm, which is driven by linear actuators, enabling it to be precisely positioned in relation to listener, making the set-up process quicker and easier.

Powerful Bass System

Like the Gaudi, the Emperor uses four large independent bass enclosures. These are mounted two either side of the main support and are held together by an interlocking collar arrangement. This greatly reduces resonances and also makes the columns more difficult to topple. The enclosures on one side each house a 12-inch sub-woofer and cover the range from 70Hz to 18Hz. The enclosures on the other side each house two 6-inch metal cone drivers and cover the range from 180Hz to 70Hz. The bass they provide has the ideal balance of speed and weight to seamlessly merge with the DDD drivers and also ensure that there is no smearing of the music’s timing or pace.

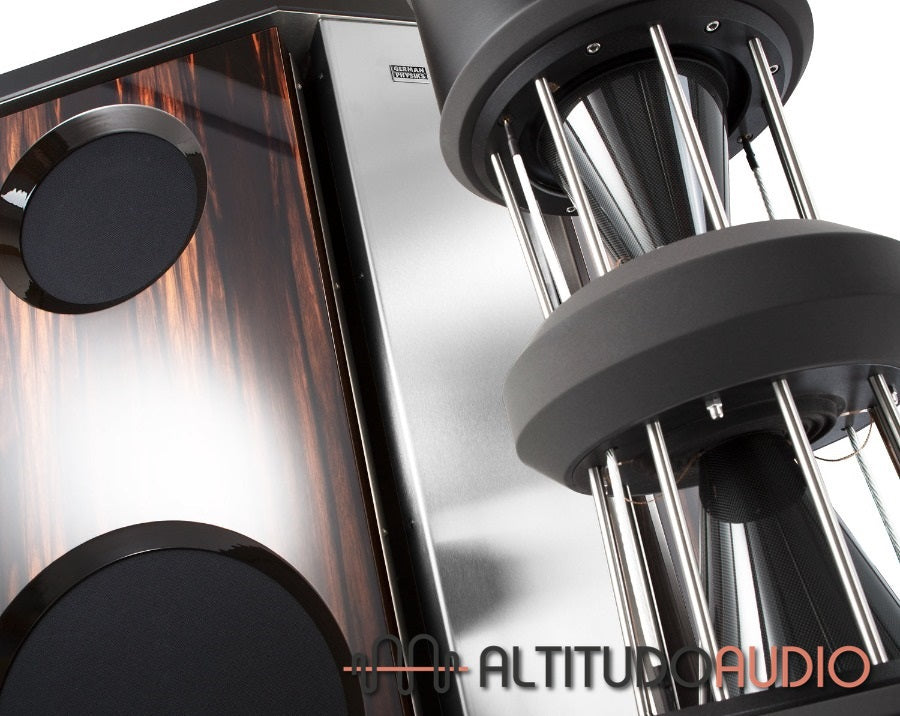

The heart of all German Physiks loudspeakers is the unique omnidirectional DDD driver

The German Physiks DDD driver uses a cone made of extremely thin (0.15mm) carbon fibre. This is very light, but also very rigid. Each driver is hand-built by a skilled technician in our factory in Germany. This is a painstaking process that takes 6 hours. After assembly, each driver undergoes a series of rigorous tests. It is then subject to a 96 hour pre-aging process, playing specially selected music at high level. Finally, it is retested and put together with another driver to form a  matched pair.

The DDD driver has two key distinguishing features

1. It is omnidirectional, meaning that it radiates the sound evenly around it.
2. It has an exceptionally wide operating range. In the Emperor MK II it covers the range from 180Hz up to 24kHz – over 7 octaves.

This extremely wide range is achieved by the use of 3 modes of radiation

Pistonic radiation
Bending wave radiation
Modal radiation

By comparison, most loudspeakers use drivers that only use pistonic radiation. These have a much narrower operating range and as the frequency rises, they tend to concentrate their energy into a progressively narrowing beam.

Low Resonance Cabinet Design Enhances Transparency

To realise the full potential of this loudspeaker, considerable effort has been put into creating a highly rigid structure in order to minimise the radiation of sound energy through the cabinet panels. The colouration this causes is one of the principle causes of degradation of a loudspeaker’s ability to resolve fine detail and thereby produce a sense of realism, as it smears and generally confuses the sound.

The Emperor MK II’s DDD drivers solve this problem by having very small enclosures, minimising the area of any potential vibrating surface.  By being cylindrical, they eliminate the resonances that can arise with a conventional rectangular or square section cabinet. Because they are made from aluminium, a comparatively soft metal, residual vibration of the enclosure is minimised. The DDD driver enclosure end-caps are made from non-resonant MDF and the enclosure is packed with damping material to dissipate any standing waves.  The result is that the German Physiks Emperor MK II has the clarity that we normally associate with electrostatic loudspeakers and for the same reason:  the DDD drivers essentially have no enclosure to colour the sound.

The bass system covers the range from 180Hz downwards.  This is divided into four independent cabinets, so the panels are smaller and therefore stiffer and more vibration resistant than if a single large enclosure had been used.  All the cabinet vertical surfaces are non-parallel to prevent the formation of standing waves between them.  Internal bracing increases rigidity to suppress resonances.  Residual vibration is minimised by applying a special damping material called Hawaphon®, to the inside surface of each panel.

Hawaphon®, consists of a polymer sheet containing a matrix of small cells filled with fine steel shot. It adds mass to the panels to reduce the resonant frequency and the ability of the balls in each cell to move against each other provides a very effective way of converting vibration energy into heat. Originally developed as an anti-surveillance measure for use in military and government buildings, Hawaphon® achieves broadband attenuation of structure-borne sound of more than 50dB, which is an exceptionally high figure.

To damp resonances of the air within the cabinet, the whole of the interior is lined with a 1cm thick layer of high-density felt.  This is achieved by fitting pieces of felt that are precisely cut to fit each panel, rather than just inserting a roll of felt into the cabinet.  This is a time consuming process, but we believe produces a superior result and is typical of the attention to detail that we lavish on all of our products.

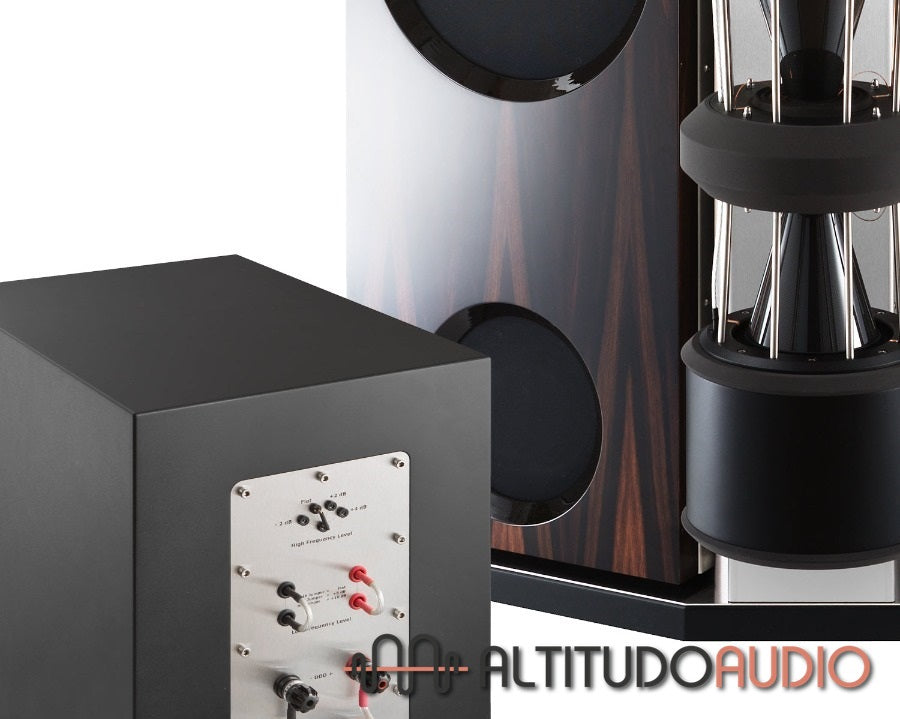

High quality German Physiks Emperor Extreme digital electronic crossover

The Emperor MK II is now supplied with the new German Physiks Emperor Extreme digital electronic crossover. This is a high quality unit constructed using premium components and it is housed in a precision machined steel and aluminium chassis. It allows for active tri-amp operation of the Emperor. This is where three separate power amplifiers drive each loudspeaker. Each amplifier is connected directly to its driver section, as a passive crossover is no longer needed. This gives much better damping and control of the drivers and also provides a noticeable improvement in transparency. The table below shows the recommended amplifier rating for each section of the loudspeaker.

Section Minimum Power
DDD drivers 200W/4 ohms
Woofers 200W/4 ohms
Sub-woofer 250W/4 ohms


Implementing the crossover function in the digital domain provides the following advantages over a conventional passive crossover

1. The crossover filter characteristics can be much more accurately defined.

2. The possibility of a difficult low frequency load that can occur with some passive crossover designs and which can cause some amplifiers to clip is eliminated. Needless to say the passive crossovers in German Physiks loudspeakers are well behaved in this respect.

3. It eliminates the changes in crossover characteristic that can occur with a passive crossover if the loudspeaker is played at high levels for long periods and the component values drift due to heating.

4. The resistive elements in a passive crossover that dissipate power are eliminated, increasing efficiency.

Easy to use

The crossover is preconfigured at the factory allowing the customer to use it straight away, without needing to make any further adjustments. The customer can manually adjust the settings if they wish.

The system allows a number of crossover set-ups to be stored and quickly recalled. This makes it easy to experiment with new settings, safe in the knowledge that the original settings can easily be restored.

For a big loudspeaker the Emperor Mk II is surprisingly easy to move and set-up

Easy to Move

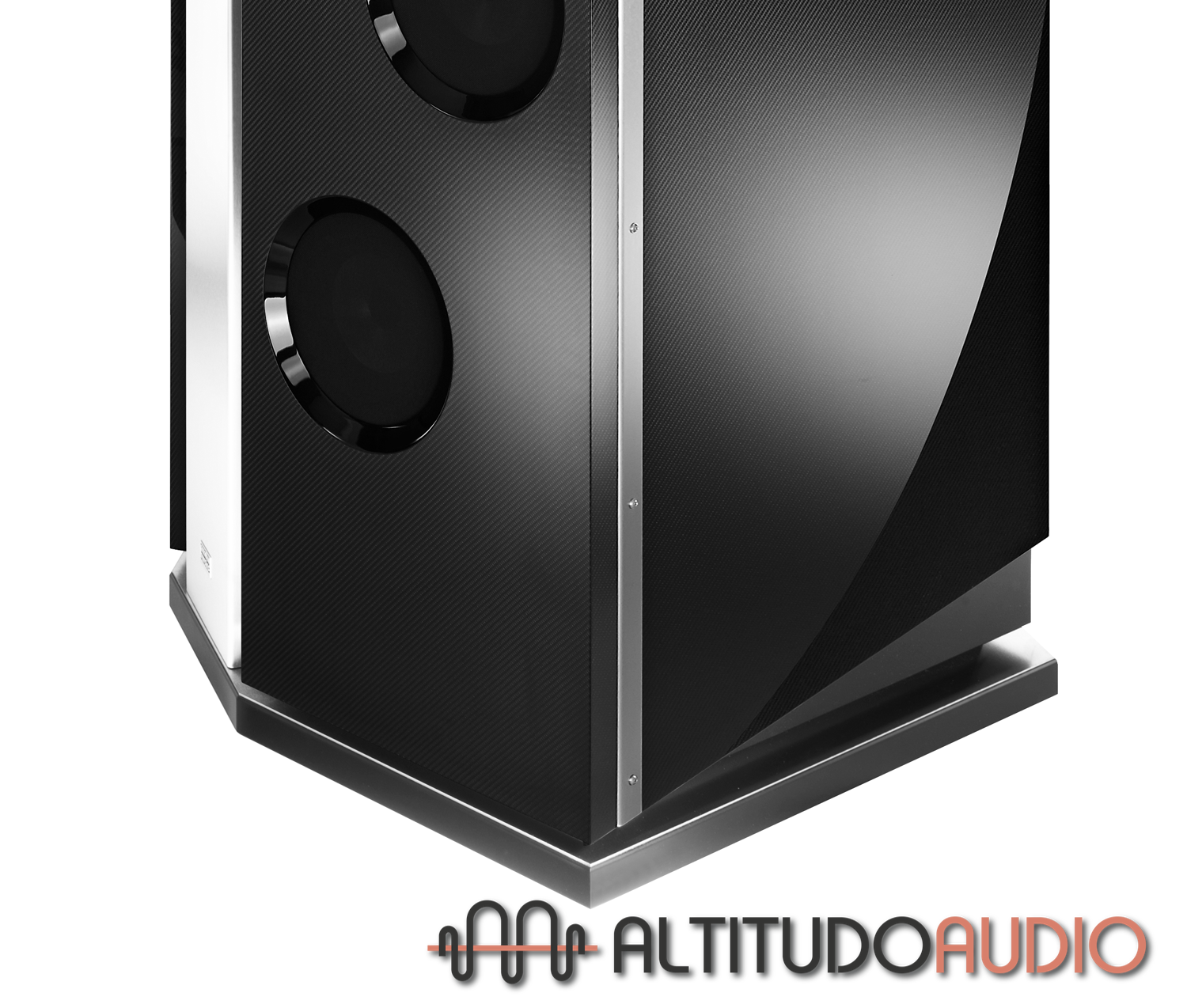

A common problem with very large loudspeakers is that their heavy weight makes them hard to move and therefore it becomes difficult to find the perfect setting position. The Emperor MK II can be ordered with 15 ball-type casters fitted in the base plate, allowing it to be easily moved. Each caster consists of a precision-formed nylon ball, set in a steel housing. These are fixed into deep recesses in the base plate, making them invisible once the loudspeaker has been assembled. The heavy weight of the Emperor MK II – 425kg – ensures that the casters provide a stable platform for the loudspeaker.

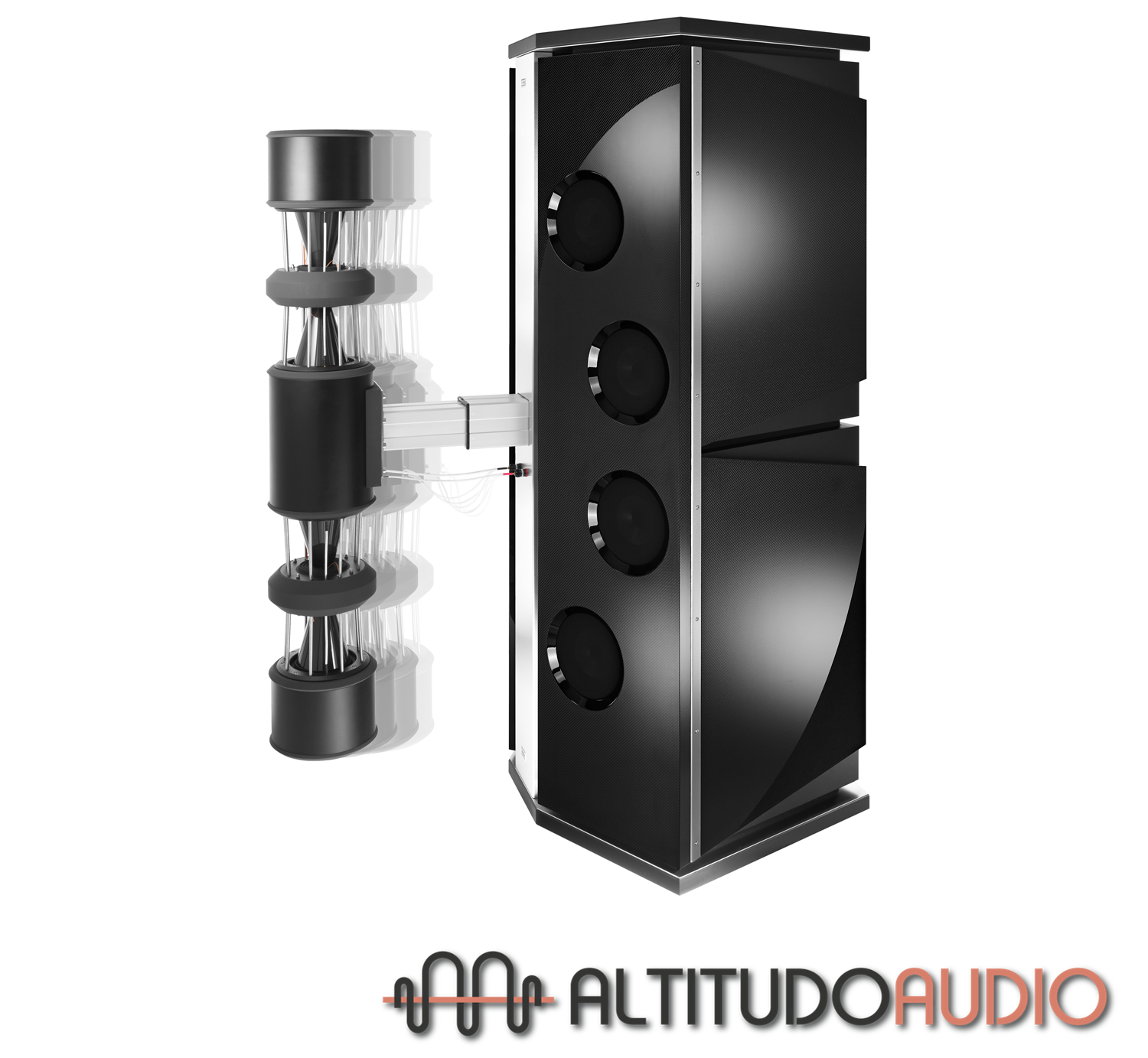

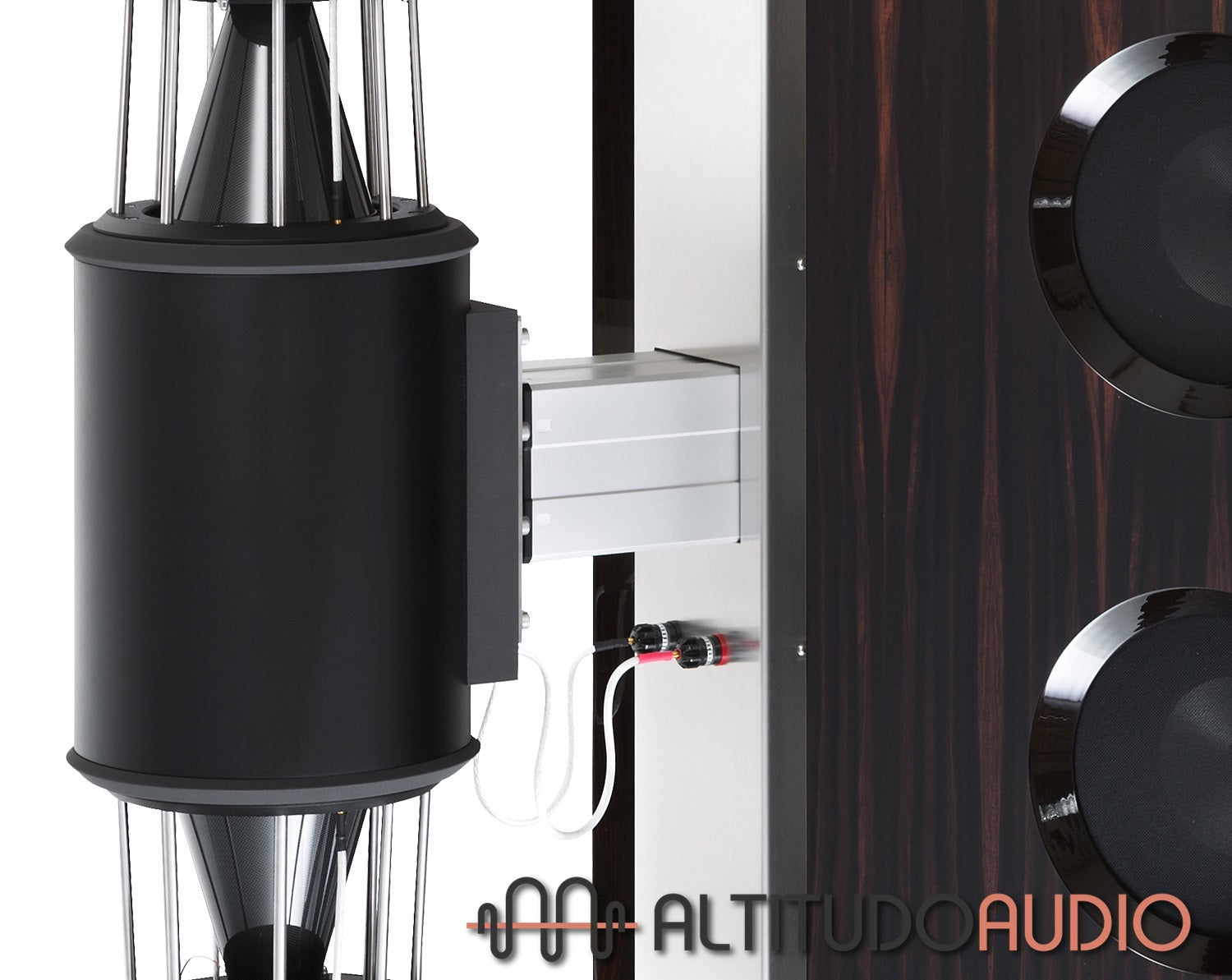

Adjustable DDD Driver Array

Fine-tuning of the loudspeaker’s position is achieved by adjusting the distance of the DDD drivers from the listening chair. This is very easy and does not involve having to move the whole loudspeaker. The DDD drivers are mounted on an extendable motorised beam, which may be commanded to move back and forth from the comfort of the listening chair using a wireless remote control, which is provided. This is shown in the animation below. As the DDD drivers are producing everything from 24,000Hz down to 180Hz (and in fact slightly beyond these limits as these are the 0dB points), what you are able to do is effectively the same as being able to move the whole loudspeaker back and forth by remote control. How different positions of the DDD drivers affect the sound are quickly and easily audible. Besides our Gaudi model, no other loudspeaker in the world offers this degree of flexibility.

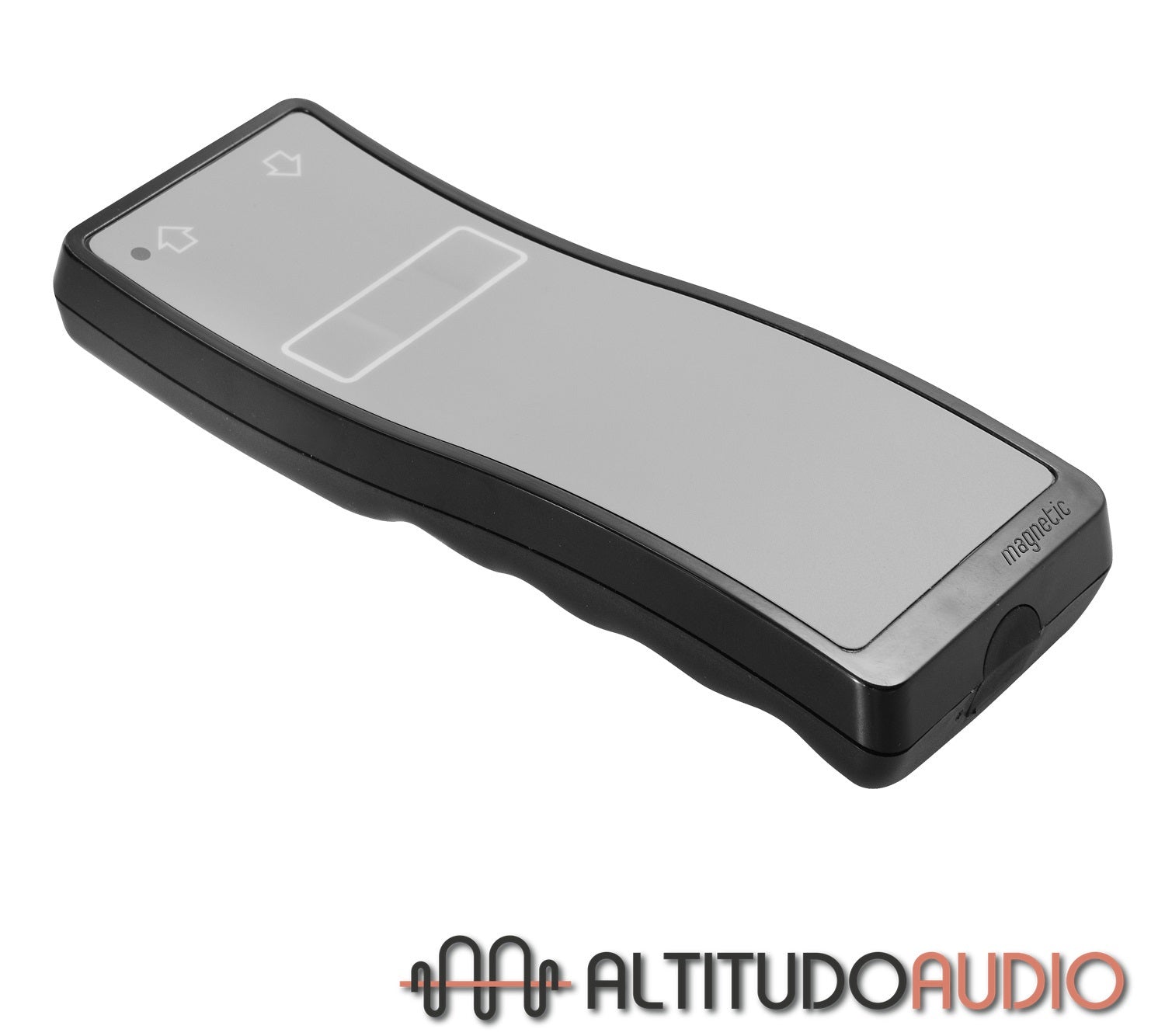

Wireless Remote Control

The wireless remote control supplied does not depend on conventional batteries for its operation. Instead, a miniature electric generator inside the remote control produces electricity every time the remote is handled and this is stored in an internal rechargeable battery.  This means that the customer less likely to be inconvenienced by the remote control’s batteries being flat.

Expert Set Up Service

For customers who want the ultimate level of set-up, for an extra fee, an engineer from German Physiks will visit the customer’s home to unpack, assemble and set-up the loudspeakers. This is not available in all territories.

Designed for a Lifetime of Listening Pleasure

As you would expect from a German product, the quality of construction and reliability are first class. We design for a minimum life expectancy of 25 years, which is why we have selected highly corrosion resistant V4 grade stainless steel for the DDD driver support pillars, terminal mounting plates and all the screws.

To ensure the long term stability of the bass cabinets, a veneer layer is applied to the inside surfaces. This equalises any stress that might be generated by the outer veneer due to changes in humidity and which could otherwise cause panels to warp.

Meticulous care and attention is paid during the manufacture of the Emperor MK II. Prior to assembly all components and materials are subject to a rigorous inspection. We also carry out detailed inspections at each stage of the manufacturing process. After assembly, the performance of the loudspeaker is measured. Then it is burnt in for at least 12 hours and measured again.  Once the burn process is complete each loudspeaker is given a final detailed physical inspection before being packed.

Product Finishes

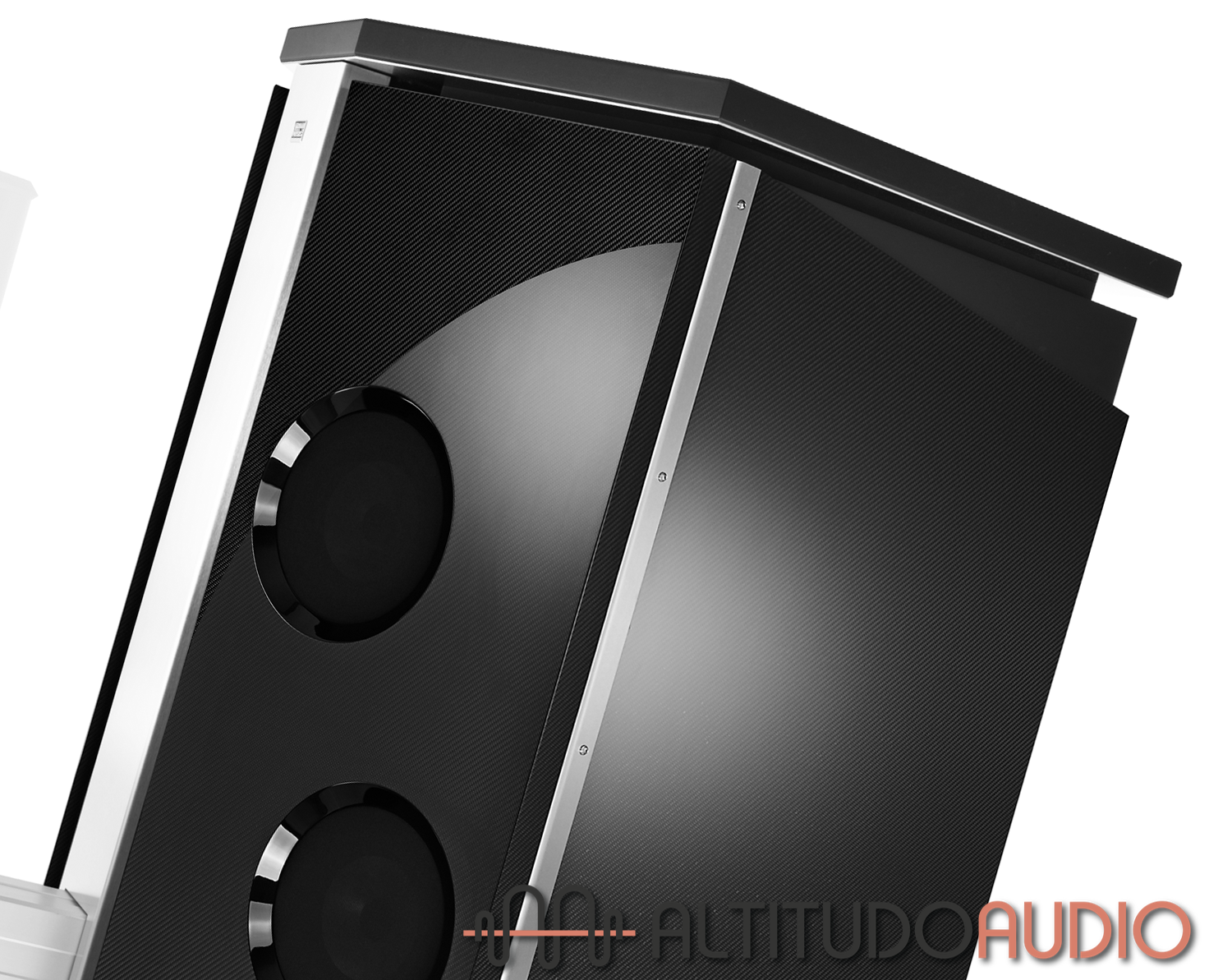

The Emperor MK II loudspeaker is available in black or white high-polish polyester; a wide range of high quality veneers in both satin and high gloss lacquer; satin and high gloss automotive paint finishes and carbon fibre.

Hand Finished For Ultimate Quality

Each set of Emperor MK II cabinets is custom made to the specific requirements of the individual customer. They are hand built and finished in Germany by skilled cabinet makers for the best possible furniture grade finish. Great care and attention is paid from the start of the process, where we go to great lengths to source the highest quality matching veneers, though to the final finishing stages when we apply the lacquer layers, allowing each one as long as is needed to fully harden before it is hand polished and the next layer applied. Rushing this stage can result in problems emerging after the loudspeaker has been with the customer for some time.

Polyester Black*Polyester White*Carbon Fibre*

  Polyester Black            Polyester White              Carbon Fibre

Pappel Burl*American Cherry***Bubinga Cognac***

     Pappel Burl               American Cherry          Bubinga Cognac

Bubinga Pommele*Pappel Cluster Cognac*European Walnut**

Bubinga Pommele     Pappel Cluster Cognac    European Walnut

Macassar Ebony***Macassar***Bubinga***

   Macassar Ebony              Macassar                     Bubinga

Walnut Burl*Walnut Cluster*

     Walnut Burl                Walnut Cluster

Product Specifications

4 ohms

Frequency response
18 - 24,000Hz

Power handling
Short term 1,550W

Amplification required
with active crossover

3 power amplifiers per channel
DDD section minimum power 200W/4ohms
Woofer section minimum power 200W/4 ohms
Sub-woofer section minimum power 250W/4ohms

Crossover frequencies
180Hz & 70Hz

88.8dB for 1W at 1m

Maximum output level

Operating principle
3-way loudspeaker with 360° radiation
using the DDD drive

4 x carbon fibre DDD drivers
2 x 12-inch sub-woofers
4 x 6-inch woofers

1010mm (W) x 1960mm (H) x 810mm (D)  - excl motor & DDD
39.8" (W) x 77.2" (H) x 31.9" (D) - excl motor & DDD

Approx 425kg each
Approx 935lbs each

5 years

As part of our process of continually improving our products, we reserve the right to change specifications without notice
Note 1: Assembly & set-up by a German Physiks engineer service available. Price on request.
Note 2: Includes German Physiks Emperor Extreme electronic crossover.
