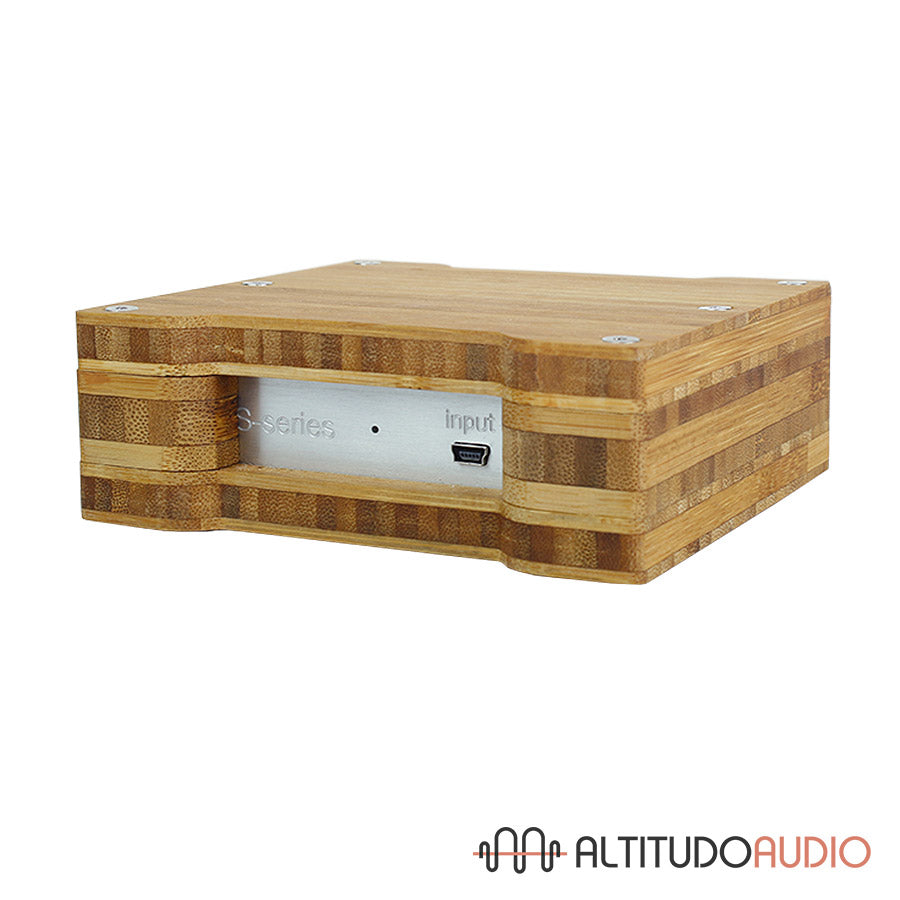

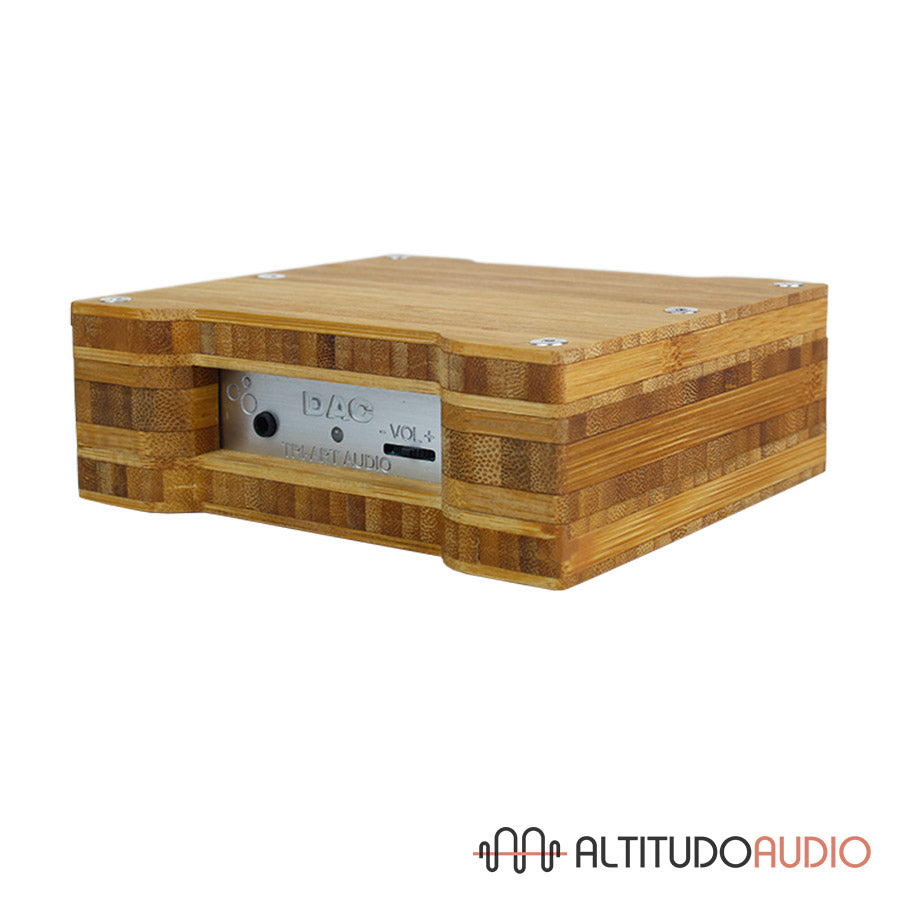

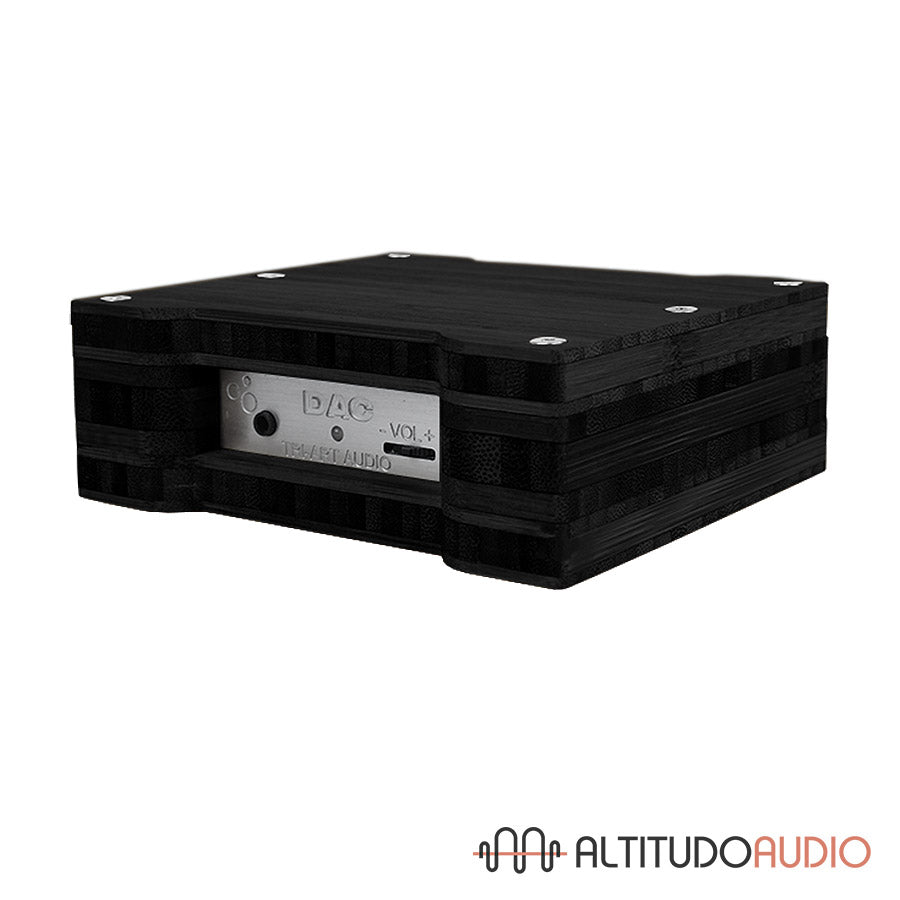

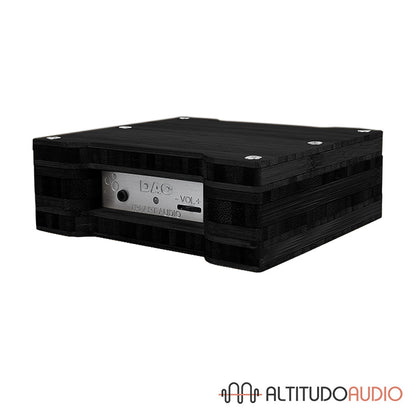

Tri-Art S-Series Dac 2

DAC Specs

Details: DigitalVolume Control Allows the S-series DAC 2 to function as a Preamp, and Headphone Amp. Features Plug and Play Functionality

HighPower Output: 350mW Each Channel
4Digital Filter Settings: Refer to Use & Guidelines
Input: MiniUSB 2.0
Output: MiniStereo Headphone Jack

Specifications:


 SavitechSA9037 USB Audio Processor
AKMAK4490 High Performance DAC
TITPA6120A Dual Channel High Power Amplifier
USBAudio Class 1.0 24 Bit/96KHz
HighVoltage Output at 4.88 Vrms Line Output
HighPower Output at 2 x 350mW Low Impedance Output
0.5 dB/Step Digital Attenuation

Manual(English)
