Trilogy

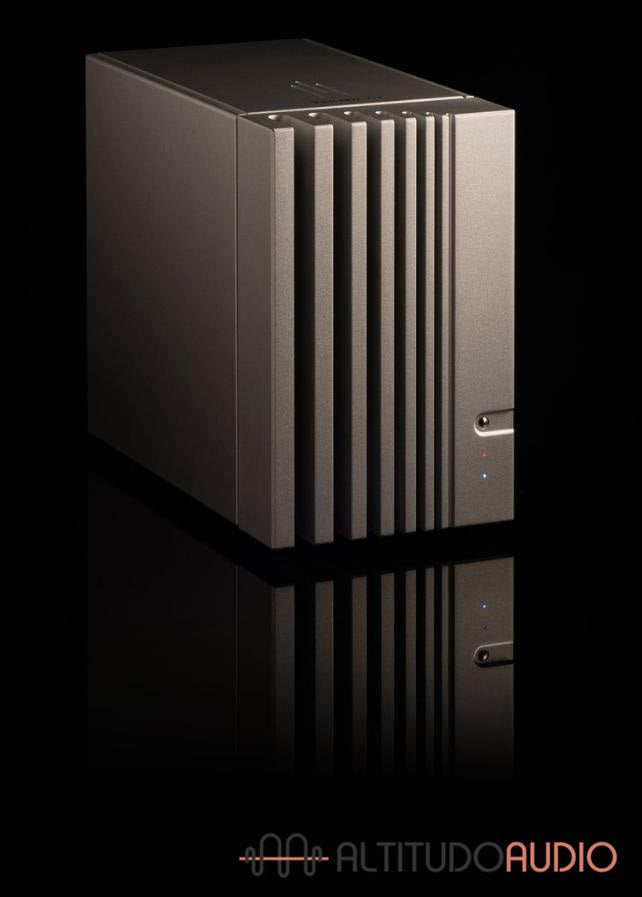

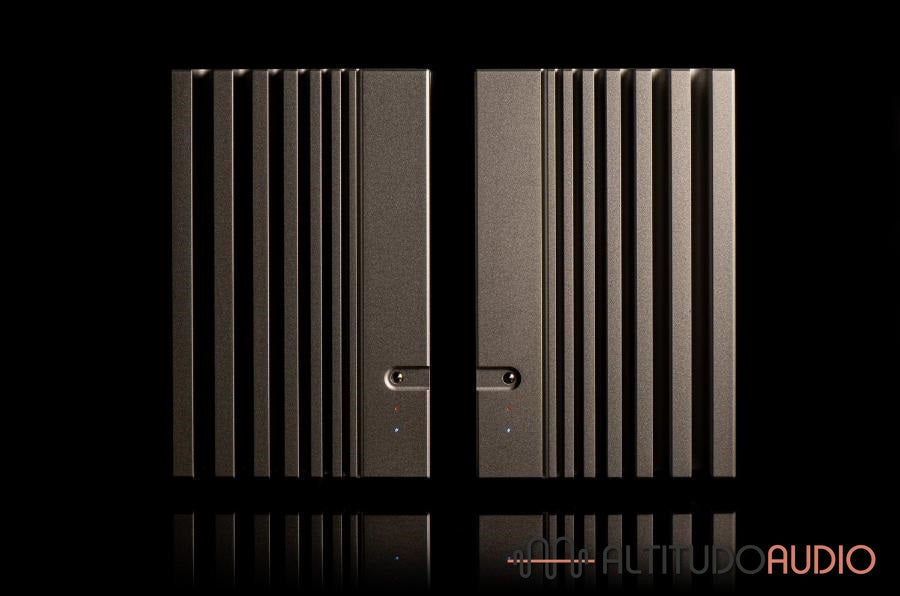

994 - Mono Hybrid Power Amplifier (Each)
Regular price
$16,000.00
Shipping : FREE in Canada
A zero negative feedback hybrid design, the 994 embodies much of the attributes of our highly acclaimed 995R mono amplifiers but in a smaller and equally distinct sculpted form.
Offering the listener 140W into 8 Ohms and significantly more into lower impedances, the 994 is eminently capable.
Again using the 6H6П in a grounded grid configuration driving Trilogy’s unique generous compound output stage.
As with the 995R, the 994 offers the ability to be operated in Class AB, Class A or ecoA modes.
Of course, a massive choke input power supply as one would expect.
Yet another Trilogy statement piece of form and function from the mind of Nic Poulson - made reality.
|
Specifications
|
|
| Size | 190*365*312 (W*D*H) |
| Size including connectors | 190*400*312 (W*D*H) |
| Weight | 25 Kg per unit |
| Standby Power Consumption | < below 1 Watt |
| Maximum Power consumption | 600 Watts |
| Inputs (single ended) | 1 RCA phono socket |
| Input impedance | 200K Ohms |
| Gain (single ended) | 31dB |
| Input sensitivity (single ended) | 1.1V RMS for Rated output |
| Rated Power Class AB Mode | 140 Watts into 8 Ohms /200 Watts into 4 Ohms |
| Rated Class A power (Class A Mode) | 20 Watts into 8 Ohms |
| Actual usable power (Class A Mode) | 30 Watts into 8 Ohms / 55 Watts into 4 Ohms |
| Recommended load impedance | 2-16 Ohms |
| Frequency response | 2-100KHz +/- 0.5dB |
| Distortion | Less than 1% A weighted at rated output into 8 Ohms |
| Phase | Phase correct (non inverting) |
