A10 Classic
Shipping : FREE in Canada
A stunning high quality integrated amplifier with tube pre-amplification and HDMI ARC.
Description
THE MUSICAL EVIDENCE
With our A10 CLASSIC amplifier, our goal was to offer a modern integrated amplifier inspired by the famous X-i1100, hailed by audiophiles for its musicality and liveliness.
The A10 is fully future-proof and easy to use. Although its classic design remains timeless, it combines an ECC81/12AT7 tube preamplifier with a 2x130W class AB push-pull amplifier.
In short, the best of both worlds!
Modernity is also displayed thanks to a microprocessor which manages all the functions called up by the encoder wheel, a long or short press allow easy access to the menus.
The A6 offers many inputs: 100 analog RCA with an MM phono with three capacitance settings (200, 320, 5 pf), a balanced XLR input, 3 digital ins: one optical, two optical and a USB, plus a connector for an optional aptX XFTB01 or aptX HD XFTB02 bluetooth receiver.
The A3 offers two HDMI inputs, including one for a source device and an HDMI ARC to connect a television for two way communication. A USB-A socket accepts compatible audio files from an external drive or USB key.
Connections are provided for two pairs of speakers (A, B or A+B), Settings for bass, treble, loudness or bypass (direct) are available, Defeatable auto standby mode from 5-90 minutes.
The unit can be activated on from another device and also can turn on up to two other devices using 10v triggers.
The A10 offers dual subwoofer outputs with selectable crossover frequencies.
A fixed Record output is intended for a cassette player, MD or other type of recorder.

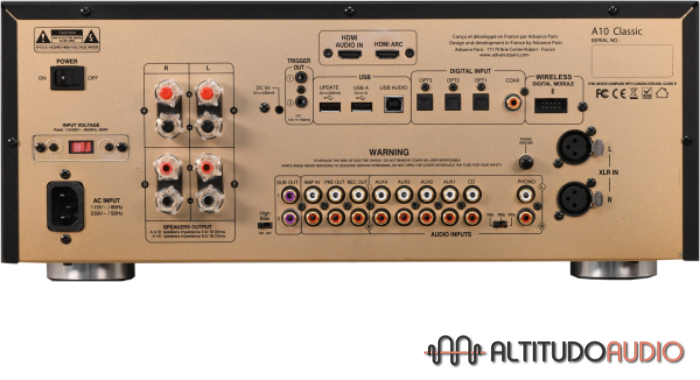

At the rear, the High Bias switch activates Class A bias on the first few watts of the power stage.
The A10 offers an amazing value with it's impressive array of features coupled with excellence in musical performance.
An all out superstar!
Further information
| Output power 8Ω |
2 x 130W RMS |
|---|---|
| Output power 4Ω |
2 x 190W RMS |
| Bandwidth |
(-3dB) 10Hz-35kHz |
| Tone |
+/- 10 dB |
| Distortion |
<0.1% |
| Signal to noise ratio |
> 90 dB |
| Channel separation |
> 70 dB |
| Impedance d'entrée |
47KΩ |
| Phono input impedance |
47KΩ |
| Lvl. amplifier input |
< 300mV |
| Phono MM/MC input level |
2,5mV |
| Mains voltage |
115-230V |
| consumption max. |
400 |
| Transformer |
1 |
| Width |
430 mm |
| Height |
175 mm |
| Depth |
385 mm |
| Net weight |
14,5 kg. |
| Gross weight |
17 kg. |
| CD input |
1 |
| Tuner input |
1 |
| Auxiliary Input |
4 |
| RCA Analog Input |
1 |
| Record output |
1 |
| Output for Subwoofer |
1 |
| Amp-Preamp |
Preamp Output |
| Optical input |
1 |
| USB-A input |
1 |
| USB-B input |
1 |
| Output Pair of speakers |
1 |
| 5 Volt Output WTX 500 |
1 |
| Settings |
Treble, Balance, Bypass, Hi Bias Switch, Bass, Volume |
| VU-Meter |
Yes |
| Tubes |
Yes |
| DAC |
SSE 9018 |
