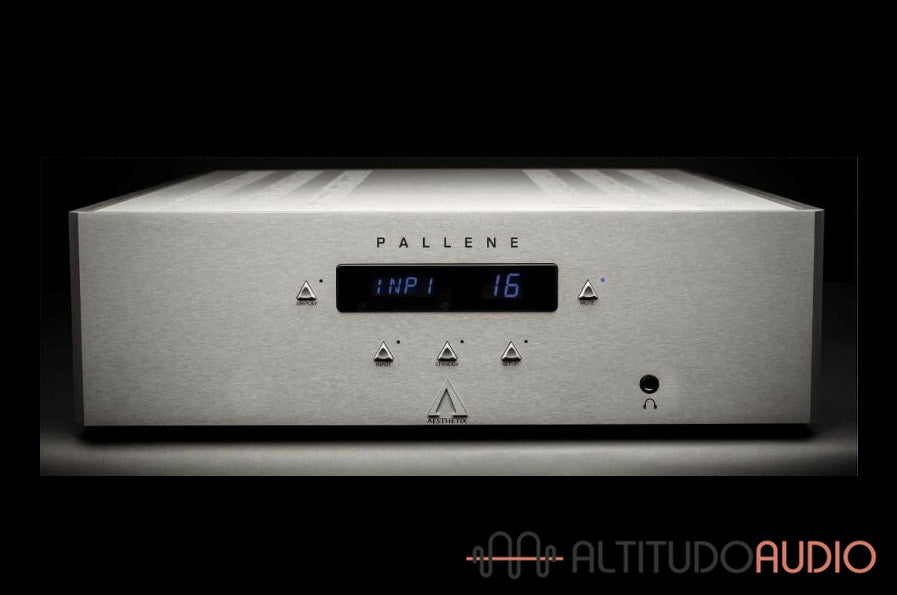

Aesthetix Pallene
Shipping : FREE in Canada
Please Contact Us To Order. Thank you.
Product Details
The Pallene is a high quality pre-amplifier that is featured in the award-winning Mimas integrated amplifier and is a great example of a new breed of amplifiers that are incorporating high end circuit designs and high quality componentry packaged at an unprecedented pricing level, offering incredible performance and value. This level of performance is frankly astonishing. Matched with the Dione power amplifier, this is a potent combination that will defy expectations and deliver a level of musical enjoyment normally reserved for components double the price. Hand-made elegant aesthetic fused with a dynamic yet sophisticated sound. Remarkable!
Product Specification
| Item | Linestage (Preamplifier) |
|---|---|
| Inputs |
Analog Line Connectors 1 single-ended RCA and 1 Balanced XLR for each of the 5 analog Line Inputs Input Impedance: 20KΩ Single-ended or 40KΩ Balanced (20K per phase) Gain: (Tube variable) 24dB maximum w/gain jumpers @ 0dB Polarity: (Balanced) Pin-2 = Positive, Pin-3 = Negative Maximum input level: 9V RMS per phase
Phono (optional) Digital (Optional) |
| Outputs |
Preamp Out Connectors: 1 balanced and 1 single-ended per channel Impedance: Single-Ended – 100 ohms; Balanced – 200 ohms (100 ohms per phase)
Headphone |
| Modes/Processes | Standby, Auto sense headphone & trigger, Home Theater Bypass available to each analog line input, individual analog input level control; Internal Hi/Lo gain jumpers |
| Volume Control | 88 1dB steps, utilizing individual switched 1% metal film resistors |
| Tubes (per channel) | One 6922 (6DJ8) or equivalent per channel |
| I/O | RS232: 1 DB9 connector |
| Frequency Response | (-3dB points @ full power) <2 – 150 kHz |
| Control | RS232: 1 DB9 connector. IR extender 1.8” stereo jack |
| Trigger Input | 1/8” Jack, +5 and +12 V auto sense Level or Pulse (> 100mS: Level; <100mS: Pulse) |
| Power Consumption | Active (no signal): 100W; Standby (normal mode): 25W; Standby (high efficiency mode): 6W |
| Maximum Operating Temperature | Internal 176° F (80° C) Room: 122° F (50° C) |
| Dimensions | 434 (W) x 140 (H) x 449 (D) mm Boxed 558 (W) x 254 (H) x 558 (D) mm |
| Weight | 12.7 kg (28 lbs) Boxed 15.9 kg (35 lbs) |
| Finish | Black or Silver |
| Warranty | 3 years, non-transferable |
