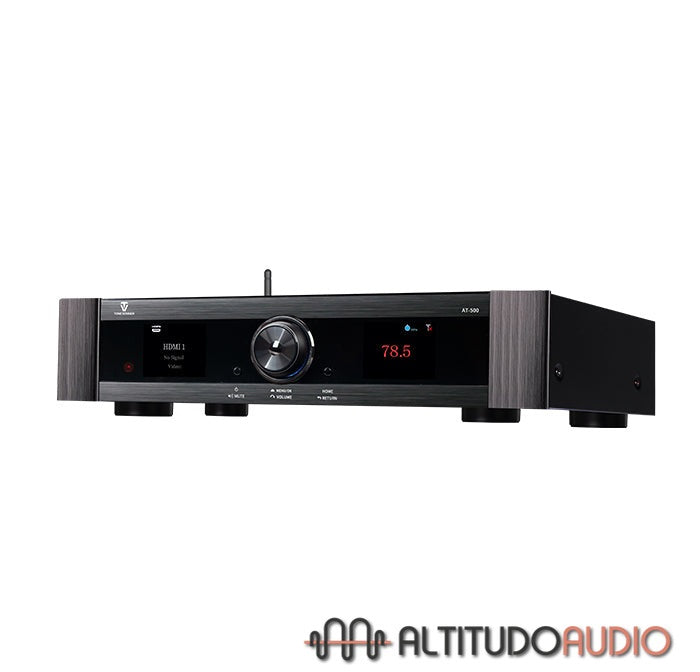

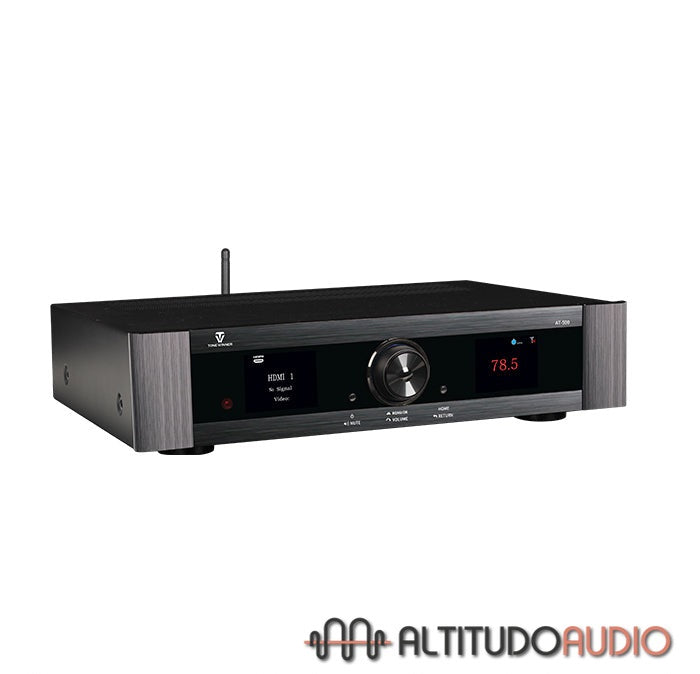

AT-500 Dolby Atmos/DTS:X Cinema 8K - 16 Channels Processor

Experience the future of home entertainment with the AT-500, an advanced 8K immersive AV processor designed specifically for high-end private cinemas. The AT-500 supports cutting-edge audio technologies including Dolby Atmos and DTS:X, delivering breathtaking, multidimensional soundscapes.

With full 8K video support, the AT-500 is built for next-generation visual experiences. It is fully compatible with premium video formats such as 3D, HDR10+, and Dolby Vision, ensuring stunning clarity, contrast, and color performance.

Combining state-of-the-art audio and visual technologies, the AT-500 is more than just an AV processor—it's a complete ultra-high-definition entertainment hub, seamlessly integrating a powerful cinema system with high-fidelity, audiophile-grade music listening capabilities.

Main Features – AT-500 Dolby Atmos/DTS:X Cinema 8K AV Processor

1. Premium DAC for Audiophile Sound
   Integrated with the Cirrus Logic CS42528 DAC, delivering high-resolution audio with exceptional clarity, low distortion, and wide dynamic range.

2. Immersive Audio Support
   Supports Dolby Atmos, Dolby TrueHD, and all legacy Dolby audio formats.
   Supports DTS:X, DTS-HD Master Audio, and all legacy DTS formats.

3. 8K Video Ready
   Equipped with HDMI 2.1 and HDCP 2.3, supporting 8K resolution, YUV 4:4:4, and 40Gbps bandwidth for ultra-HD video signals.

4. Advanced HDR Compatibility
   Fully supports Dolby Vision, HLG, HDR10, and HDR10+ for superior visual performance.

5. Flexible Audio Outputs

   • Fully balanced Dolby Atmos output: up to 7.1.6 / 9.1.4

   • Unbalanced output: up to 7.3.6 / 9.3.4

   • Subwoofer outputs: 1 × fully balanced XLR, 2 × unbalanced RCA for flexible subwoofer configurations.

6. Simplified Room Calibration
   One-button automatic EQ calibration, compensating for speaker distance, delay, and sound pressure, with support for manual fine-tuning.

7. Built-In Music Player
   Supports music playback from TF cards and USB drives with multi-folder organization. Compatible with lossless (FLAC, APE, WAV) and compressed (MP3) formats.

8. Wireless Audio & Control

   • Integrated Bluetooth digital audio receiver

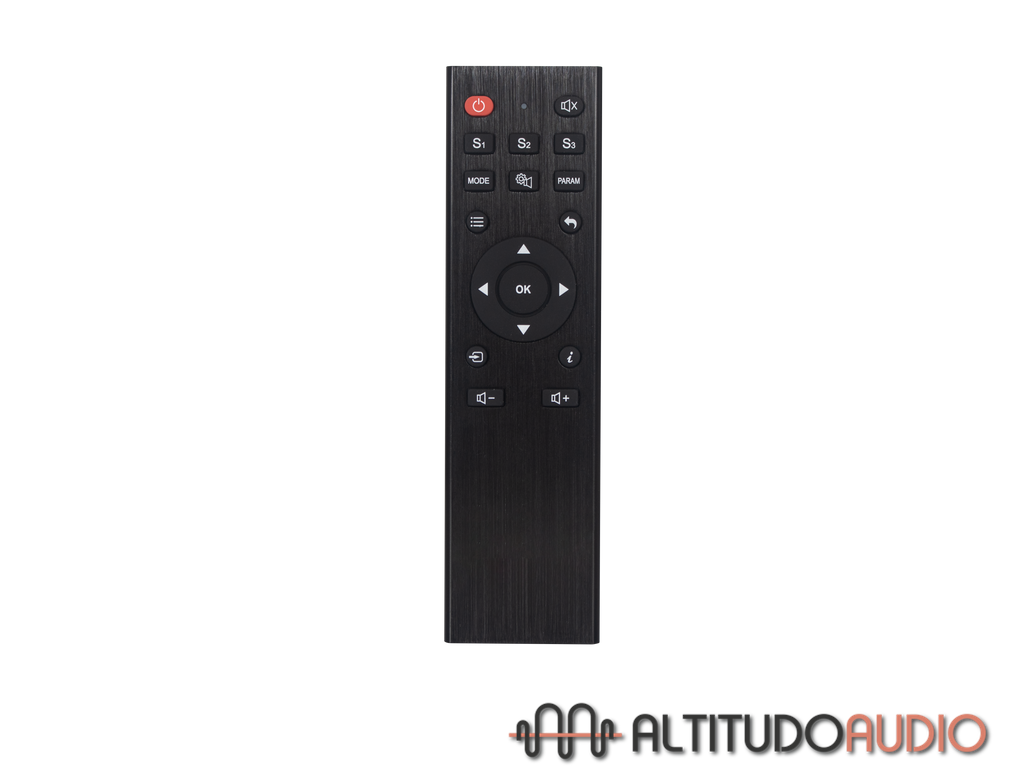

   • Control via dedicated App, IR remote, and Bluetooth remote

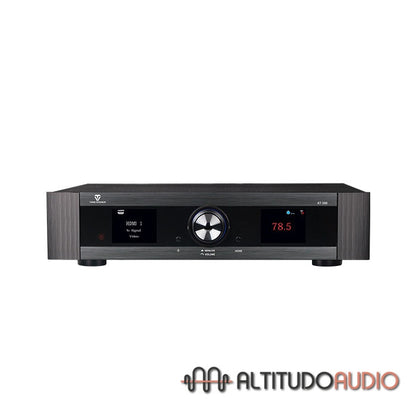

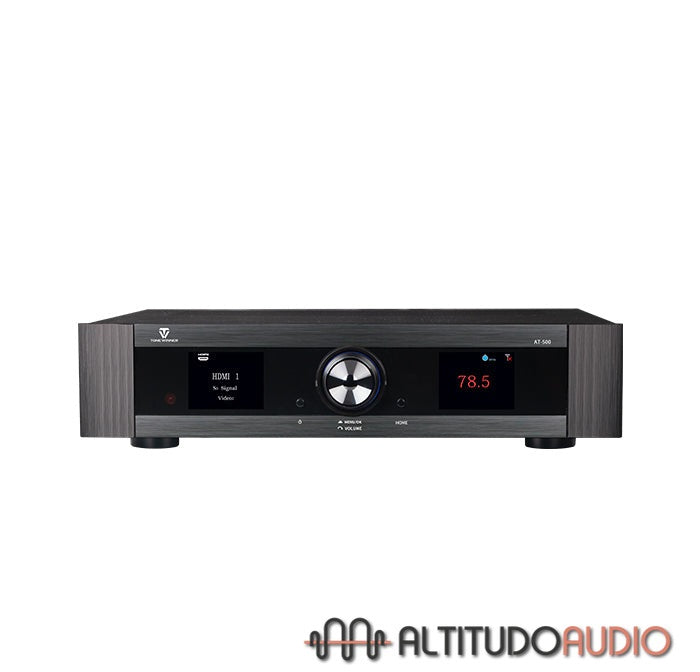

9. Dual Display Screens
   Two 2.8” front displays provide real-time system status and settings at a glance.

10. Multilingual OSD
    On-screen display (OSD) menu available in both English and Chinese.

11. Seamless Music Navigation
    Real-time music list sync and display on mobile devices and TV screens.

12. Flexible Speaker Configurations
    Supports from 2.0 to 7.3.6 / 9.3.4 speaker setups for maximum installation flexibility.

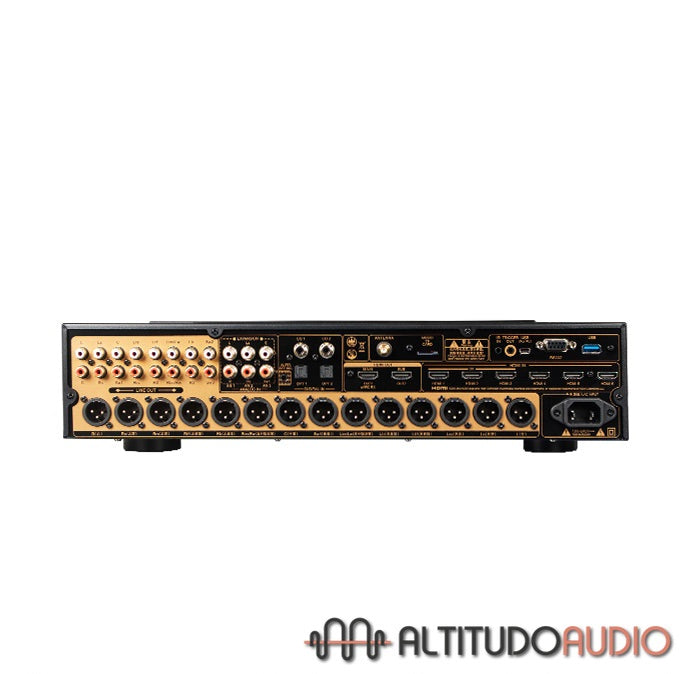

13. Comprehensive I/O Options

    • HDMI: 6 inputs / 2 outputs (HDMI 1–3 support 8K)

    • Digital audio inputs: 2 coaxial, 2 optical

    • Analog inputs: 3 stereo RCA

    • 5.1-channel external mixing input (ideal for external reverb units)

    • Subwoofer outputs: 1 × XLR (balanced), 2 × RCA (unbalanced)

14. Professional Integration Support

    • RS232 protocol for system integration

    • HDMI eARC and CEC compatibility

    • AV matrix subgroup output

15. Precise AV Sync & EQ Controls

    • Up to 1000ms lip-sync delay

    • 5 to 11-band parametric EQ per channel

    • Independent EQ and volume settings per input

16. Advanced Processing

    • Powered by a new dual-core DSP chip from Analog Devices (ADI)

    • Enhanced by Cirrus Logic CS42528 DAC for high-fidelity audio conversion

Specifications

• Digital-to-Analog Converter (DAC): Cirrus Logic CS42528

• Signal-to-Noise Ratio (S/N): ≥110dB (A-weighted, 1kHz, 1Vrms, analog in, pure mode)

• Total Harmonic Distortion (THD): ≤0.004% (A-weighted, 1kHz, analog in, pure mode)

• Frequency Response: 10Hz – 65kHz (+1/-3dB, analog in, pure mode)

• Output Level: 4Vrms +1dB (THD=1%, analog in, analog pure mode)

• Channel Separation: ≥90dB (analog in, analog pure mode)

• Subwoofer Outputs:

  • 1 × Balanced XLR

  • 2 × Unbalanced RCA

• Maximum Power Consumption: 30W

• Net Weight: 4.3kg

• Gross Weight: 6.3kg

• Unit Dimensions: 431 × 304 × 80 mm (W × D × H)

• Packaging Dimensions: 560 × 392 × 165 mm (W × D × H)
