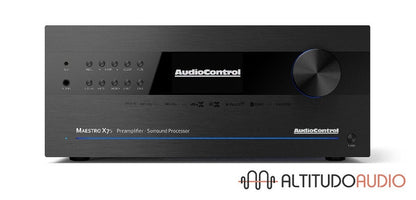

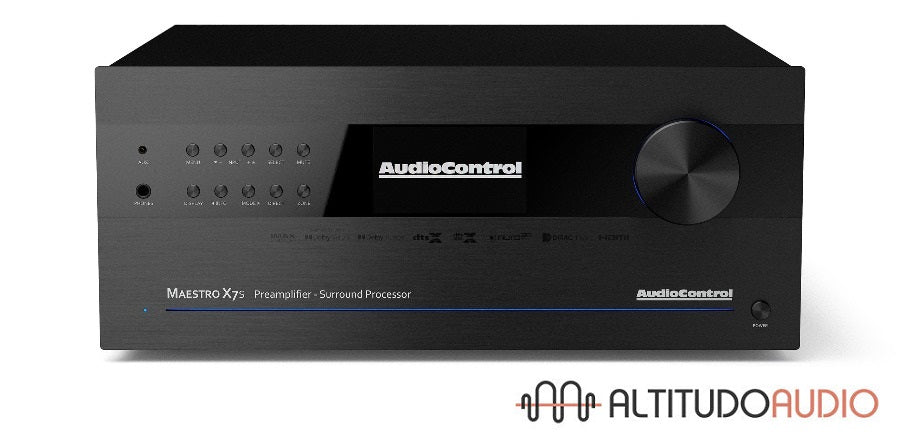

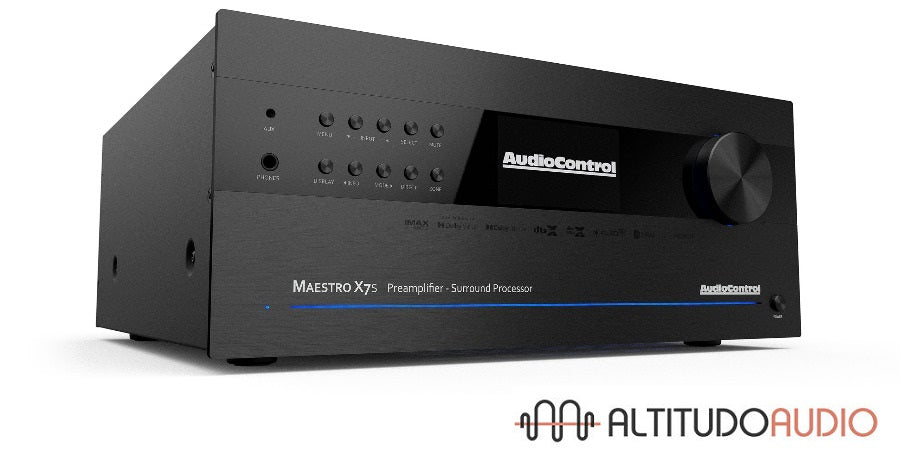

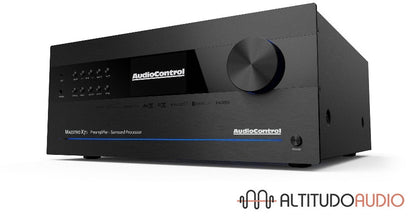

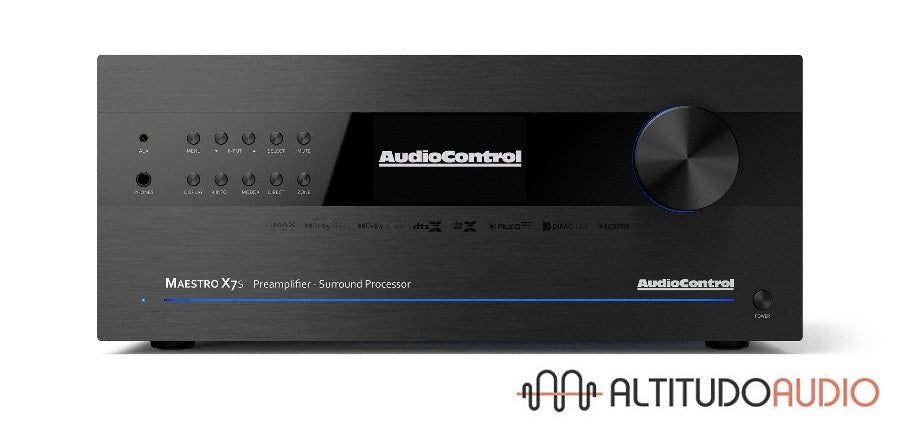

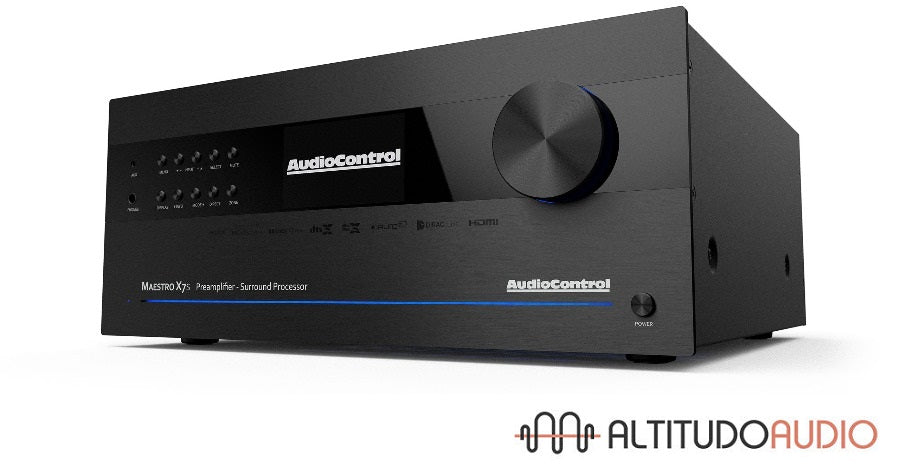

Maestro X7S 8k Ultra HD 9.1.6 Immersive AV Preamp Processor
Shipping : FREE in Canada
maestro x7s
8k ultra hd 9.1.6 immersive av processor
AudioControl’s high-performance processors enable home theater specialists and A/V integrators to create systems that deliver new levels of precision, power and control. The Maestro X7S supports the most sought after immersive surround formats, such as Dolby Atmos, Auro-3D, DTS:X, and IMAX Enhanced, with 16-channels of balanced and unbalanced outputs, including four user-configurable outputs. The Maestro X7S offers a full complement of inputs for connection to the latest audio/video components.
The Maestro X7S houses the very latest in audio and video processing technology, featuring Dirac Live® room correction to overcome acoustic anomalies in any space, and ESS SABRE PRO DACs that ensure unprecedented levels of detail and clarity along with earth-shaking, authoritative bass response.
Enthusiasts will enjoy intuitive app-based control, Google Chromecast®, Apple® AirPlay 2, Roon Ready, Bluetooth with aptXHD® support, Wi-Fi streaming connectivity options, and integrated web-based configuration.
All of this outstanding technology has been wrapped quite elegantly within a beautifully designed chassis, distinguishing AudioControl’s Immersive AV Processor lineup from any other solution.
features
- 9.1.6 decoding for Dolby Atmos, DTS:X, IMAX Enhanced, and Auro-3D
- 8K UHD / HDMI 2.1 and HDCP 2.3
- All inputs support 8K/60P and 4K/120P
- ES9026PRO SABRE DACs (124 dB of dynamic range)
- Includes Dirac Live® & Dirac Live® Bass Control
- 16 balanced XLR outputs
- Pairs perfectly with Savoy G4, Pantages G4, Avalon G4 power amplifiers
- Supports Dolby Vision, HDR10+, HDR10, and HLG
- 4 user-assignable output channels
- 7 HDMI inputs / 3 HDMI outputs including Zone 2 (eARC compatible)
- IP, IR, RS232, and Wifi control
- Apple® AirPlay 2
- Google Chromecast built-in streaming support
- Bluetooth® with aptXHD® support
- Roon Ready and supports MQA
specifications

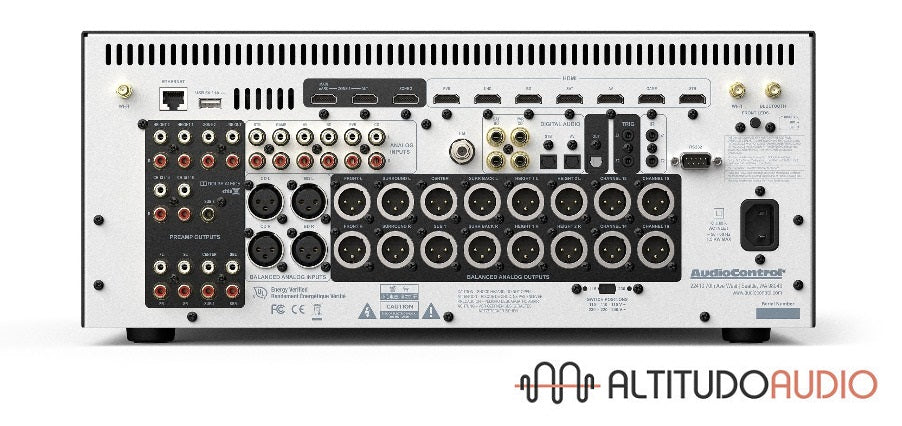

inputs
- Audio Inputs: 7 HDMI, 2 XLR, 6 RCA Phono, 4 Coax SPDIF, 2 Toslink
- Nominal sensitivity: 1V, 2V, 4V (user selectable)
- Input Impedance: 47 kΩ
- Signal to Noise (A-wtd ref 100W) normal/stereo direct: 100 dB/110 dB
- Frequency Response: 20 Hz – 20 kHz ± 0.2 dB
- Video Inputs: 7 HDMI (HDMI 2.1 / HDCP 2.3)
outputs
- Preamp Audio Outputs: 16 channels (balanced XLR), 16 channels (unbalanced RCA), 2 channels zone 2 (unbalanced RCA), 1 Toslink
- Nominal output level: 1 Vrms (max. 5 Vrms)
- Output impedance: 560 Ω
- THD+N (20 Hz – 20 kHz): -100dB
- Main Video Outputs: Dual (2) HDMI (eARC support)
- Second Zone Output: 1 HDMI
- Headphone Output: 1 1/4″
control
- IP Ethernet
- Wifi
- RS232 Serial Control
- 12 Volt Trigger Outputs: 2
- IR Receiver Inputs: 2
general
- Power consumptoin (standby): <0.5W
- Power consumption (idle, typical): 40W (170 BTU/hour)
- Power consumption (maximum): 50W (170 BTU/hour
weights & dimensions
- Dimensions (including terminals and feet): 17”W x 16.9”D x 7.3”H (4U)
- Weight: 27.1 lbs. (12.3 kg)
