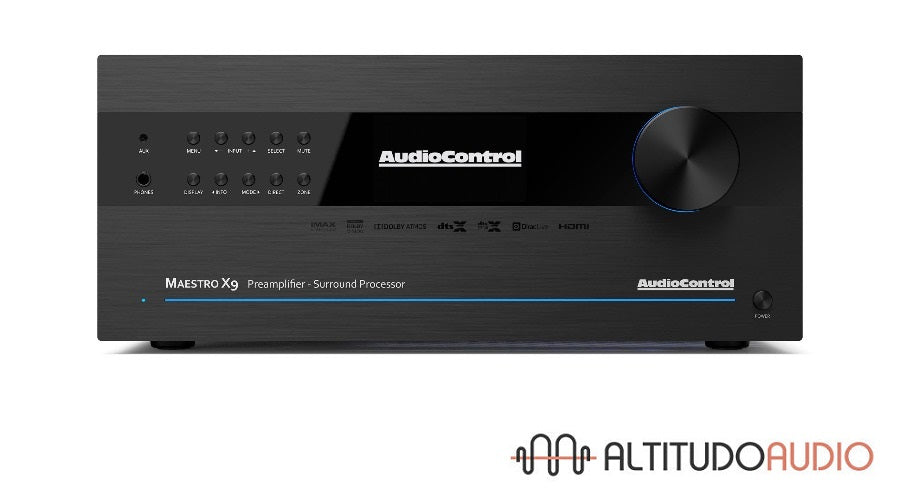

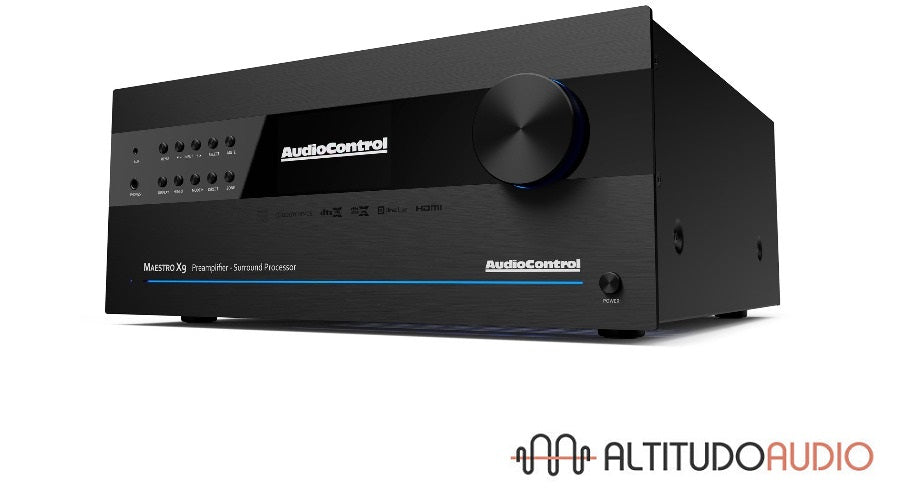

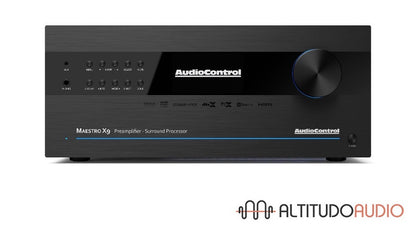

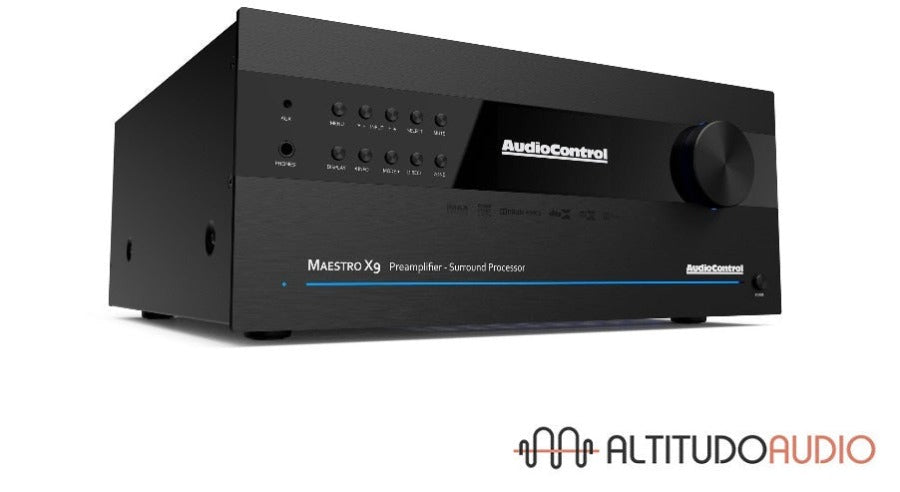

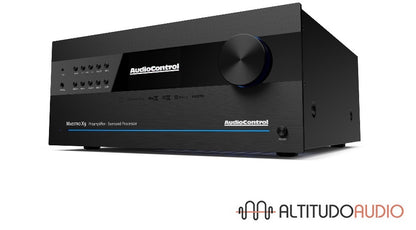

Maestro X9 9.1.6 Immersive AV Preamp Processor
Maestro X9 9.1.6 Immersive AV Preamp Processor
Maestro X9 9.1.6 Immersive AV Preamp Processor
Maestro X9 9.1.6 Immersive AV Preamp Processor
AudioControl

Maestro X9 9.1.6 Immersive AV Preamp Processor

Regular price $14,343.00 $0.00 Unit price per

Shipping : FREE in Canada

maestro x9

9.1.6 Immersive AV Preamp Processor

AudioControl’s high-performance processors enable home theater specialists and A/V integrators to create systems that deliver new levels of precision, power and control. The Maestro X9 supports the most sought after immersive surround formats, such as Dolby Atmos, Auro-3D, DTS:X, and IMAX Enhanced, with 16-channels of balanced and unbalanced outputs, including four user-configurable outputs. The Maestro X9 offers a full complement of inputs for connection to the latest audio/video components.

The Maestro X9 houses the very latest in audio and video processing technology, featuring Dirac Live® room correction to overcome acoustic anomalies in any space, and ESS SABRE PRO DACs that ensure unprecedented levels of detail and clarity along with earth-shaking, authoritative bass response.

Enthusiasts will enjoy intuitive app-based control, Google Chromecast®, Apple® AirPlay 2, Roon Ready, Bluetooth with aptXHD® support, Wi-Fi streaming connectivity options, and integrated web-based configuration.

All of this outstanding technology has been wrapped quite elegantly within a beautifully designed chassis, distinguishing AudioControl’s Immersive AV Processor lineup from any other solution.

FEATURES

  • 9.1.6 decoding for Dolby Atmos, DTS:X, IMAX Enhanced, and Auro-3D
  • 4K UHD / HDMI 2.0b and HDCP 2.2
  • ES9038PRO SABRE audiophile DACs (140 dB of dynamic range)
  • Includes Dirac Live® & Dirac Live® Bass Control
  • 16 balanced XLR outputs with OPA1612 HiFi Audio op-amps
  • Pairs perfectly with Savoy G4, Pantages G4, Avalon G4 power amplifiers
  • Supports Dolby Vision, HDR10+, HDR10, and HLG
  • 4 user-assignable output channels
  • 7 HDMI inputs / 3 HDMI outputs including Zone 2 (eARC compatible)
  • IP, IR, RS232, and Wifi control
  • Apple® AirPlay 2
  • Google Chromecast built-in streaming support
  • Bluetooth® with aptXHD® support
  • Roon Ready and supports MQA

Specifications:

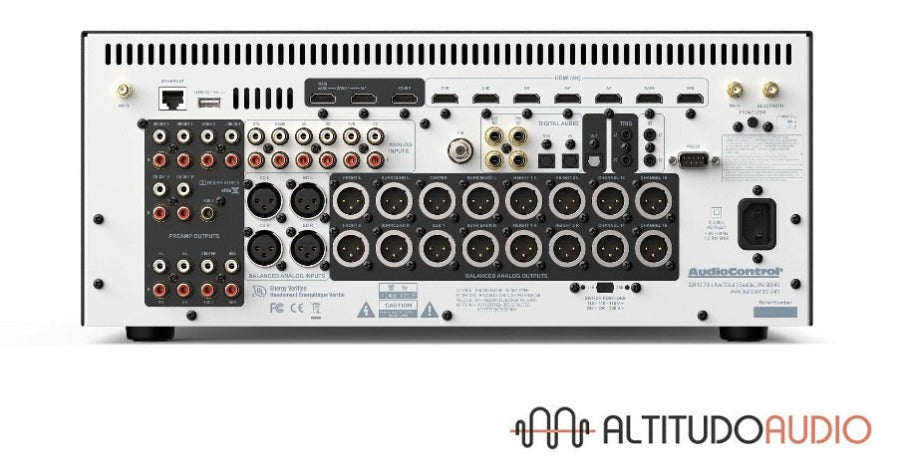

Inputs

  • Audio Inputs: 7 HDMI, 2 XLR, 6 RCA Phono, 4 Coax SPDIF, 2 Toslink
  • Nominal sensitivity: 1V, 2V, 4V (user selectable)
  • Input Impedance: 47 kΩ
  • Signal to Noise (A-wtd ref 100W) normal/stereo direct: 103 dB/118 dB
  • Frequency Response: 20 Hz – 20 kHz ± 0.2 dB
  • Video Inputs: 7 HDMI (HDMI 2.0b / HDCP 2.2)

Outputs

  • Preamp Audio Outputs: 16 channels (balanced XLR), 16 channels (unbalanced RCA), 2 channels zone 2 (unbalanced RCA), 1 Toslink
  • Nominal output level: 1 Vrms (max. 5 Vrms)
  • Output impedance: 560 Ω
  • THD+N (20 Hz – 20 kHz): -100dB
  • Main Video Outputs: Dual (2) HDMI (eARC support)
  • Second Zone Output: 1 HDMI
  • Headphone Output: 1 1/4″

Control

  • IP Ethernet
  • Wifi
  • RS232 Serial Control
  • 12 Volt Trigger Outputs: 2
  • IR Receiver Inputs: 2

General

  • Power consumption (standby): <0.5W
  • Power consumption (idle, typical): 40W (170 BTU/hour)
  • Power consumption (maximum): 50W (170 BTU/hour

Weights & Dimensions

  • Dimensions (including terminals and feet): 17”W x 16.9”D x 7.3”H (4U)
  • Weight: 27.1 lbs. (12.3 kg)

in the box: Maestro X9, HTR-3 remote with 2 x AAA batteries, DAB/FM antenna, 3 x WiFi/Bluetooth antennas, calibration microphone, USB cable, power cord, user manual, warranty
