Altitudo Audio

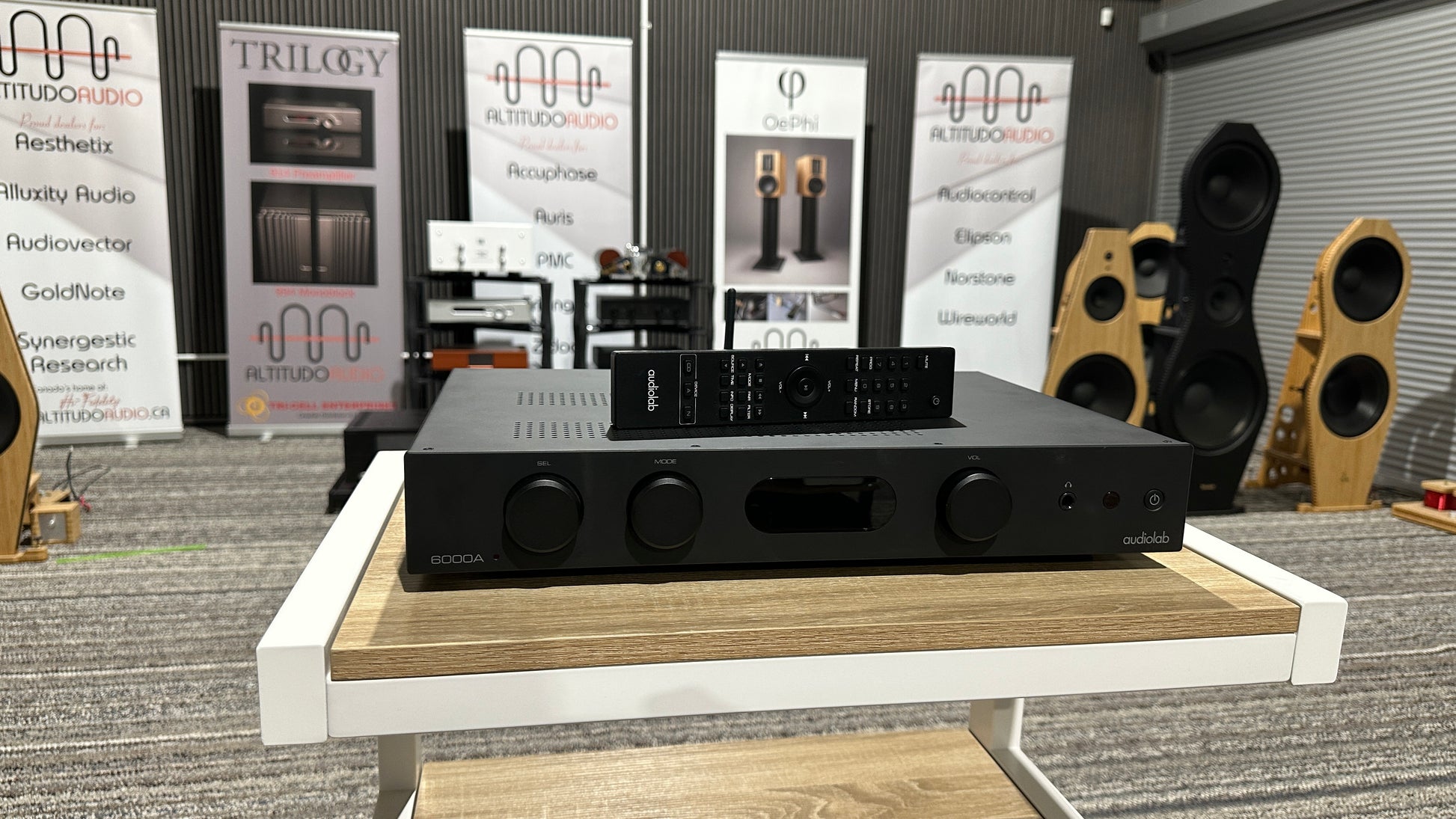

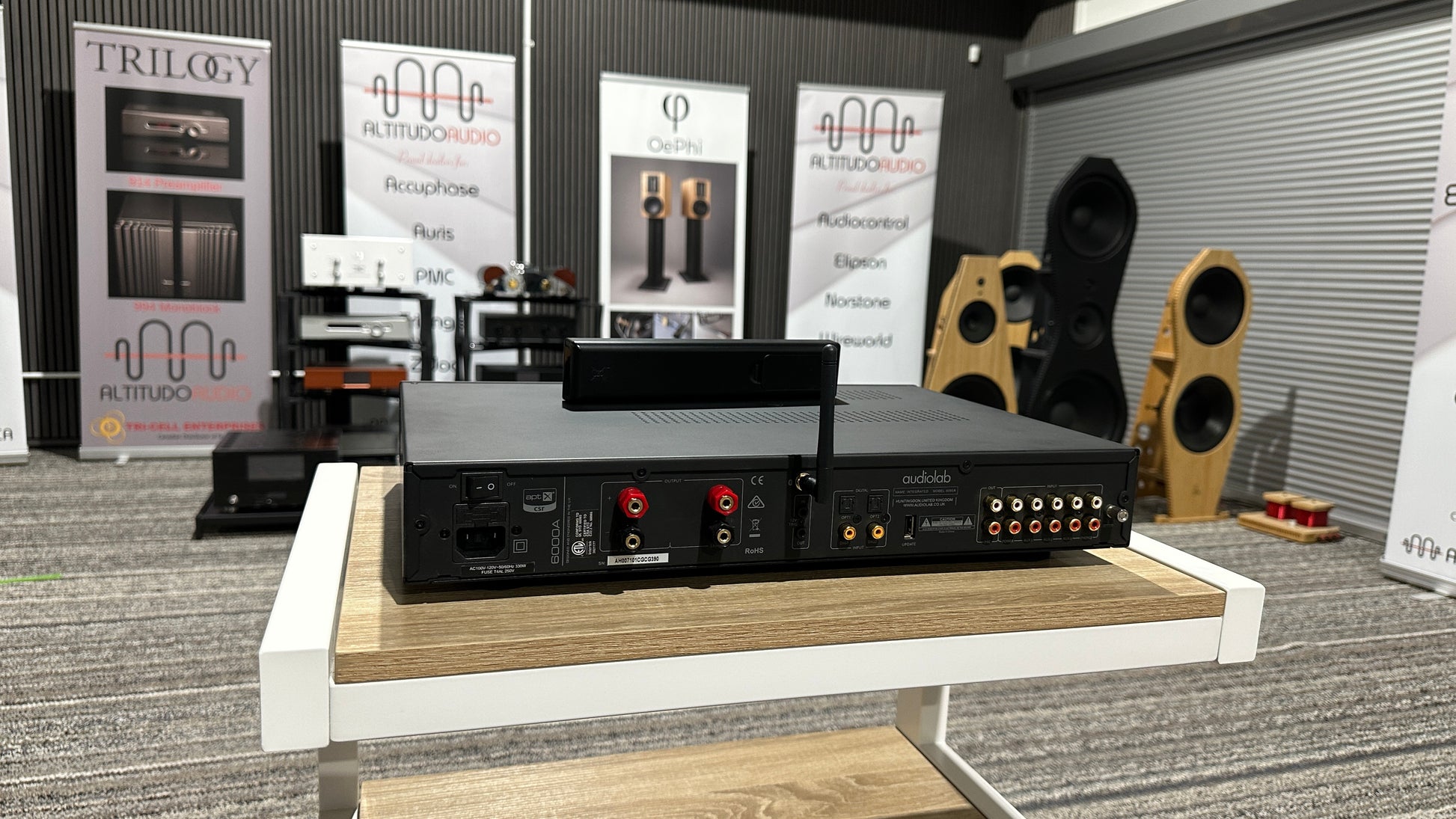

Audiolab 6000A Integrated Amplifier

$770.00 ~~$1,369.00~~

*Pre-owned

An amplifier remains the beating heart of any high-performance audio system, but a truly versatile integrated amp needs to cover many bases – digital and analogue sources, wireless connectivity for portable devices, a phono stage to cater for vinyl playback, amplification for headphones as well as speakers… That’s a lot to pack in, whilst keeping performance high and the price tag affordable – and yet, that’s exactly what the 6000A delivers.

Specifications

Gain (max.)	+8dB (Line)
	+55dB (Phono MM)
Input Sensitivity	720mV (Line, Volume = 0dB)
	3.1mV (Phono MM, Volume=0dB)
Input Impedance	10K (Line)
	47K//100pF (Phono MM)
Total Harmonic Distortion (THD)	< 0.0004% (Line, 1KHz @ 2V, Volume = 0dB)
Frequency Response	20Hz-20kHz (+/-0.1dB)
Output Voltage	2.3V max. (Volume = 0dB)
Output Impedance	120Ω
Signal-to-Noise Ration (S/N)	> 110dB (Line, A-weighted)
	>76dB (Phono MM, A-weighted)
DAC
D to A converter	ES9018K2M
Total Harmonic Distortion (THD)	< 0.0006% (1kHz @ 0dBFS)
Output level (0dBFS, 1KHz)	2.05V
Max. Sampling Frequency	192kHz
Signal-to-noise ratio (S/N)	> 112dB (A-weighted)
Digital Filters	Fast Roll-off , Slow Roll-off , Minimum Phase
Power Amplifier Section
Gain	+29dB
Rated Max. Power Output	2 X 50W (8Ω, THD<1%)
	2 X 75W (4Ω, THD<1%)
Frequency Response	20Hz-20kHz (+/-0.3dB)
Input Sensitivity	720mV
Total Harmonic Distortion (THD)	<0.003% (1kHz @ 40W/8Ω)
Signal-to-Noise ratio (S/N)	> 110dB (A-weighted)
Max. Output Current	9A
Headphone Amplifier
Total Harmonic Distortion (THD)	< 0.01% (1kHz, 50mW)
Output Impedance	2.35Ω
Load impedance	20-600Ω
General
Standby Power Consumption	<0.5W
Power Requirements	240V ~ 50 - 60Hz
	230V ~ 50 - 60Hz
	115V ~ 50 - 60Hz
	100V ~ 50 - 60Hz
Dimensions (mm) (W x H x D)	445 x 65.5 x 300
Carton Size (mm) (W x H x D)	512 x 467 x 146
Weight	7.8kg (Net)
