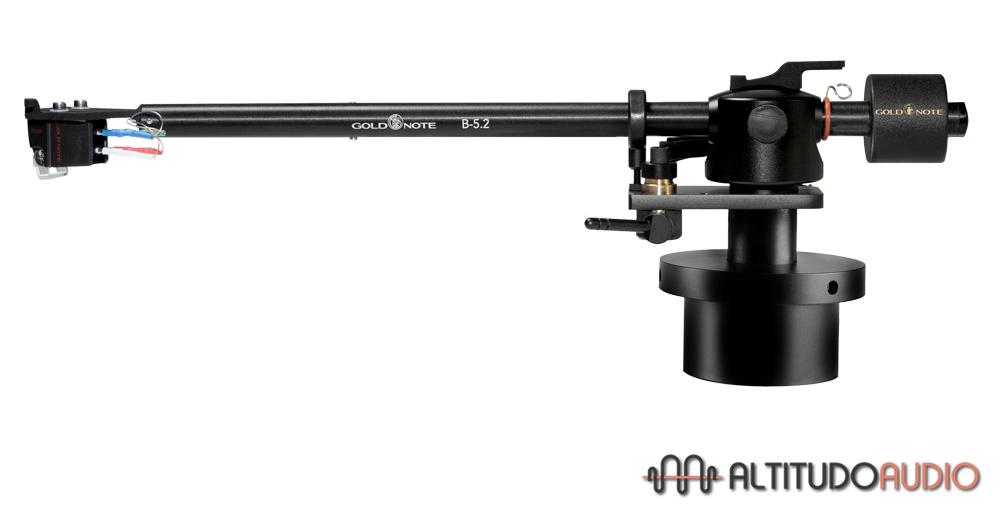

B-5.2

The B-5.2 is an elegant high-performance tonearm completely designed and handmade in Italy with the greatest attention to details to achieve maximum precision and deliver a superior audio performance with all cartridges (up to 15g).

Equipped with 4 high-precision micro ball bearings made in Germany by GRW – exclusively manufactured for Gold Note – singularly sealed and packed to preserve their integrity and enable noiseless tracking.

The B-5.2 is a 9″ tonearm with an effective length of 242mm and a 19mm overhang, a perfect match that makes it easy to install on any high-end turntable.

The quality of the chosen materials, such as the finely machined 6000 Aluminium, allows the B-5.2 to offer high rigidity and non-deformability to fully retrieve information from the vinyl groove.

Featuring a finely machined stainless steel counterweight, it can be matched with the virtually any phono cartridges on the market. Optionally, additional weights are available to handle even those phono cartridges with a higher mass.

The B-5.2 arm is the result of careful engineering, down to the smallest of details, resulting in a sound that is natural, elegant and refined, bringing to life your favorite music.

Main Features

TYPE 9″ Ball Bearing Tonearm

BALL BEARING S4 micro ball-bearings custom-made by GRW

OVERHANG 19mm

OFFSET 24°

ARM WAND Straight aluminium 6000 alloy

DESIGN 12mm aluminium rectified tube 1mm thick

INSERTING PLINTH SHAFT 23mm

DYNAMIC EFFECTIVE MASS10g

VTF 0.186N (19g)

VTA Adjustable on collar

LIFT Hydraulic

ANTI-SKATING Wire, 5 positions

AZIMUTH Adjustable on the head-shell

Cables

INTERNAL CABLES AWG36 Hyper Litz shielded 99,9999% OFC

EXTERNAL CABLES SUPPLIED 1,5m custom 4 pole DIN/RCA

Dimensions and Weight

DIMENSIONS Effective length: 242 mm
