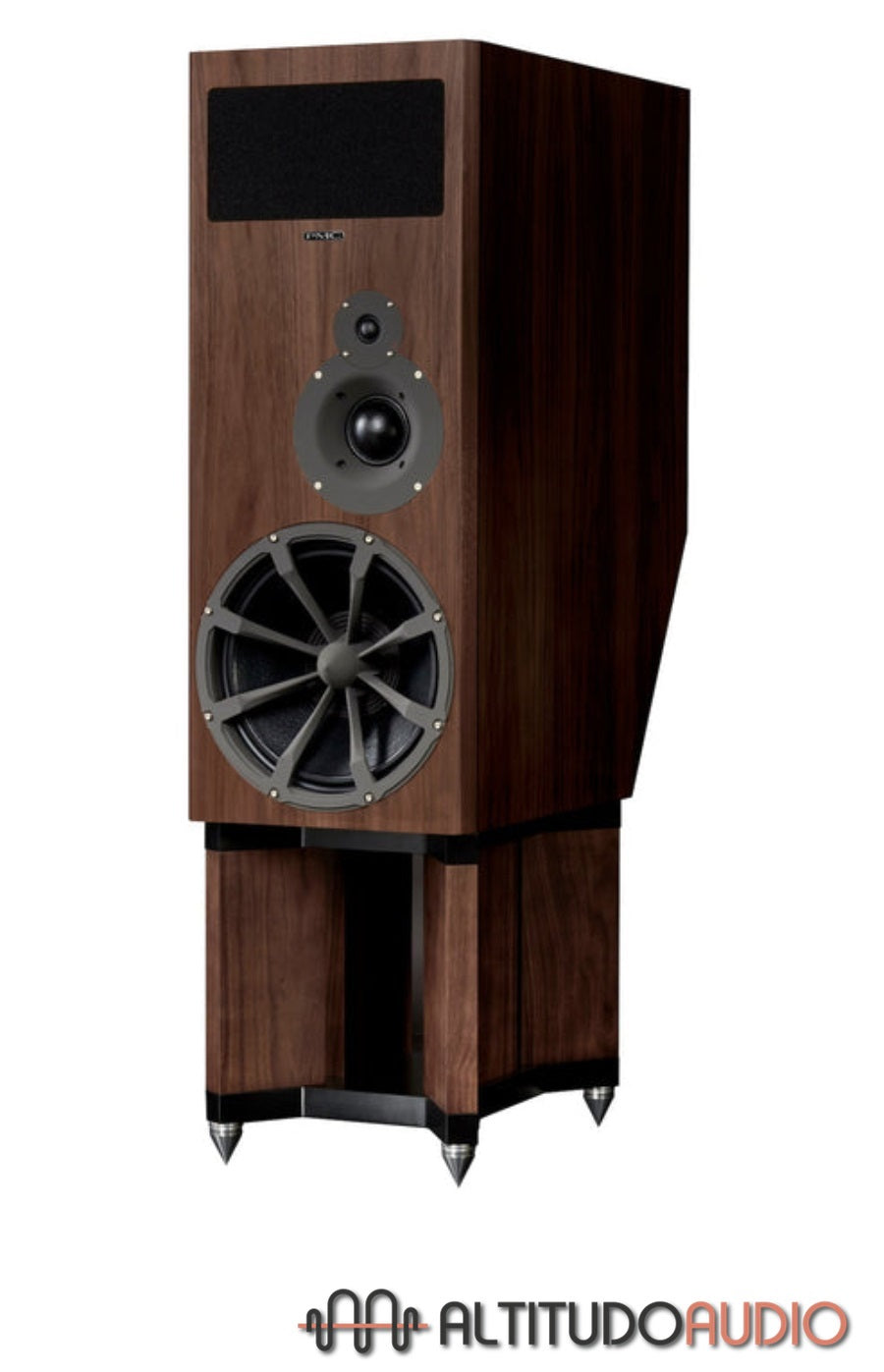

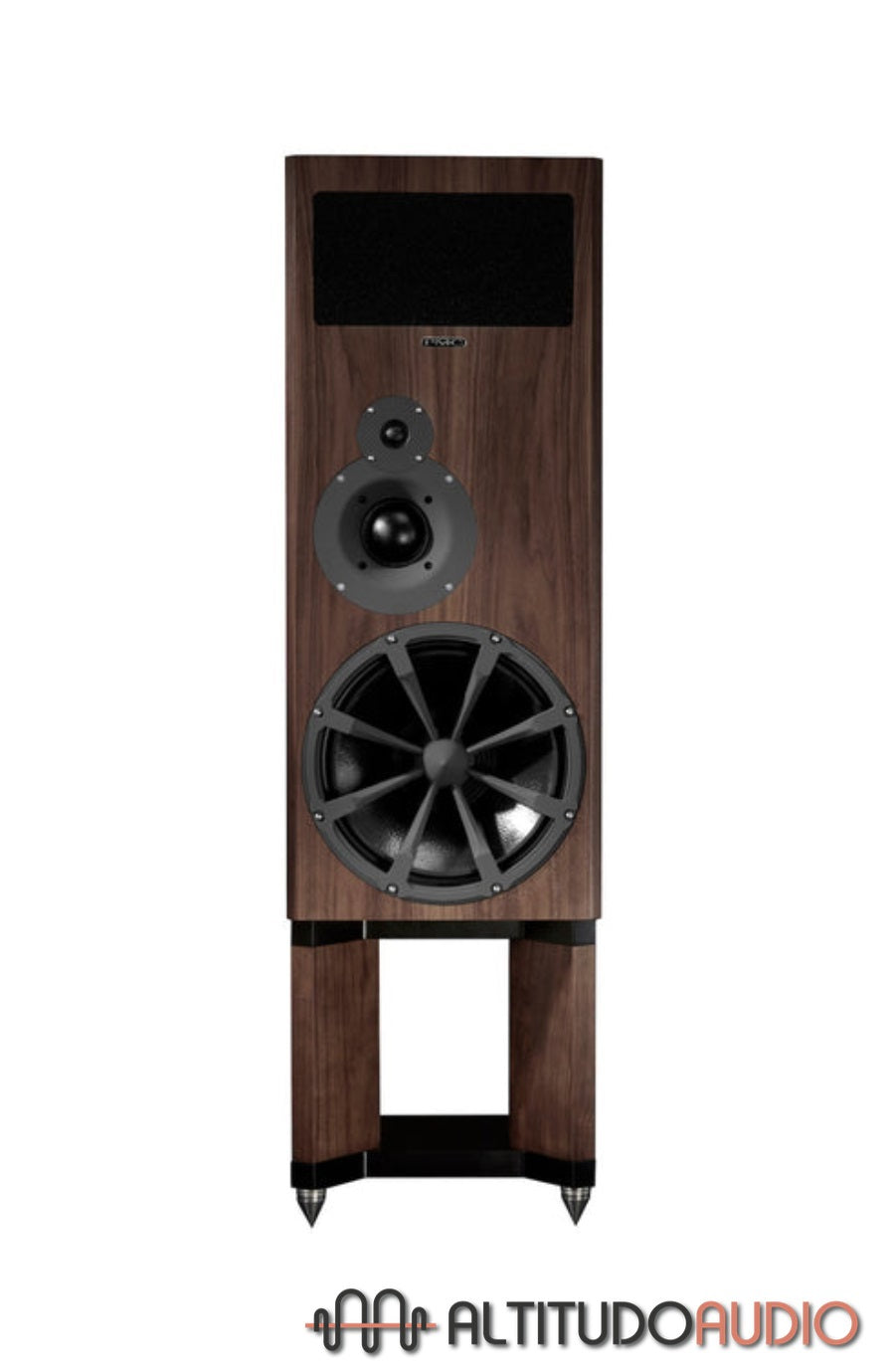

BB5-C-A-SE Center Active

The BB5 is the largest in the range and sports a striking 15” Radial™, bass unit that complements PMC’s ATL™ (Advanced Transmission Line) bass-loading principle, allowing the speaker to handle music with the widest dynamic range with absolute ease and confidence. Yet the BB5 isn’t just designed for the loudest works; subtle acoustic material is reproduced with all the dexterity and delicacy of a compact design.

PMC’s active designs take loudspeakers to another level; the amplification is precisely tailored to the specific designs and power requirements of the speaker, and is directly coupled to the drive units for superior control and a more efficient transfer of energy. This increases headroom and resolution, improves transient performance, and produces a more life-like, natural-sounding and more powerful speaker. Active systems can also be adjusted to suit customer taste and the individual listening environment by means of frequency controls - and to guarantee optimum performance in situ, they are always tuned by our factory-trained installation engineers.

Specifications

Available Finishes:SE Grand Walnut, SE Amarone, SE Natural Oak, SE Jet Black

Crossover Frequency:380Hz - 3.8kHz

Dimensions:H 1040mm (41”), W 432mm (17”), D 790mm (31”)

Stand: H 500mm (19.7”) + 50mm spikes, W 430mm (16.9”), D 518mm (20.3”)

Drive Units:LF PMC 15” (380mm) Radial™ driver

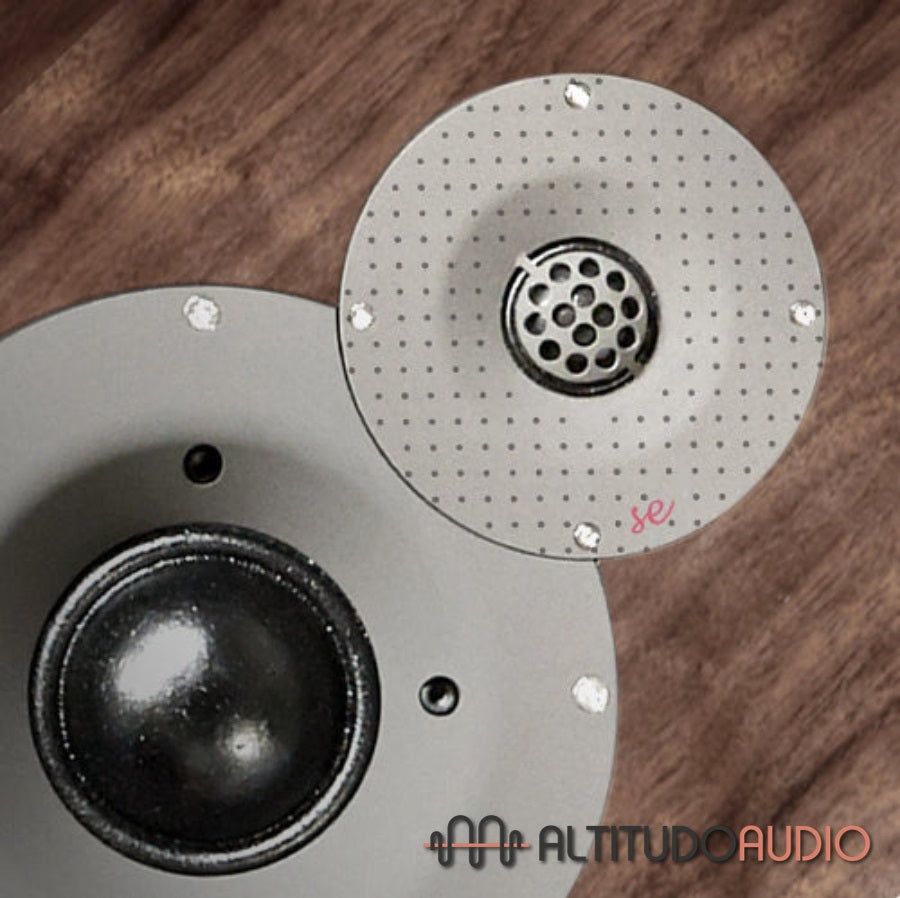

MF PMC75 3” (75mm) fabric dome
HF PMC34 1.3” (34mm) soft dome

Effective ATL™ Length:4m (13ft)

Frequency Response:17Hz-25kHz

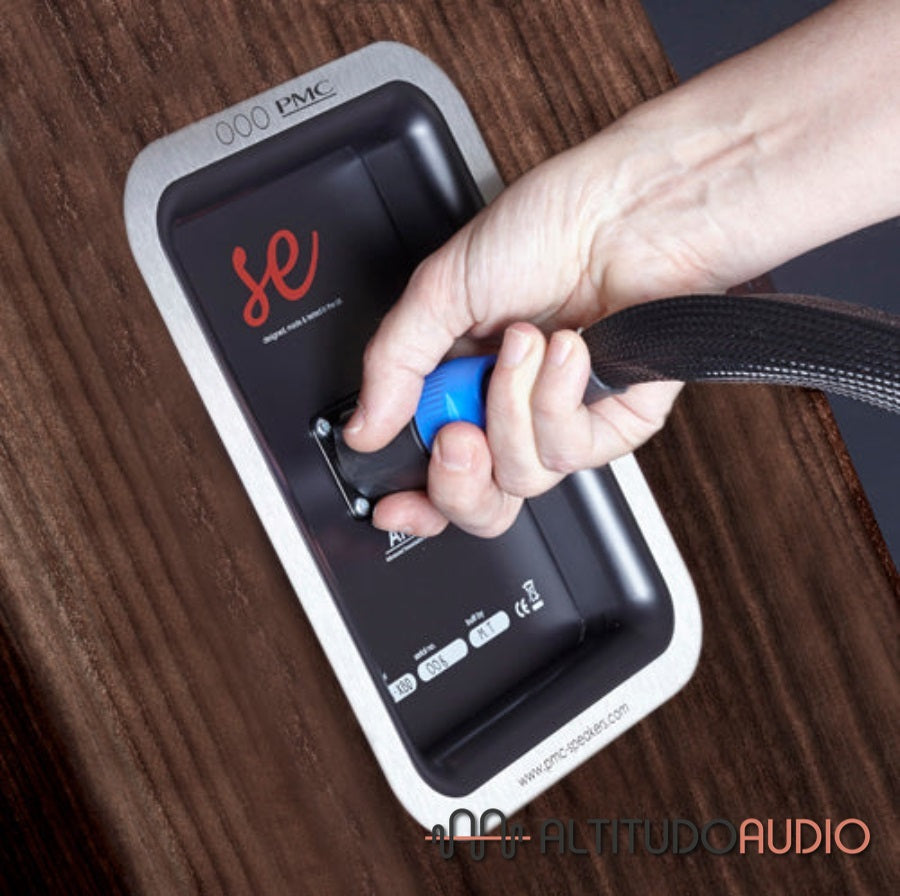

Input Connectors:Neutrik NL8

Weight:87kg (191.8lbs)

Stand: 19kg (41.9lbs)

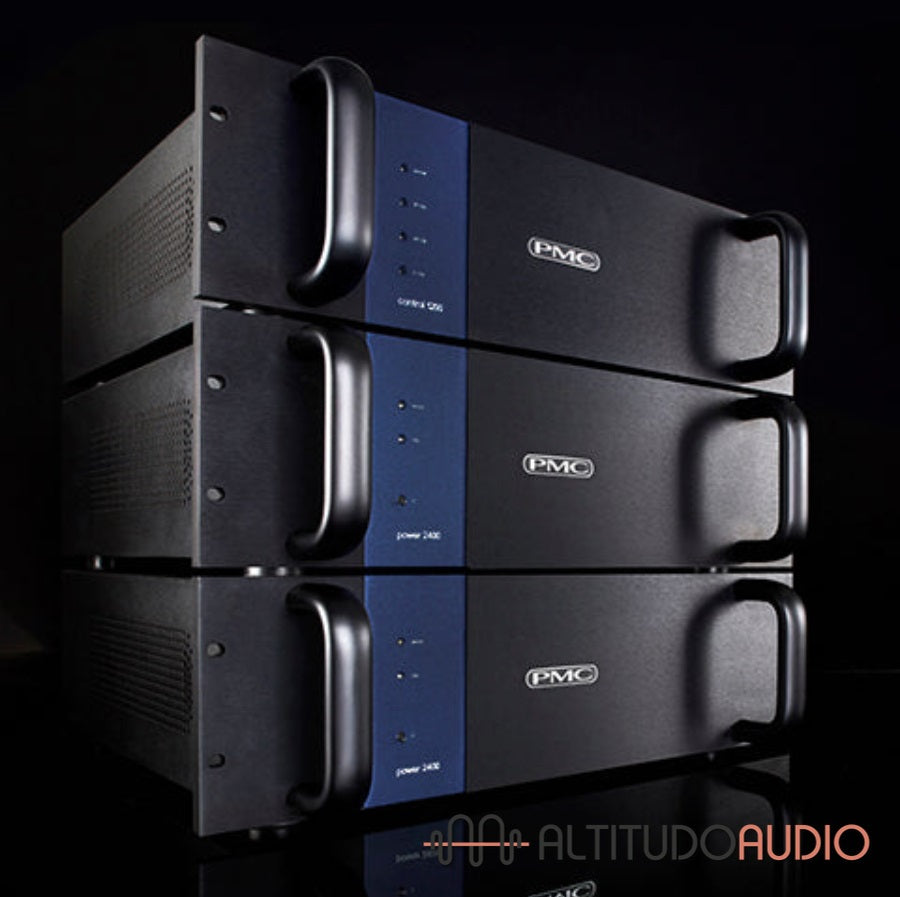

Amplifier Power per Channel:

LF 900W
MF 300W
HF 300W
