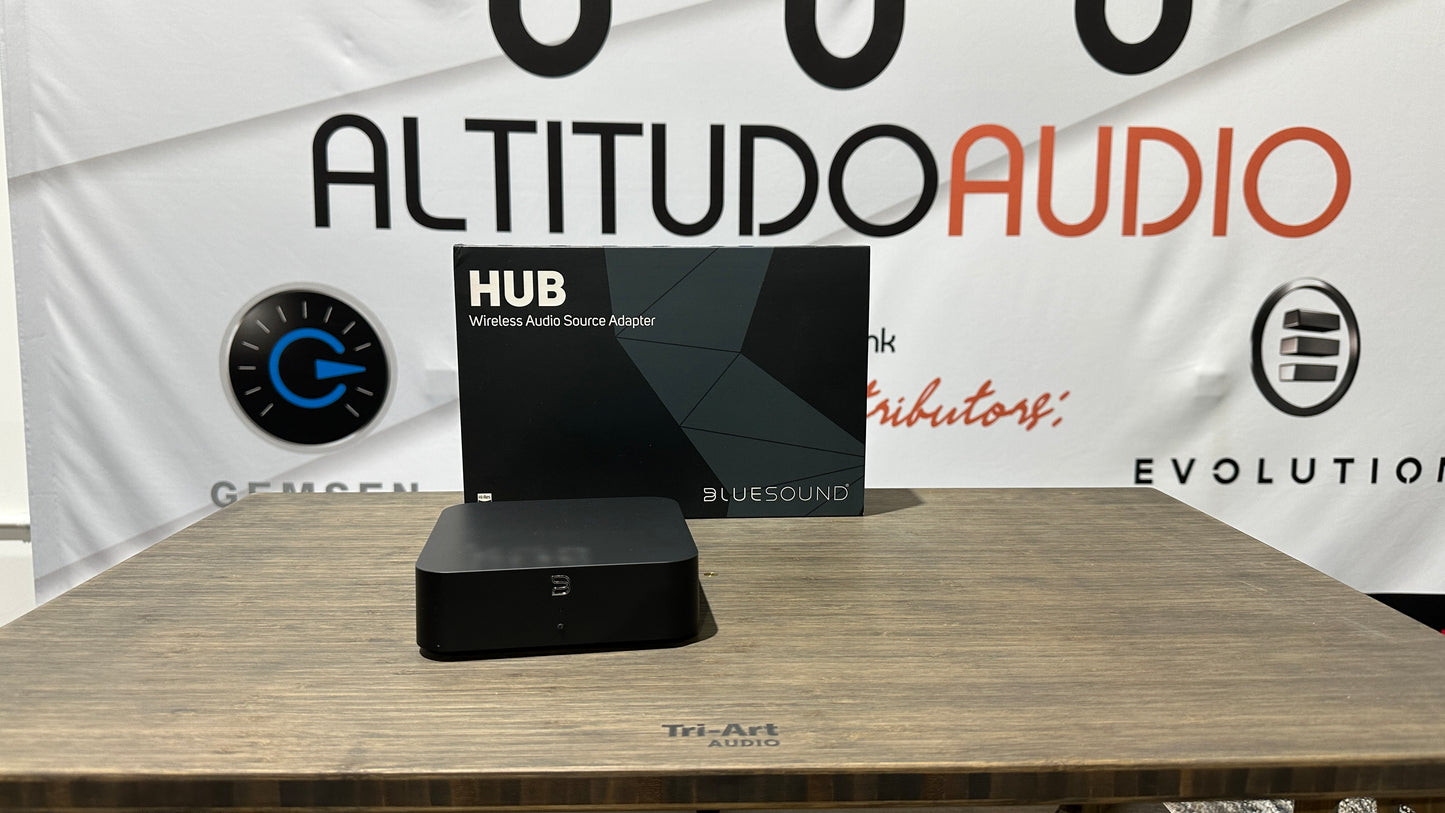

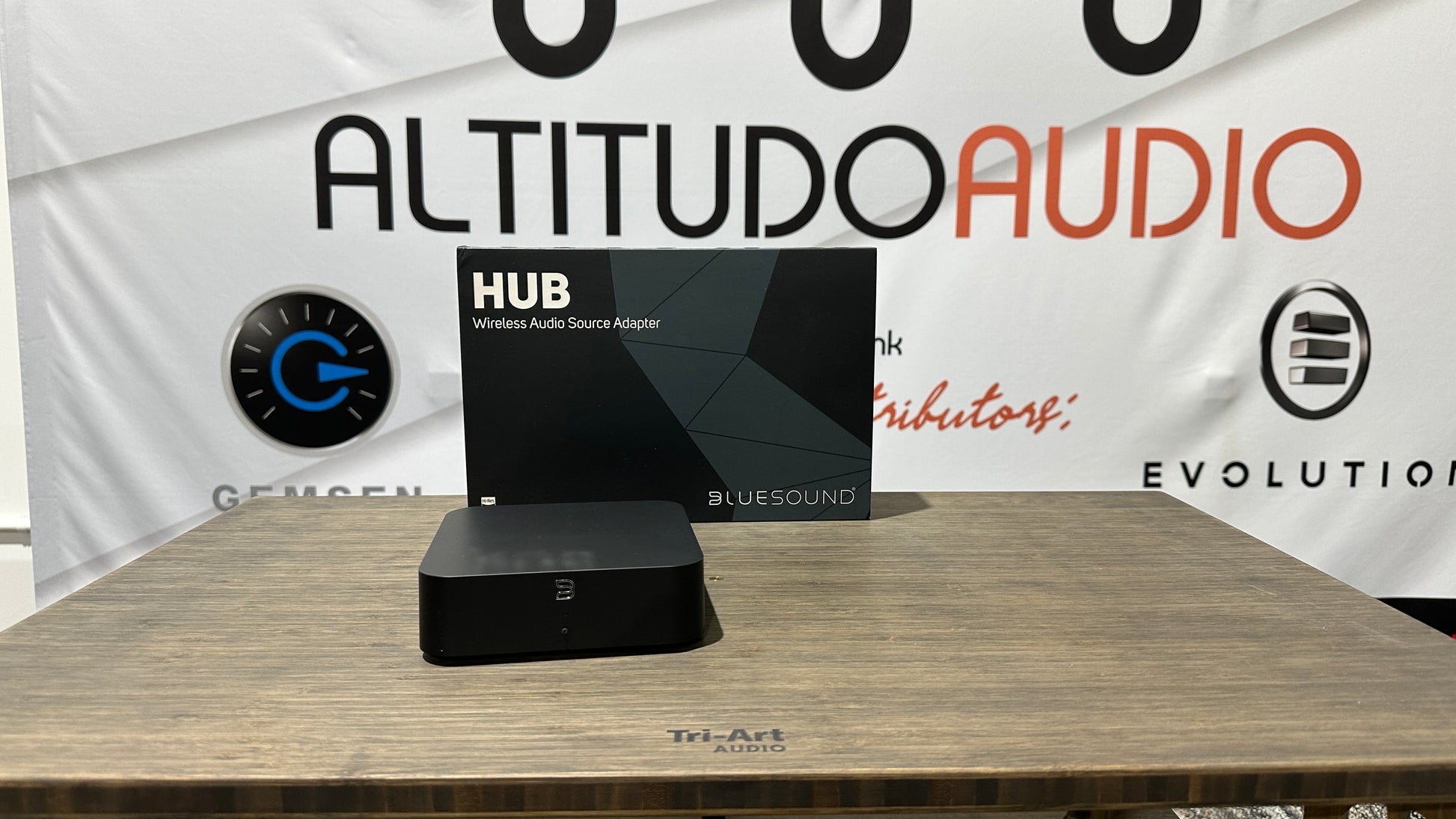

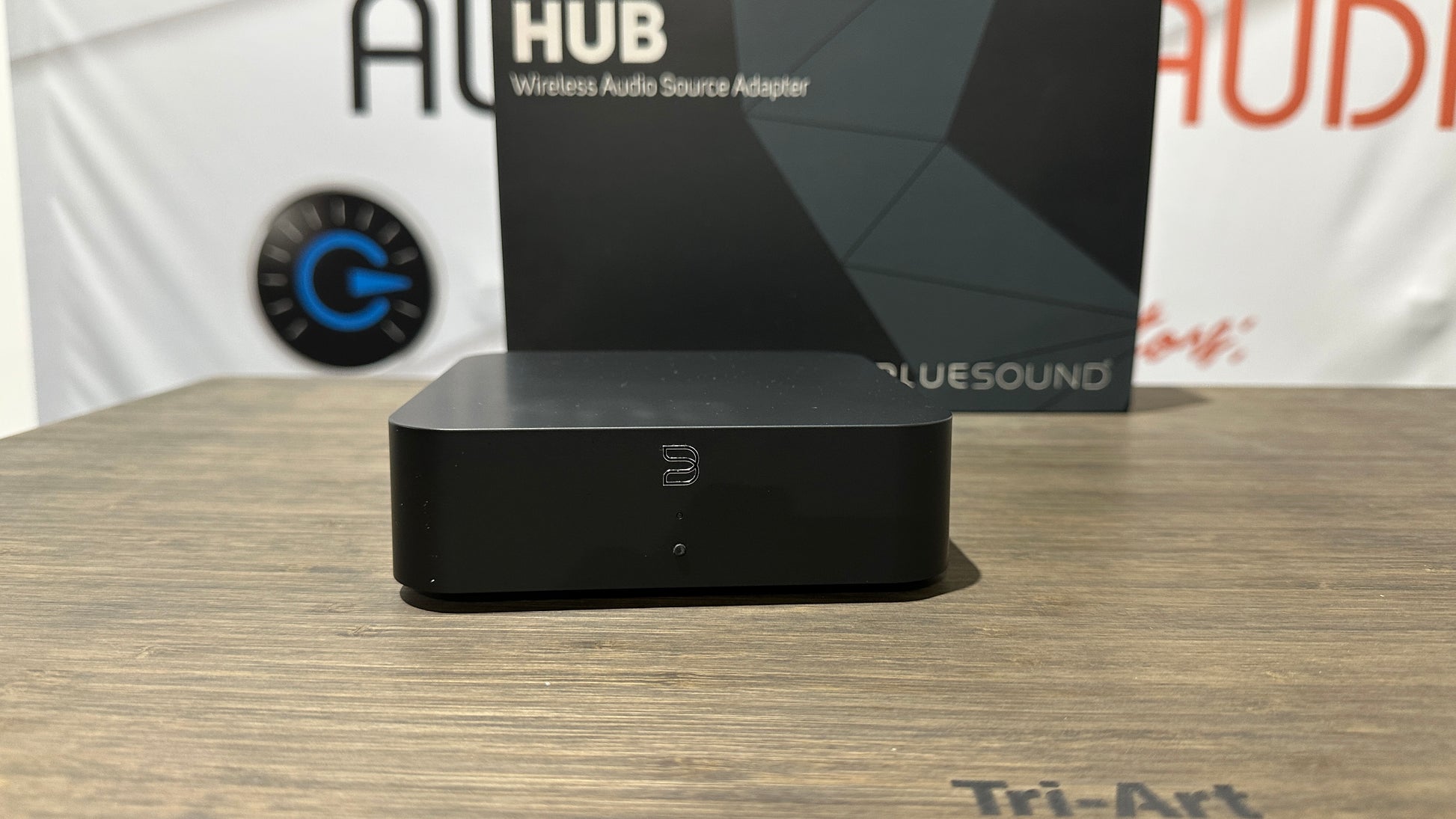

Bluesound Wireless Hub (Pre-Owned)

*Pre-Owned

** Like New condition, original box

Bluesound HUB Wireless Audio Source Adaptor

The Bluesound HUB is here. This highly adaptable network adapter links directly to a number of audio sources and integrates them into the BluOS ecosystem, allowing you to stream nearly any audio source from virtually anywhere. This is for music fans. The BluOS HUB connects analogue and digital audio devices to the BluOS ecosystem for networked streaming, allowing you to listen to any music source in the house without being restricted by cables or proximity. The HUB can be corded or wirelessly connected to the network. Because of its high-quality moving magnet phono preamp and low noise, wide-bandwidth architecture, you may wirelessly stream recordings from your vinyl collection without sacrificing playing quality.

INDUSTRIAL, COMPACT DESIGN

With its tiny shape, the HUB is designed to blend in with any surroundings. A tidy system design is achieved by using 1U rack height and 1/3 rack width. Four-way keyhole mounting slots provide for convenient cable management and four alternative orientation possibilities.

INPUTS FROM MANY SOURCES

When it comes to connecting music sources to the BluOS network, the HUB is compatible with practically any audio input, including HDMI ARC for audio, Coax, Digital Optical and Stereo Analog.

EASY TO CONTROL AND SETUP

Each HUB can manage two sources at once (one analogue, one digital), and the BluOS App's straightforward setup process allows you to connect up to four HUBs to a single network. The BluOS App on your smartphone, tablet, or desktop allows you to easily control all of your speakers and sources.

STRONG PERFORMANCE

The HUB's networked moving magnet phono pre-amp ensures that your turntable's audio quality is uncompromised. For consistent network audio performance, choose between dual-band Wi-Fi or a wired Gigabit ethernet connection.

USB-C CHARGEABLE

Powering the HUB is simple and efficient thanks to a universal USB-C plug and play connection. The HUB offers more space for dedicated audio inputs because it only requires a tiny external power supply, enhancing its usability and adaptability while also allowing for easier network source sharing.

AUDIO & OPERATING SYSTEM

-Operating System: BluOS
-BluOS Controller Operating System: iOS, Android, Windows, MacOS
-Control System Integrations: Control4, Crestron, URC, RTI, ELAN, Lutron
-Simutaneous Audio Streams: 2 per HUB, 1 x analog audio input, 1 x digital audio input
-Maximum Number Units: 4x HUB on single network (8 simultaneous streams)
-Native Sampling Rates: up to 192 kHz
-Bit Depth: 16-24
-Signal-to-Noise Ratio: >100 dB (Line input), >80 dB (Phono MM input)
-Distortion: <0.03% 20-20 kHz -1dBFS output
-Frequency Response: 20-20 kHz +/-0.3dB; 50 kHz -3dB
*via software update

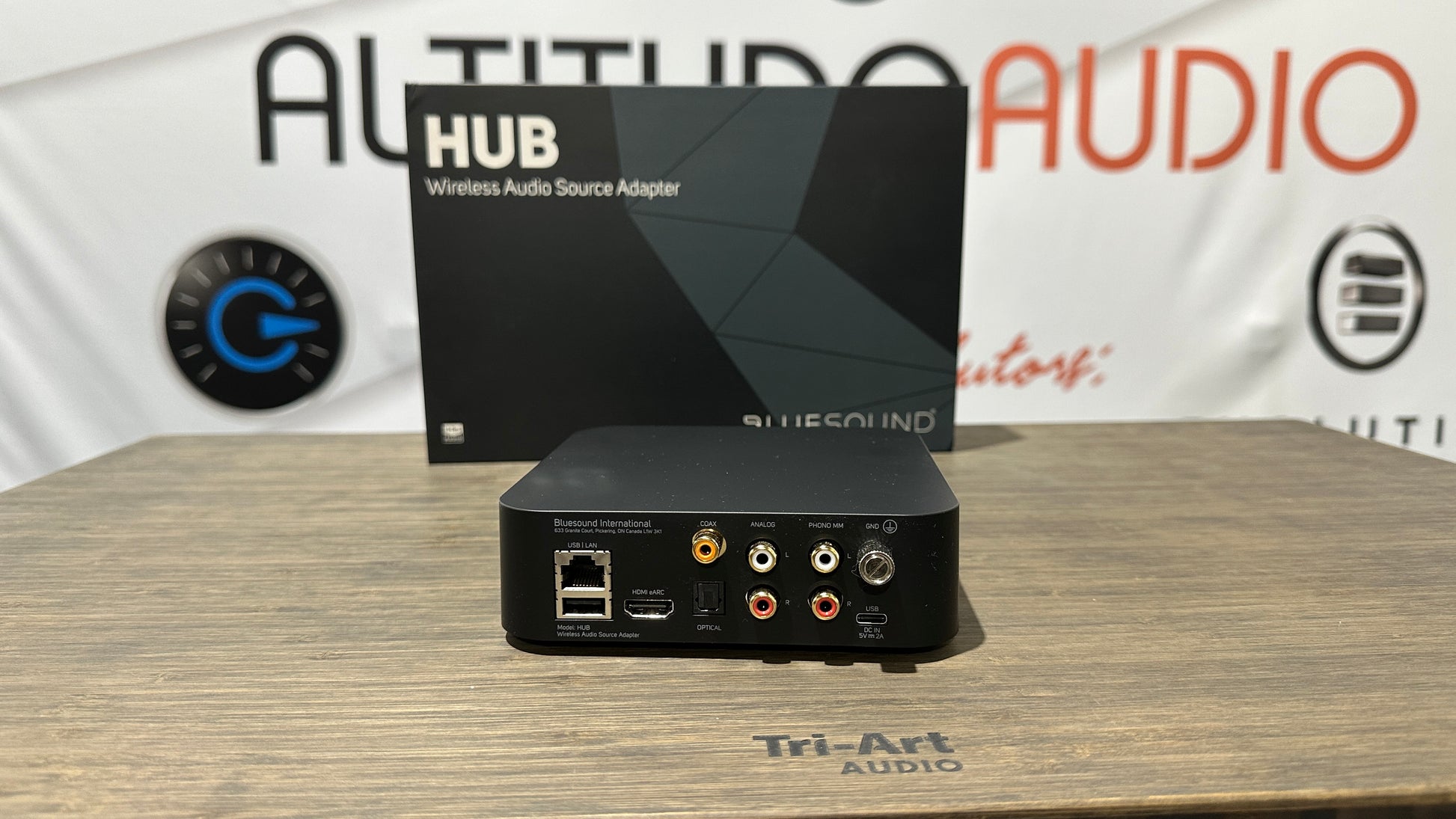

CONNECTIONS

-Power Supply: Universal USB-C Power adapter (Input:100-240V AC/0.3A Output:5V/2A)
-Ethernet/LAN: Ethernet RJ45, GigE 1000 Mbps
-Wi-Fi Built In: Wi-Fi 5 (802.11ac), 2.4/5GHz
-Analog Line Input: 1 x Stereo RCA
-Phono Input: 1 x Stereo RCA (Moving Magnet)
-Optical Input: 1 x TOSLINK digital optical
-Coaxial Input: 1 x RCA (75 ohms)
-HDMI Input: HDMI eARC with CEC
-USB Input: Type A (for BluOS firmware upgrade only)
-Audio Output: Network

FEATURES

-Processor: ARM® Cortex™ -A53, Quad-Core, 1.8GHz per core
-Status Indicator: Front Panel LED
-Function Button: Front Panel Function Button
-Power Consumption: 0.5W Network Standby

Finish: Black; Matte Satin Paint
Version: CB130

PRODUCT DIMENSIONS & WEIGHT

-143 x 153 x 45mm (W x D x H)
-5.6 x 6 x 1.8 in (W x D x H)*

Weight: 0.63kg / 1.39 lbs

INCLUDED ACCESSORIES

-5V Power Adapter
-3 x International Plug Adapters
-USB-C Power Cable
-Ethernet Cable
-Mounting Template
-Safety/Warranty Guide
-Quick Setup Guide
* Non-metric measurements are approximate.
