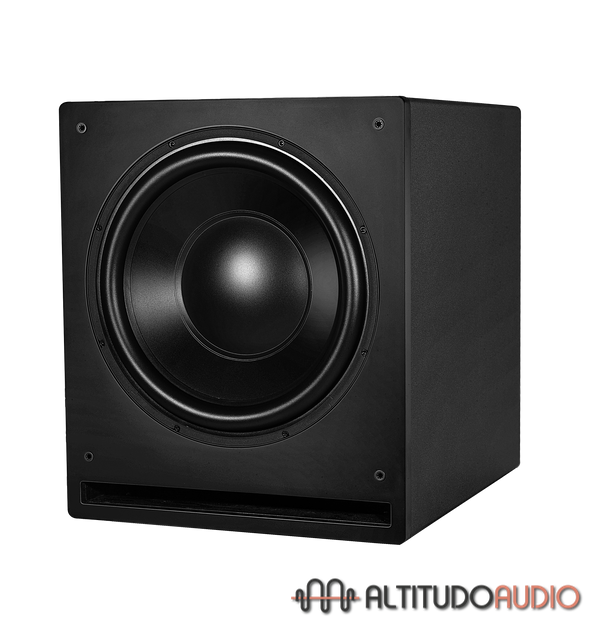

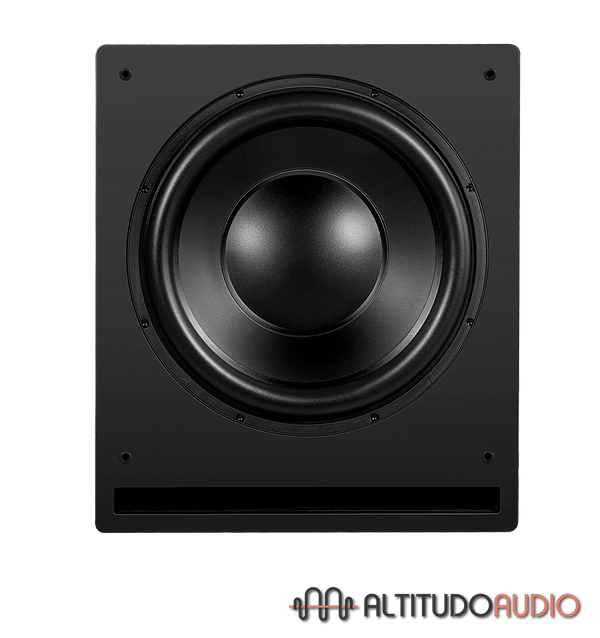

Brio Series SW15P(slot) 15" Ported Subwoofer

Building on the wildly successful SW15 we invested in development of a ported version for greater room-energizing power. It has a new composites cone, redesigned magnet structure, and a quiet, tuned, slotted port for peak performance. With a slightly larger enclosure and robust amplifier you’ll enjoy greater efficiency, higher SPL and chest-thumping impact in movies and music.

For the best of both worlds, consider combining ported and sealed SW subs in your home theater. With careful placement and adjustment, you can achieve the smoothest overall bass response in your room, and the accuracy and impact that pros demand. All with the great value our SW subs are becoming known for.

Main Specs

Sound - Acoustics

Drivers

• 15 inch

Max SPL output（1m）

• 118dB

Active driver

• 15 inch rubber surround with PP cone

Finish

• Matte

Amplifier

• 475W RMS (900Wshort-term)

Frequency response (±3dB)

• 18Hz-220Hz

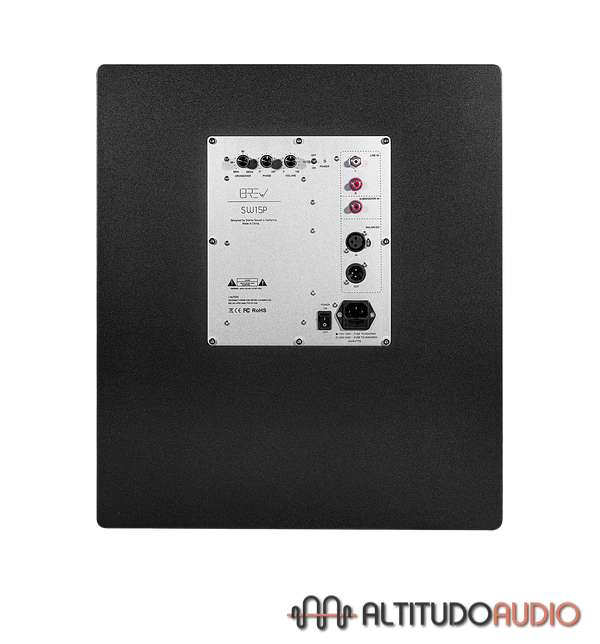

Input / output terminals

• XLR balanced input
• XLR balanced output
• Subwoofer input (RCA)
• RCA stereo inputs, a pair

Color options

• Black

Sizes and Weights

Full size

• H 21.3 x W 17.7 x D 21.7 inches (w/ foot)
• H 540 x W 450 x D 552mm (w/ foot)

Shipping size

• L 26.2 x W 22.8 x H 25.9 inches
• L 665 x W 578 x H 657mm

Weight

• 81.6 lbs (37kg)

Shipping weight

• 86 lbs (39kg)
