Cardas CAB/CABD Banana Plug

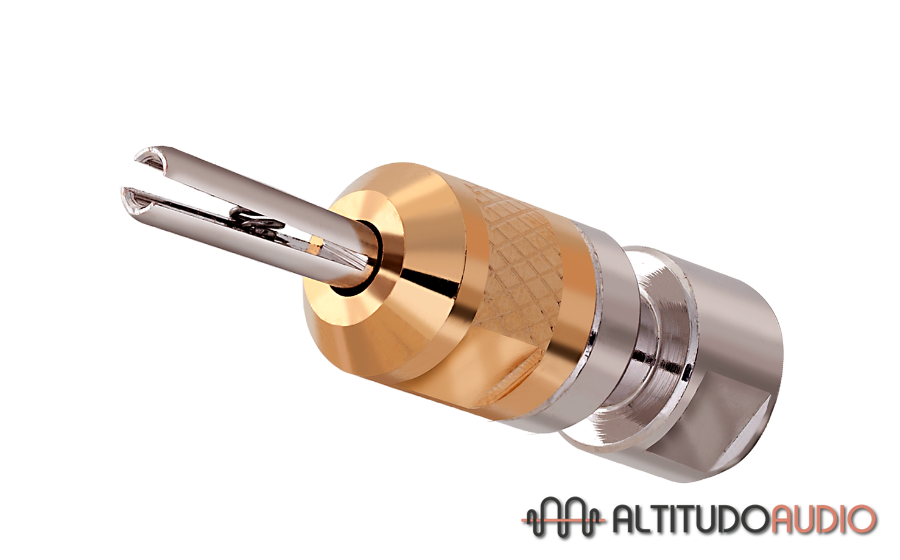

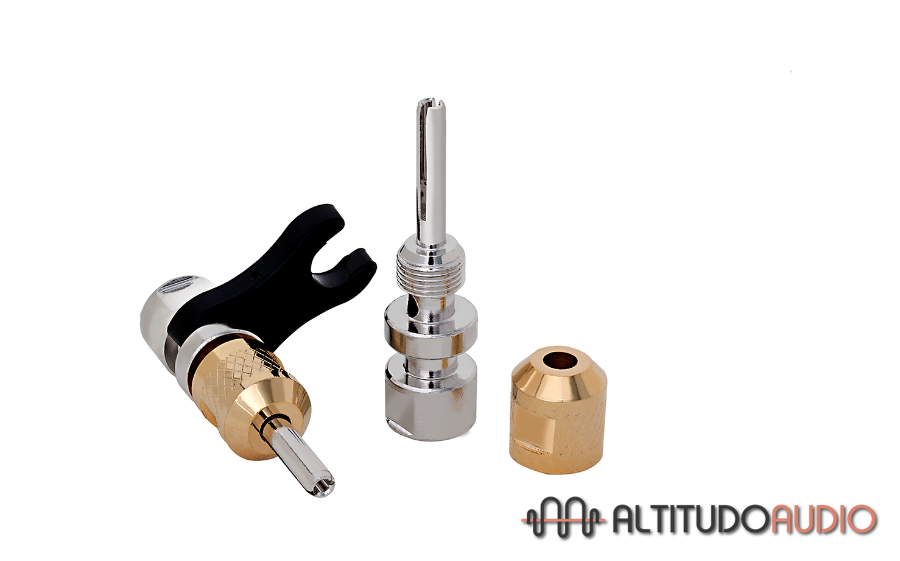

Gold binding nut for attaching spades or bare wire. Tapered hole at the back for soldering wire or stacking additional banana plugs. Spring loaded split tip for maxi- mum contact surface area and retention.

​

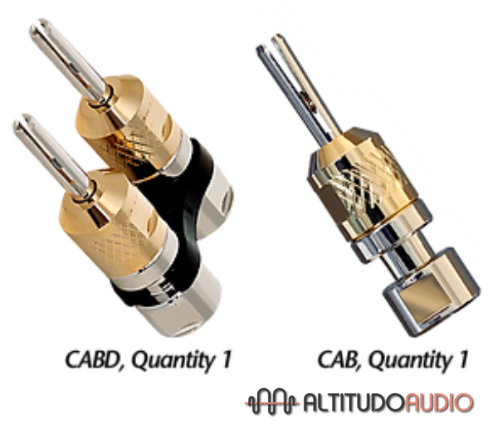

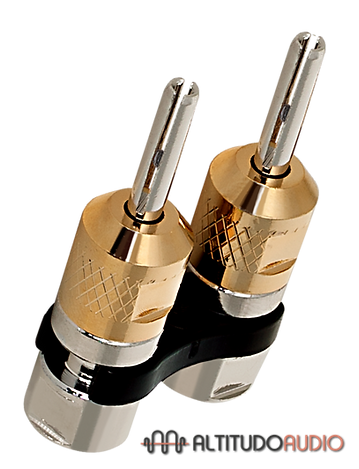

The CAB is a single banana. The CABD is a pair, joined with a removable plastic yoke.

​

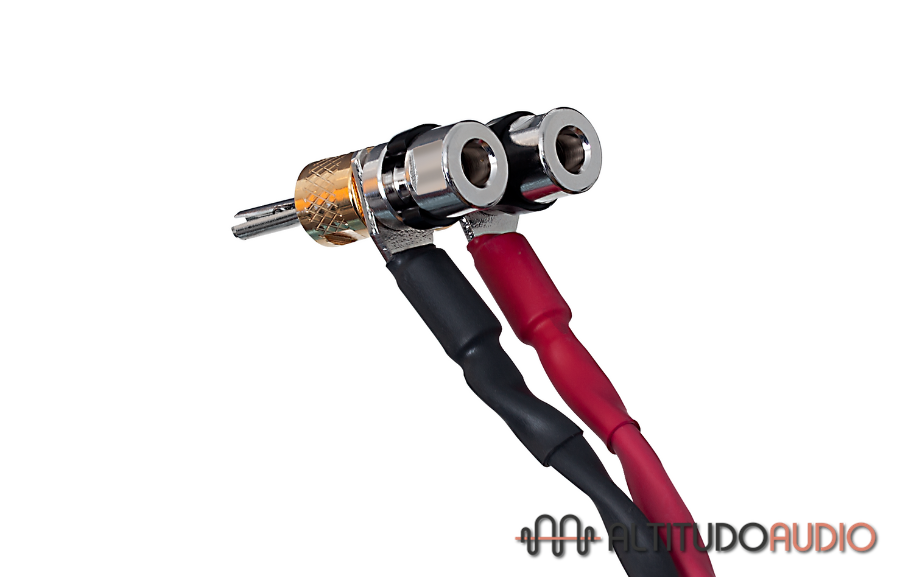

These bananas can be terminated to a cable with solder, or used as a spade (or bare-wire) adapter. See gallery below for these applications.

Base metal: High copper content, non-magnetic brass

Plating: Silver/rhodium

Termination hole: 3 AWG/6mm/0.236”
