CARDAS Premium 6.35mm Spades
Easily Convert Bananas to Spades With These High Quality Adapters

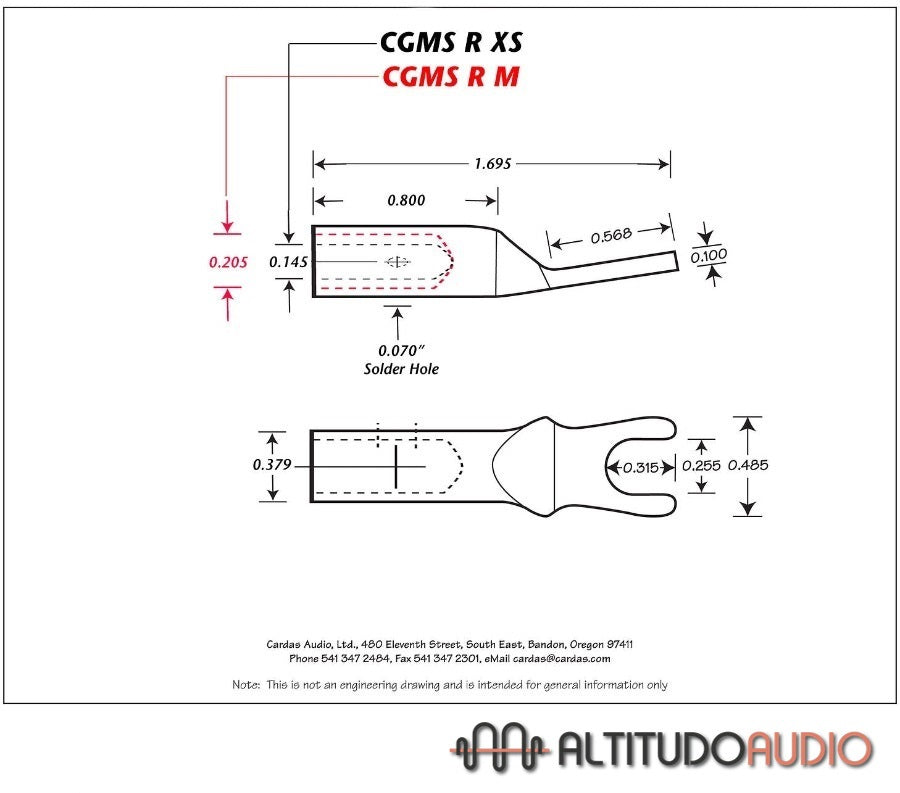

Initially designed as a high-quality spade for Cardas cables, the CGMSR XS spade is actually perfectly sized to work as a Banana to Spade adapter. Milled from billet copper for optimum current capability, the spade is then silver plated to protect the copper. A "flash" of rhodium over the entire surface protects the spade from premature wear and corrosion. With just over 0.375" depth and a 0.160" internal diameter, the CGMSR XS accommodates most bananas. The spade forks are spaced to accommodate 1/4" posts yet will fit inside a 1/2" spacing.

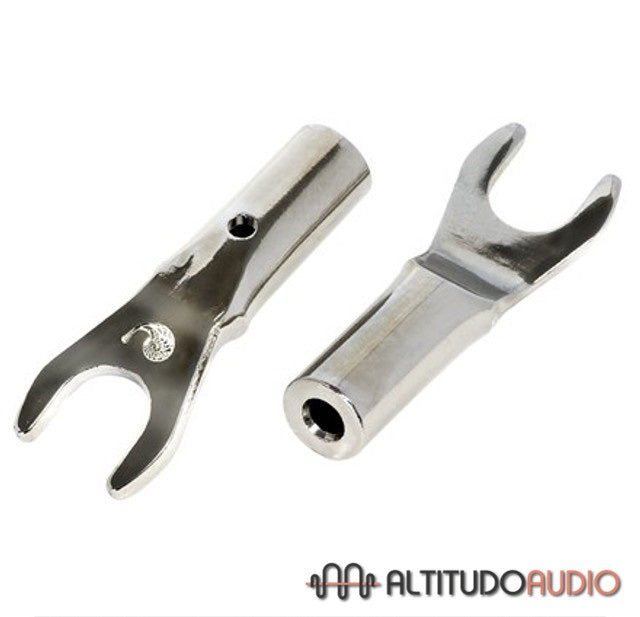

Description: Heavy duty spade milled from high purity billet copper. Fits 0.25”/6.3mm binding posts. Drilled solder hole to aid in termination. Has a slight angle of 13° for increased cable
clearance. Maximum width of 12mm/0.47”
Base metal: High Purity Copper
Plating: Silver/rhodium
This part requires solder. Click here to learn about Cardas Quad Eutectic Solder & Cardas Rosin Flux. Click here for our soldering how-to videos.
