Concentro M Series Floorstanding Speaker (Each)
Shipping : FREE in Canada
Please Contact Us To Order. Thank you.
ELAC CONCENTRO M FLOORSTANDING SPEAKER – SPECIAL ORDER

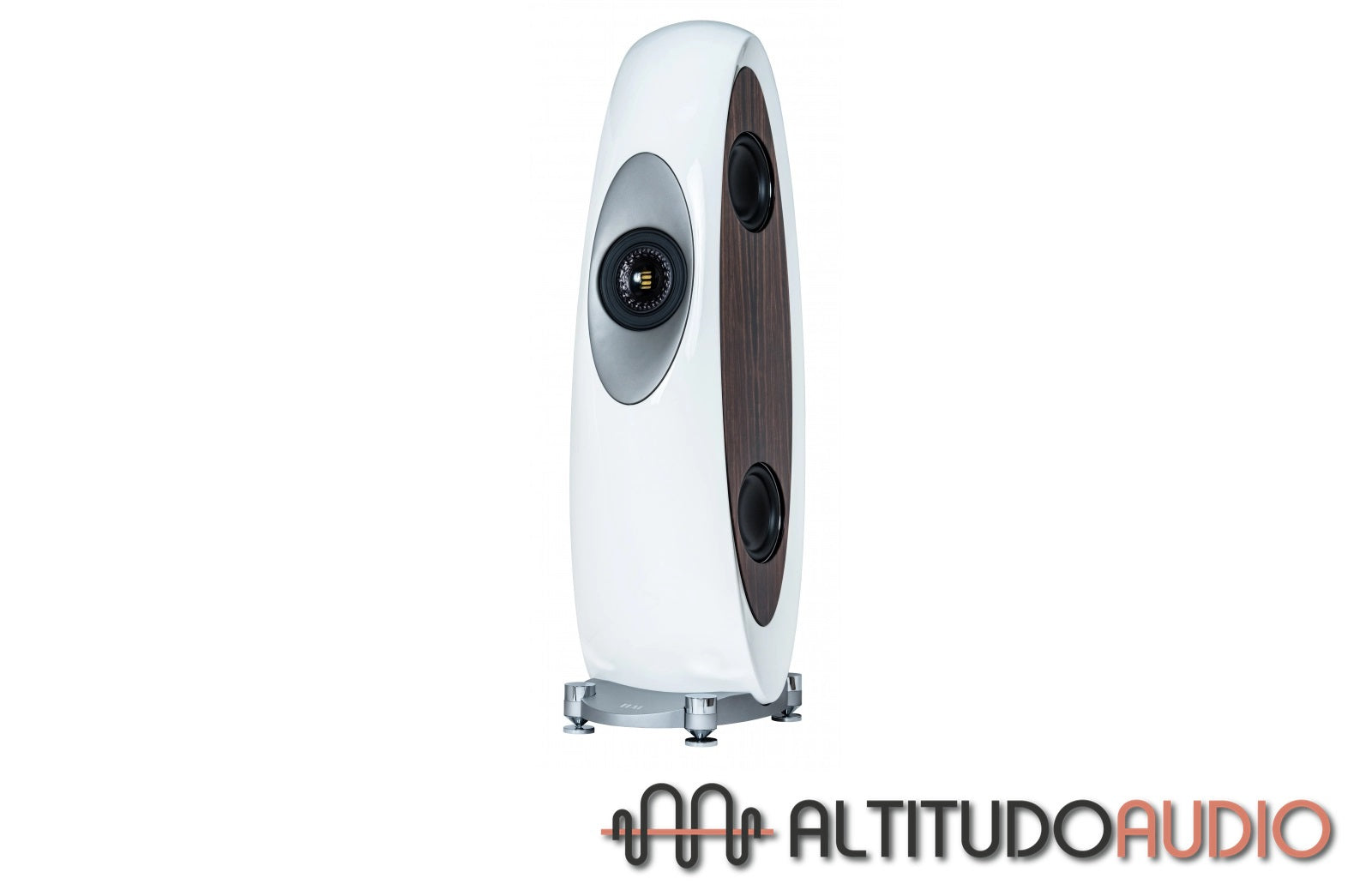

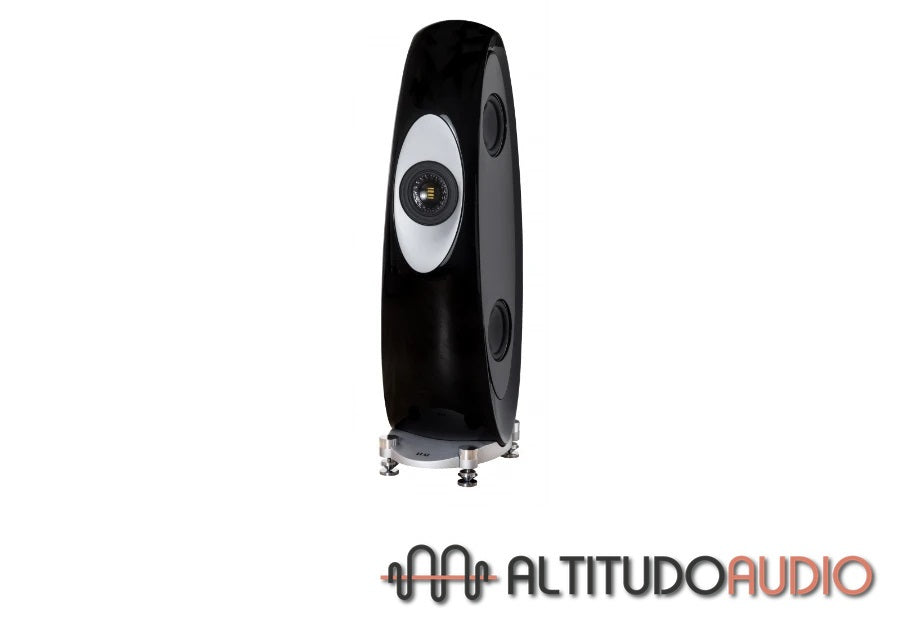

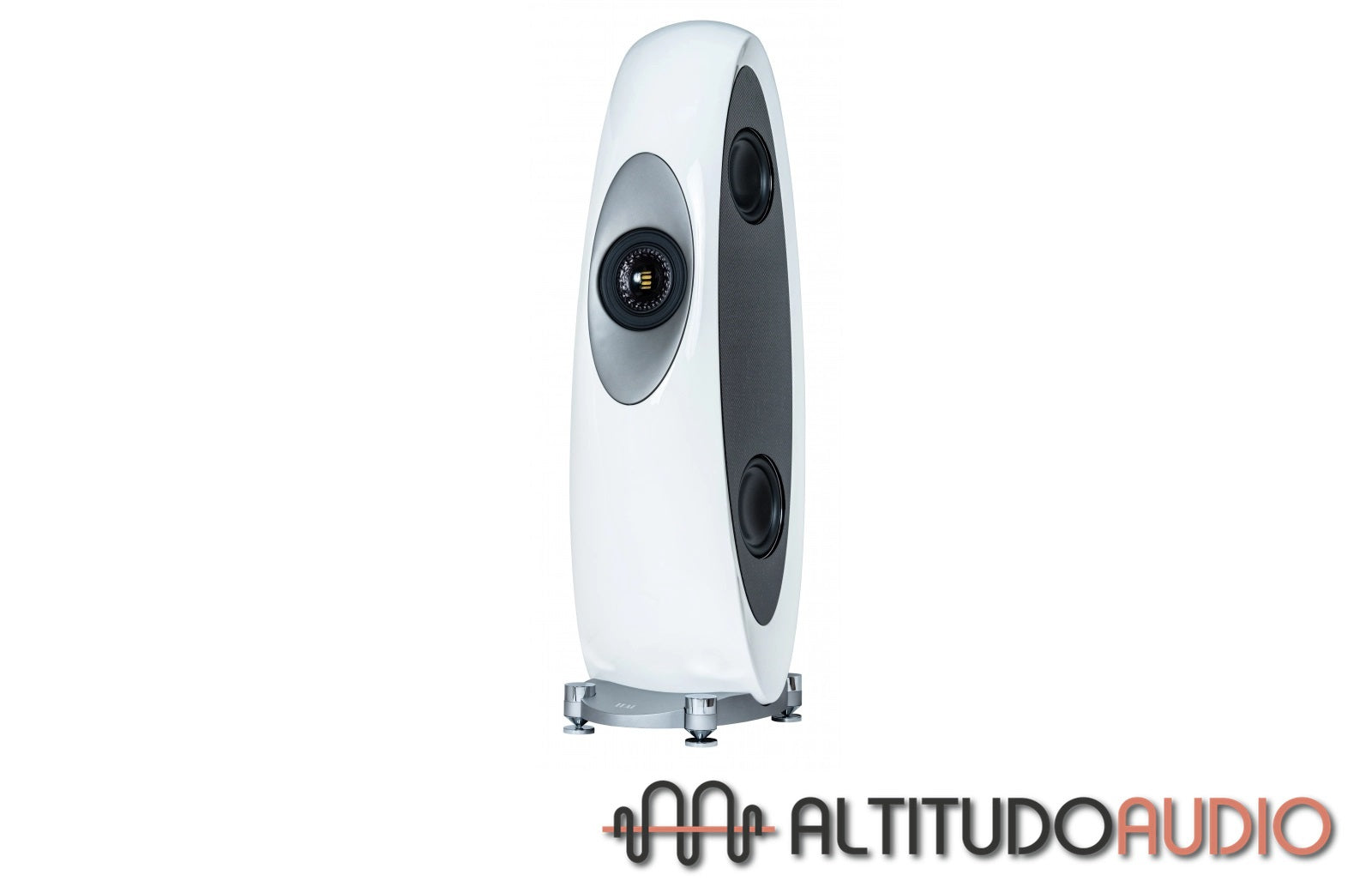

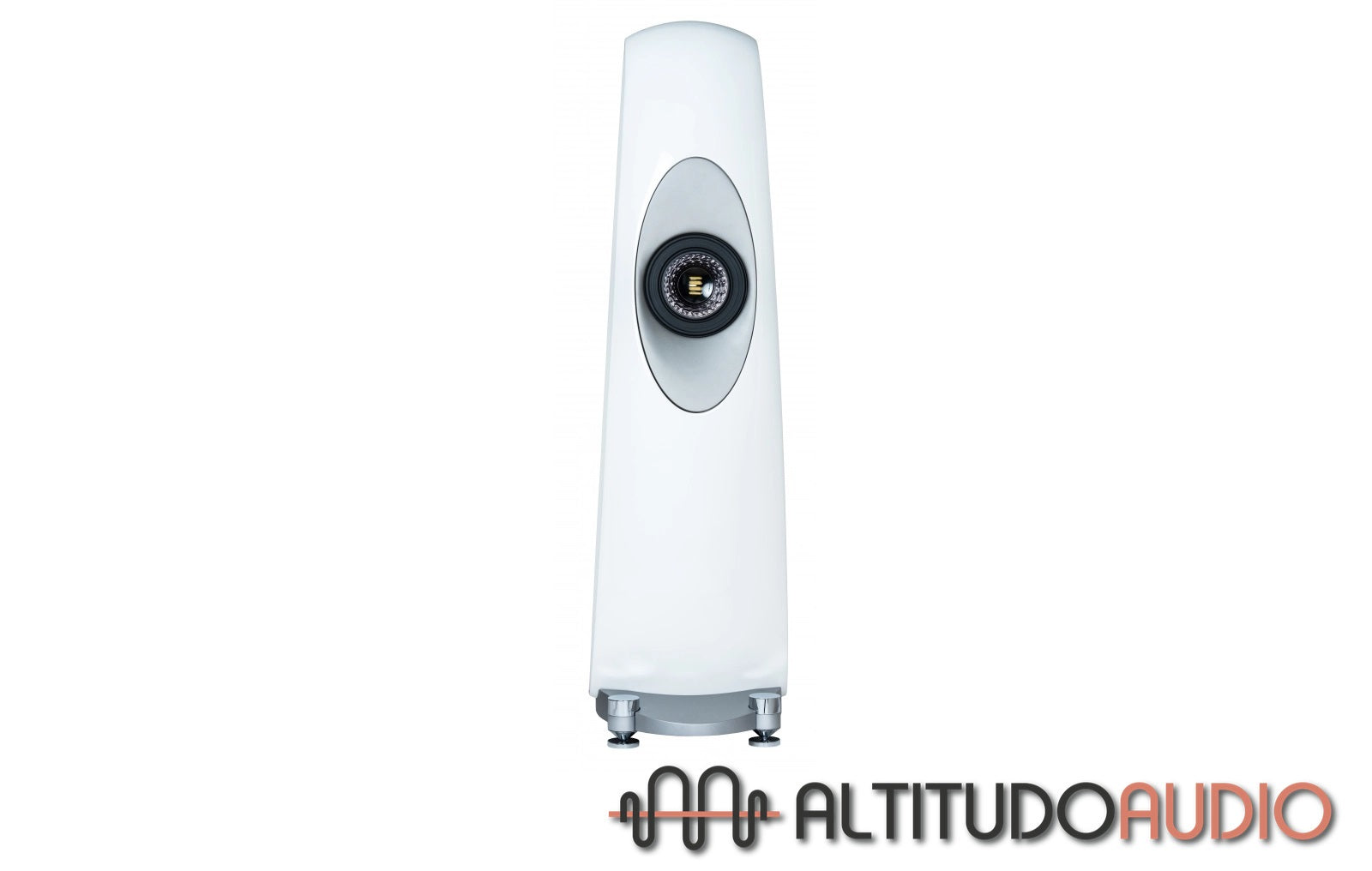

Concentro M Series Floorstanding Speakers
The Concentro M displays characteristic Concentro design cues but creates its own unique sonic and visual impact. Despite its slightly more compact dimensions, every aspect of its performance is on a grand scale.
The Concentro Series is a true benchmark loudspeaker designed to commemorate 90 years of ELAC history and in response to calls for a loudspeaker that rivals—and surpasses—the most ambitious designs in today's audiophile landscape.
• Coaxial Driver with VX Technology
• Award-winning JET 5 Tweeter
• AS-XR Technology in Midrange and Low/Midrange drivers
• AS Technology in the Woofer
• Push-Push/Pull-Pull Technology
• Bi-Wiring/Bi-Amping
Meet Concentro M
Medium Meets Magic
The Concentro M displays all the characteristic Concentro design cues of it's bigger brother, but creates its own unique sonic and visual impact. Despite its slightly more compact dimensions, every aspect of its performance is on a grand scale
Crystal Membrane Driver
Engineered for Low Distortion
Based on ELAC’s Aluminum-Sandwich AS Technology. Resembling the surface of a large crystal, the aluminum-foil stamping stiffens the aluminum dome, diminishing resonances and minimizing coloration, while improving power handling and dynamics. The voice coil design of the drivers results in an expanded frequency range, and driver surround allows for longer cone excursions for truly prodigious volume and lowest distortion, a unique engineering achievement for a driver of its size.
JET 5 Tweeter
Lightning-Fast Response and Wide Dynamic Range
Delivering true high-definition sound, ELAC’s JET 5 tweeter enthralls with its lightning-fast response and wide dynamic range, offering minimal distortion, lots of headroom, and a distinctly wider frequency range than conventional dome tweeters. The ELAC JET tweeter is one of the most legendary tweeters in the industry and has won international praise for its transparent and effortless sound image.
SPECIFICATIONS:
Type | 3-Way, Bass Reflex |
---|---|
Woofer | 4 × 220 mm Ø AS, cone |
Midrange | 1 x 70 / 140 mm Ø, AS XR ring radiator |
Tweeter | JET 5 Core, modified |
Crossover frequency | 180 / 2700 Hz |
Nominal power handling | 300 W |
Minimal impedance | 2.8Ω at 380 Hz |
Peak power handling | 400 W |
Frequency range (IEC 268-5) | 24 - 50000 Hz |
Sensitivity | 88 dB/2,83 V/m |
Suitable for amplifiers from ... to | 4-8Ω |
Nominal impedance | 4Ω |
Recommended amplifier power | 80 - 600 W/channel |
Finishes | Black High Gloss, White High Gloss |
Accessories included | Bi-Wiring Set, Gloves, Tool Set |
Height | 1450 mm with spikes |
Width | 460 mm with base |
Depth | 535 mm with base |
Weight | 90 kg |
