Concentro S 509 Floorstanding Speaker
Shipping : FREE in Canada
Please Contact Us To Order. Thank you.
ELAC CONCENTRO S 509 FLOORSTANDING SPEAKER – SPECIAL ORDER

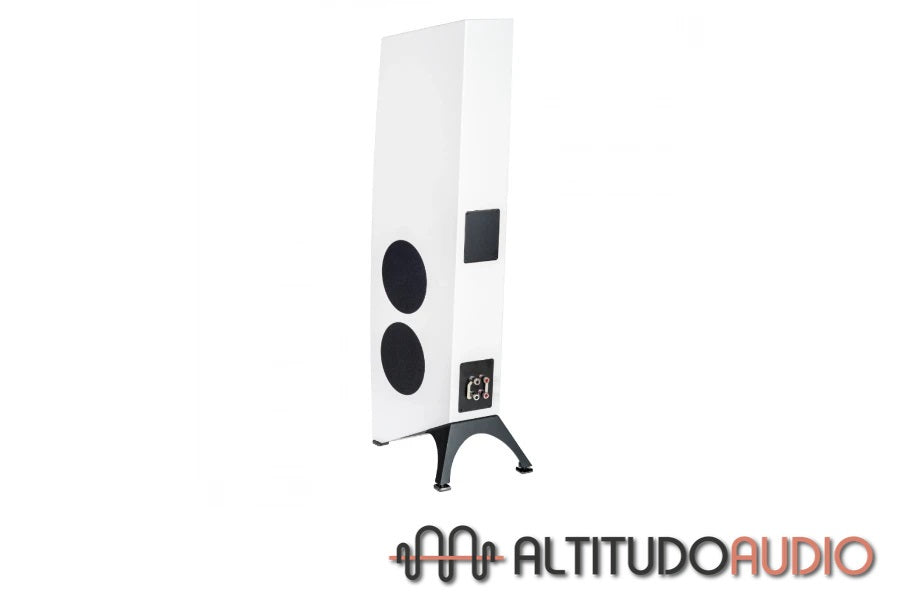

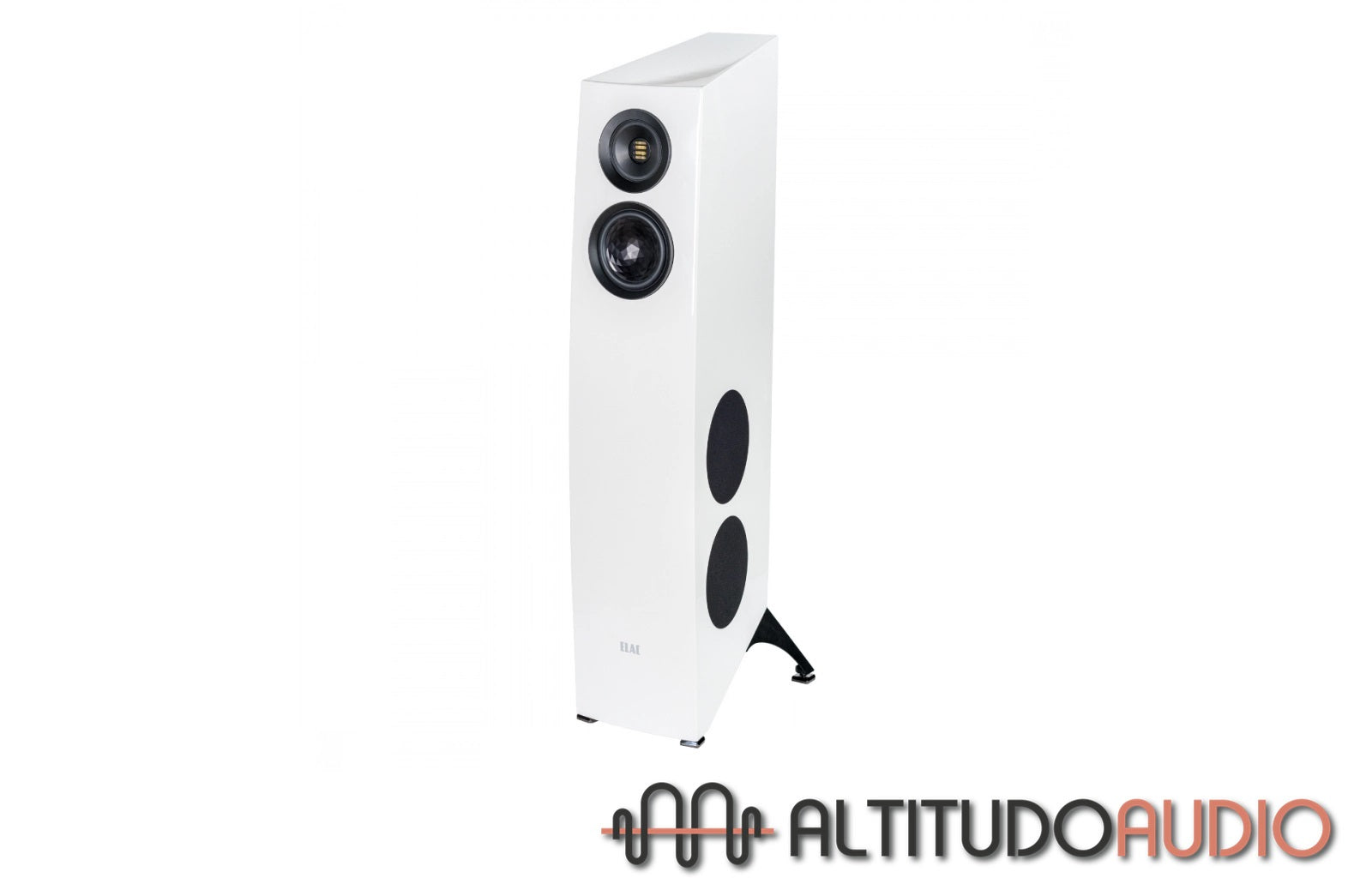

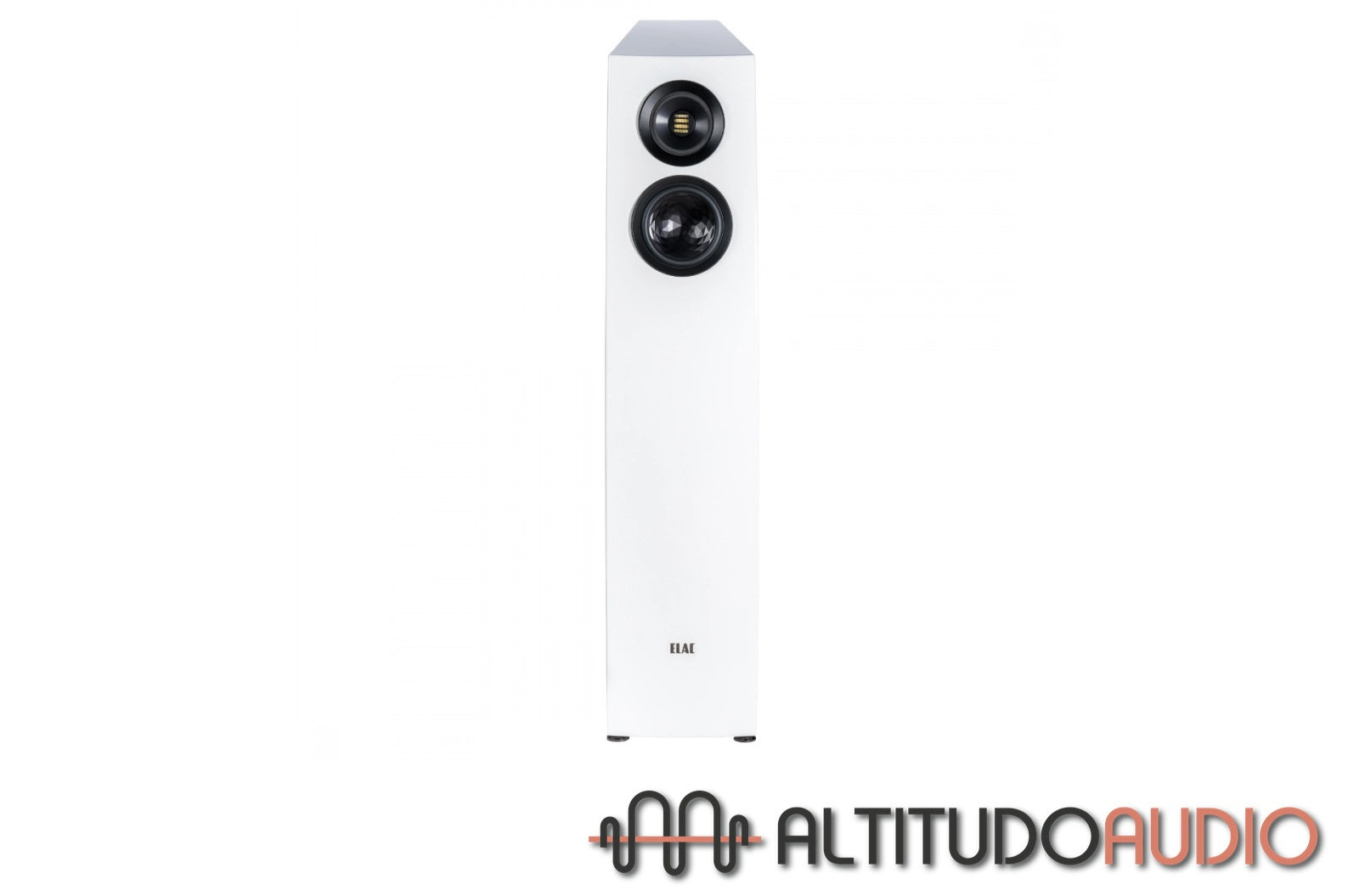

Concentro S 509 Floorstanding Speaker
Concentro is synonymous with the ultimate in workmanship, design, and sound.The Concentro S509 retains all the features and benefits of the larger Concentro loudspeakers but creates its own unique visual impact.
MODERN HYBRID DESIGN
The progressive design elements from the Concentro Series combined with the clean lines of the Vela Series to create a strong visual presence. The trapezoid basic shape, convex shaped baffle, and gently angled cabinet combine in a strikingly organic way to create a strong visual statement.
PATENTED
The extensive list of patented features and the revised woofer magnet system guarantee superlative sound. The effortless performance can be adjusted to suit the room acoustics. Close your eyes and you’ll instantly forget you’re listening to a compact speaker ... all you hear is music.
COLOURS

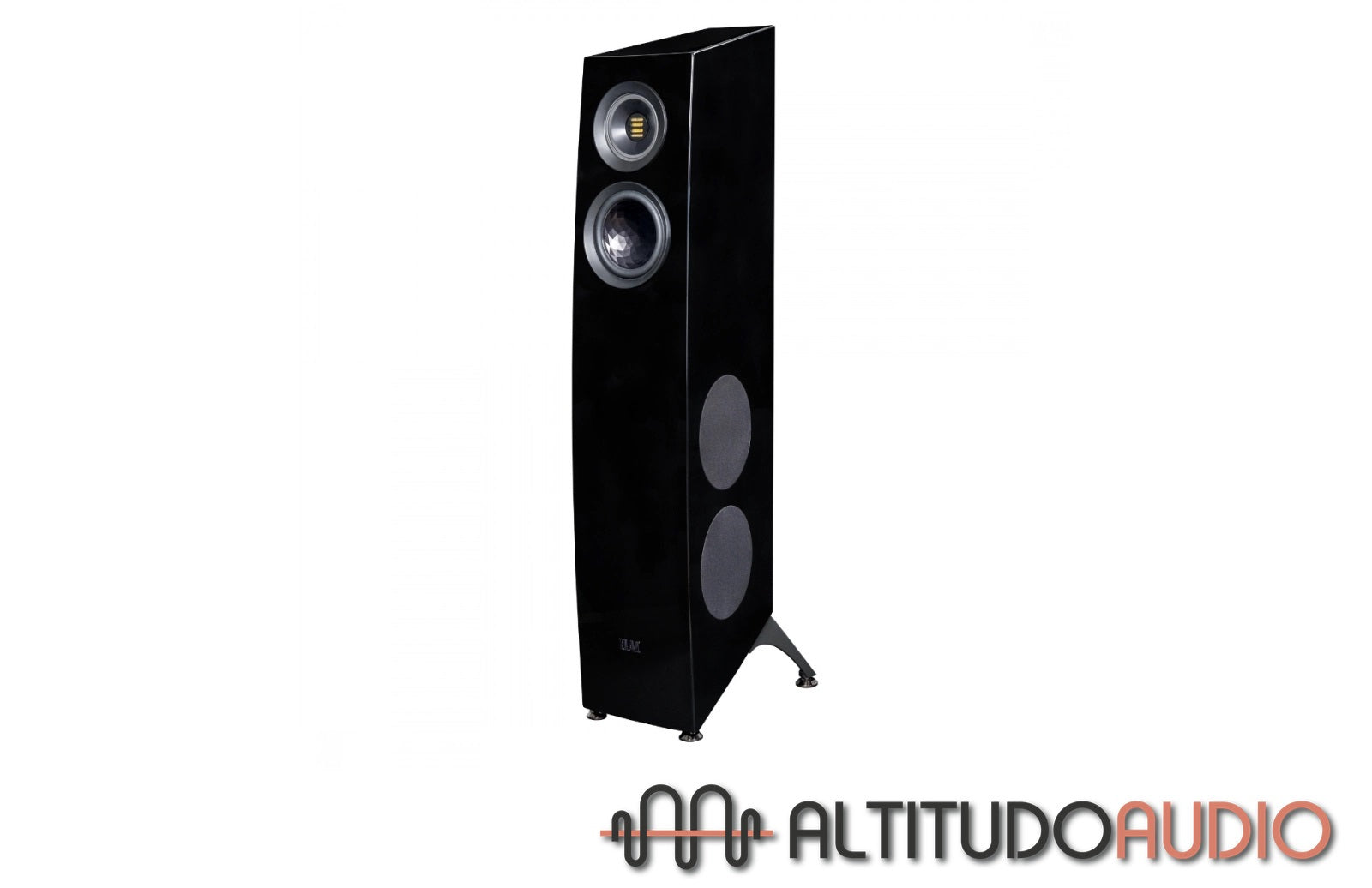

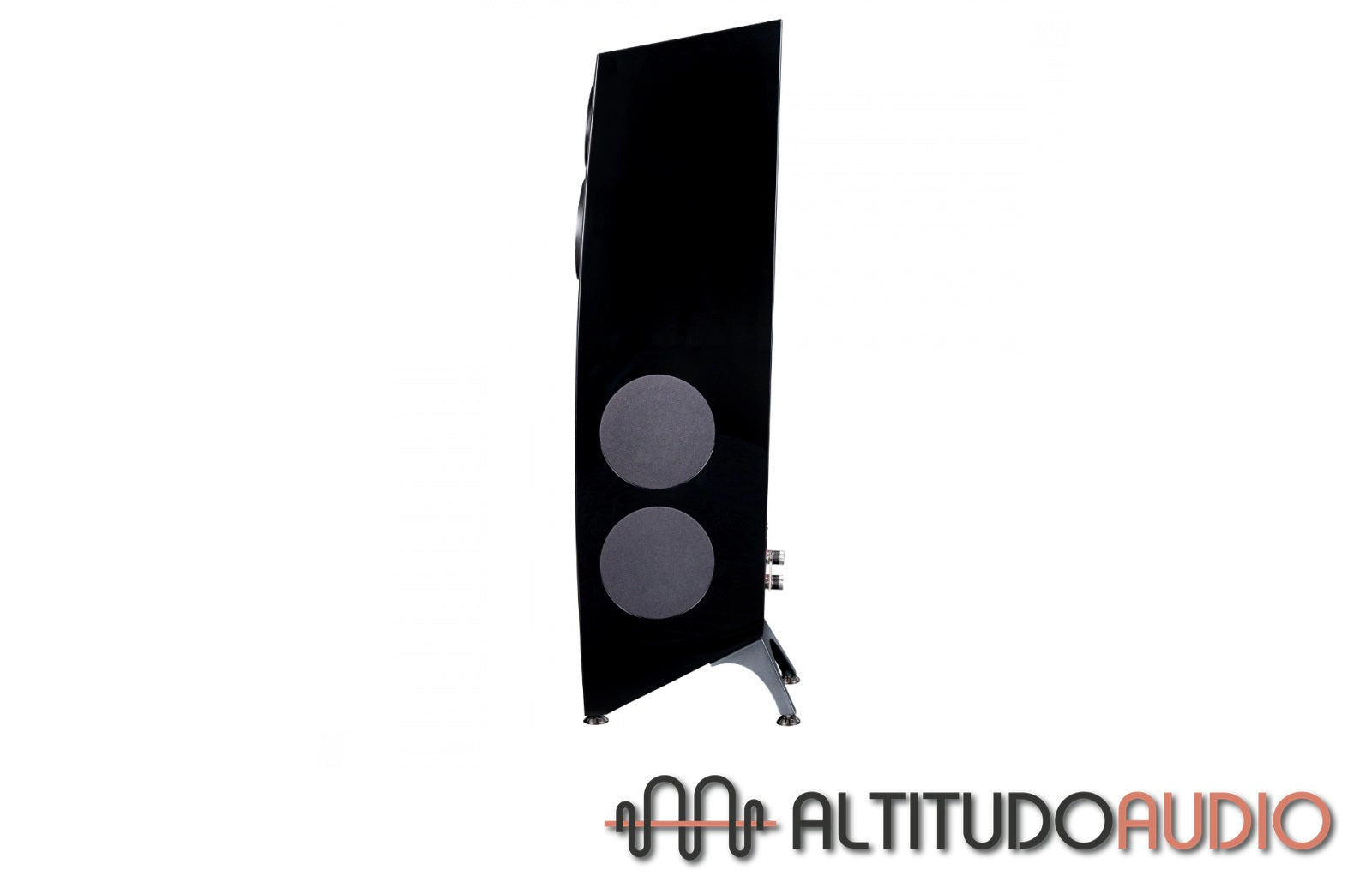

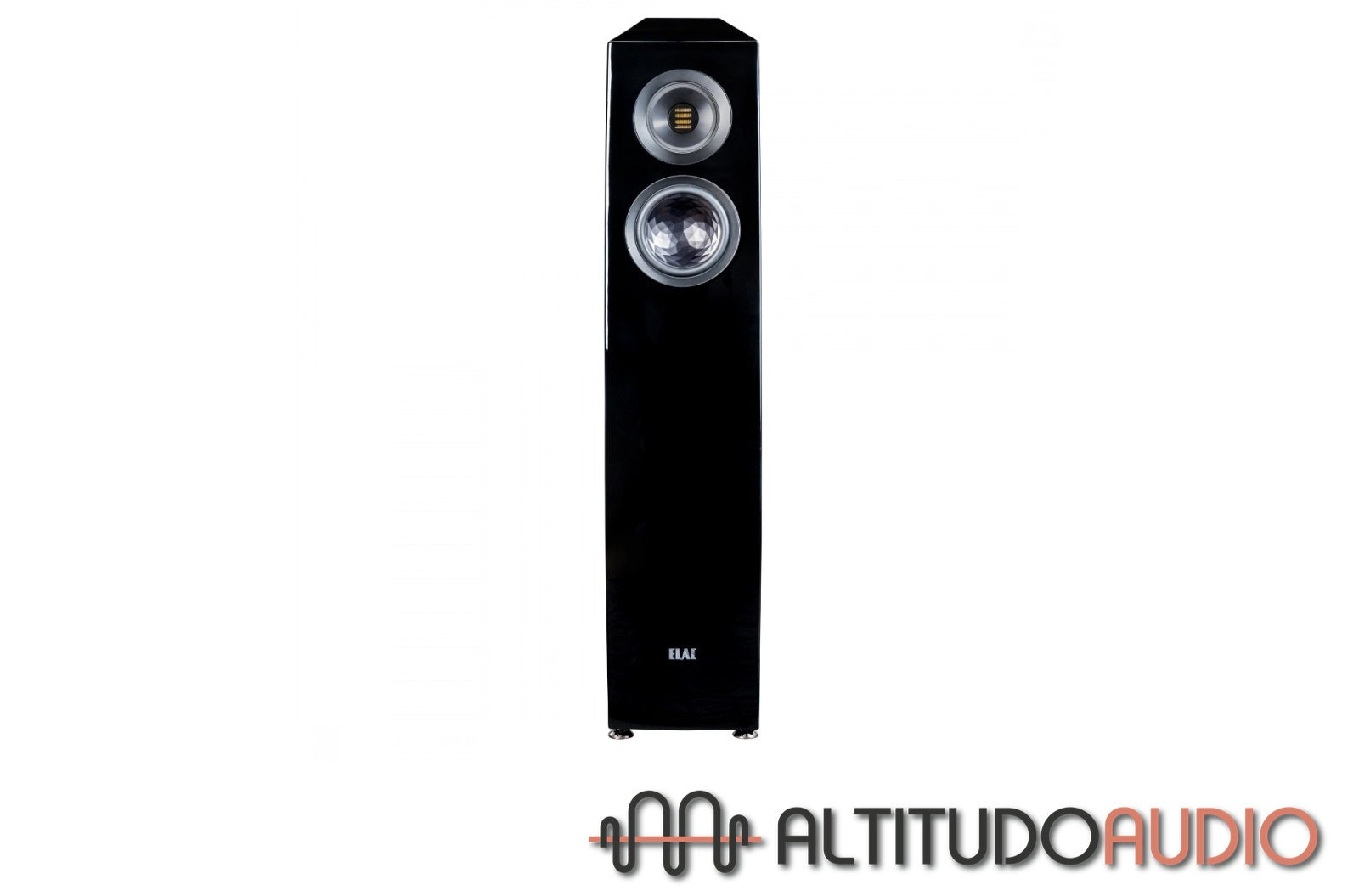

The Concentro S509 is available in black and white high-gloss finishes .
Meet Concentro S
High-End on High Heels.
Concentro is synonymous with the ultimate in workmanship, design, and sound. The Concentro S 507 retains all the features and benefits of the larger Concentro loudspeakers but creates its own unique visual impact.
Design Methodology
Bringing Concentro Down to Earth

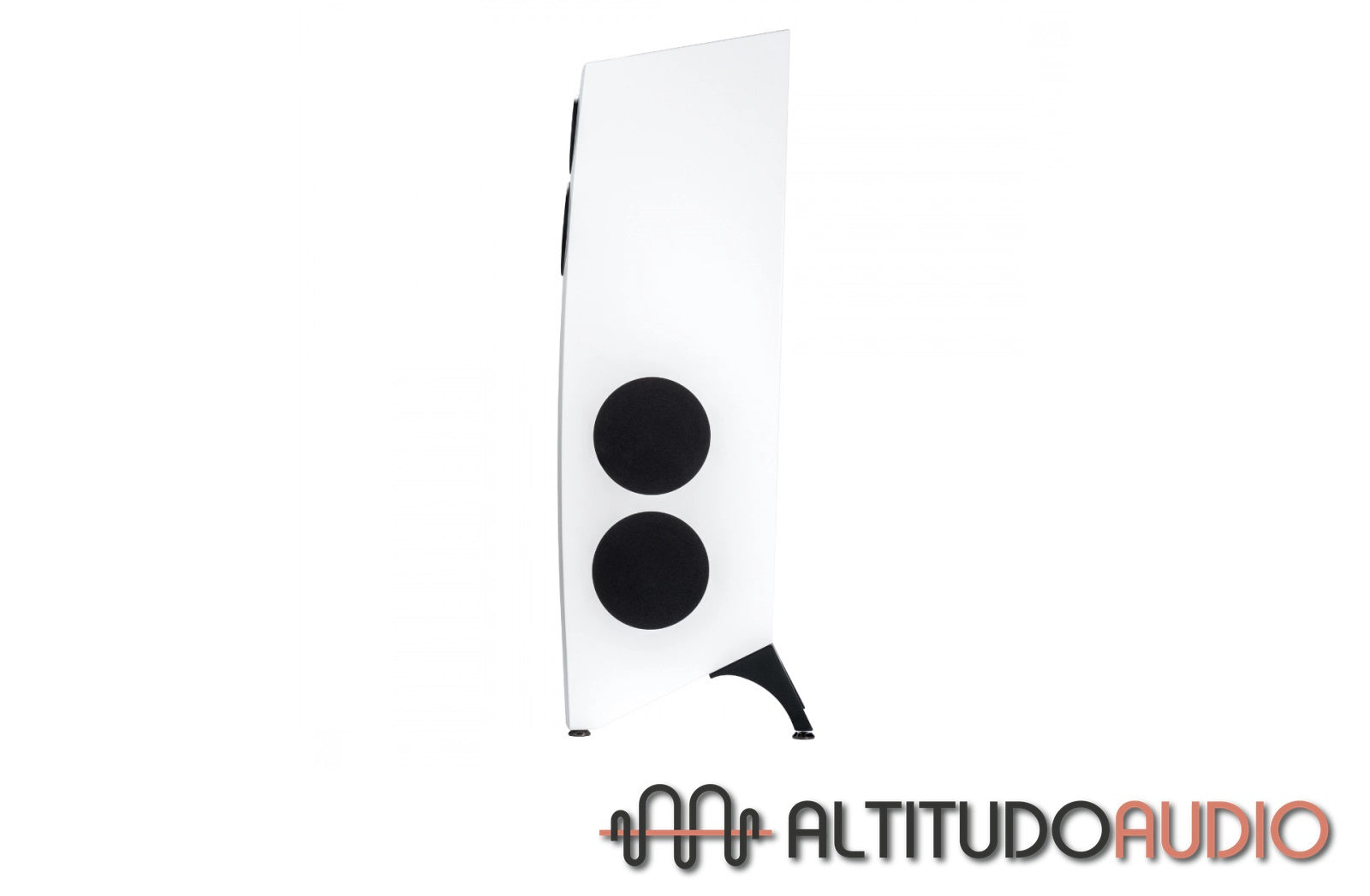

The ELAC Concentro S 509: a loudspeaker with characterful design and an impressive feature set. The wraparound baffle forms the basis for magnificent acoustic performances. Combined with the gently angled cabinet, the trapezoid basic shape, and an expressive bottom assembly, complete with a ‘high-heel’ effect, the result is a powerful yet natural and elegant appearance. Its exterior is a perfect symbiosis of the extravagant design of the Concentro and the clean lines of the VELA Series. The trapezoid basic shape, wraparound baffle, and gently angled cabinet combine to convey a natural, low-key appearance. The striking bottom assembly achieves a ‘high-heel’ effect, imparting a sense of elegance and stability. Incidentally, it also guarantees an exceptionally sound footing.
Directivity Control Ring (DCR) Technology
Exchangeable Wave Guides to Optimize Listening
Since no two rooms are identical, midrange directivity can be adjusted using three exchangeable Directivity Control Rings (DCRs). This provides the ability to optimize the Concentro S Loudspeakers for the listening space. They range from more Direct (often preferred for nearfield) to more Diffuse (often preferred for farther listening positions). A patented technology uses exchangeable DCRs (Directivity Control Ring) to tailor the directional characteristics in the mid-frequency range to conditions in the listening area. The different DCRs (three aluminum DCRs are included as standard) are used to influence the relationship between direct and diffuse sound in the listening area.
Crystal Membrane Driver
Engineered for Low Distortion
Based on ELAC’s Aluminum-Sandwich AS Technology. Resembling the surface of a large crystal, the aluminum-foil stamping stiffens the aluminum dome, diminishing resonances and minimizing coloration, while improving power handling and dynamics. The voice coil design of the drivers results in an expanded frequency range, and driver surround allows for longer cone excursions for truly prodigious volume and lowest distortion, a unique engineering achievement for a driver of its size.

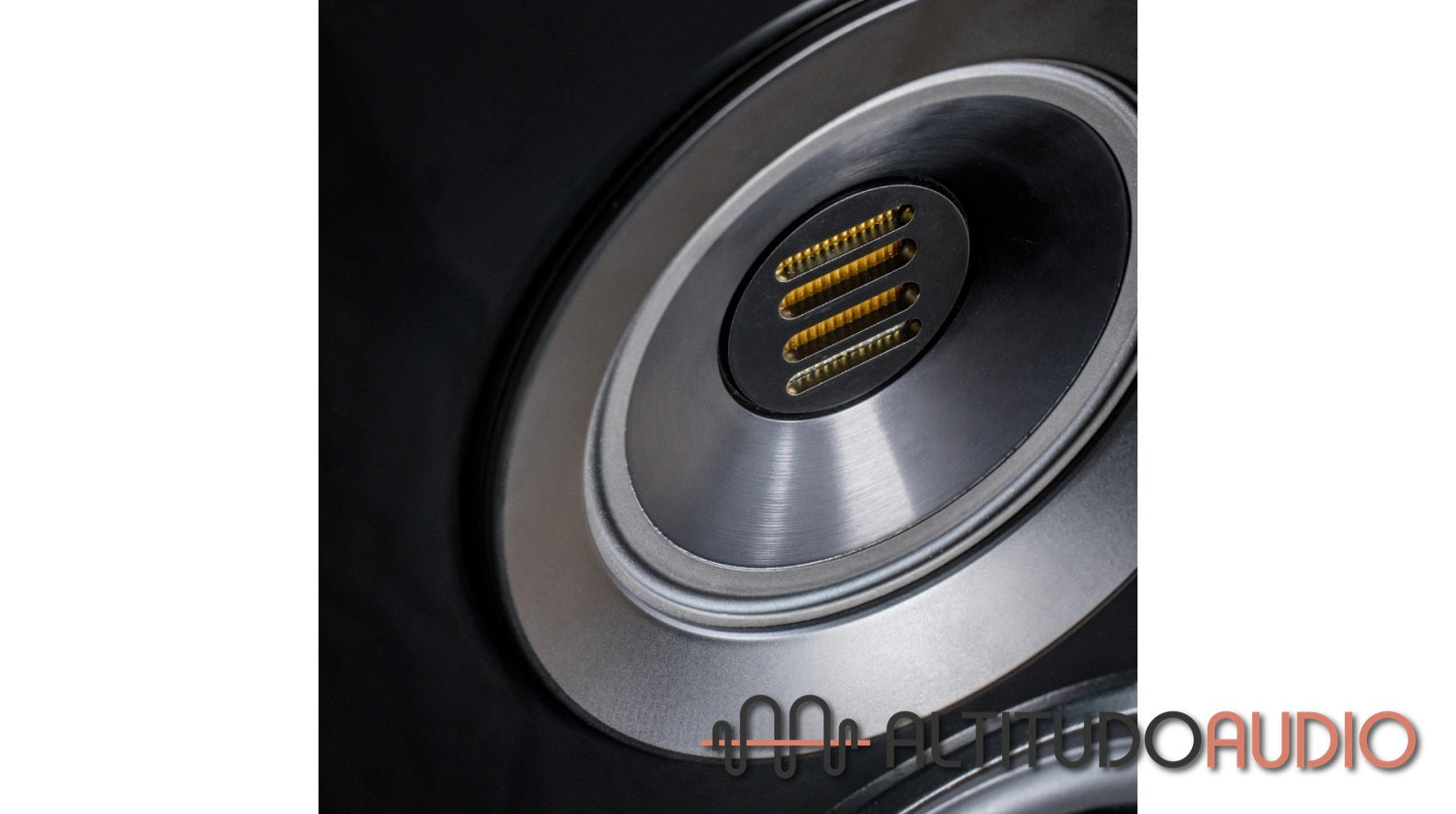

JET 5 Tweeter
Lightning-Fast Response and Wide Dynamic Range
Delivering true high-definition sound, ELAC’s JET 5 tweeter enthralls with its lightning-fast response and wide dynamic range, offering minimal distortion, lots of headroom, and a distinctly wider frequency range than conventional dome tweeters. The ELAC JET tweeter is one of the most legendary tweeters in the industry and has won international praise for its transparent and effortless sound image.
SPECIFICATIONS:
Height | 1320 mm with Spikes/Washer |
---|---|
Width | 325 mm with Spikes/Washer |
Depth | 460 mm with Spikes/Washer |
Weight | 42.8 kg |
Type | 4-Way, Bass Reflex |
Woofer | 4 × 180 mm Ø, AS cone |
Low-Midrange | 1 x 180 mm Ø, AS-XR cone |
High-Midrange | 1 × 50 1130 mm, Ø AL cone |
Tweeter | 1 x JET 5c |
Crossover Frequency | 120 | 400 | 2600 Hz |
Nominal Power Handling | 280 W |
Minimal Impedance | 3.2Ω bei 360 Hz |
Peak Power Handling | 340 W |
Frequency Range (IEC 268-5) | 22 - 50000 Hz |
Sensitivity | 88 dB / 2.83 V/m |
Suitable for Amplifiers from | 4 - 8Ω |
Nominal Impedance | 4Ω |
Recommended Amplifier Power | 60 - 600 W/channel |

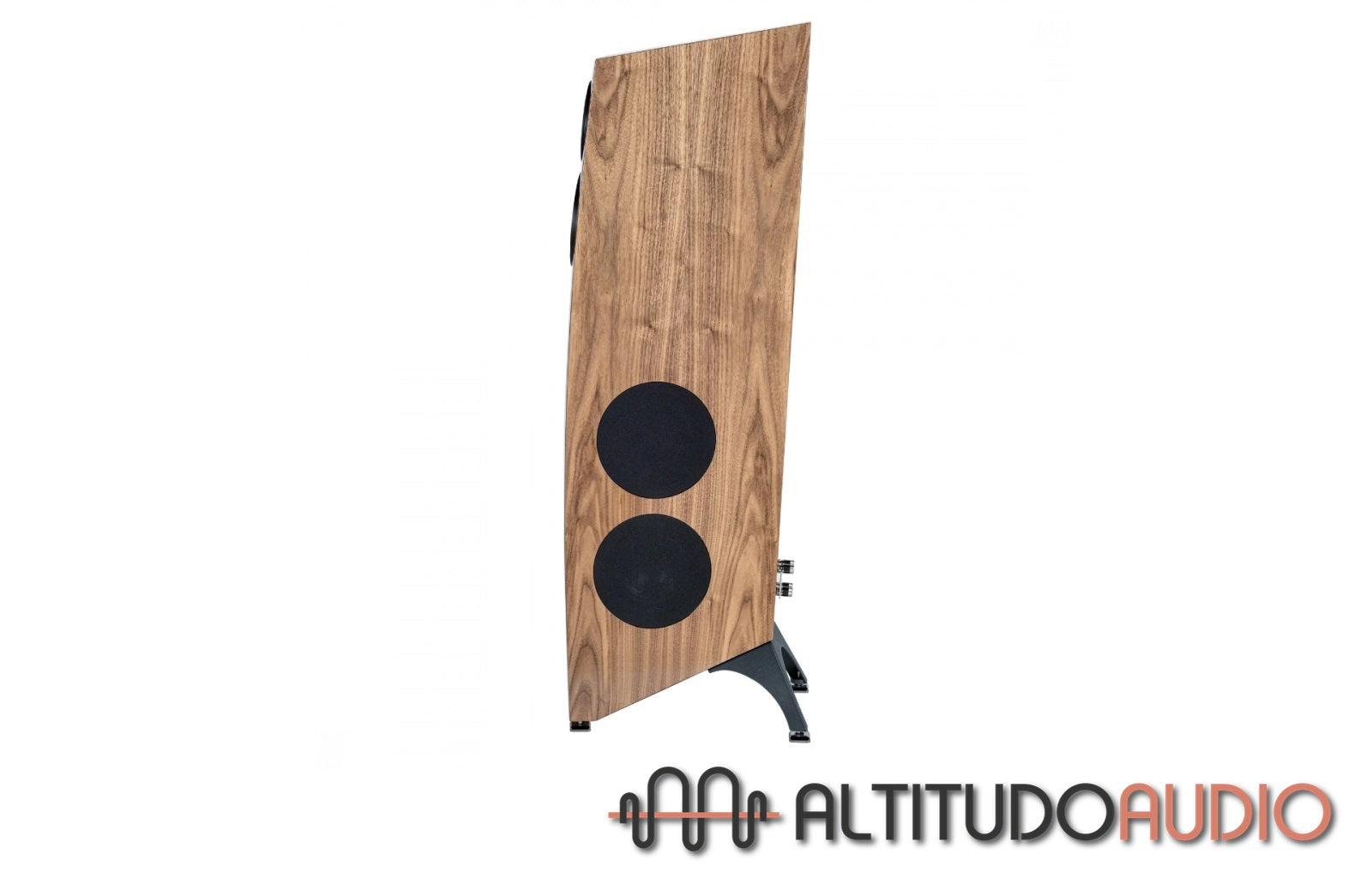

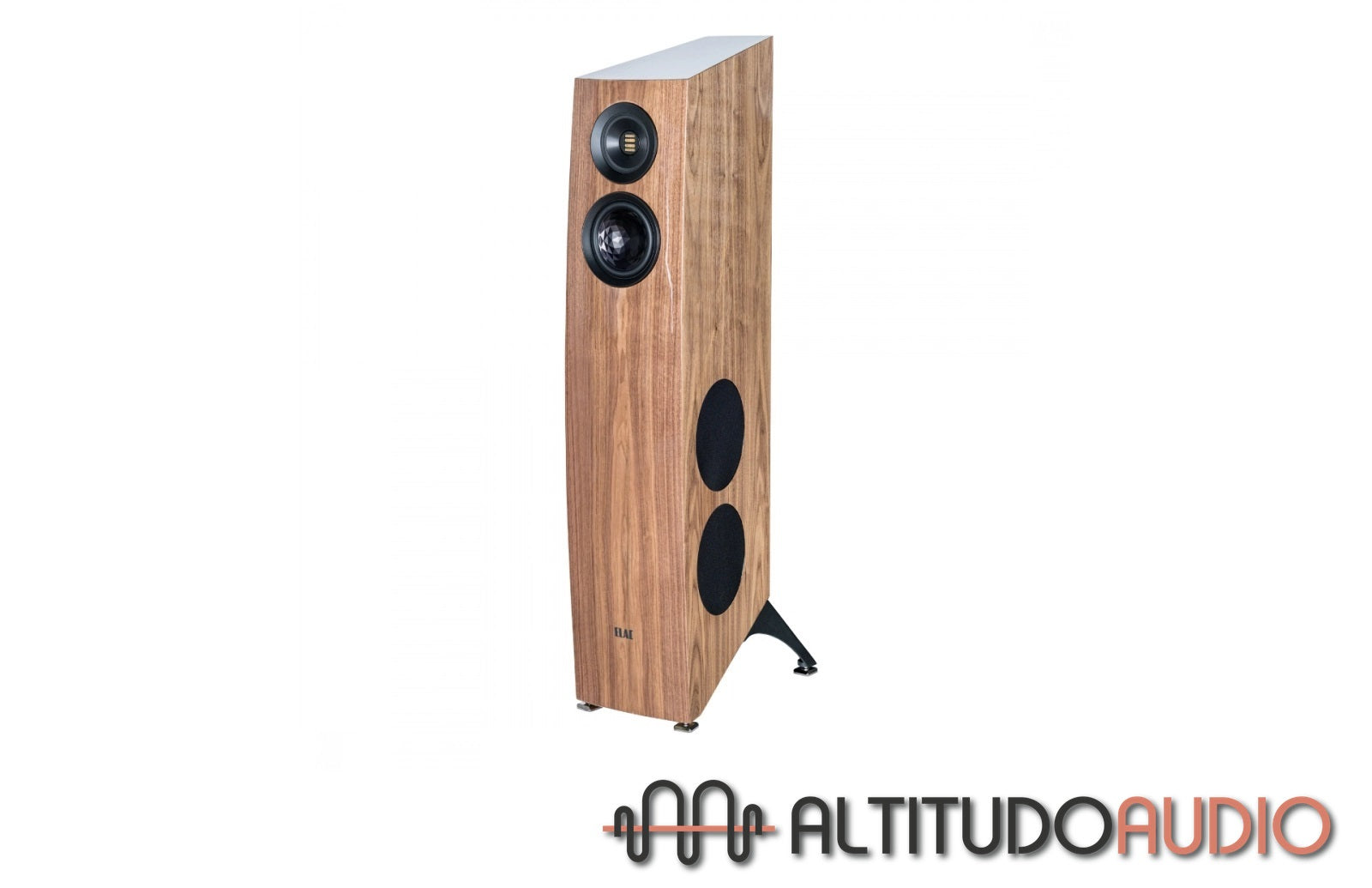

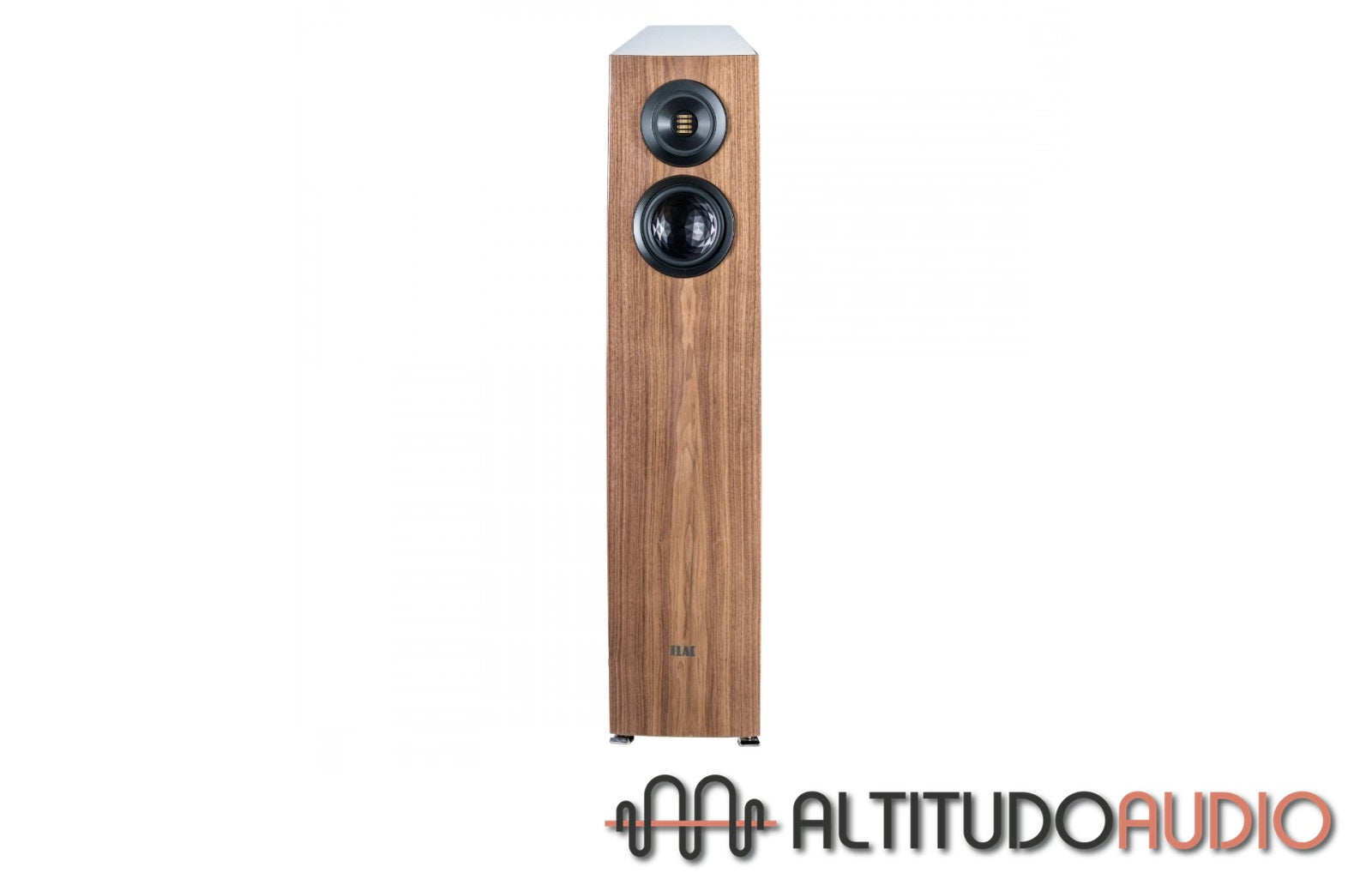

Finishes | Black High Gloss, White High Gloss, Walnut High Gloss |

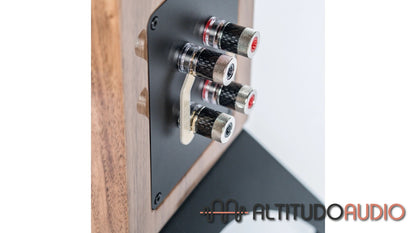

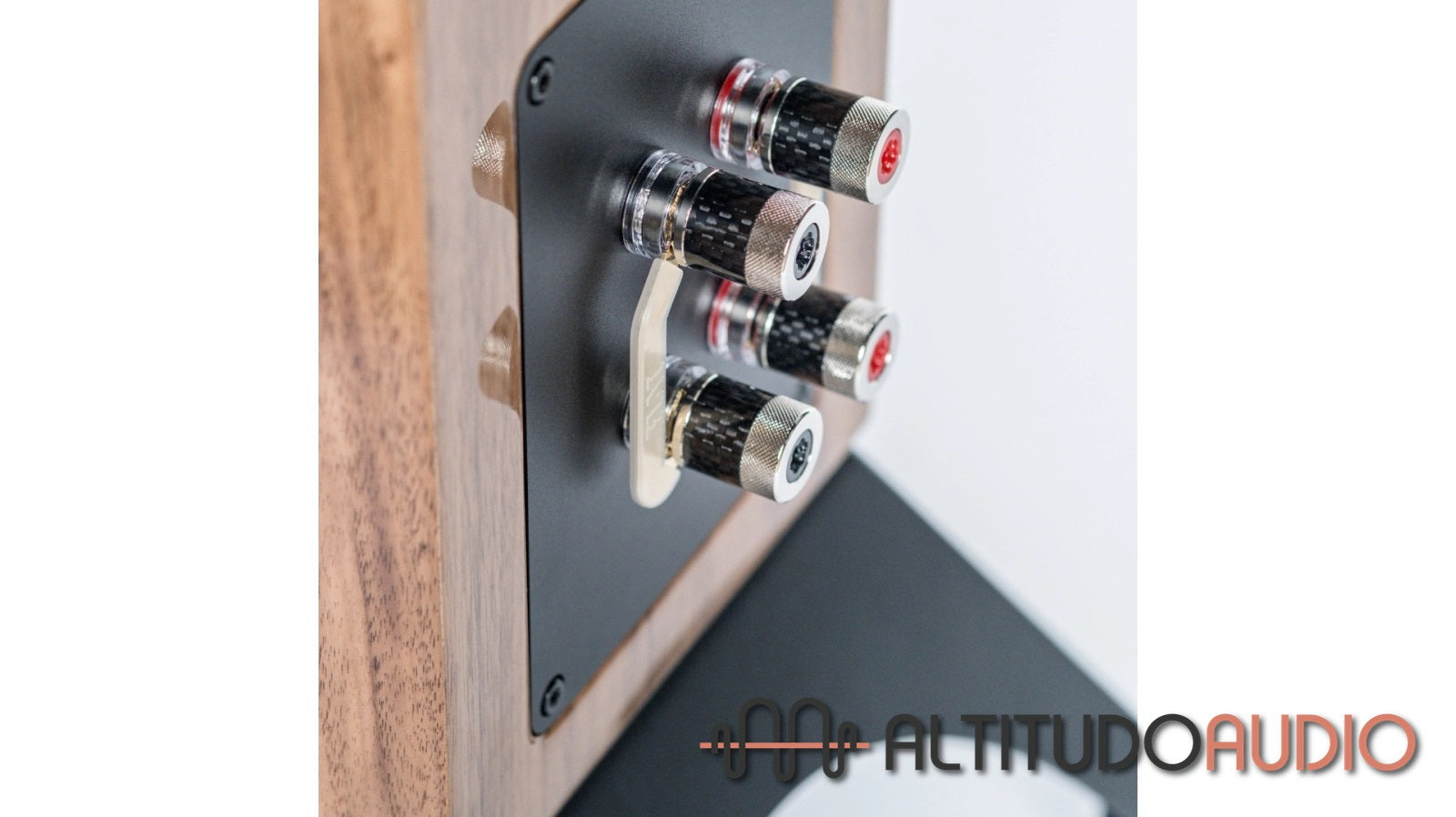

Accessories Included | Bi-Wiring-Set, Gloves, Spike-Set, Washer |
