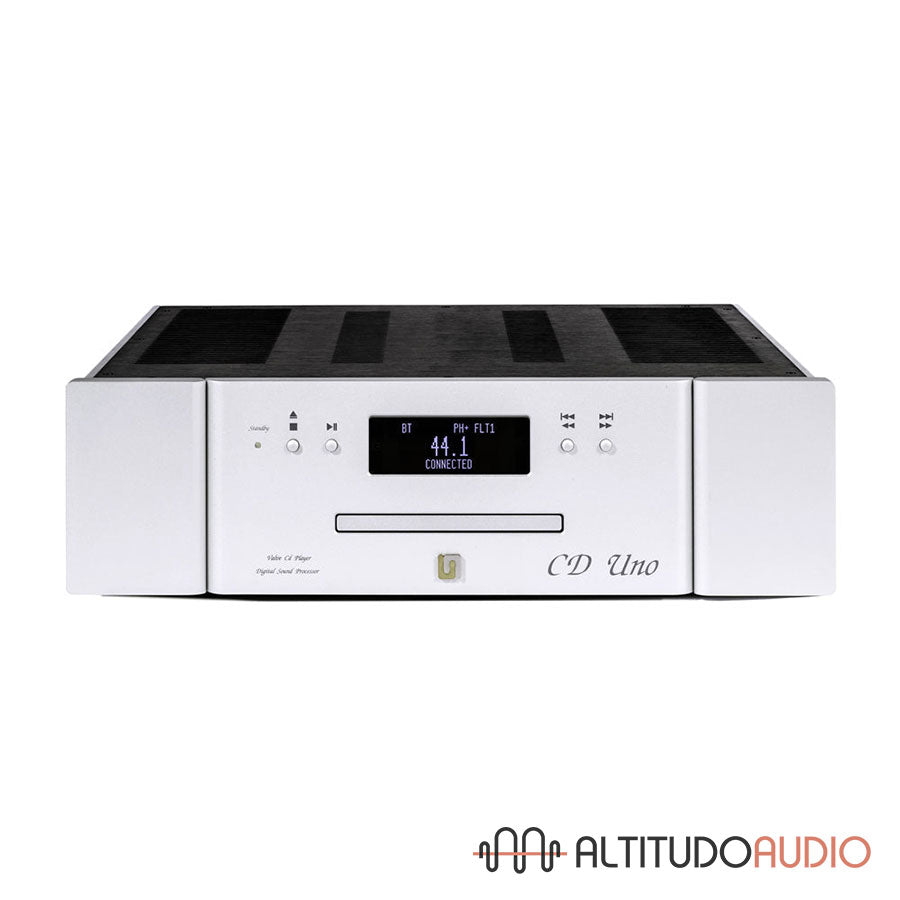

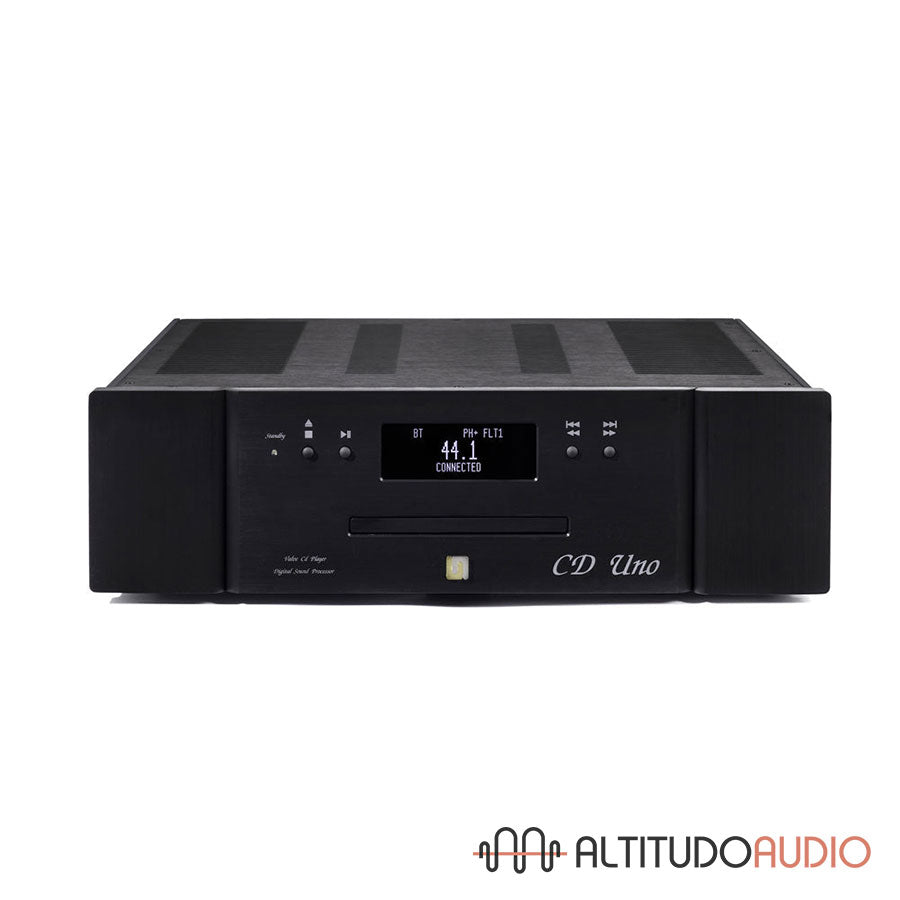

Unison Research Unico CD Uno CD Player
Unison Research Unico CD Uno CD Player
Unison Research Unico CD Uno CD Player
Unison Research

Unison Research Unico CD Uno CD Player

Regular price $3,420.00 $0.00 Unit price per

Shipping : FREE in Canada

Available for pre-order

FULL FEATURED CD PLAYER / DAC

After introducing the Unico CD Due last year, Unison Research is now confirming its presence in the world of digital audio with the new CD Uno.

The Unico CD Uno is a high-specification DAC with integrated CD mechanism that is flexible and customizable. The CD Uno combines Unison Research’s high-end sound quality with the broad playback possibilities offered by today’s digital audio solutions. The CD Uno will allow you to play back all the music formats and sampling rates currently available on the market.

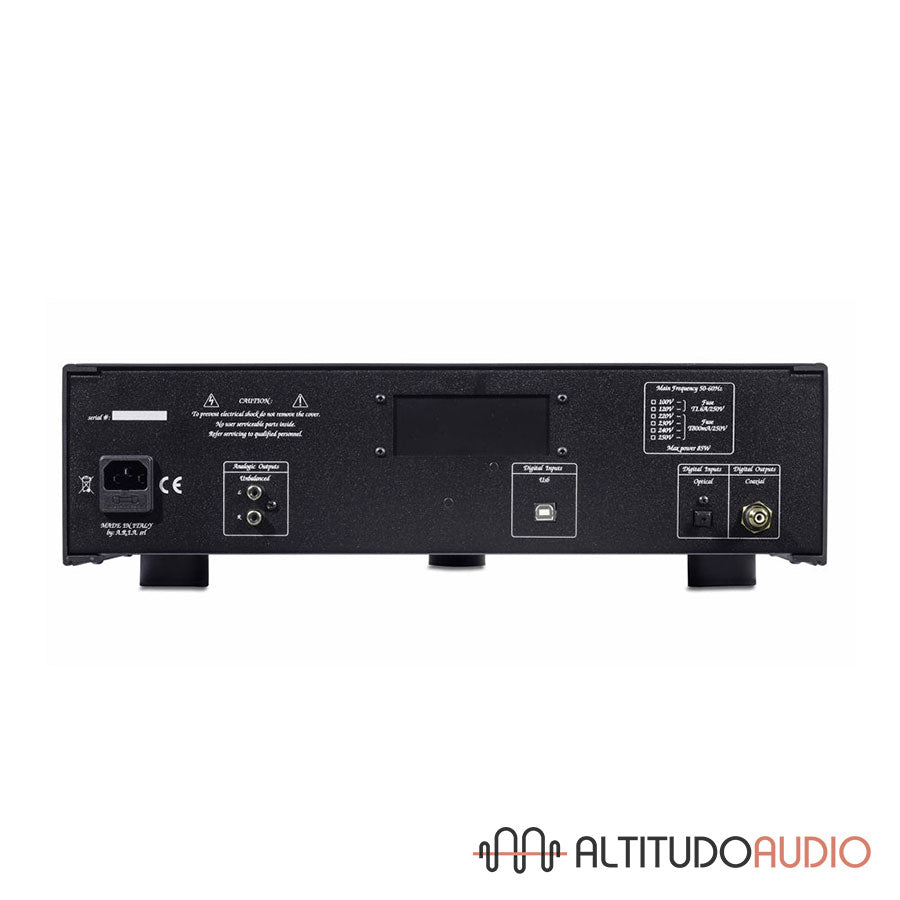

The Unico CD Uno boasts a wide variety of inputs and outputs. On the back-panel there are inputs for USB and Toslink TM cables, and built inside the housing is a BluetoothTM receiver that allows for wireless streaming from compatible devices.

The audio stage uses one ECC82 (12AU7) double triode, operating in pure class-A, followed by a solid state discrete buffer still operating in class-A for a low impedance output and ideal audio behavior.
Aesthetically the CD Uno, like the CD Due, differs from existing Unico products with its new three- fold faceplate, white LEDs and white display. This same aesthetic will pass over to the new Unico 90 and Unico 150 amplifiers, which are designed to be perfect matches for the CD Uno and CD Due.


Digital Inputs
1 x USB
Standard: USB 2.0 Audio Class
Sampling Frequencies: 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384, DSD64, DSD128, DSD256 Ready
Resolution: 16 to 32 bits

1x Toslink™:
Sampling Frequencies: 44.1, 48, 88.2, 96 (176.4 and DSD64 DoP with high efficiency transmitters)
Resolution: 16 to 24 bits

1 x Bluetooth™ Receiver
Standard: BT 3.0
Profiles: A2DP, SSP (HID supported with Android smartphones through SPP)
Sampling Frequencies: 44.1kHz, 48kHz
Resolution: 16 bits

Digital Output
1x S/PDIF
Output voltage: 0.5Vpp on 75 Ohms

Transport
8829CD-KHM DVD-Loader , Only audio CD

Display
128 X 64 White OLED graphic display

Digital to Analog stage
DAC: ESS Sabre ES9018K2M with jitter eliminator
SNR: 125dB (0dBFS, 1kHz, 192kHz, “A” weighted)
THD+N: 0.0003% (0dBFS, 1kHZ, 20Hz-20kHZ)
Timing: low phase noise, high precision crystal
oscillators

IV converter:
NE5532AD high-performance, very low noise, use high-quality components like Wima capacitor and Vishay resistor

Audio Output Stage:
channels: 2
Output stage: Double Triode, pure class-A
Valve complement: 1 x ECC82 (12AU7)

Output audio connectors: 1 x RCA stereo
Optional buffer: NE5532AD output buffer that bypass tube stage, can be activated by remote control

General Specification:
Remote control: 1 x Infrared in wood and metal
Disc Formats: CD Audio
Power consumption: 100W max

      Dimensions: 17.7 w x 16.0 d x 5.1 h in.
      Weight: 22 lbs.
      Warranty: 2 yrs. limited electronics, tubes: 30 days
