AMC Audio

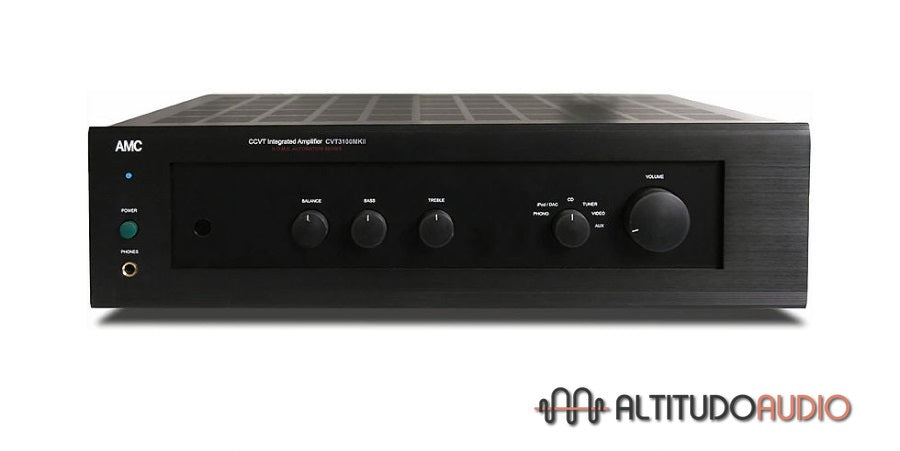

CVT 3100 MKII SE Integrated Amplifier
CVT 3100 MKII SE Integrated Amplifier
Couldn't load pickup availability
The AMC CVT3100MKII is a hybrid Mosfet-Valve design that represents outstanding value.
It has been designed with components of the highest quality to give a superb - "best of both worlds" - sound quality.
Key Features of AMC's proprietary Class A hybrid MOS-FET amplification topology :
A. 1000V MOS-FETs configured in exactly the same way as Classical Valve Class A amplifier stages. This approach offers excellent dynamic range.
B. FETs provide greater pre and driver stage amplification accuracy to the final Power Tube Stage. The result is a more coherent Frequency Response a more stable Soundstage.
C. Operational Life and Reliability are significantly better compared to Classical Valve designs.
Specifications
Rated Power into 8/4ohms
80W - RMS both channels driven
94W - RMS [ bench-tested ] !!
Rated THD
45Hz-20KHz - 1.0%
Clipping @ 1kHz into 8/4ohms
85W
Input Sensitivity
High level inputs - 20mV/180mV
Phono MM Input - 0.4mV/2.2mV
Phono MC Input - 0.04mV/0.2mV
Input impedance
High Level Inputs - 12K ohm/100pF Phono Input - 47Kohm /100pF
Frequency Response
Tone Bypass 20Hz-20KHz +/-0.5dB
Normal 20Hz-20KHz +/-1.0dB
High level inputs 15Hz/40KHz -3dB
Dimensions (WxHxD)
430 x112 x 389 mm
Net Weight
19 Kgs
Shipping Weight
20Kgs
Product features
-
KT88 Power Tubes x 4
-
Tube Rolling : YES
-
VRC Volume Rotary Control
-
Switches and relay-free source selection
-
Phono MM
-
Phono MC
-
TOS Hi-Res Streamer Input
-
e.g. Primo-HD for Tidal, Qobuz etc
-
-
Headphone output
-
System Remote Control
-
Removable power cord
-
Inputs (line / phono) - 5/1
-
Tape output - 1
-
Pre-Out - 1
