            WHY LUMIN D3

            LUMIN D3 brings the audiophile potential of music streaming within everyone's reach.

            Building on the success of our most popular and longest-standing model, LUMIN D3 inherits the Sabre DAC technology used throughout the rest of our range and combines it with our new all-aluminium compact chassis.

            The latest LUMIN processor technology provides DSD256 upsampling and TIDAL Connect bringing audiophile-grade performance within your reach.

            Main features

            • Latest processor provides greater resampling flexibility
            • New analogue output stage features Sabre DAC and a buffer including LUMIN X1 technology
            • New DAC configuration featuring Sabre DAC ES9028PRO
            • Retains fully balanced design including XLR outputs
            • New surface finish taken from the high-end P1
            • Upsampling and downsampling to every supported format up to DSD256/PCM384
            • TIDAL Connect and Airplay 2 Compatible as well as Roon Ready, Spotify Connect, MQA, TIDAL, Qobuz, Plex and TuneIn

            All-new processing system

            • Completely new hardware and software provide a new foundation for LUMIN
            • Increased processing power and storage capacity provide greater resampling flexibility and future-proofing.

            Precision analogue output stage

            • ES9028PRO DAC with up to DSD256 & PCM384 playback support
            • Analogue buffer includes LUMIN X1 technology
            • Ultra-low-noise and high dynamic range

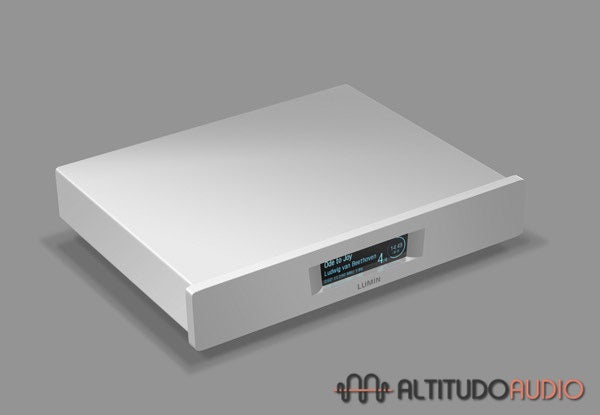

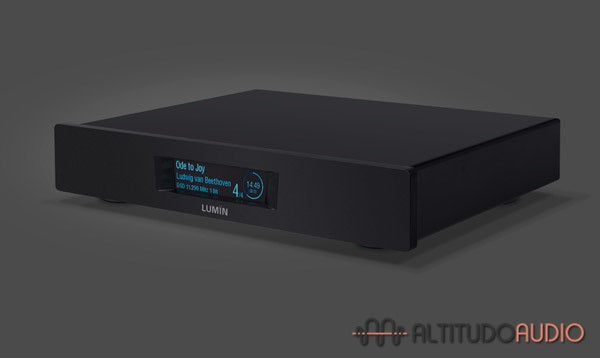

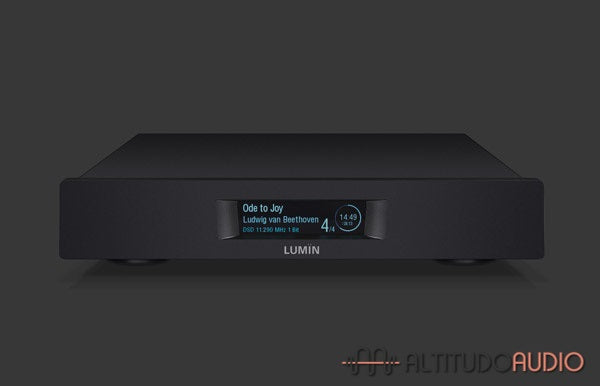

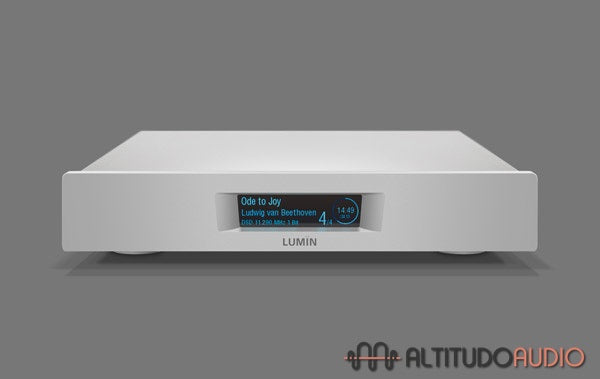

            Full aluminium enclosure

            • The thick CNC front panel and new all-aluminium enclousure provide superior damping performance
            • Improves on D2 chassis by eliminating steel

            Builds on the massive success of LUMIN D1 & D2

            Completely new processing hardware and software deliver improved features and increased resampling flexibility while retaining all the musicality that was noted in so many outstanding D1 & D2 reviews.

            The new model is also finished in a new silky surfacing process taken from our high-end P1 that is less susceptible to finger marks and easier to clean.

            SPECIFICATIONS:

            D3 SPECIFICATION

            • DSD SUPPORT:

              • Up to DSD256, 1-bit, Stereo

            • PCM SUPPORT:

              • Up to 384kHz, 16–32-bit, Stereo

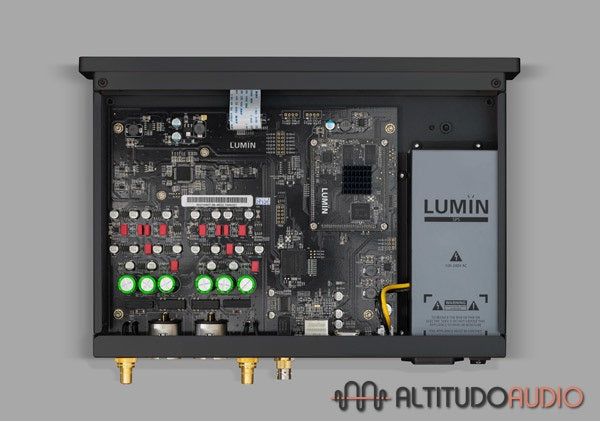

            • ANALOG OUTPUT STAGE:

              • ESS SABRE32 ES9028Pro DAC chip
              • Balanced layout with high-quality components
              • Completely redesigned analogue buffer includes audiograde output capacitor and ultra-low-noise and high dynamic range
              • Discreet clock system for precision timing

            • UPSAMPLING RATES & BIT DEPTHS:

              • DSD256 upsampling option for all files
              • PCM 384kHz upsampling option for all files

            • DIGITAL OUTPUT STAGE:

              • BNC SPDIF:
                • PCM 44.1kHz–192kHz, 16–24-bit
                • DSD (DoP, DSD over PCM) 2.8MHz, 1-bit

            • POWER SUPPLY:

              • Internal 100–240V AC auto-ranging
              • Low-noise
              • Shielded power supply compartment for reduced interference with delicate electronics

            • PHYSICAL:

              • FINISH:

                • Black anodised aluminium
                • Raw anodised aluminium

                DIMENSIONS

                • 300mm (W), 244mm (D), 60mm (H), 2.5kg

            SPECIFICATION FOR ALL LUMIN MUSIC STREAMERS

            • STREAMING PROTOCOL:

              • UPnP AV protocol with audio streaming extension (OpenHome)
              • Roon Ready
              • TIDAL Connect
              • Spotify Connect
              • AirPlay 2 compatible
              • Gapless Playback
              • On-Device Playlist

            • APP FEATURES:

              • Native support for TIDAL, MQA, Qobuz and TuneIn Radio.
              • Tidal MAX and MQA icons to identify high-res music
              • Qobuz high-res icons to identify high-res music
              • Volume control
              • High-resolution artwork
              • Artwork caching
              • Search
              • Multiple tag handling
              • Composer tag support
              • Album-grouping in playlist
              • Automatic internet links to artists/album/songs
              • Saving and restoring of playlists (including Tidal and Qobuz)

            • SUPPORTED AUDIO FILE FORMATS:

              • DSD Lossless: DSF (DSD), DIFF (DSD), DoP (DSD)
              • PCM Lossless: FLAC, Apple Lossless (ALAC), WAV, AIFF
              • Compressed (lossy) Audio: MP3
              • MQA

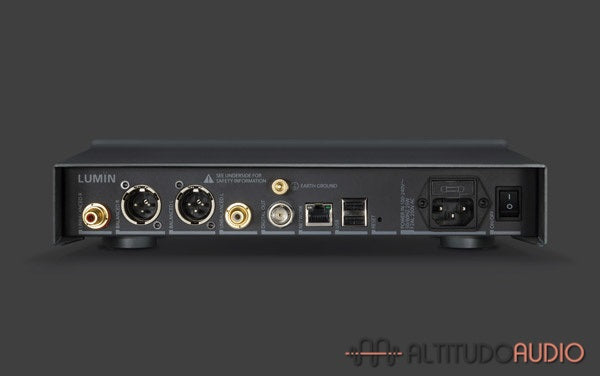

            • INPUT:

              • Ethernet RJ45 network 1000Base-T
              • USB storage, flash drive, USB hard disk (Single-partition FAT32, exFAT and NTFS only)

            • ANALOGUE AUDIO OUTPUTS:

              • XLR balanced, 6Vrms, pin 2 Hot
              • RCA unbalanced, 3Vrms

            • SUPPORTED CONTROL DEVICES:

              • Apple devices. iOS 11.0 or later (List of supported devices)
              • Android devices. Android 4.0 (Ice Cream Sandwich) or later required
              • Apple Silicon. macOS 11 or later. (Download the iOS App from the iOS App Store)
              • Chromebook. Google Play Store required.

            • OTHER:

              • Leedh Processing lossless digital volume control
              • Programme of Continuous Development – Firmware-upgradable for further features and enhancements
