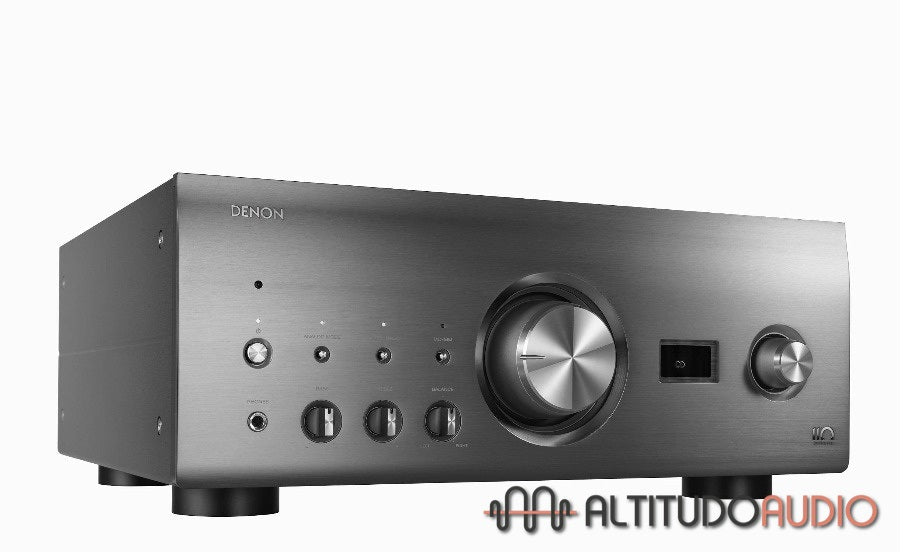

Denon PMA-A110 Limited 110th Anniversary Edition 2 Ch. 160W integrated Amplifier
Shipping : FREE in Canada
110 Years of Innovation
The Denon limited series Anniversary Edition silver graphite PMA-A110 integrated amplifier delivers best in class audio performance for a best in class audio experience.
7th Generation Ultra High Current MOS Single Push-Pull Circuit
To achieve impeccable balance between delicate details of music reproduction and vigor of low frequency sound, it’s capable of delivering a massive current output in a single push-pull configuration to drive even the most demanding speaker.
High Precision Electrical Controls
The PMA-A110 embraces electrical volume, balance and tone controls while preserving the analogue feeling of operation. Clever engineering offers the feel of an analogue volume knob while an MCU measures the position of the knob and converts that position to control the master volume digitally.
Multiple digital inputs
The PMA-A110 features a USB-B input to directly connect a computer and supports PCM signal 384-kHz/32-bit and 11.2-MHz DSD. Use the USB-B input to listen to Hi-Res audio or you can take advantage of three Optical inputs and one Coaxial input which support PCM 192-kHz/24-bit.
Specifications:
Features
| Channels | 2 |
| 110th Anniversary Audio Tuning | Yes |
| All black interior | Yes |
| Exclusive A110 speaker terminals | Yes |
| Aluminium Top Cover | Yes |
| Aluminium Feet | Yes |
| Digital in: USB-B / optical / coaxial / USB-A | 1 / 3 / 1 / No |
| Sample Rate digital In | 192 kHz / 24-bit |
| USB-B DSD Audio Streaming (DoP): DSD2.8 / DSD5.6 | <=DSD11.2 |
| USB-B PCM sample rate | 384 kHz / 32-bit |
| Quad DAC Configuration | Yes |
| DAC chip | 4x PCM1795, Burr Brown Mono-Mode |
| Asynchronous mode rear USB | Yes |
| Bit-perfect transmission | Yes |
| Ground isolator for DAC Mode operation | Yes |
| AL 32 Processing | ULTRA AL32 |
| DAC Master Clock Design | Yes |
| Streaming audio from PC | Yes |
| Analogue Mode | Yes |
| UHC-MOS single push pull circuit | 7th Generation |
| LC mounted twin transformer | Yes |
| Wide range amplifier | Yes |
| High current dynamic power supply | Yes |
| Power amp discrete construction | Yes |
| Balance / Bass / Treble / Loudness | Yes / Yes / Yes / No |
Inputs Outputs
| Audio Inputs | 5 |
| Digital in: USB-B / optical / coaxial / USB-A | 1 / 3 / 1 / No |
| Phono Input: MM / MC | Yes / Yes |
| Audio Outputs | 1 |
| Power Amp Direct IN | Yes |
| Gold plated Cinch | Yes |
| Number of terminals | 4 |
| Remote Control Bus in / out | Yes |
| Headphone Out | Yes |
| Output power 8 Ohm (20 Hz - 20 kHz, T.H.D. 0.07%) | 80 W |
| Output power 4 Ohm (1 kHz, T.H.D. 0.7%) | 160 W |
| Total Harmonic Distortion | 0.01% |
| Input Sensitivity: MM | 2.5 mV / 47 kohm |
| Input Sensitivity: MC | 200 uV-100 ohm |
| Signal to Noise Ratio: MM/MC | 89 dB / 74 dB |
| Input Sensitivity: High level | 135 mV / 47 kohms |
| Signal to Noise Ratio: High level | 110dB |
| Treble Control | ± 8 dB at 10 kHz |
| Bass Control | ± 8 dB at 100 Hz |
