DENON
Denon PMA-3000NE
Denon PMA-3000NE
Regular price
$4,699.00 CAD
Regular price
Sale price
$4,699.00 CAD
Quantity
Couldn't load pickup availability

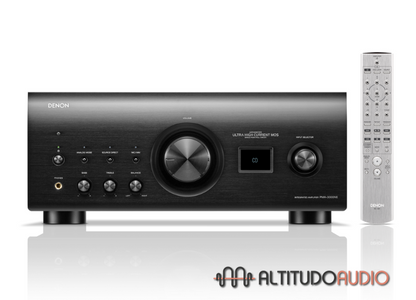

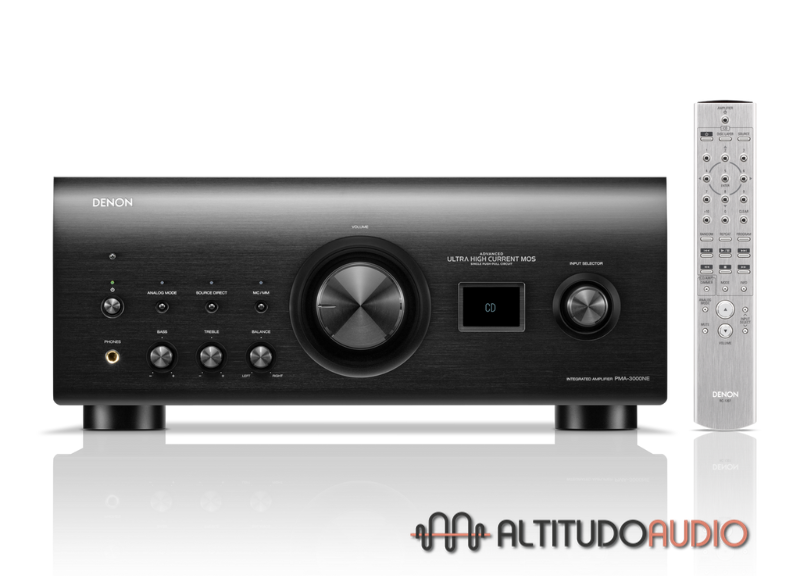

Denon PMA-3000NE 2-Channel 160W Integrated Amplifier with MM/MC Phono Stage
The Denon PMA-3000NE delivers 160W per channel at 4 ohms and 80W per channel at 8 ohms, driving even the most demanding speaker to deliver superior sound in any scenario. Designed and manufactured at Denon facilities in Shirakawa, Japan.
- 2 channels
- 160 watts per channel
- MM/MC phono stage
- Ultra AL32 Processing
- Optical, coaxial, and USB digital connections
- Pure Analog mode
Highlights
- Drives even the most demanding speakers: A push-pull amplifier, delivering 160W/channel into 4 ohms and 80W/channel into 8 ohms, effortlessly accommodates a range of speaker types and impedances.
- Seamlessly integrate high-resolution digital audio: Digital connections, including optical, coaxial, and USB-B, support up to 384kHz/32-bit. Ultra AL32 Processing waveform interpolation produces smooth, high-resolution sound
- Unlock your vinyl collection’s full potential: The PMA-3000NE's phono stage supports both MM and MC cartridges, for the most faithful sonic reproduction regardless of cartridge type.
- Pure Analog mode: Pure Analog mode bypasses digital circuitry for a pure, all-analog sound. A Source Direct function bypasses the tone controls so that the signal path is as short and clean as possible, for enhanced clarity.
- Precision control: Thanks to clever engineering, microcontroller-managed volume, balance, and tone controls offer precise, linear digital adjustments with the familiar, tactile feel of analog knobs. It’s the ultimate blend of modern digital functionality and old-school charm.
SPECIFICATIONS:
| General | |
|---|---|
| Unit (W × H × D) | 434 × 182 × 443 mm |
| Net Weight | 24.6 kg / 54.2 lbs |
| Panel Cover | Silver, Black |
| Specifications | |
| Rated Output Power | 80W + 80W (8 ohm,20 Hz-20 kHz,THD 0.07%), 160W + 160W (4 ohm, 1 kHz, THD 0.7%) |
| Total Harmonic distortion | 0.01 % (Rated output: –3 dB), 8 ohm/ohms, 1 kHz |
| Input Sensitivity: Phono input | MM: 2.5 mV / 47 kohm, MC: 200 μV / 100 ohm |
| Input Sensitivity:CD/LINE/RECORDER | 135 mV / 19 kohm |
| Input Sensitivity: Power Amp input | 0.9V / 47 kohm (EXT. PRE) |
| Signal to Noise Ratio | PHONO (MM): 89 dB, PHONO (MC): 74 dB, CD: 107 dB |
| Power Consumption | 400W |
| Power Consumption at Standby | 0.2W TV autoplay off 0.4W TV autoplay on |
| Audio Features | |
| Power Amplifier Circuit | New UHC-MOS Single Push Pull (7) |
| Preamplifier Circuit | Variable Gain Preamplifier (OP AMP) |
| Bass / Treble / Mid / Balance Control | Yes / Yes / No / Yes |
| Source Direct | Yes |
| Analog Amp Mode | Yes (button on front panel) |
| DAC Circuit | ES9018K2M × 4 |
| Digital Processing | Ultra AL32 Processing |
| DAC Master Clock Design | Yes |
| Asyncronous mode (for USB-B input) | Yes |

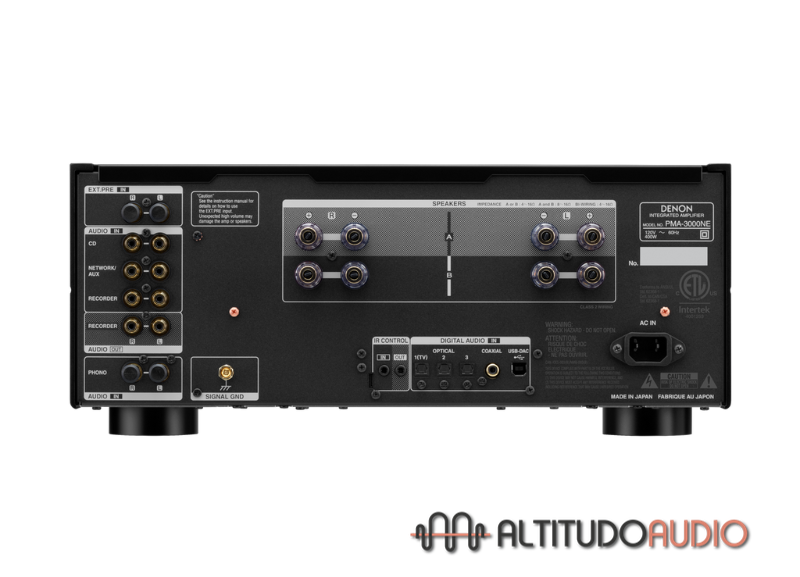

| Connectivity | |
| Phono Input | Yes (MM / MC) *default = MM |
| Analog Input (include Phono) / REC Out (RCA) | 4/1 (Gold Plated), (Brass Machining type for all CD/PHONO/AUX/RECORDER) |
| Optical input / output (Maximum Support) | 3 / 0 (192 kHz/24-bit) |
| Coaxial input / output (Maximum Support) | 1 / 0 (192 kHz/24-bit) |
| Speaker Terminal | AVR-A1H type Gold Plated w/Cover |
| Headphone Output | 1(Turns off the speaker automatically when headphone is inserted) |
| Remote Control | Yes |
| Remote Control Bus Terminal | Yes (mini) |
| Wi-Fi | No |
| HEOS | No |
| USB B (USB DAC) | 1 (Rear) |
| PCM Sample Rate / Resolution | ~384 kHz/32-bit |
| DSD Audio Streaming | ~11.2MHz |
