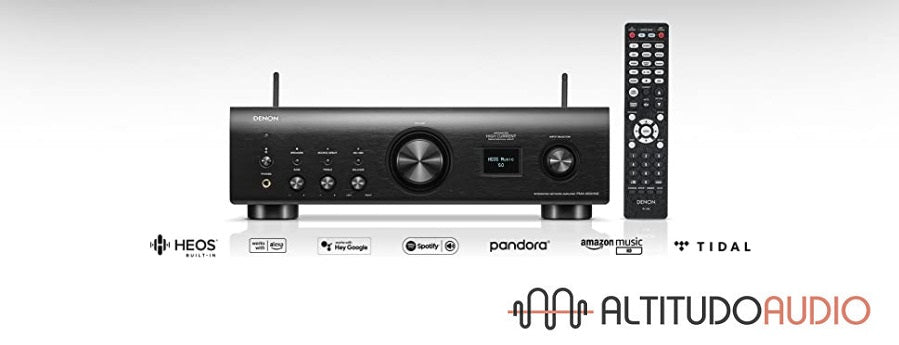

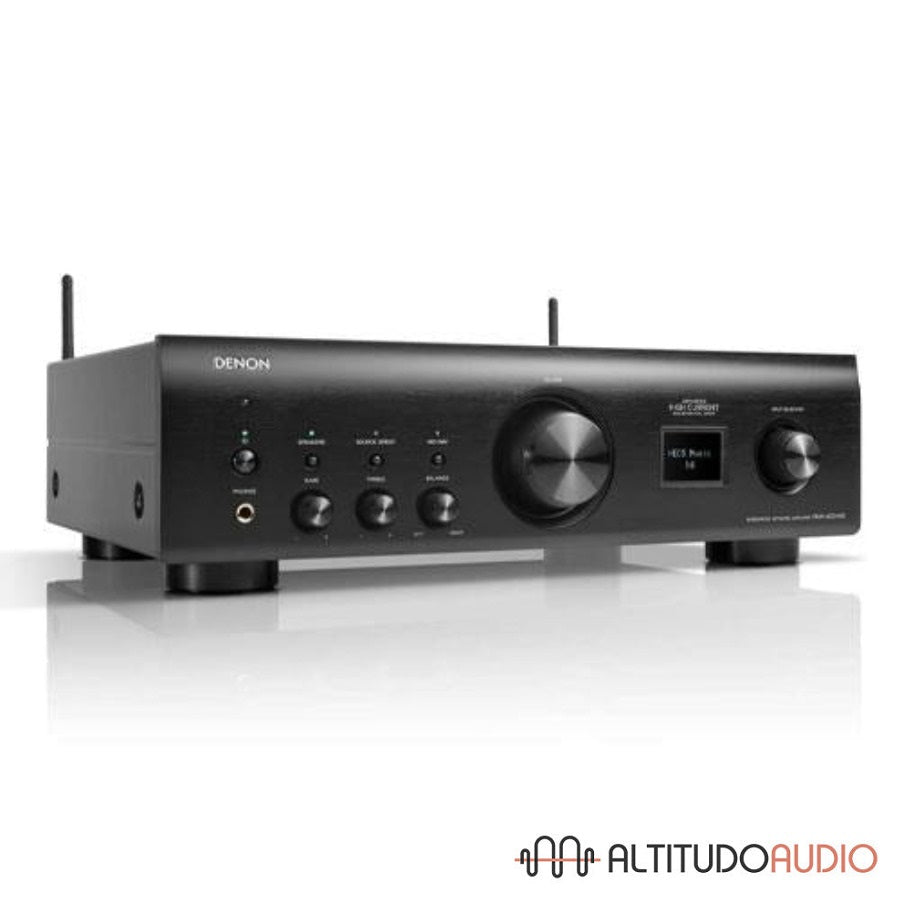

PMA-900HNE Integrated Network Amplifier
Shipping : FREE in Canada
The Denon PMA-900HNE Integrated Network Amplifier, featuring Advanced High Current amplifier design, delivers superior audio from analog and digital sources. With Phono input, digital inputs for TV sound, plus network audio streaming by HEOS® Built-in, Denon PMA-900HNE upgrades your listening experience from any source.
Streaming amplifier with analog and digital connectivity
Bring out the best from your analog, digital, and streaming sources with the Denon PMA-900HNE Integrated Network Amplifier featuring Advanced High Current amplifier design.
Advanced High Current integrated amplifier with 85W
Engineered with premium Denon amplifier technology and Advanced High Current capability, the PMA-900HNE integrated amplifier drives your loudspeakers with 85 watts of power-per-channel into 4 ohms.
Built-in music streaming via Wi-Fi, Bluetooth, and AirPlay 2 capability
The HEOS® Built-in Wi-Fi connects to your network to provide near-limitless streaming options. Listen to a wide array of online music services or connect to a smart device via AirPlay 2 or Bluetooth.
Optical and coaxial digital inputs
The PMA-900HNE features three optical inputs and one coaxial input and supports PCM signals up to 192 kHz/24-bit to improve sound quality of your TV audio and more.
Specifications
Output power 8 Ohm (20 Hz - 20 kHz, T.H.D. 0.07%) | 50W + 50W |
Output power 4 Ohm (1 kHz, T.H.D. 0.7%) | 85W + 85W |
Total Harmonic Distortion | 0.01% (-3dB, 8ohm, 1kHz) |
Power Amplifier Circuit | Advanced HC Single Push-Pull Circuit |
Power Amp Output circuit Structure | Single Push-Pull with Darlington transistor |
Pre Amplifier Circuit | Variable Gain Preamplifier |
Volume | Electric - Controlled by Encoder |
Bass Treble Mid Balance Control | Yes / Yes / No / Yes |
Source Direct | Yes |
Input Sensitivity: MM | 2.5mV / 47 kohm |
Input Sensitivity: MC | 200 |
Signal to Noise Ratio: MM/MC | 86 dB / 71 dB |
Input Sensitivity: High level | 105 mV / 40kohms (Source Direct Off) |
Signal to Noise Ratio: High level | 105dB |
Treble Control | ± 8 dB at 10 kHz |
Bass Control | ± 8 dB at 100 Hz |
Features
Advanced HC-TR single push pull circuit | Yes |
Wide range amplifier | Yes |
High current dynamic power supply | Yes |
Power amp discrete construction | Yes |
Micro processor auto off | Yes |
Solid Heat Sinks | Yes |
Wi-Fi / Wired LAN | Yes / Yes |
Wi-Fi | 2.4GHz (11b/g/n) 5GHz (11a/n/ac) |
Wi-Fi Off Mode | Yes |
Bluetooth / aptX / NFC | Yes / No / No |
Internet Radio | Yes (TuneIn) |
Pandora | Yes (NA) |
Sirius XM Internet Radio | Yes (NA) |
Spotify Connect | Yes |
Deezer Premium+ / Deezer HiFi | Yes / No (NA / EU) |
QQ MUSIC | Yes (China) |
Sound Cloud | Yes |
Tidal | Yes (NA / EU) |
Amazon Music Unlimited / Amazon Music HD / Prime Music | Yes / Yes / Yes |
Napster | Yes |
iHeartRadio | Yes (NA) |
Mood Mix | Yes (NA / EU) |
AWA | Yes(Japan) |
Other | Yes |
Airplay | Yes (Airplay 2) |
DSD-Audio network streaming | Yes (5.6Mhz) |
Lossy Formats: MP3 / WMA / AAC | Yes / Yes / Yes |
Lossless formats: DSD / FLAC HD 192/24 / ALAC 96/24 / WAV 192/24 / AIFF | Yes / Yes / Yes / Yes / No |
Gapless Playback | Yes |
Remote APP: iDevice / Android | Yes / Yes |
Sample Rate digital In | 192 kHz / 24-bit |
USB-A: DSD / WAV / FLAC / AIFF / ALAC | <=5.6 / 192 / 192 / No / 96 |
Works with Amazon Alexa | Yes |
Works with Google Assistant | Yes |
Works with Apple AirPlay (Siri) | Yes |

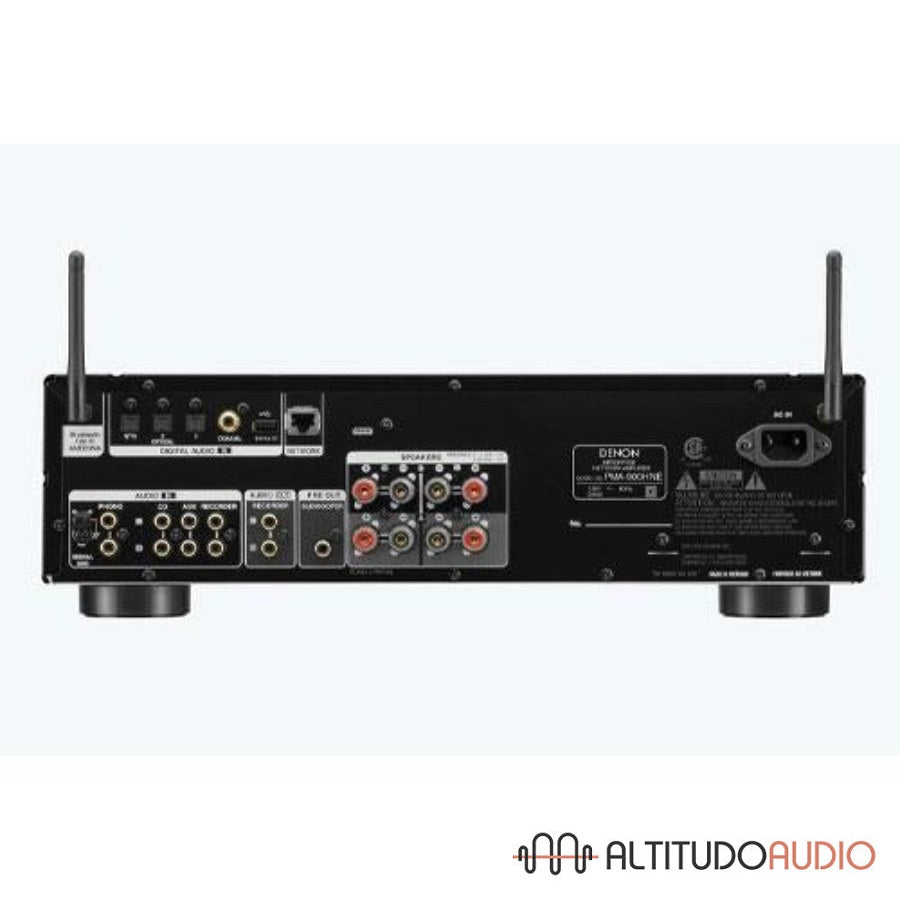

Inputs Outputs
Audio Inputs | RC-1246 |
Digital in: USB-B / optical / coaxial / USB-A | 0 / 3 / 1 / 1 |
Phono Input: MM / MC | Yes / Yes |
Audio Outputs | |
Pre-out / Main-in | Subwoofer / No |
Power Amp Direct IN | No |
Gold plated Cinch | Yes |
Speaker A / B | Yes |
Remote Control Bus in / out | Yes (Remote Out) |
Headphone Out | Yes |
Headphone Gain Control (low / mid / high) | No |
Available colors: Premium Silver / Black | Yes / Yes |
Metal Front Panel | Aluminum |
Power Consumption in W | 200W |
Standby Consumption in W | 0.2W |
Auto Power Off | Yes |
Detachable Power Cable | Yes |
Remote Control | RC-1246 |
System Remote Function | Yes |
Maximum Dimensions (W x D x H) | 434 x 376 x 131mm 17.1 x 14.8 x 5.2in |
Weight | 8.3kg 18.3lb |
Carton Maximum Dimensions (W x D x H) | 518 x 385 x 209mm 20.4 x 15.2 x 8.2in |
Carton Weight (inc. product) | 10.3kg 22.7lb |
