iFi Audio iDSD Diablo 2 Portable DAC & Headphone Amp

The Diablo 2, dressed in Devilish Red, succeeds the Diablo-X, boasting a slew of enhancements such as increased headphone output power, support for lossless Bluetooth codecs, xMEMS technology, iEMatch, a USB-C input, improved circuitry, and more.

As an audiophile, you likely use different systems for home and mobile setups. The Diablo 2 offers the best of both worlds with its powerful 5,180mW maxmium output and balanced dual-mono circuitry, making it the most powerful headphone amplifier of its size.

Highlights

• High-Performance DAC/Amp: Delivers pristine audio clarity and dynamic sound for audiophiles.
• Powerful Output: Drives demanding headphones with ease, offering a robust and immersive listening experience.
• Portable Design: Compact and lightweight, perfect for audiophiles who need premium sound on the go.
• Wide Format Compatibility: Supports PCM, DSD, and MQA for high-resolution audio playback.
• Premium Build Quality: Durable aluminum chassis with a sleek, modern design.
• Long Battery Life: Enjoy hours of uninterrupted playback with its high-capacity battery.
• Advanced Connectivity: Includes USB, balanced 4.4mm, and single-ended 3.5mm inputs for versatile device compatibility.
• Low Noise Performance: Exceptional signal-to-noise ratio ensures a clean, detailed sound.

Diabolical Innovation. Shattering Boundaries.

The Diablo 2 is the world’s first portable DAC/Amp with Bluetooth 5.4, it supports aptX Lossless, the only Bluetooth codec for lossless CD-quality streaming without sacrificing audio quality.

The predecessor of Diablo 2 pioneered support for xMEMS solid-state micro-speaker technology, enhancing IEM and headphone performance with several unique benefits:

• A 15µsec mechanical response, 150 times faster than typical drivers.
• A 2° flat phase response for precise sound and precise +/- 1° phase matching for enhanced spatial sound accuracy.
• A speaker diaphragm made of silicon, 95 times stiffer than plastic, reducing speaker break-up and delivering clearer mid-high frequencies.

Due to the high voltage requirements of xMEMS, iFi has partnered with them to integrate this technology into the new Diablo 2. It utilises the piezoelectric effect to create paper-thin solid-state speakers by converting electrical energy into mechanical energy, exciting an integrated silicon membrane to generate powerful acoustic sound waves for enhanced audio output.

“It’s got a NOS fogger system and a T4 Turbo, Dominic.”

Struggling with your power-hungry headphones? Press the NOS button, and our Diablo goes into beast mode. The Diablo 2 offers three power modes: Normal for IEMs, Turbo for mid-sensitivity headphones, and Nitro for demanding headphones, boasting a 19.2V maximum output.

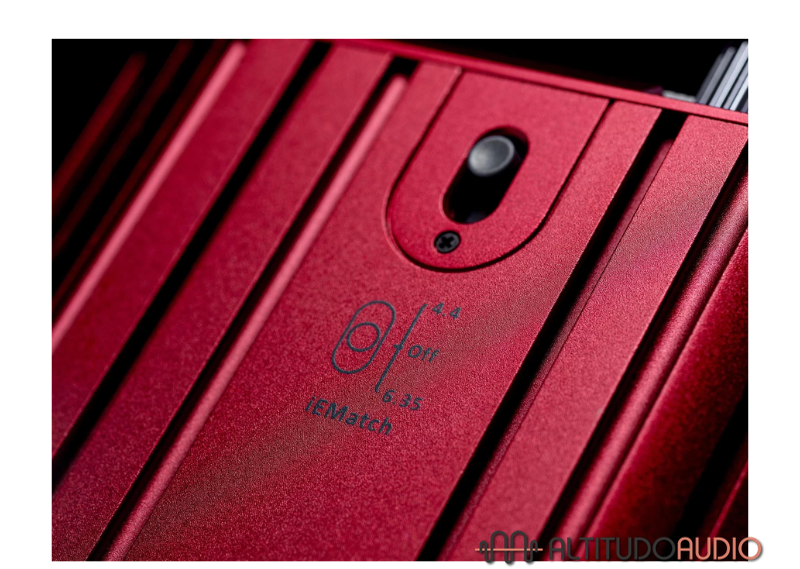

A switch underneath activates iFi’s iEMatch technology. This feature is tailored for high-sensitivity headphones and earphones, greatly benefiting your in-ear monitors (IEMs). It removes background noise and increases the usable volume range.

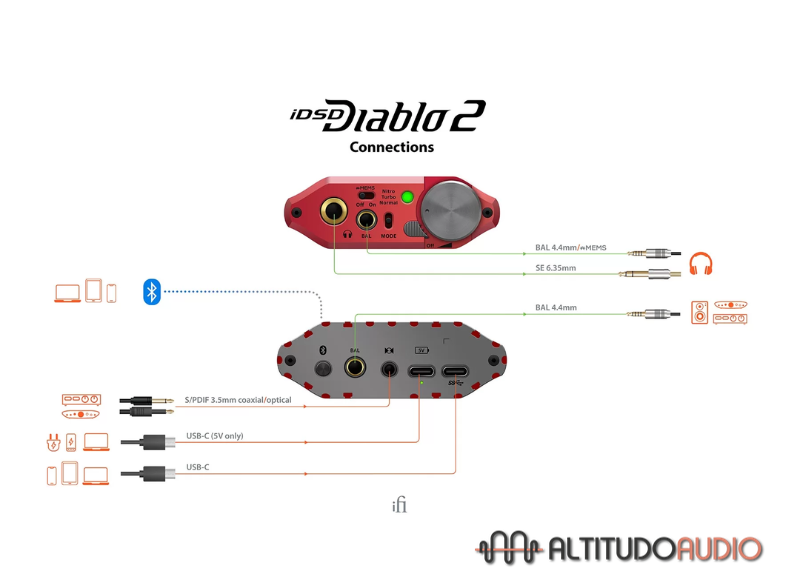

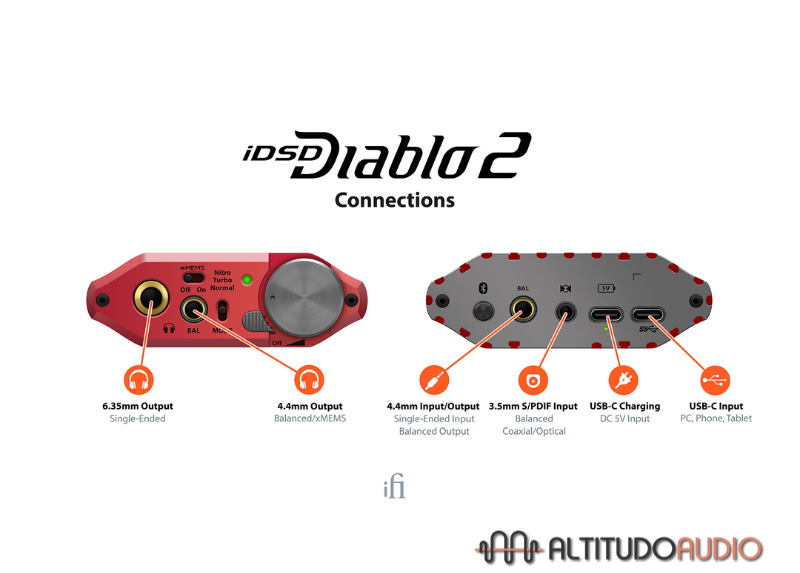

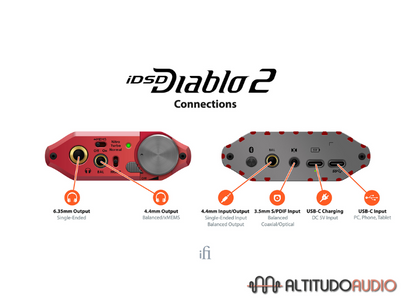

The Diablo 2 accommodates a wide range of headphones, from IEMs to power-hungry over-ears. It features a 6.3mm single-ended headphone socket and a 4.4mm balanced output. Additionally, a 3.5mm to 6.35mm adapter is included for versatile connectivity.

Ruling all Bluetooth codec and music formats.

The Diablo 2 features the latest Bluetooth 5.4 technology, supporting the new aptX Lossless codec, which provides a maximum bitrate of 1,200kbps. In comparison, aptX Adaptive has a maximum bitrate of 420kbps, while LDACTM offers a higher bitrate of 990kbps.

The Diablo 2 used Qualcomm’s new QCC518x Bluetooth audio chip, is qualified to Bluetooth 5.4, supported all* Bluetooth formats including: aptX Lossless, aptX Adaptive, aptX, LDACTM, LHDC/HWA, AAC and SBC.

Wings of Inferno.

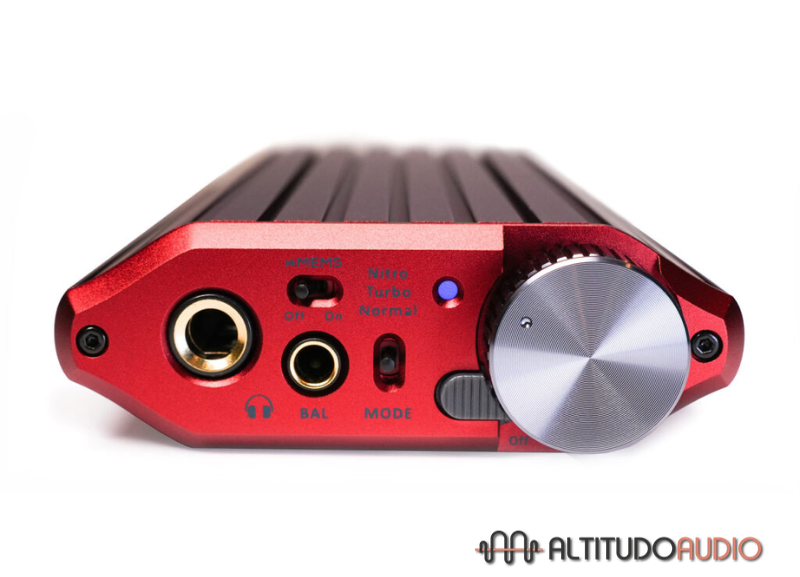

When examining the Diablo 2’s front panel, you’ll find a new Volume Lock switch next to the volume control, preventing accidental adjustments during transport.

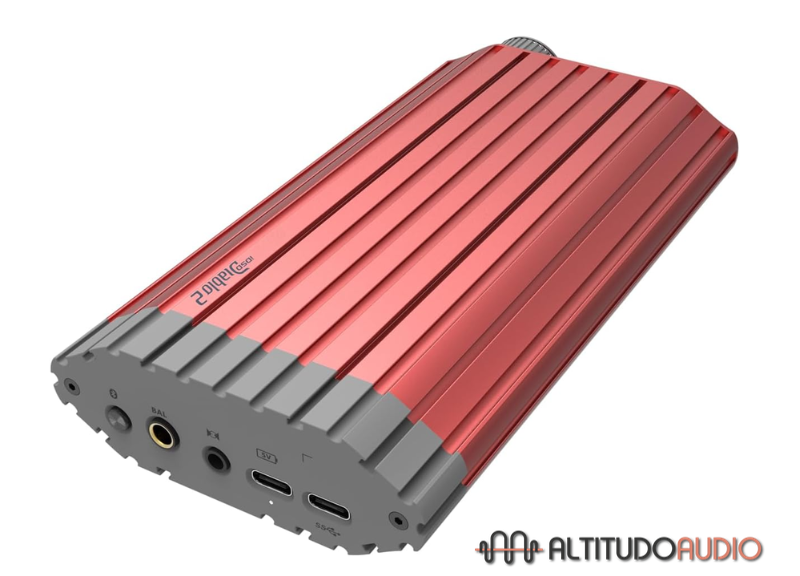

At the back panel’s left side, there’s a switch for mode selection and Bluetooth pairing. On the right side, two USB-C ports streamline cable management—one for audio and the other for charging.

Sound So Moving. Even the Devil May Cry.

Diablo 2 features PureWave, Servoless DirectDrive, OptimaLoop, and Advanced Jitter Reduction Technology, delivering exceptionally pure, detailed, and emotionally touching sound, these technologies elevate performance to unparalleled heights, even challenging desktop DAC/amps.

PureWave’s full balanced dual-mono circuitry elevates clarity by separating channels and reducing noise. DirectDrive removes the need for coupling capacitors, ensuring purer audio.

OptimaLoop employs tailored multiple feedback paths in amplifiers, refining gain control and reducing distortion. The enhanced GMT femto-precision clock with Smart storage cache minimises phase noise for cleaner sound.

Diablo 2 is the most formidable DAC/Amp on the planet. Your headphones should be scared.

Diablo’s Energy Sources

The Diablo 2 can be powered by battery or mains.

Battery power provides ultra-clean and stable DC current, avoiding mains electricity issues like dips, spikes, and noise inducing RFI/EMI pollution. However, there are sonic downsides due to low output voltage and inconsistent output impedance as batteries discharge.

The bundled iPower2 power supply features Active Noise Cancellation II, effectively cancelling out all incoming EMI and RFI noise and making it more than 10 times quieter than most audiophile power supplies.

To make less efficient headphones, like planar magnetics, sing, the voltage needs to be stepped up from 3.7V to +/- 15V. We use a step-up converter operating at 1.2MHz – a frequency far beyond audibility and easier to filter than a typical switch-mode supply, ensuring high linearity and ultra-low noise.

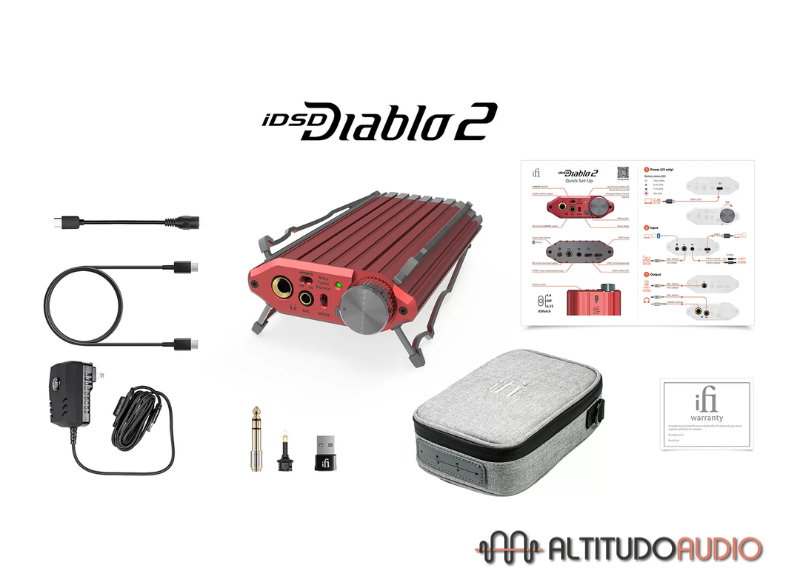

Accessories for Diablo 2

Diablo 2 comes with a variety of accessories, all included with the product, so you won’t need to make separate purchases.

These accessories include the iPower 2 power supply (which is 10 times quieter than typical audiophile power supplies), a USB-C cable, a USB-C-to-A adapter, a TOSLINK optical adapter, a 3.5mm to 6.3mm headphone adapter, and an iTraveller carrying case.
