Diamond Series- DT-6000

Defined as a "CD transport block with integrated DAC", the DT-6000 stands out first and foremost for the extremely smooth and quiet operation of its CD transport block, which can also read MP3-encoded recordings.

Even more important is the D/A conversion section, which is centered on an ESS Sabre ES9028PRO "chip" as a result of extensive listening sessions. This DAC uses an 8-channel configuration which in the DT-6000 has been modified to dedicate 4 of these channels to each of its 2 stereo channels.

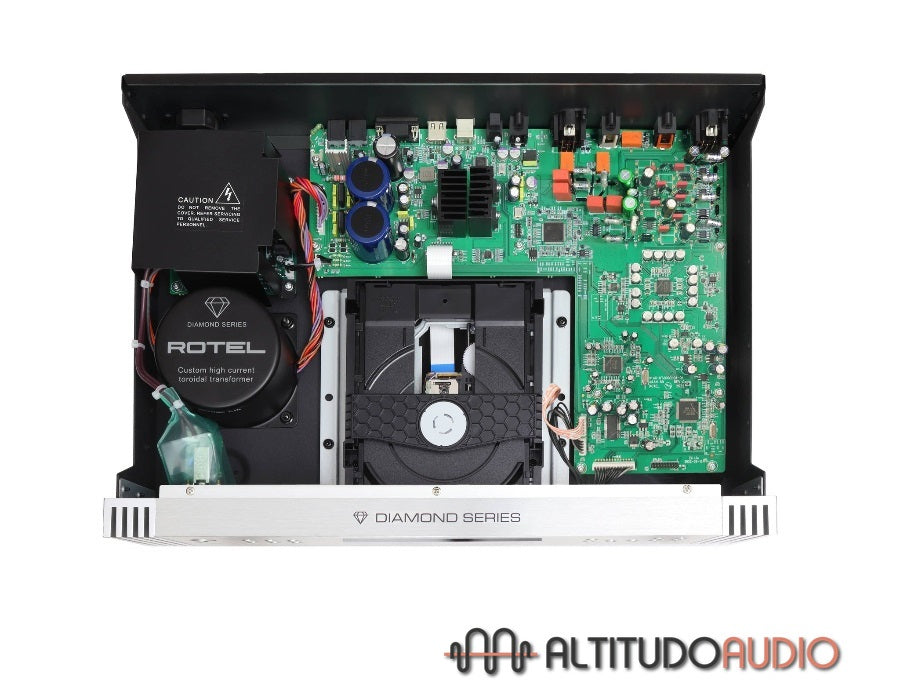

The redundancy in the digital processing of the digital data through balanced circuitry and the use of a dedicated toroidal transformer ensure that the subtleties of the music are transcribed with unprecedented clarity.

Meanwhile, the asynchronous PC-USB input allows MQA files to be rendered and supports PCM files up to 32-bit/384 kHz and DSD up to DSD256, while the coaxial and optical digital inputs support signals up to 24-bit/192 kHz.

Features:

• Very high performance CD transport block with DAC.

• Created to celebrate the 60th anniversary of Rotel.

• Executed with audiophile grade components.

• ESS Sabre ES9028PRO 8-channel DAC.

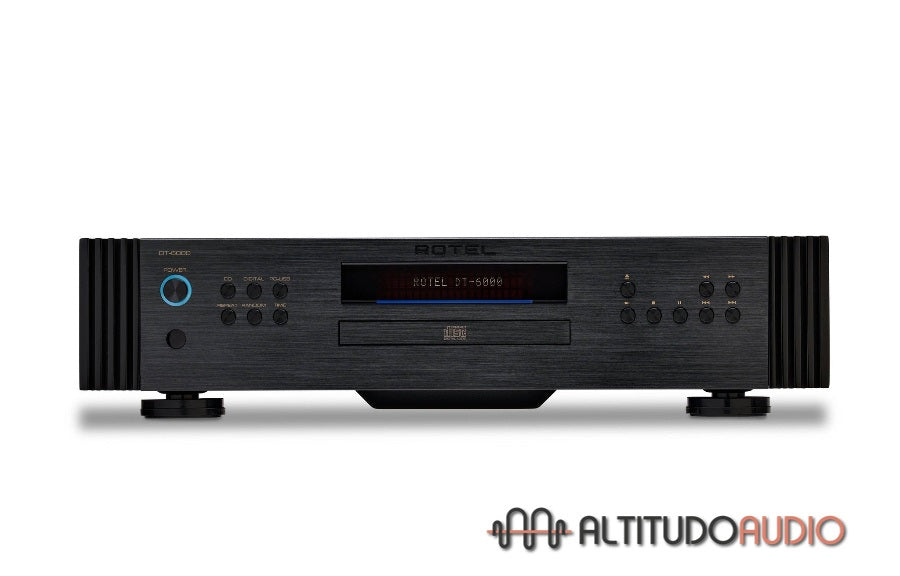

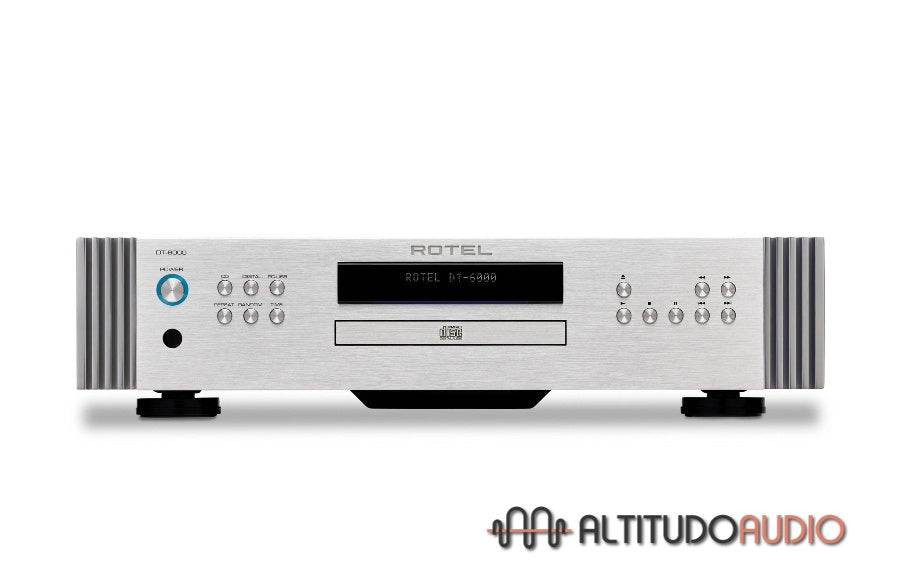

• Ultra-quiet CD transport mechanism with loading tray.

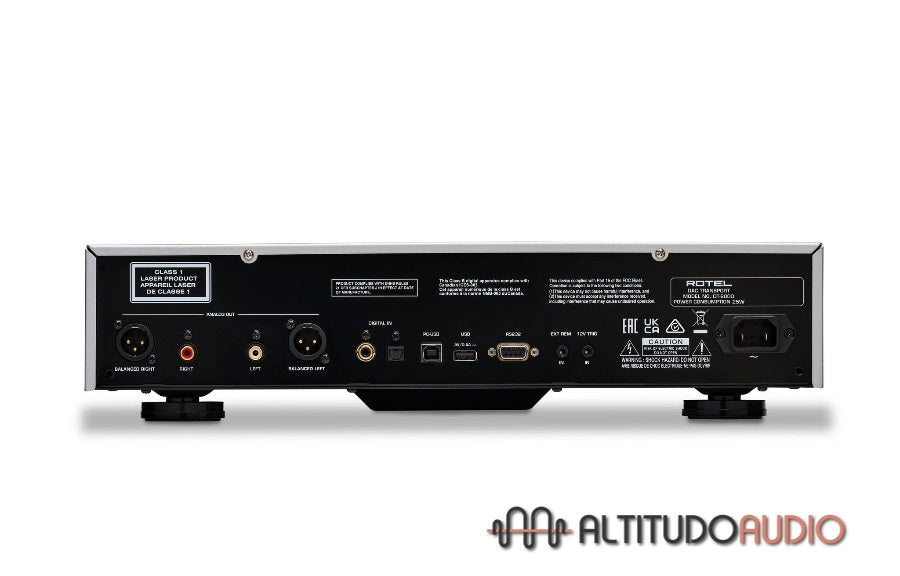

• Balanced (XLR) and unbalanced (RCA) stereo analogue outputs.

• PC-USB input compatible PCM up to 32-bit/384 kHz and DSD up to DSD256.

• MQA and MQA Studio file rendering.

• Roon Tested approved.

• Frequency response 20-20,000 Hz, +0 dB, -0.15 dB.

• Signal to noise ratio greater than 115 dB.

• Dimensions: 431 x 104 x 320 mm (W x H x D).

• Weight: 8.1 kg.
