PS Audio
DirectStream Power Plant 15
Regular price
$10,699.00
Shipping : FREE in Canada
Product Details
Purify, protect, regulate, and rebuild unrestricted new power from old with the P15, our second most powerful AC regenerator.
The DirectStream P15 Power Plant is the gold standard for safety, reliability, and high-performance AC power regeneration. The P15 improves micro and macro dynamics, audio purity, instrumental separation, soundstage width and depth, and lowers background noise for any connected equipment. From medium to large power amplifiers to the smallest pieces of source equipment, the P15 will work magic on your system’s performance. Don’t starve your music or risk damaging your equipment. A P15 gives you greatly improved performance and safety from just plugging into the wall socket and far better dynamics, bass and a much bigger, open soundstage than any power conditioner on the market.
DESIGN

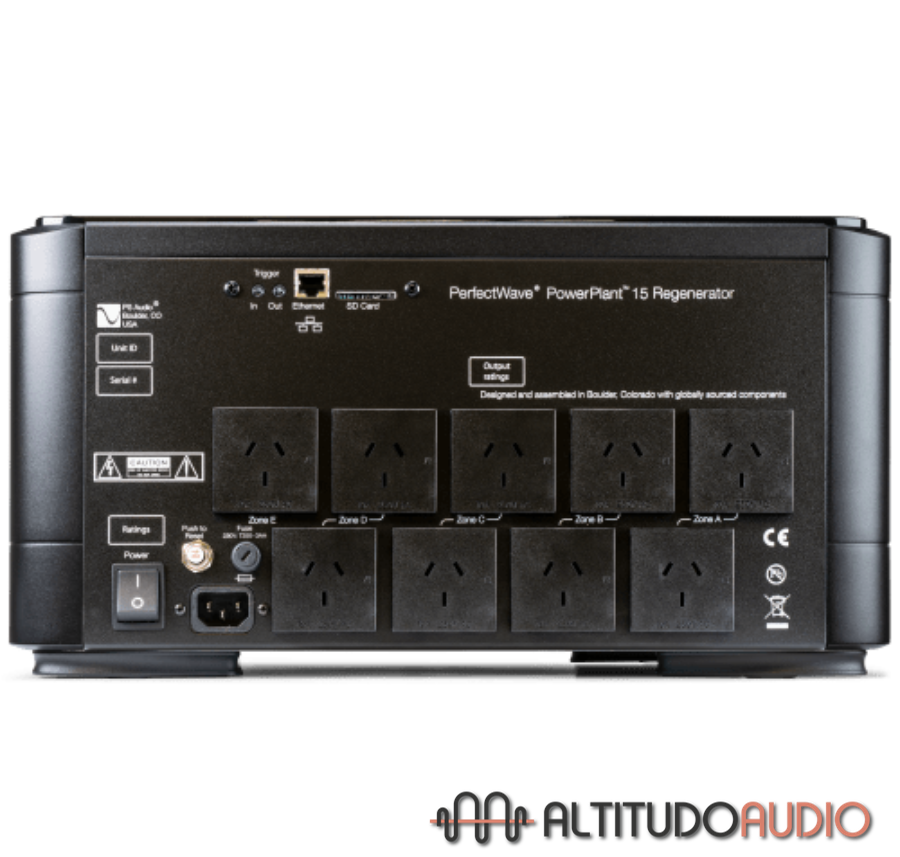

The P15 features an ultra-low impedance analog power amplifier, FPGA based sine wave generator based on pure, clean, analog DSD (PCM), 10 outlets (US version) across 5 separate regenerated zones, and 1/4" thick copper busbars that deliver regenerated power to each receptacle. Through regeneration, the P15 creates a completely new AC waveform that adds missing energy back onto the power line to correct for serious issues, such as distortion and voltage fluctuations.
APPLICATION
With a maximum output of 1500 watts, the P15 regenerates steady, regulated, pure AC that is unaffected by your equipment's demands for power. Powering your system from the outlets of the P15 will reveal new voices, new harmonics, and a renewed sense of musicality. As the gold standard for safety, reliability, and high-performace AC power regeneration, the P15 will ensure you receive the same great performance every time you listen and provide a firm foundation for your system.
Specifications
Environment Specification |
US/JP |
Europe/Asia |
| Location | Indoor use only | Indoor use only |
| Duty Cycle | Suitable for continuous operation | Suitable for continuous operation |
| Moisture Sensitivity | Not sealed against moisture | Not sealed against moisture |
| Operating Humidity | <80%rh | <80%rh |
| Storage Temperature | -40C to +40C | -40C to +40C |
| Operating Temperature | 0C to 40C | 0C to 40C |
| Max Operating Altitude | 12,000’ (3500m) | 12,000’ (3500m) |
| Electrical Supply Nominal Rating | 120V 15A 60Hz US 100V 15A 50/60 Hz JP |
230V 10A 50/60Hz |
Instrument Specification |
||
| Unit Dimensions | 17” W x 14” D x 8.5” H (43cm W x 36cm D x 21.5 cm H) | 17” W x 14” D x 8.5” H (43cm W x 36cm D x 21.5 cm H) |
| Unit Weight | 73 lbs ( 33kg) | 73 lbs ( 33kg) |
| Shipping Dimensions | 23” x 20.5” x 13.5” ( 58cm x 52cm x 34cm) | 23” x 20.5” x 13.5” ( 58cm x 52cm x 34cm) |
| Shipping Weight | 82 lbs (38kg) | 82 lbs (38kg) |
| Nominal Input Voltage | 95 – 145 VAC | 200 –285VAC |
| Maximum Continuous Load | 1200VA | 1500VA |
| Maximum Peak Load | 3600VA | 3600VA |
| Voltage Regulation | 1V | 1V |
| Output Distortion (Resistive Load) | <0.5% 0.1% typical |
<0.9% 0.2% typical |
| Output Distortion (Reactive Load) | <0.5% 0.1% typical |
<0.9% 0.2% typical |
| Output Impedance | <0.008 ohm | <0.008 ohm |
| Noise Reduction | 100kHz – 2MHz >80dB | 100kHz – 2MHz >80dB |
| Efficiency @1200 VA | >85% | >85% |
| Standby Power Consumption | ||
| Input Frequency | 45 – 65 Hz | 45 – 65 Hz |
| Under Voltage Limit | Continuous -10% of setting 15 sec duration -15% of setting | Continuous -10% of setting 15 sec duration -15% of setting |
| Over Voltage Limit | Continuous 5% of setting 15 sec duration 10% of setting | Continuous 5% of setting 15 sec duration 10% of setting |
| Energy Dissipation | 2440J | 3670J |
| Peak Current Surge | 144,000A | 84,000A |
| Max Surge Voltage | 6,000V | 6,000V |
| Clamp Level | 330V | 800V |
| DC Trigger Configuration | Tip Positive | Tip Positive |
| DC Trigger Voltage | 5 – 15Vdc | 5 – 15Vdc |
