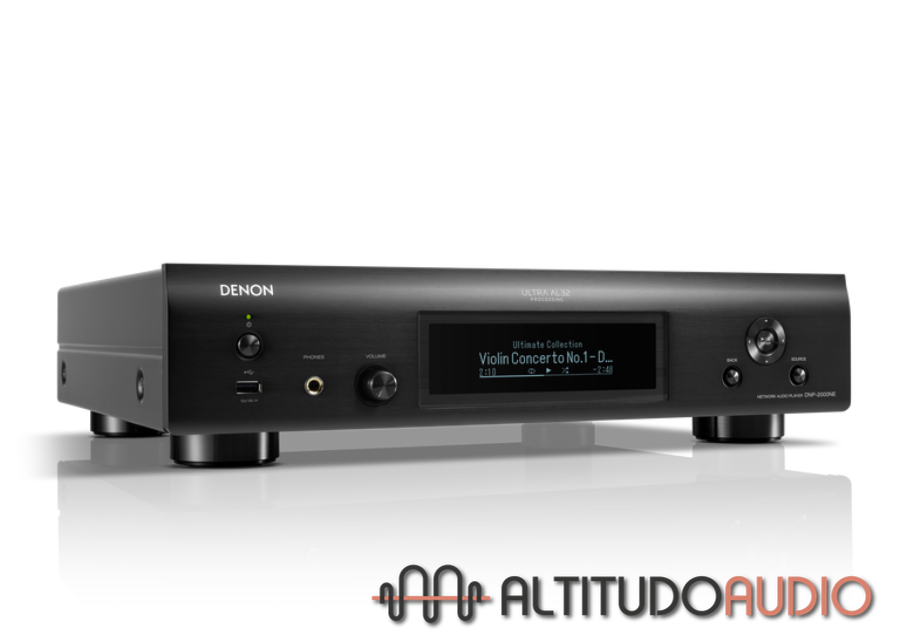

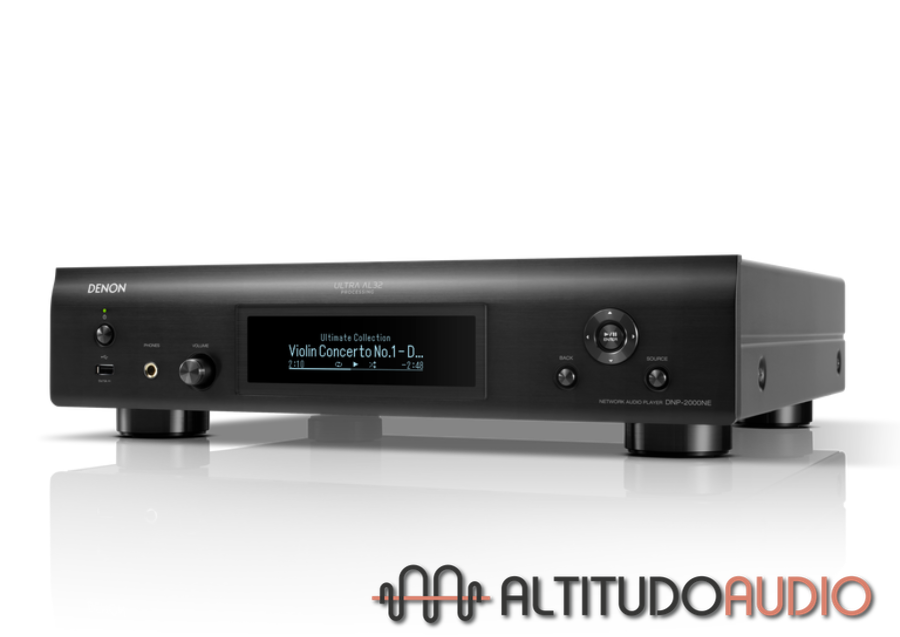

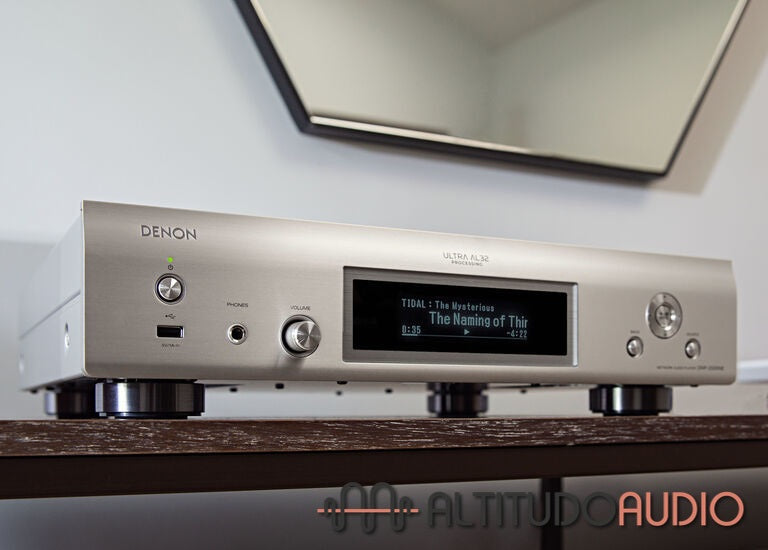

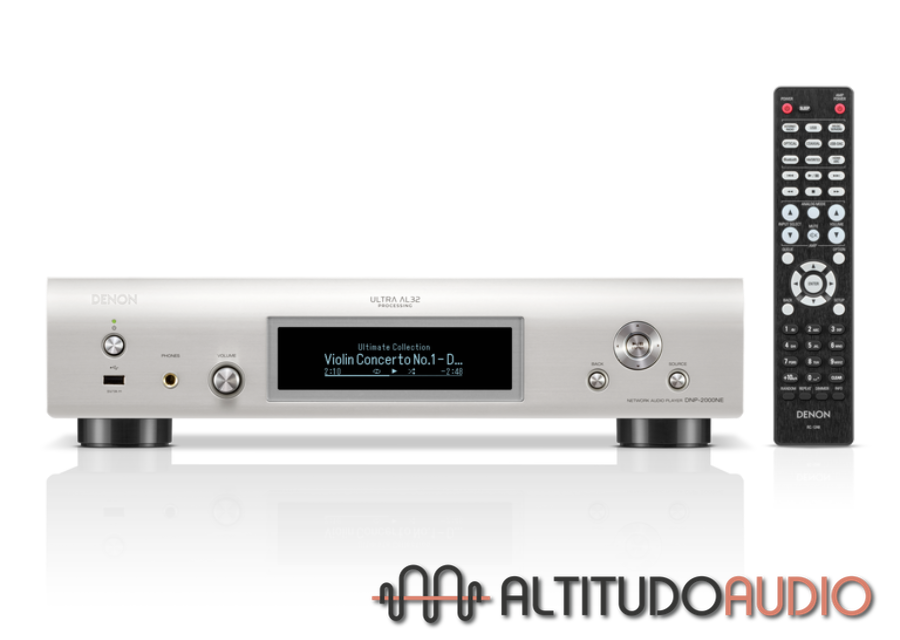

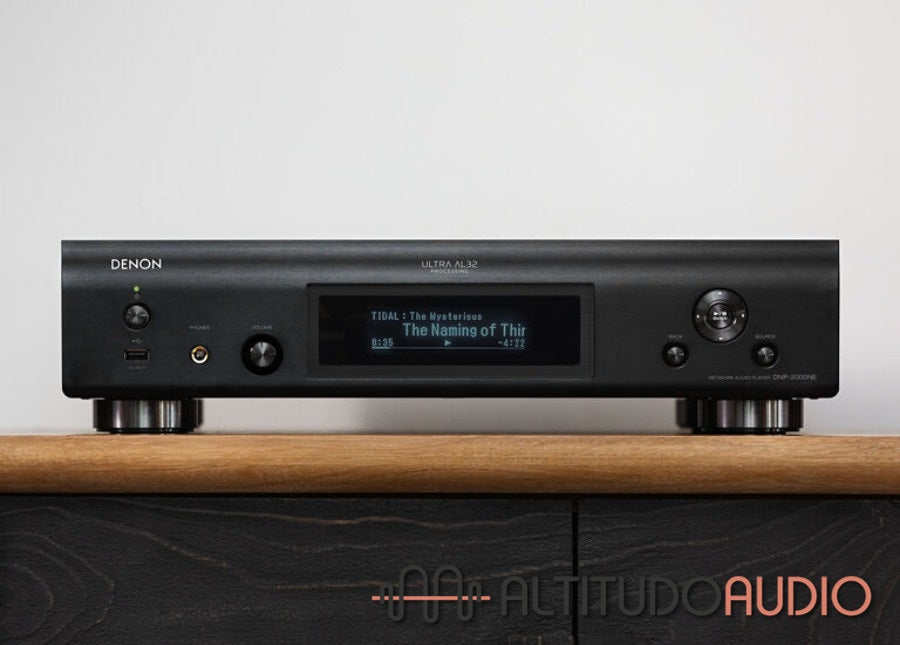

DNP-2000NE

Upgrade any existing audio system to play most digital audio sources—including your television—using HDMI ARC for an improved audio experience. The DNP-2000NE also connects to your home network, so you can enjoy your favorite music services using HEOS® Built-in.

• Ultra AL32 Processing
• DAC master clock
• HEOS® Built-in
• Alexa, Google, Siri voice control
• Quad DAC configuration
• AirPlay 2

• Network audio streamingYes
• Spotify Connect* / Tidal* / Deezer* / others *Yes / Yes / Yes / Yes
• Amazon Prime Music* / Pandora*Yes / Yes
• AirPlay 2Yes
• Roon TestedYes
• Internet Radiotunein
• HEOS Multiroom and StreamingYes
• Voice Control - Works with Amazon AlexaYes
• Wi-Fi / Wired LANYes / Yes
• Wi-Fi sharing / WPSYes / Yes
• Bluetooth / Bluetooth HP transmissionYes / Yes
• DAC operation mode: USB B type / Coax / OpticalYes / Yes / 2
• Asynchronous mode rear USBYes
• Bit-perfect transmissionYes
• USB-B DSD Audio Streaming (DoP): DSD2.8 / DSD5.6 / DSD11.2Yes / Yes / Yes
• Ground isolator for DAC Mode operationYes
• Alpha ProcessingUltra AL32 Processing
• USB Audio (Front) / Made for iPod / Made for iPhoneYes / No / No
• USB-A: FLAC / WAV / AIFF / ALAC / DSDYes
• DSD-Audio network streamingYes
• Lossy formats: MP3 / WMA / AACYes / Yes / Yes
• Lossless formats: DSD / FLAC HD 192/24 / ALAC 192/24 / WAV 192/24Yes / Yes / Yes /Yes
• Gapless PlaybackYes (FLAC, WAV, DSD)
• Remote APP: iDevice / AndroidYes / Yes
• App control AMP via Network PlayerYes
• Power Transformer: Toroidal / ElNo / Yes
• High Grade Audio ComponentsYes
• Customized ComponentsYes
• Symmetric circuit layoutYes

• Extra metal plate for chassis strengthingYes
• Headphone: Standard / Buffer / Current feedbackYes / No / No
• Display3 line OELD
• Display: Dimmer / OffYes / Yes

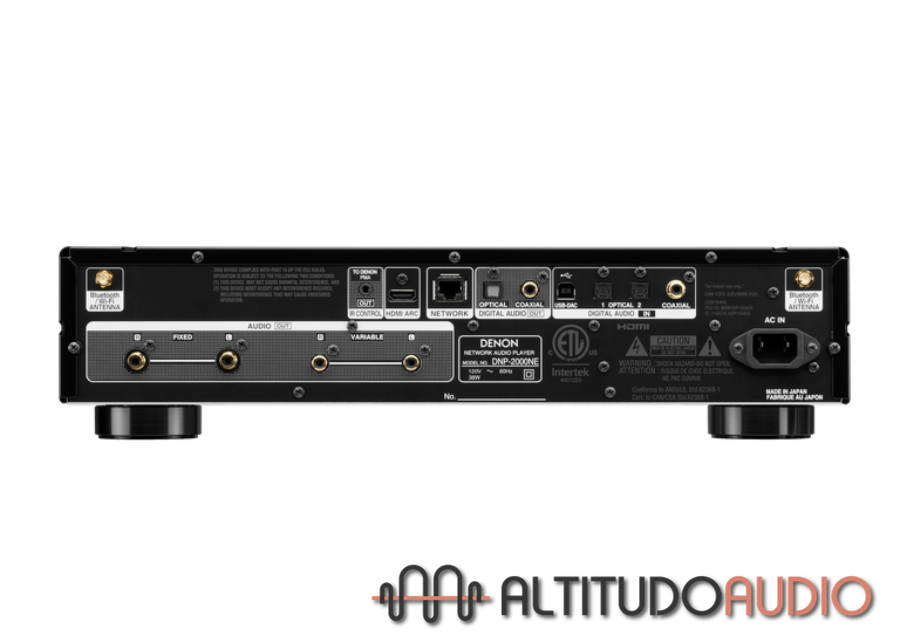

• USB type B input for PC (back)Yes
• Sample Rate USB Inup to DSD11.2
• Analogue Out1x Cinch
• Variable Out1x Cinch
• Ethernet portYes
• HDMI: ARC input for TVYes
• Digital Inputs: Coaxial / Optical1 / 2
• Digital Outputs: Coaxial / Optical1 / 1
• Sample Rate digital In192 kHz / 24-bit
• Jitter ReducerYes
• Remote Control Bus in / outNo / Yes
• IP controlYes

• DAC IC4x ES9018K2M, ESS
  Mono-Mode
• Dual ClockYes
• Digital FilterUltra AL32 Processing
• Noise ShaperES9018K2M
• Frequency responseDSD:2Hz - 50kHz
  PCM(44.1kHz):2Hz - 20kHz
• Dynamic range in dBDSD: 112dB
  PCM: 118dB
• Signal-to-noise ratio in dBDSD: 120dB
  PCM: 118dB
• Total harmonic distortionDSD: 0.0006%
  PCM: 0.0008% (24bit)
• Headphone ampYes

• Available colors: Premium Silver / BlackYes / Yes
• Metal Front PanelYes

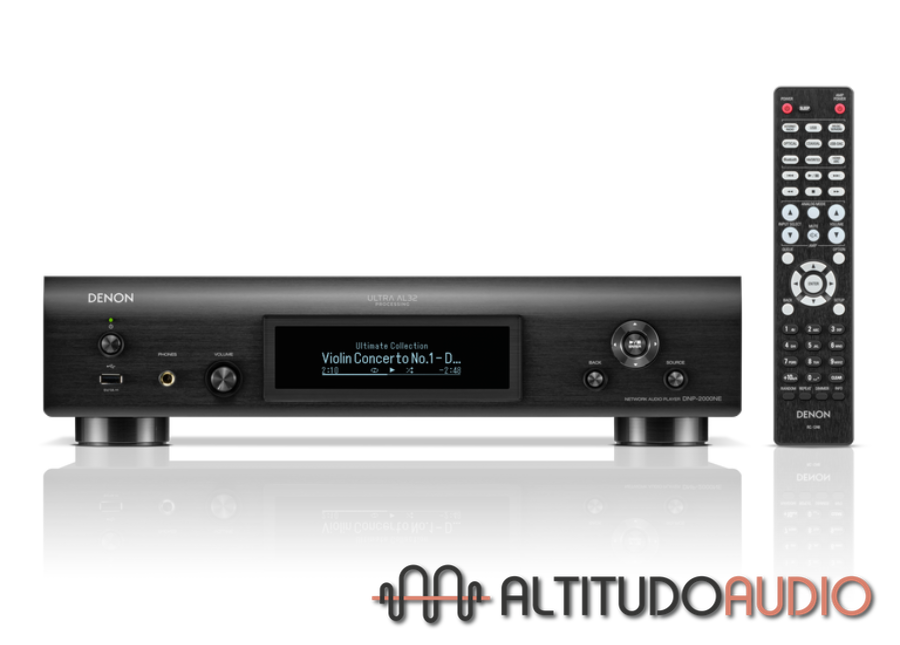

• Remote ControlRC-1248
• Power Consumption in W(less than) 38W
• Standby Consumption in W(less than) 0.2W
• Detachable Power Cable(less than) 2W
• Maximum Dimensions (W x D x H) in mm434 x 421 x 107
• Weight in kg9.7kg
• Carton Maximum Dimensions (W x D x H) in mm548 x 520 x 210
• Carton Weight (inc. product) in kg12.0kg
• Maximum Dimensions
  Antenna:Horizontal:(W x D x H) in Inches
  ( Antenna:Vertical :(W x D x H) in Inches)
  【 w/o Antenna :(W x D x H) in Inches】17.1 x 16.6 x 4.2
  (17.1 x 16.6 x 6.7)
  【17.1 x 15.5 x 4.2】
• Carton Maximum Dimensions (W x D x H) in Inches21.6 x 20.5 x 8.3
• Weight in LBS21.38 lbs
• Carton Weight (inc. product) in LBS26.46 lbs
