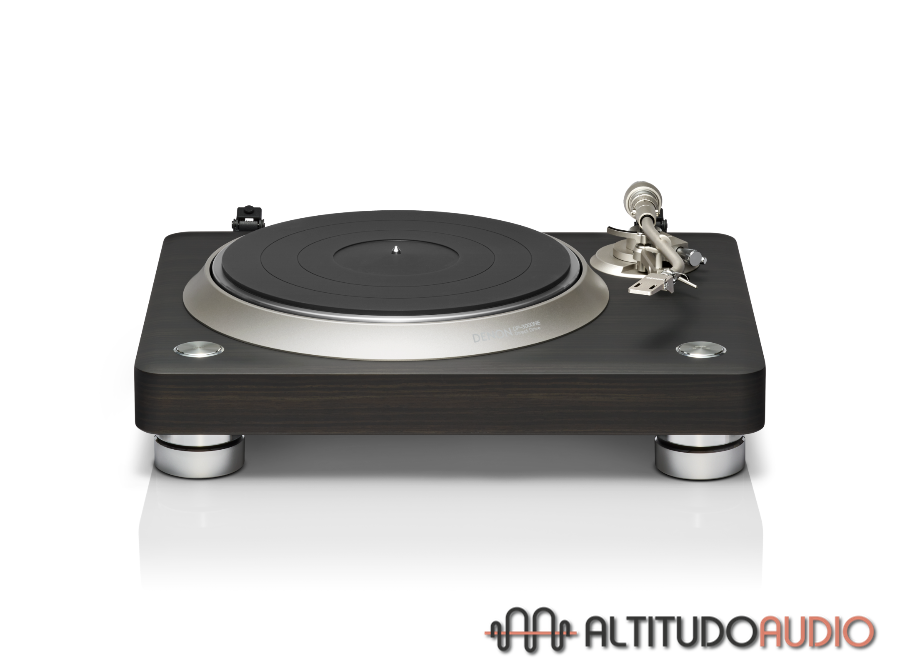

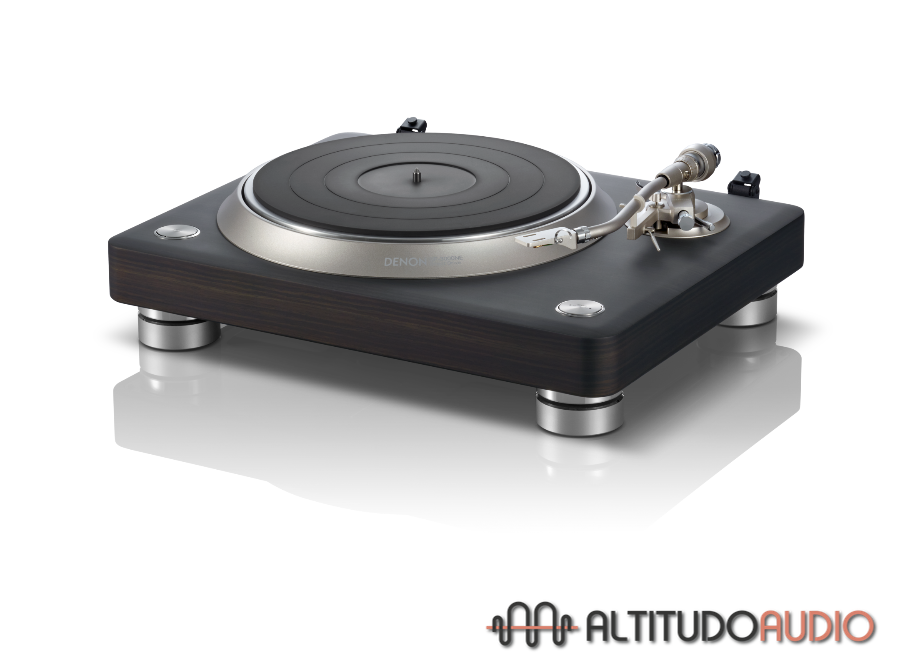

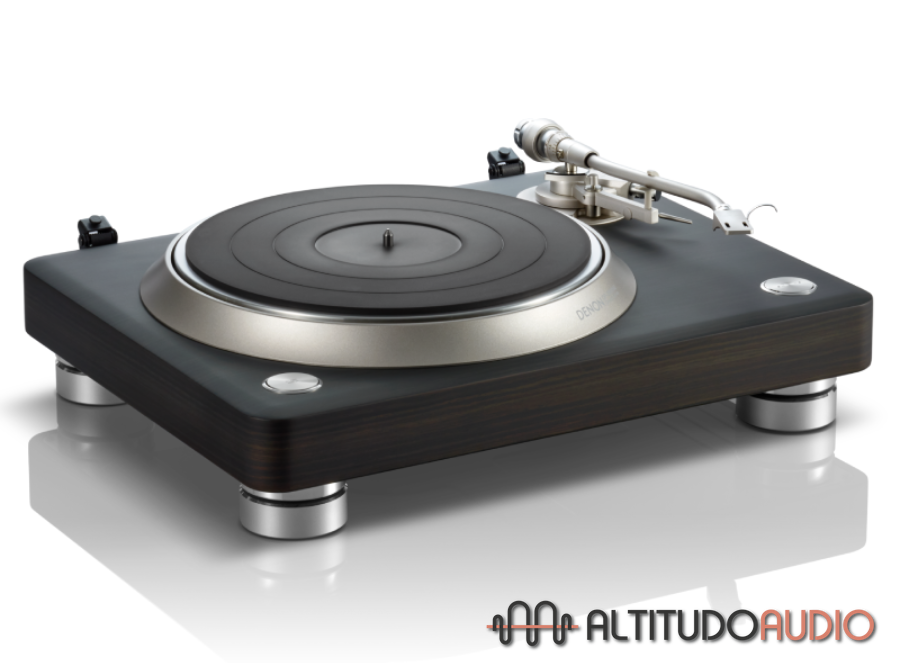

This is the flagship premium direct drive turntable from Denon®. Solid construction and S-shaped tonearm deliver detailed, resonance-free music. And the dark ebony natural wood veneer makes it a beautiful addition to your space.
Accurate playback
Direct-drive motor
Vertical tracking

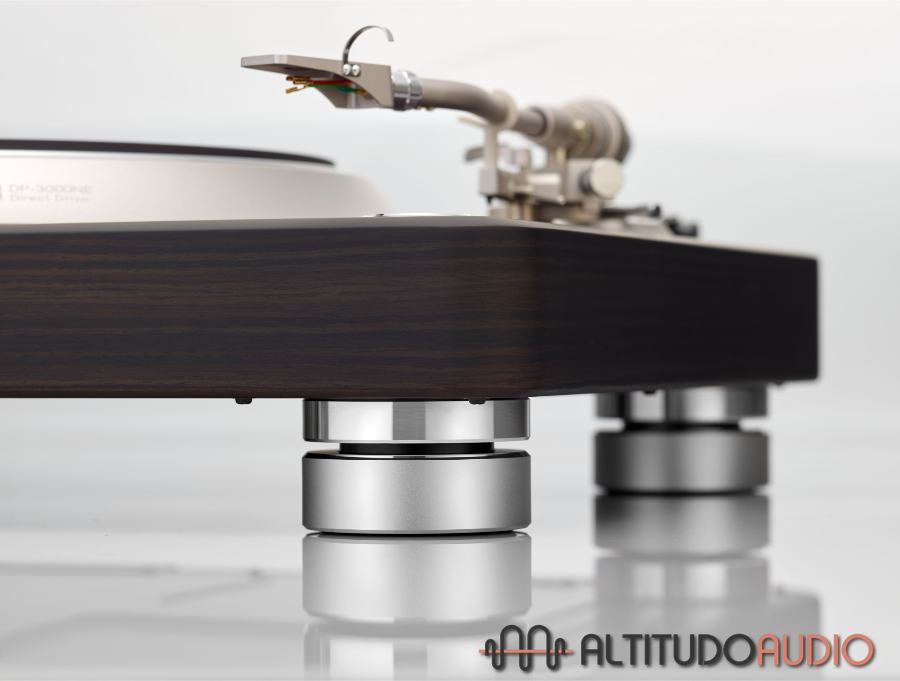

Adjustable insulator feet
Solid construction
Removable dust cover
TECHNICAL INFORMATION
Drive System Direct
Motor 16-pole, 12-coil, brushless motor
Control method PWM Vector
Platter Aluminum diecast (305mm)
Platter inertia 382 kg/CM^2
Wow Flatter less than 0.06% JIS
Speed tolerance less than ± 0.3%
Rumble (S/N ratio) Over 70dB
Bearing Type Miniature Steel ball bearing

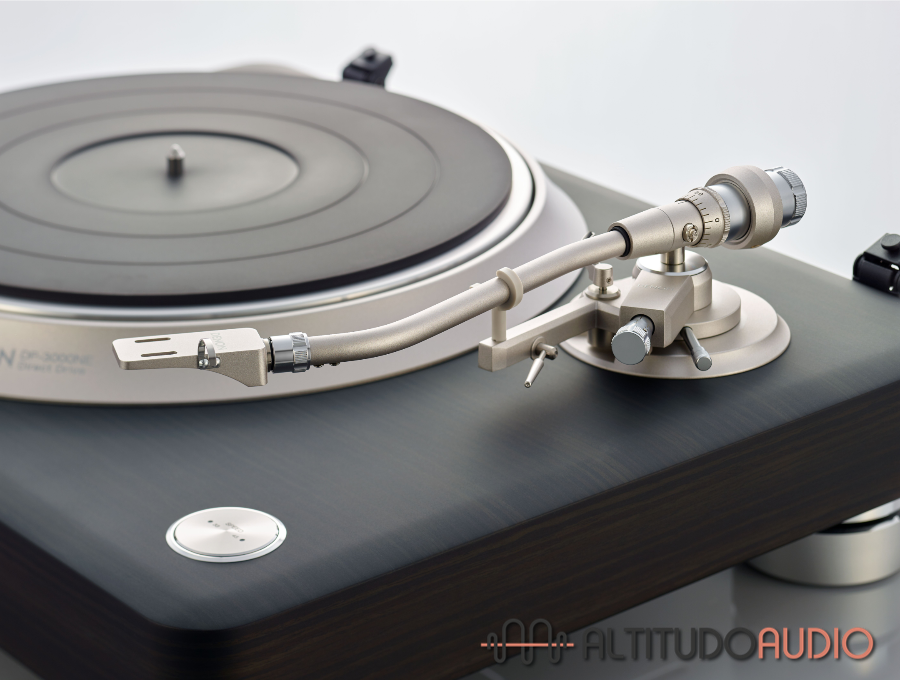

Tone Arm Static Balanced S-Shaped
Arm length 244 mm
Overhang 14 mm
Offset angle 20.5 °
Tracking error angle 2.5° (Max.)
Suitable cartridge weight 4 to 16g without sub weight 14 to 26g with sub weight
Stylus force adjustment 0 - 2.5g /rotation
High adjustment range 9mm
Anti-skating adjustment 0-3g
Headshell material Aluminum
Sensitivity (Horizontal) 30mg
Sensitivity (Vertical) 30mg
Operation Manual
Speed 33 1/3 / 45 / 78 rpm
Control Start / Stop
GENERAL
Colors Dark ebony
Dimensions 500 x 394 x 185mm (W x D x H)
Weight 18.5 kg
Power Supply AC 100-240V, 50/60Hz
Power consumption <4W
Stdby Power consumption Less than 0.3W
Carton maximum Dimensions 615 x 515 x 335 mm (W x D x H)
Carton Weight 24.0 kg
What's in the box Platter mat, Dust cover, Power cable, RCA cable and ground cable, Headshell, Overhang gauge, Screw set for cartridge mount (10, 13, 18mm), 2 x Cartridge spacers (1 mm), 2 x Plastic Washer, Screw driver, Counter weight, Sub-counter weight, Denon EP adapter/weight
