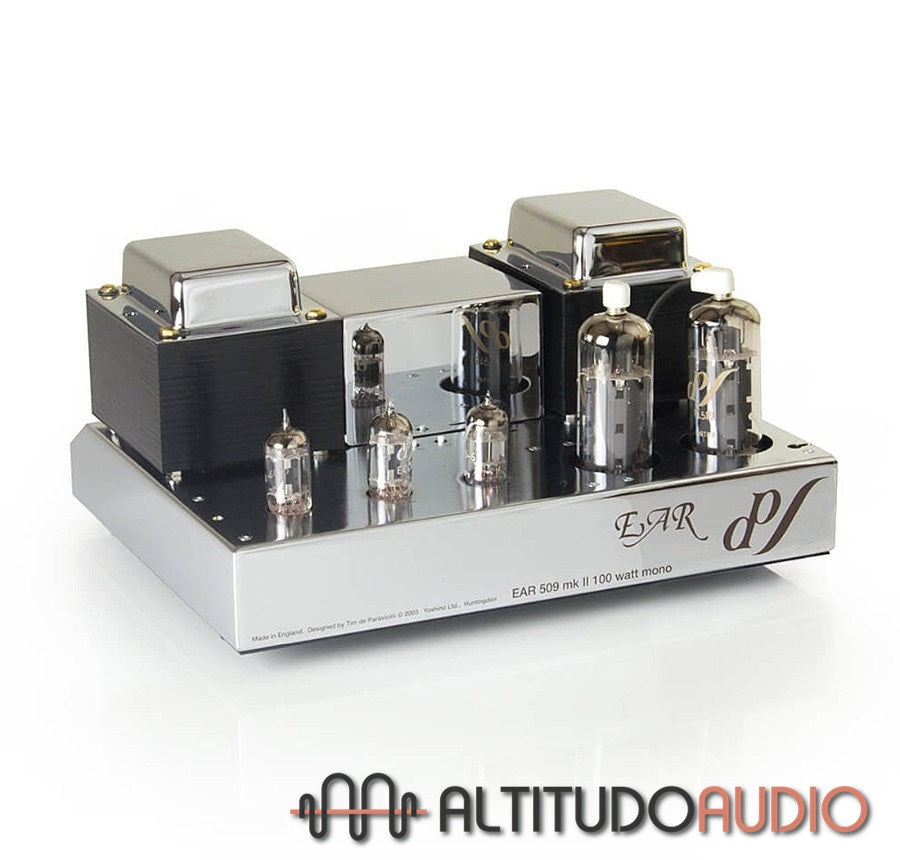

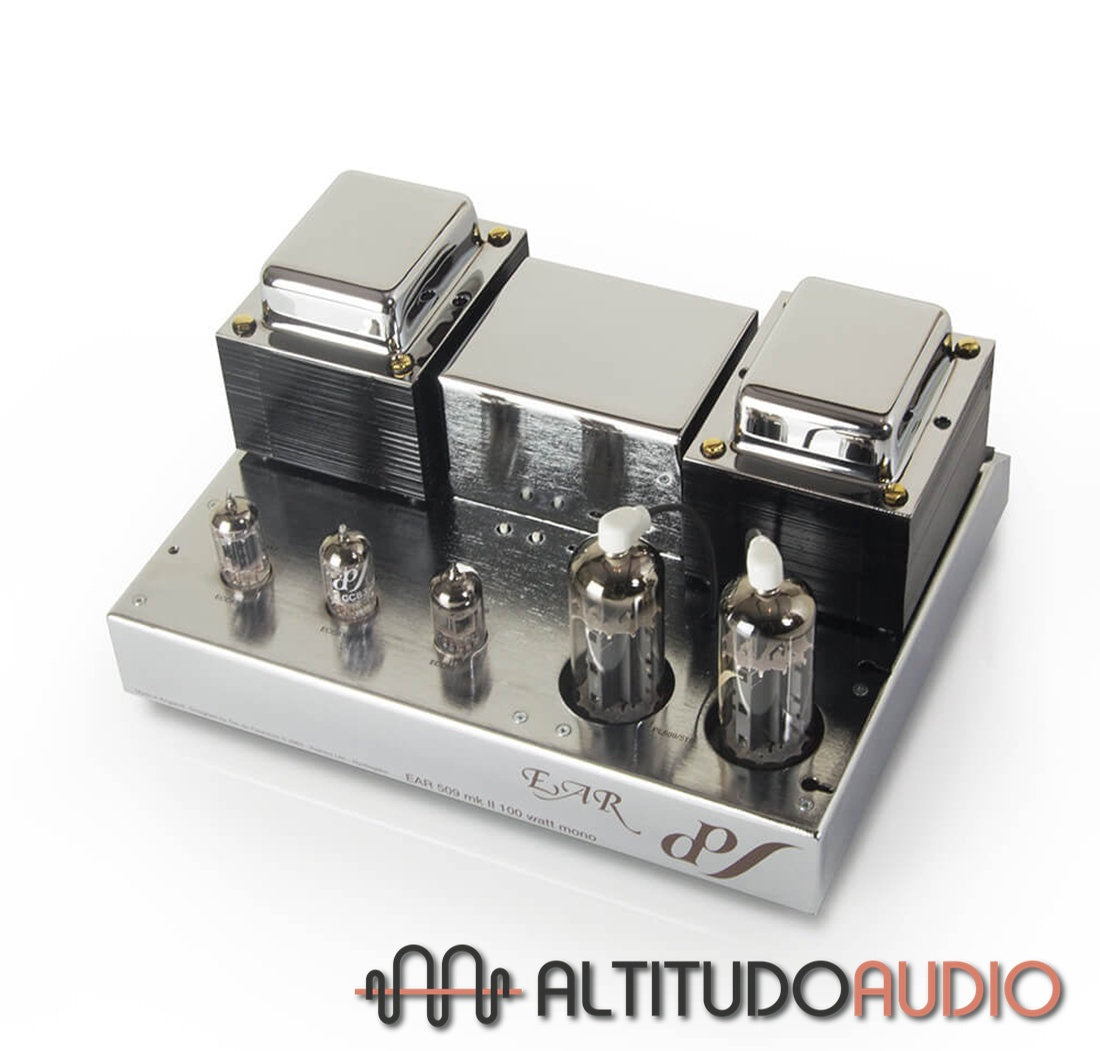

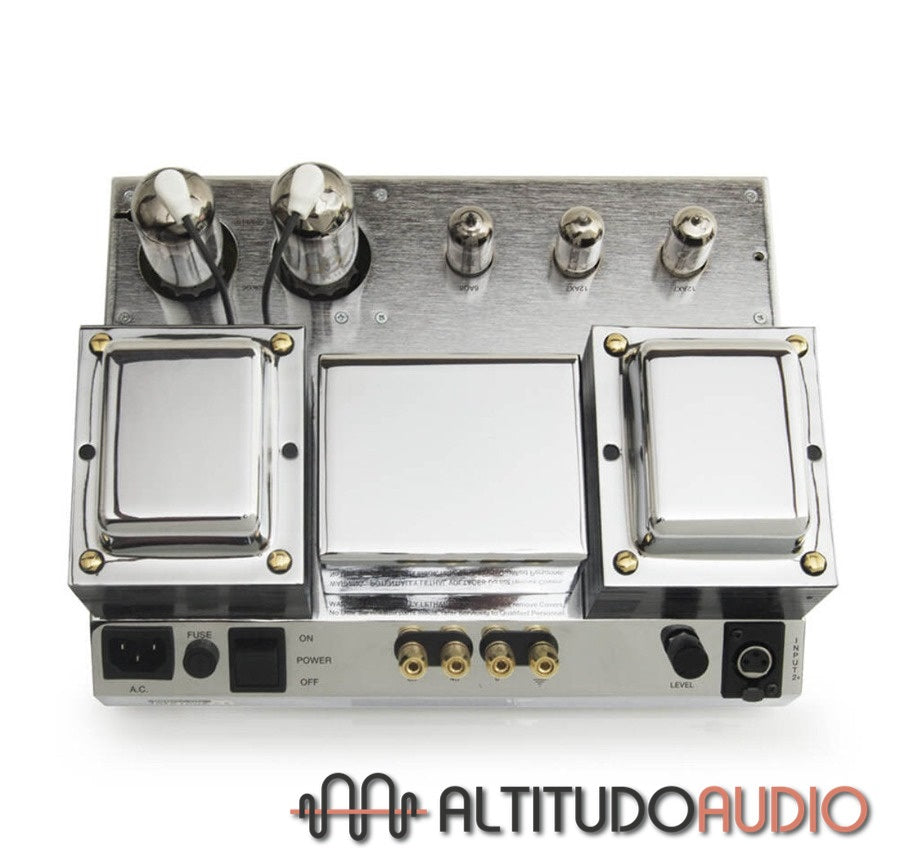

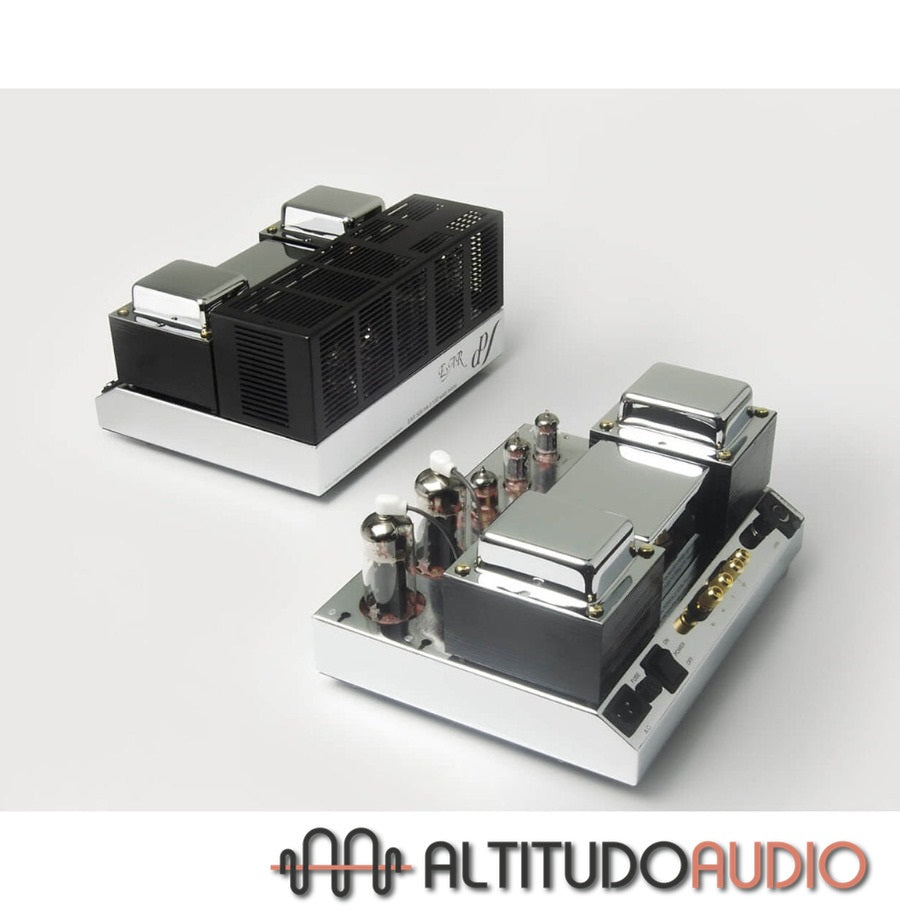

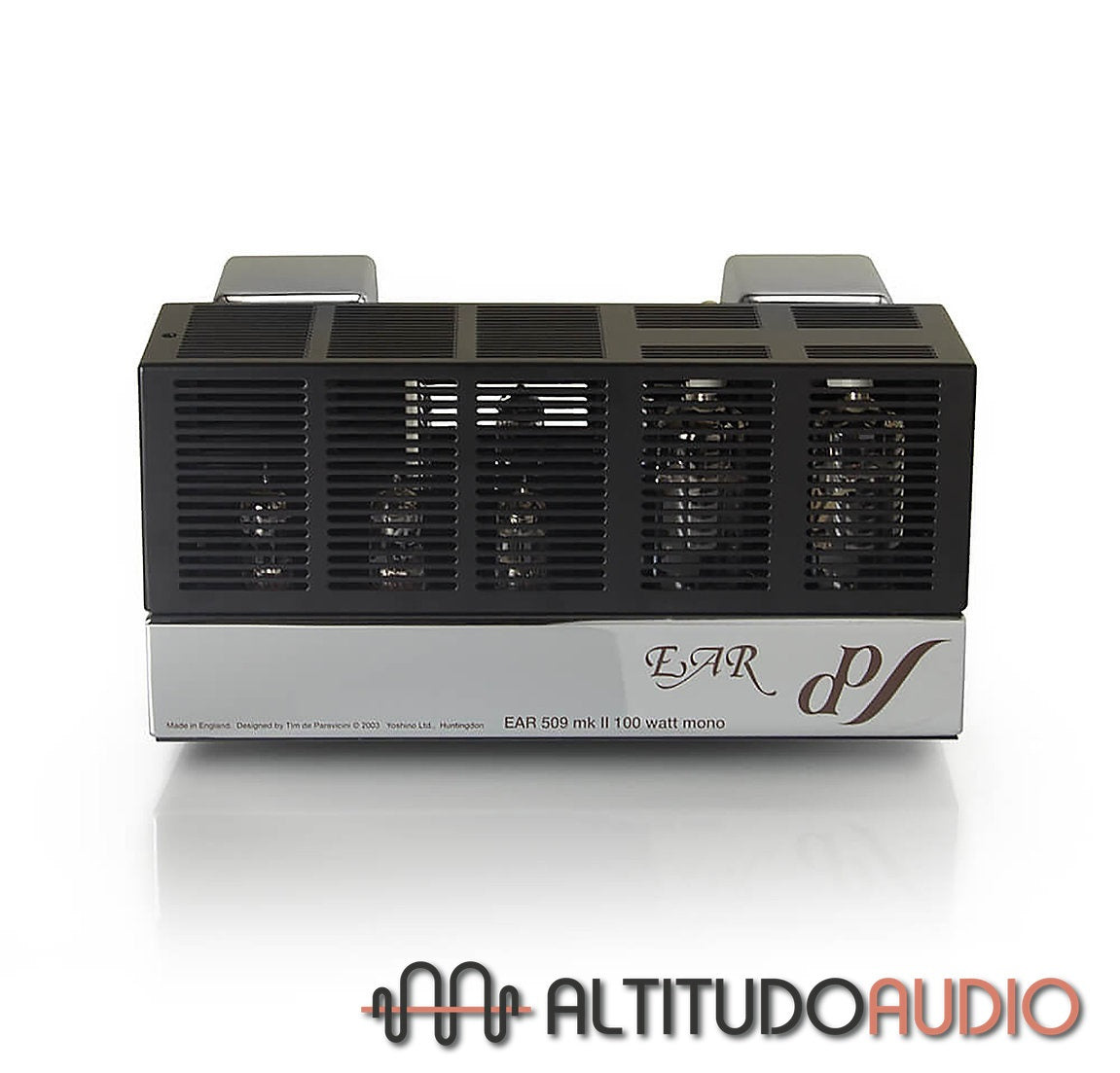

EAR 509 Power Amplifier (Pair)

Regular price $17,000.00 $0.00 Unit price per

Shipping : FREE in Canada

Classic beauty

The EAR 509 mono was born to serve professional studios. The nature of high fidelity in studios makes it perfectly suited for audio playback in the home.

The 100 Watt mono is a Tim de Paravicini design classic that has been in continual production for over 30 years. Its timeless rectilinear form is hand finished in polished chrome giving a clean and elegant look. Despite its high power, it has been refined to be densely packaged without sacrificing any performance enabling the compact design.


Limitless possibilities

The EAR 509 have been built with reliability at its heart, backed up by three decades of servicing experience for the product.

Changing valves is intuitive with the EAR 509’s self- biasing. Accurately set the operational biasing by adjusting two sets of dials. With four LEDs, it informs you that it’s set with equal intensity, allowing you to easily adjust the biasing when necessary.

Double the output

Tim de Paravicini designed the EAR 509s with industrial grade components for reliability and performance. Built to handle the demands of professional audio environments, we added the option for it to be equipped with balanced inputs for those -professional applications.

With all of our products, we put a high level of care with the end performance. Take our selection of valves for instance. Each mono and its valves are unique. We analyse a wide selection of valves to find the most suitable match before pairing each EAR 509 for stereo. Giving the highest quality output.


Bespoke from the ground up

EAR Yoshino’s transformers sing with just about anything. Tim de Paravicini bespoke designed both output and power transformers with music in mind. We hand-build them locally and then rigorously test them to ensure they meet our exacting standards. We then engineered the EAR 509s to take full advantage of this quality while maintaining the 100 watt output.


Two PL509 (EL519)
Two ECC83 (12AX7)
One ECC85 (6AQ8)


One Line Input (RCA) or Balanced Input (XLR)*

*Additional option


Dimensions & Weight
Weight: 15.3kg (34lb)
Length: 300mm (12”)
Width: 254mm (10”)
Height: 150mm (6”)


Frequency response: 3Hz-30Khz +0 -1dB
Signal-to-nosie ratio: 96dB
Distortion (I.M.D.): <0.2%
Harmonic Distortion: -3dB <0.5% 12Hz-60Kz
Input Sensitvity (unbalanced): 1.2V
Input Impedance (unbalanced): 25KΩ
Output Damping Factor: 20


Power output (20-20KHz): 100W into 4 & 8Ω


Power Consumption: 180 watts
240 volt / 110 Volt / 100 Volt
(depending on model)
