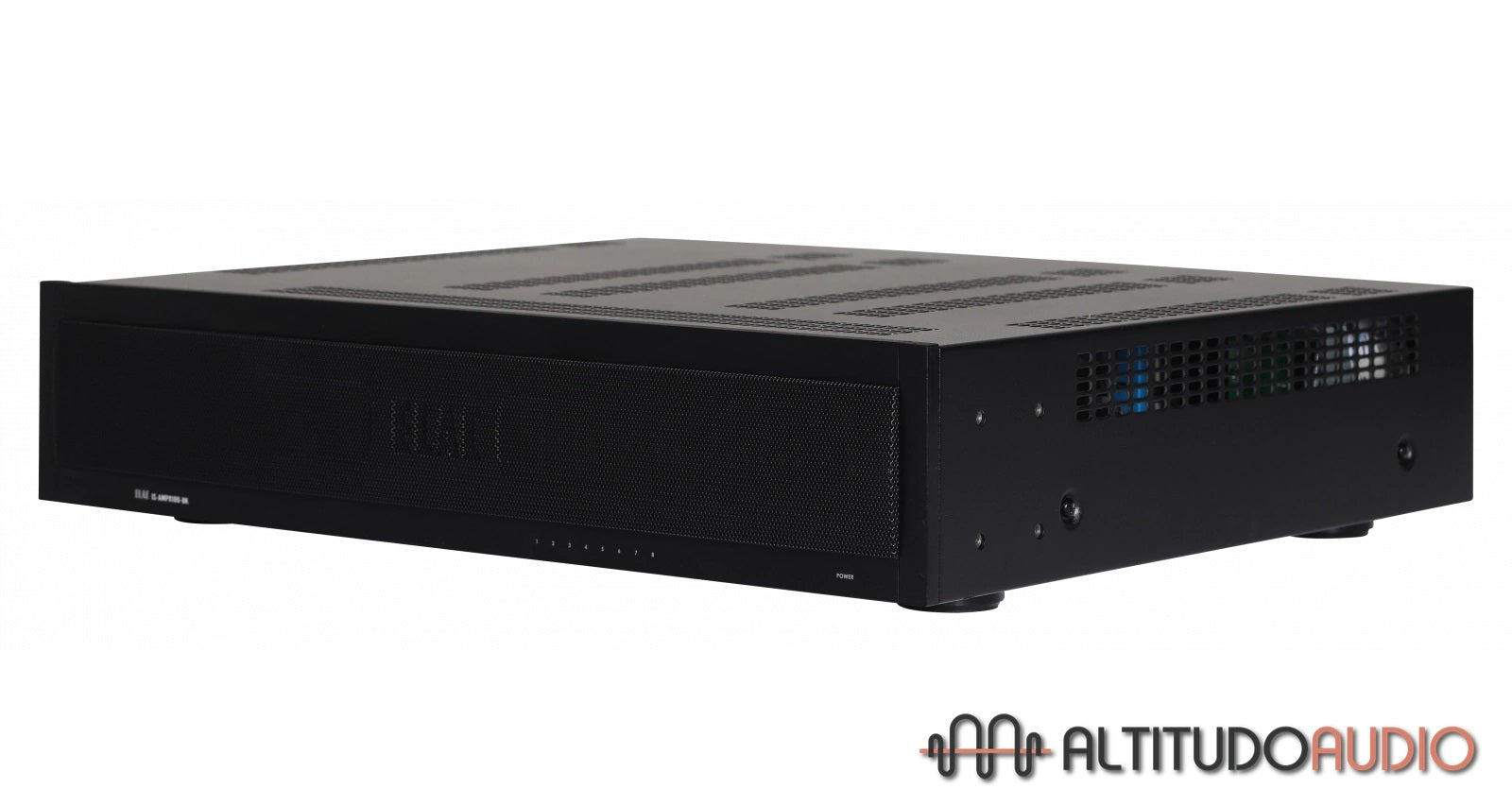

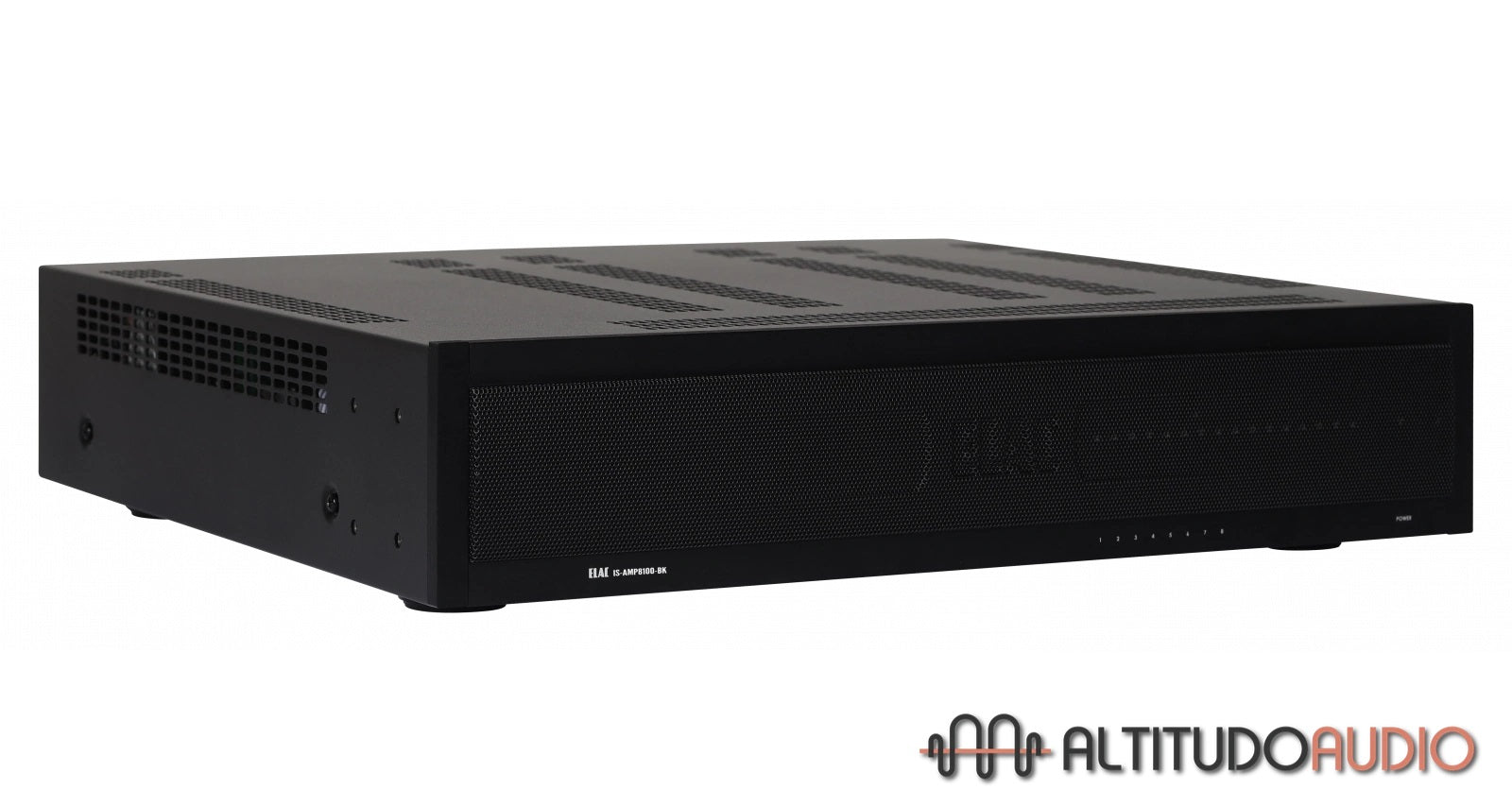

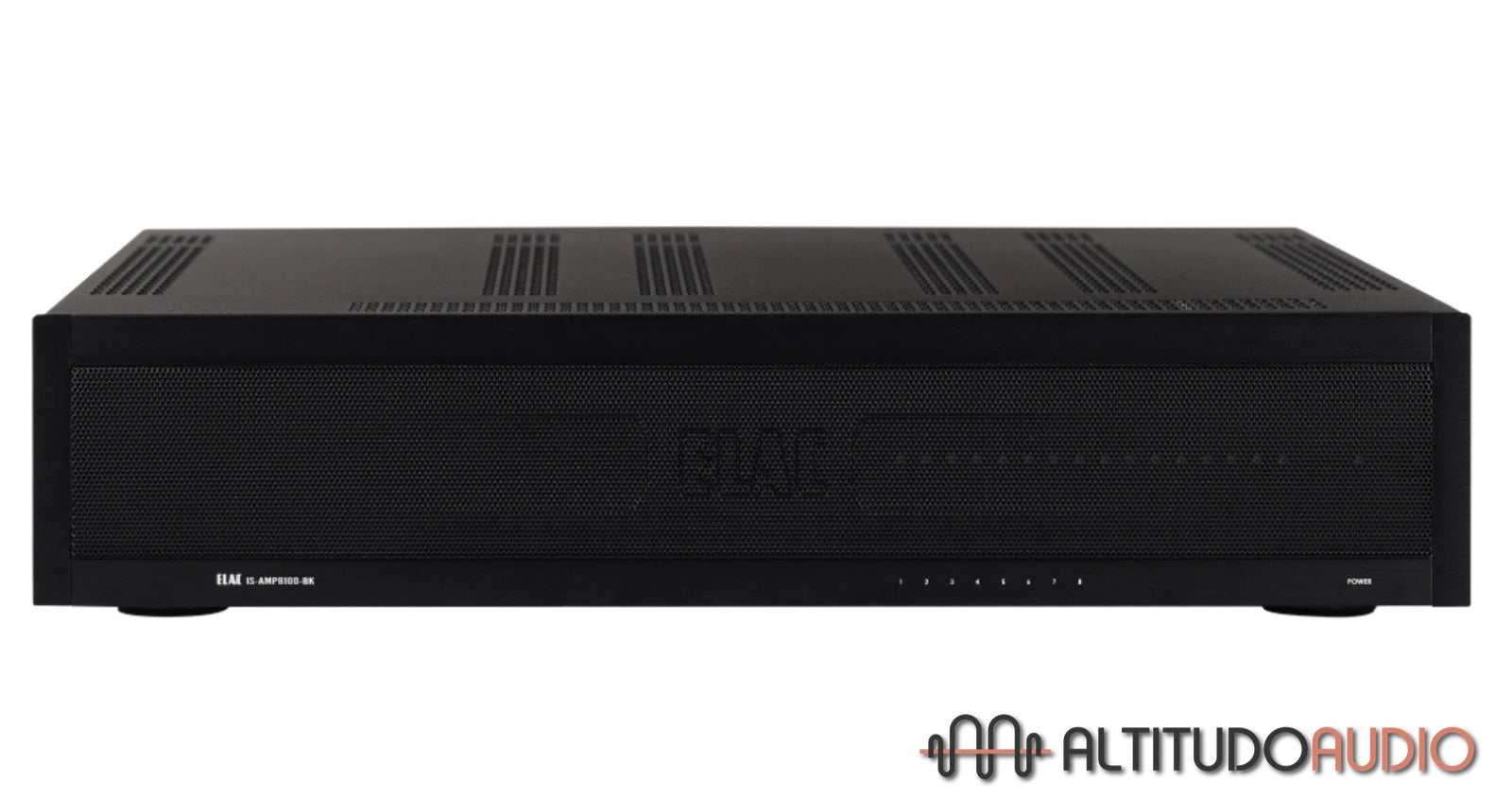

Elac Integrator Series 8 Channel Multi-Zone Amplifier
Shipping : FREE in Canada
Integrator Series 8 Channel Multi-Zone Amplifier
Each ELAC Multi-channel amplifier uses a modular design and efficient Class D amplifiers. The 8 Channel Amplifier delivers up to 100 Watts per channel, while the 12 Channel delivers up to 75 Watts and the 16 Channel delivers up to 75 watts.
FULL MATRIX AUDIO ROUTING
Route any input to any output. Our WEB based GUI makes customizing the amplifier simple. 8, 12, or 16 Channels of Premium Power
CONFIGURABLE AUDIO OUTPUTS

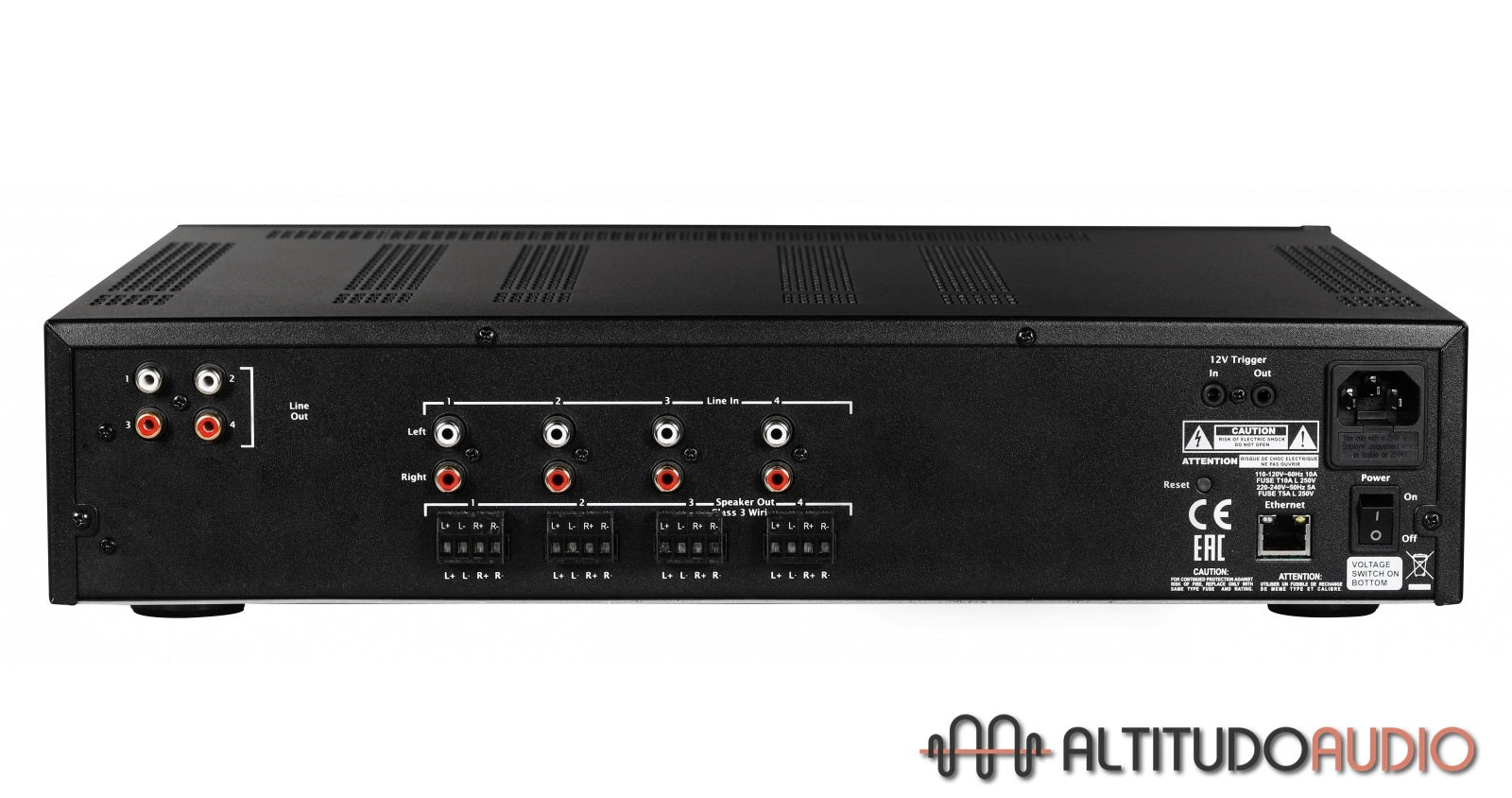

All of our multi-channel amplifiers feature assignable outputs (8-Channel 4 Outs), (12/16- Channel 8 Outs) allowing for extremely flexible projects. Power a room off in-ceiling speakers with the built-in amplifiers and assign one of the outputs to a powered subwoofer in the same room. You can even apply high- pass filters to the in-ceiling/in-wall speakers
ADVANCED DSP
Our advanced DSP allows for great flexibility when setting up each zone. A full Parametric Equalizer can be used for each output or simply use one of our presets for ELAC speakers to simplify the setup.
WEB GUI
Our WEB GUI allows for easy setup and tuning of the amplifier. A status screen shows the current state of each channel along with both input and output levels for each channel. Settings can be saved for easy replication of projects.
DSP
Matrix Amplifers
Our advanced DSP and CPLD provides full audio matrixing, allowing any input to output.
Our WEB GUI allows for easy setup and tuning of the amplifier. A status screen shows the current state of each channel along with both input and output levels for each channel. Settings can be saved for easy replication of projects.
Advanced Architecture
Reliabiltiy
Elac’s multi channel amplifiers are an advanced architecture to allow flexibility and continuous safe operation.
Each zone has 16 bit micro-processors to monitor voltages, current and temperature.
Sophisticated monitoring system to ensure continuous operation. Monitors 10 thermal points, with 10 Microprocessors, 3 DSP and 1 CPLD to provide a rich reliable experience
Sophisticated Network
Architecture
Sophisticated monitoring system to ensure continuous operation.
Monitors 10 thermal points, with 10 Microprocessors, 3 DSP and 1 CPLD to provide a rich reliable experience
SPECIFICATIONS:
Input Channels.. | 8 |
---|---|
Output Channels.. | 8 |
Assignable outputs | 4 |
Power output per channel @ 4W.. | 100 |
Power output per channel @ 8W. | 100 |
Topology. | Discrete Class D |
Frequency response. | 20 Hz - 20 KHz |
Dimensions Width x Length | 425.45 mm x 346.08 mm |
Rack Spacing. | 2 RU |
IP commands available (third party control).. | Control4, Crestron |
