Electrocompaniet ECI 6DX MKII Integrated Amp/DAC/Streamer

Regular price $9,499.99 $0.00 Unit price per

Shipping : FREE in Canada

Electrocompaniet ECI 6DX MKII Integrated Amp/DAC/Streamer

The new ECI 6DX MKII combines a best-in-class feature set with cutting edge audio technology and true Electrocompaniet sound.

This single unit is able to play whichever, wherever and whatever audio source you may have, and makes it sound like music was meant to be sounding.

IMPROVED STREAMER & CONSTRUCTION

Streamer: Like it’s predecessor, it has an extremely powerful built-in streamer, flexible and easy to use. It can play directly from music services such as Tidal, Qobuz and Spotify, can be fed music through AirPlay or DLNA, and it can even index and play from your own music collection stored on your network.

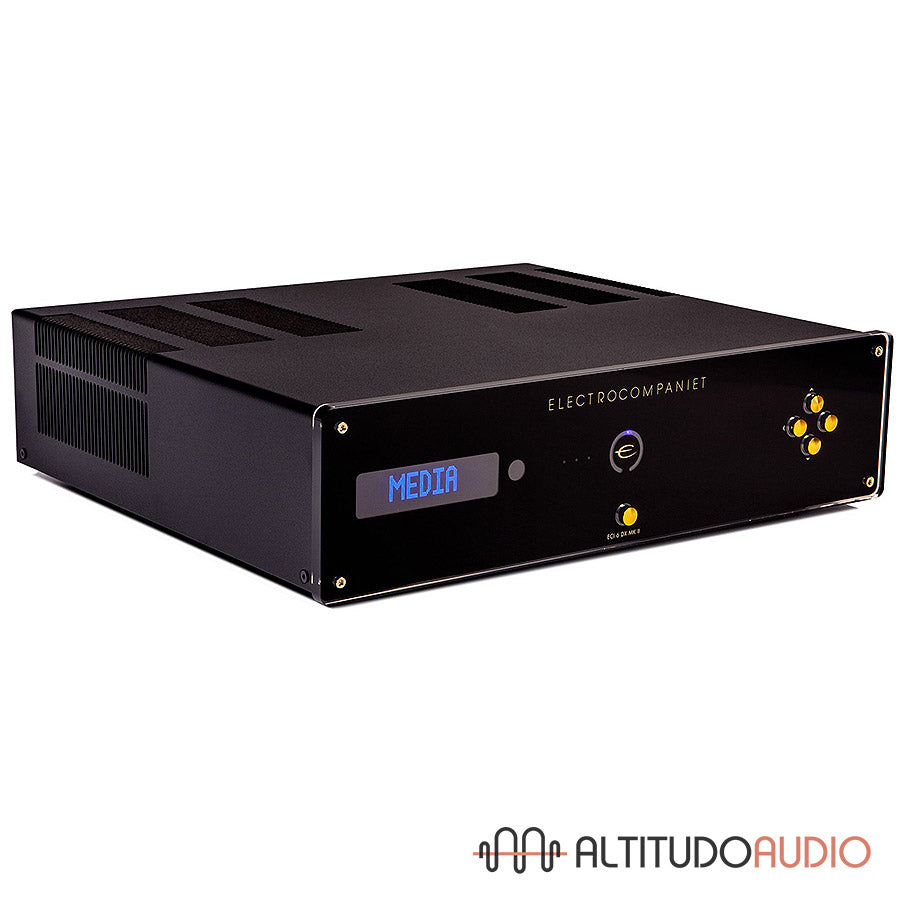

Construction: The ECI 6 DX MKII also features the design upgrades introduced with the MKII series, including new front plate design and updated, more rigid chassis.

EC Play App control:

The ECI 6 DX MKII can be operated by the intuitive iOS or Android application, the universal webinterface, or with the straightforward IR remote control.

Streaming—Bluetooth-enabled:

The ECI6 DX MKII introduces Bluetooth support in the ECI 6 DX family, enabling you to stream from any phone or tablet to your ECI6 DX MKII.

All measurements are made at 120V / 240V  //50Hz / 60Hz
Digital section:
D/A converter                           24 bit/192 kHz
Sample rate converter             24bit / 192kHz
Inputs                                        SPDIF, 2x Toslink, 1x USB
USB:                                           asynchronous  up to 24bit/ 192kHz supported
SPDIF:                                        24bit/ 192kHz
Toslink:                                      24bit/ 96kHz

Streamer section
• Advanced 802.11 AC WiFi with MIMO
• 1x Gigabit Ethernet (1000Mbps)
• 1x USB for external storage
• iOS, Android and web app

Streaming services

• AirPlay ®
• AirPlay 2 ® *
• Spotify ® Connect
• Qobuz ®
• TIDAL ®
• TIDAL ® Connect *
• Roon Ready
• DLNA
• Internet Radio
• Bluetooth streaming from any Bluetooth enabled device

Future software update.

Supported formats:
• All popular formats including: WAV/WAVE, MP3, AAC+, Vorbis, ALAC, FLAC, APE, WMA, up to 192kHZ/24bit, DSD, up to DSD 128 (5.6 MHz)

Preamplifier section
Input impedance ( Balanced input ) 47Kohm
Maximum input level 10 Volt RMS
Noise floor ( 1Vrms, 20 – 20 kHz, balanced) -135 dB
THD + N   (1Vrms, 20 – 20 kHz, balanced) <0.004%
Gain (Balanced) 0 dB
Amplifier section
Output Impedance < 0,02 Ohm
Frequency response 1 – 150 kHz
Channel separation > 120 dB
THD ( 20 – 20 kHz) < 0.004%
Maximum peak current >100A
Damping factor  8 ohm load >350
I Input sensitivity  120W output 1.3Vrms
Input sensitivity HT  120W output 1Vrms
Gain HT Input x36 (31 dB)
Rated output power
8 ohms 2 x 125 W
4 ohms 2 x 200 W
2 ohms 2 x 370 W
Power consumption 110 W
Standby 1W
(no load or signal)
Dimensions
Width 470 mm / 18.3 inches
Depth ( with a speaker terminals) 430 mm / 16,9 inches
Height 128 mm / 5 inches
Weight 20,5 Kg / 45 lbs.
