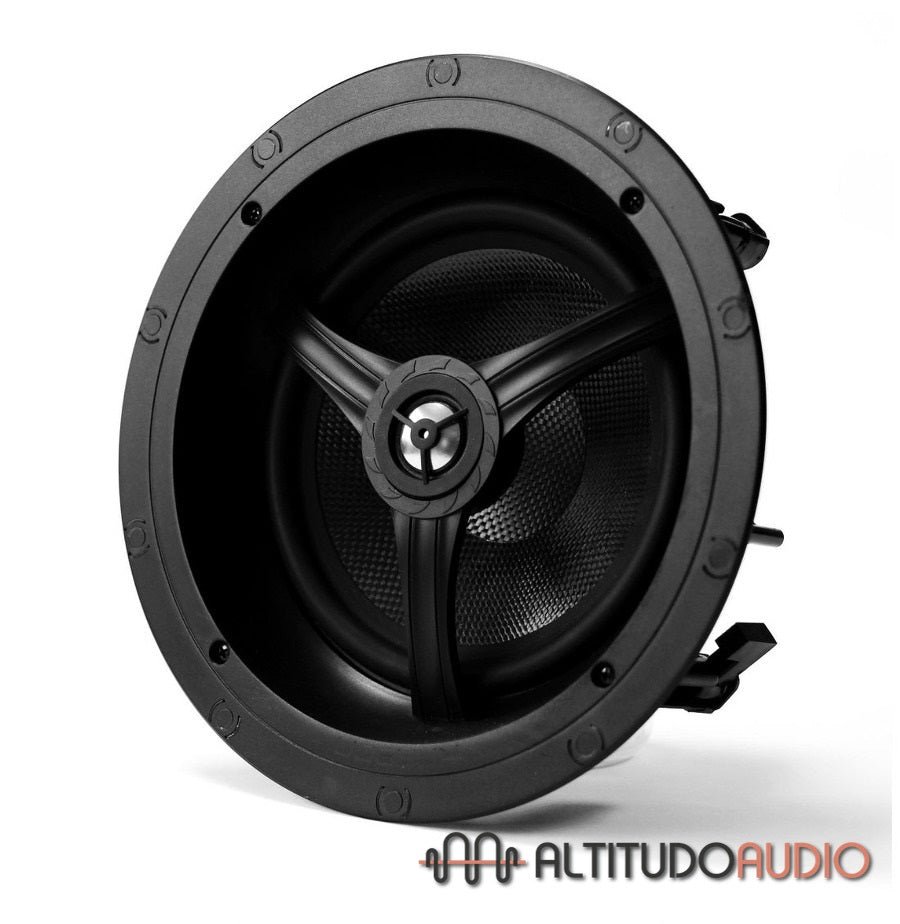

Elipson Infinite In-Ceiling 8 (Each)

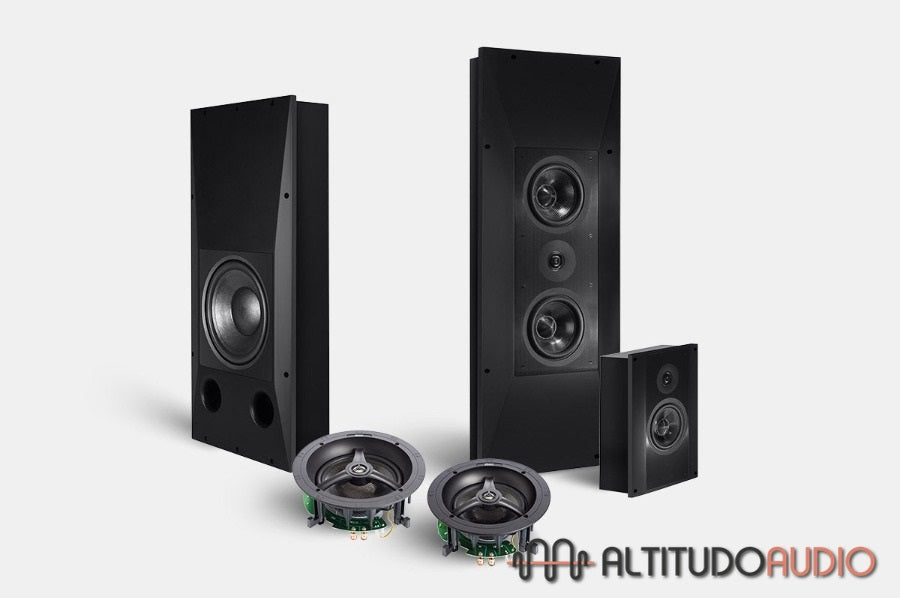

Taking up the aesthetic codes of the IN-CEILING, these in-wall and in-ceiling speakers are much more accomplished in their sound rendering and allow you to provide sound in large spaces, to offer a quality worthy of a home cinema to your interior, or even to complete in Atmos the In/On Wall speakers of the famous Infinite range.

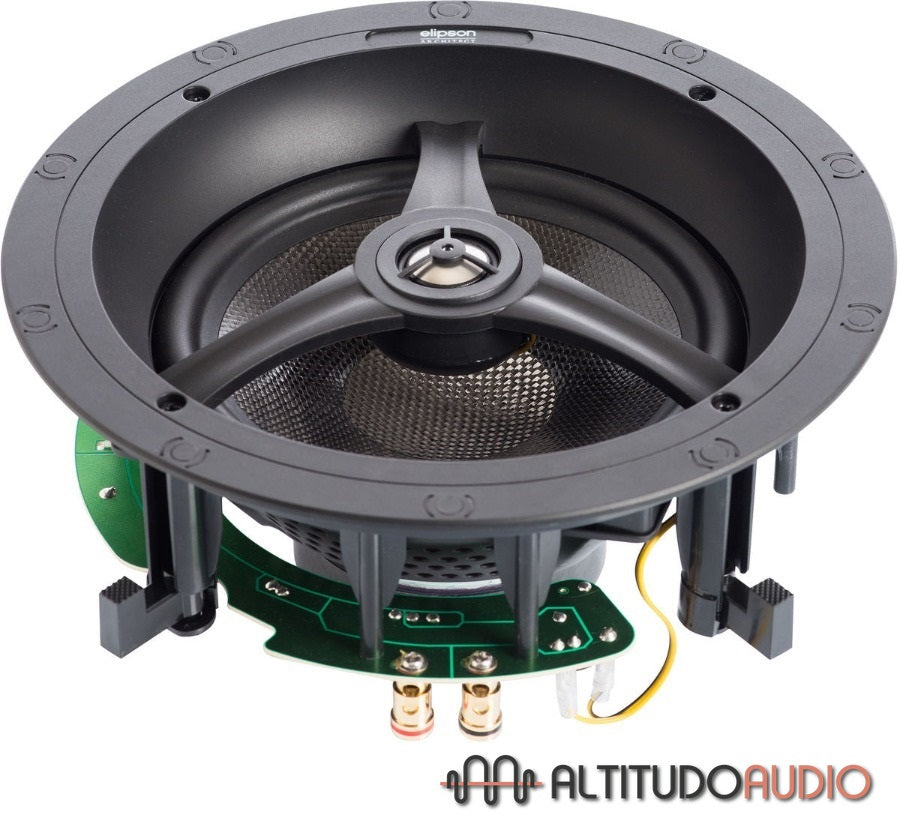

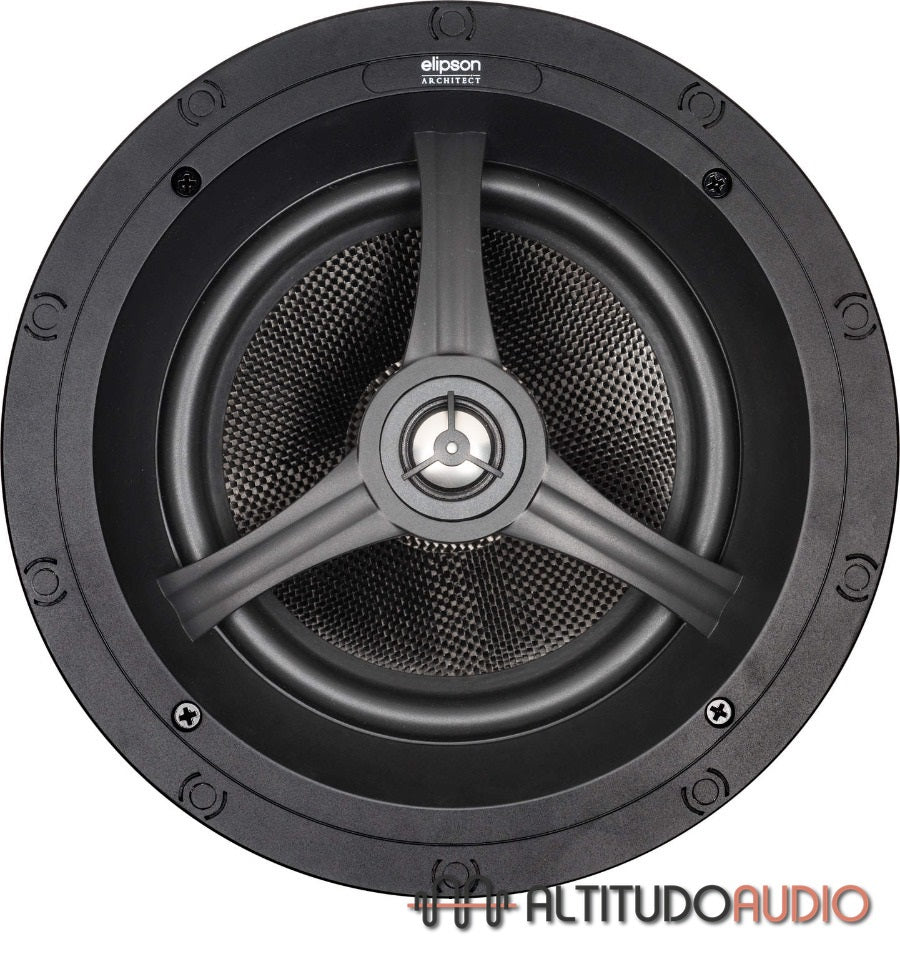

Developed as a 2-way coaxial speaker, the INFINITE IN-CEILING 8 features a 20cm carbon fibre midrange/bass driver pioneered by the Infinite 8 & 12, offering a rich midrange and deep, accurate bass.

The 25mm titanium dome tweeter, which can be rotated by 30 degrees in all directions, contributes to the harmonic richness.

• CHARACTERISTICS

  TECHNICAL DATA

  Type : In-ceiling speaker

  Power : 130 W

  Loudspeaker : 2-way coaxial Bass - midrange 200 mm : carbon fibre + polymethylacrylamide foam (PMI) Tweeter : 25 mm titanium dome rotatable by 30° in all directions.

  Frequency response: 45 Hz - 30 kHz

  Sensitivity: 89 dB / 1W / 1m

  Impedance: 8 Ohms

  Crossover frequency: 2500 Hz



  FINISHES

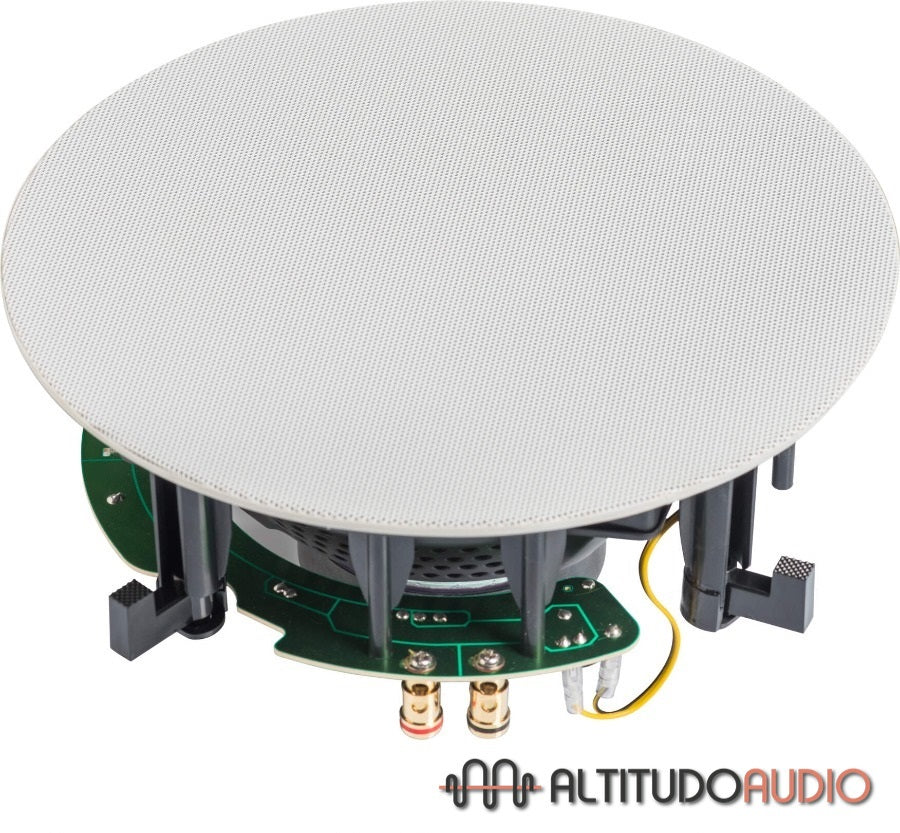

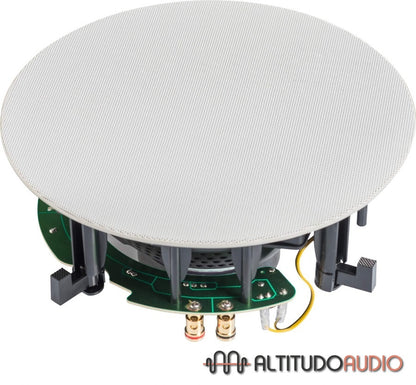

  Colour: White (ready to paint)



  DIMENSIONS

  Dimensions : Ø272 mm x D114 mm

  Cut-out dimensions : Ø246 mm

  Weight : 2,42 kg
