Elipson INFINITE S12 (Each)
Elipson INFINITE S12 (Each)
Couldn't load pickup availability
DESCRIPTION

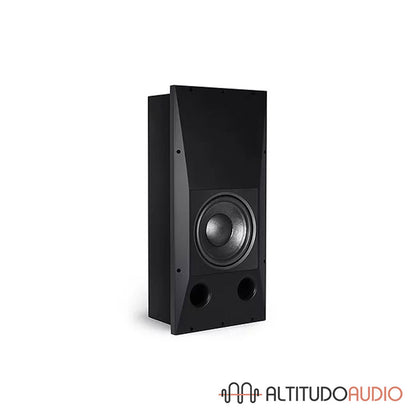

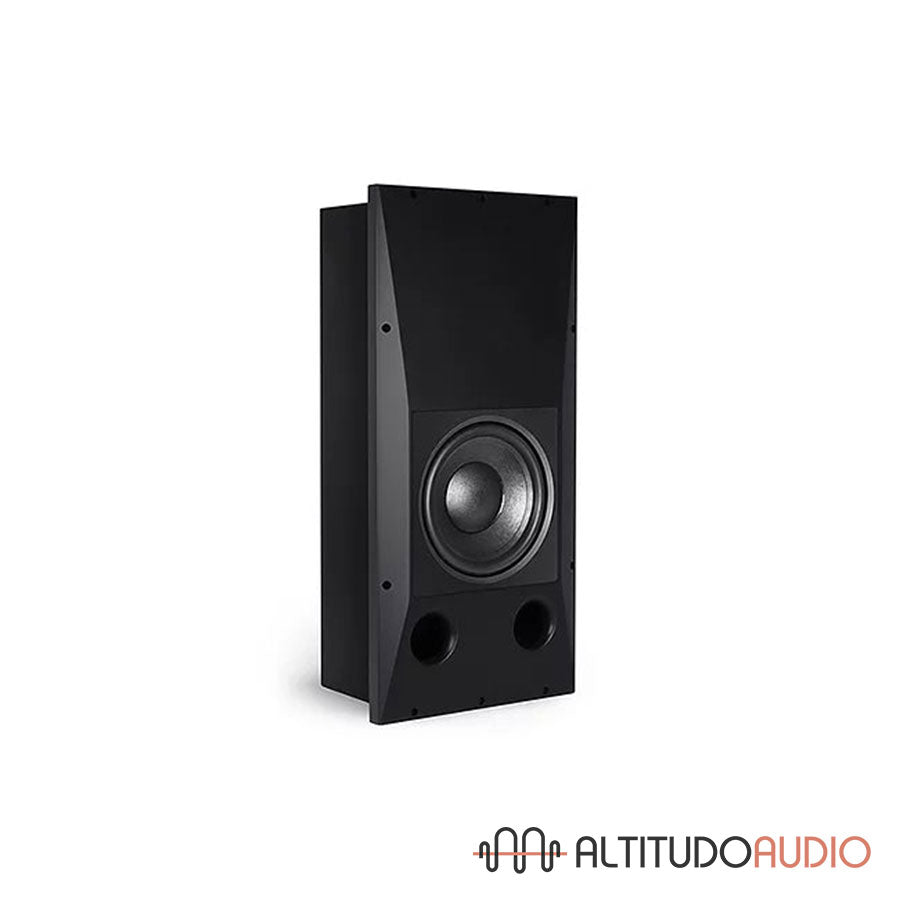

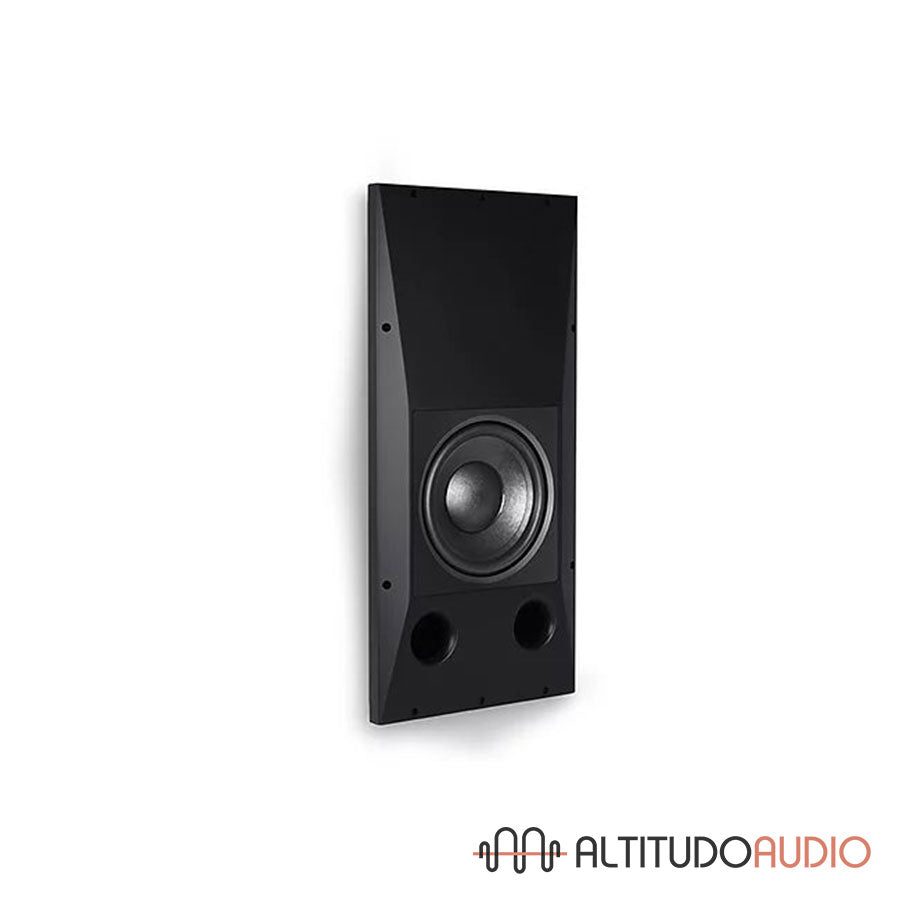

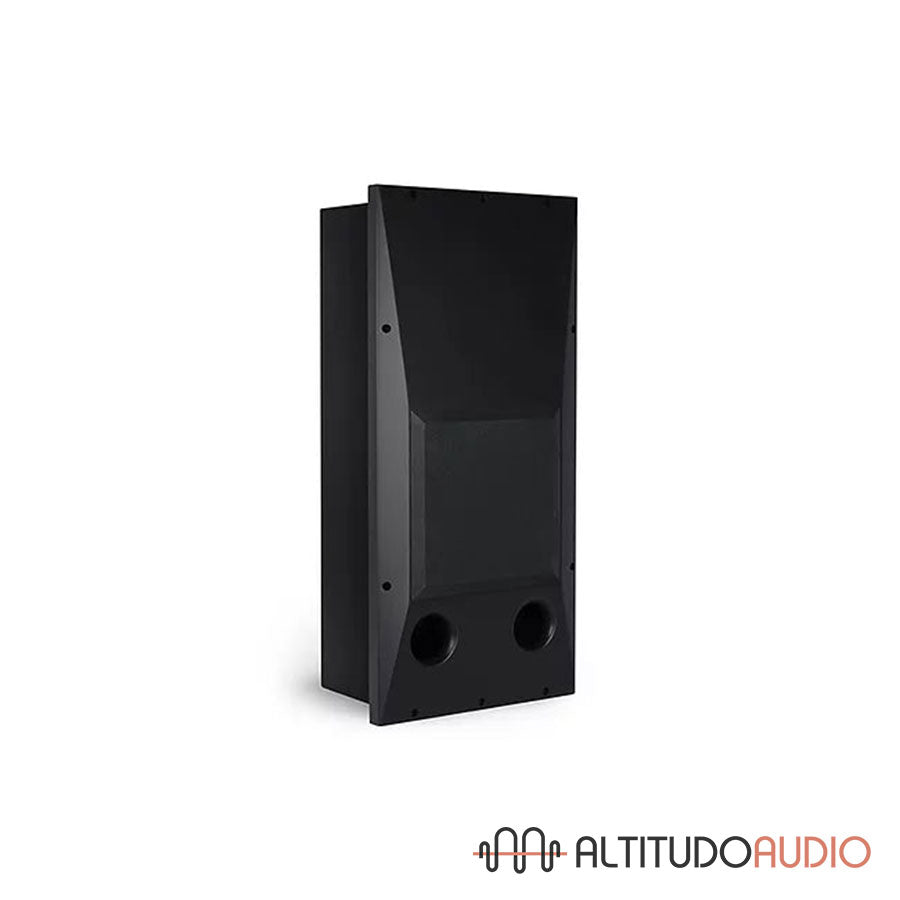

The Infinite S12 subwoofer is a built-in model, designed for home theater rooms and optimized for the Infinite 8 and Infinite 14 speakers. Bass-reflex model, it is equipped with a powerful 30 cm speaker.
Elipson offers the Infinite S12 built-in box a practical solution for reproducing low frequencies in a home theater room. Passive, this box requires the use of an amplifier to operate. Its admissible power is high, with 500 W continuous and twice the peak peak. Elipson has chosen a 30 cm speaker, loaded with bass-reflex with two circular front vents. Thus, thanks to a volume of a hundred liters, the box reaches the low frequency of 28 Hz, with an attenuation of 3 dB compared to the high-bass register.
The Infinite S12 subwoofer requires an installation depth of 22 cm and has a solid satin aluminum front panel. It can be installed in partitions and behind a transparent screen, without prejudice to its performance.
For large rooms (> 50 m2) or those equipped with a large number of speakers (Atmos for example), the use of several Infinite S12 subwoofers is recommended.
SPECIFICATIONSĀ
Speaker :Ā Passive subwoofer
Fixation :Ā In-wall / On-Wall
Event (Bass-Reflex) :Ā Double front port tube
Power :Ā 500W RMS / 1000W peak
Woofer :Ā 300 mm, 76 mm voice coil, Neodymium motor
Sensitivity :Ā 92 dB/1W/1m
Impedance :Ā 8 Ohms (6.5 Ohms minimum)
Input :Ā SpeakOn, binding post
Finish :Ā Black satin, black aluminum front
Colors :Ā Black
Dimensions (W x H x D) :Ā 450 x 950 x 273 mm
Cut out Dimensions (L x H) :Ā 400 x 900 mm
Recessed depth :Ā 222 mm
Weight :Ā 33,5 kg
Low frequency response :Ā 28 Hz to -3dB
