Elipson

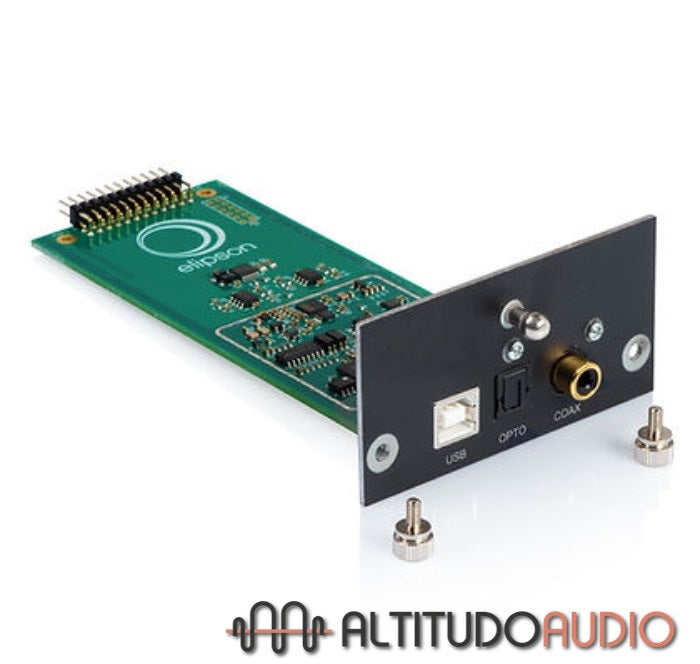

USB B, Toslink optical, Coaxial DAC Card

USB B, Toslink optical, Coaxial DAC Card

$1,150.00 CAD
$1,150.00 CAD $1,150.00 CAD
Sale Sold out

  • DESCRIPTION

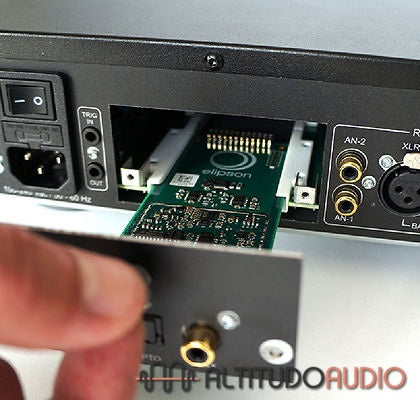

    Once easily inserted, your preamplifier or integrated automatically recognizes this module and takes its inputs into account.

    Of audiophile design, it is compatible with PCM 32-bit / 384 kHz (192 kHz for coaxial S/PDIF) and DSD digital formats. So you benefit from the transparency and musicality of our electronics whether the signal is analog or digital.

    DOCUMENT

    PRODUCT SHEET

    WINDOWS DRIVER FOR MDAC 1:
    DOWNLOAD



  • CHARACTERISTICS

    TECHNICAL DATA

    DAC stage (MDAC I) : S/PDIF & Asynchronous USB

    Inputs : 1 x USB B + Toslink optical S/PDIF + S/PDIF

    RCA coaxial

    DAC ESS SABRE : 9028 Q2M

    Audio formats supported

    SPDIF : 32 bits at 192 kHz Coaxial 75 Ω - Toslink

    USB : PCM 32 bits at 384 kHz, DSD (64 to 256)

    Signal-to-noise ratio : 120 dB (A)

    Max output voltage : 2 VRMS @ 0 dBFS



    DIMENSIONS / WEIGHT

    Dimensions : W x H x D: 78 x 40 x 147 mm

    Weight : 70 g
