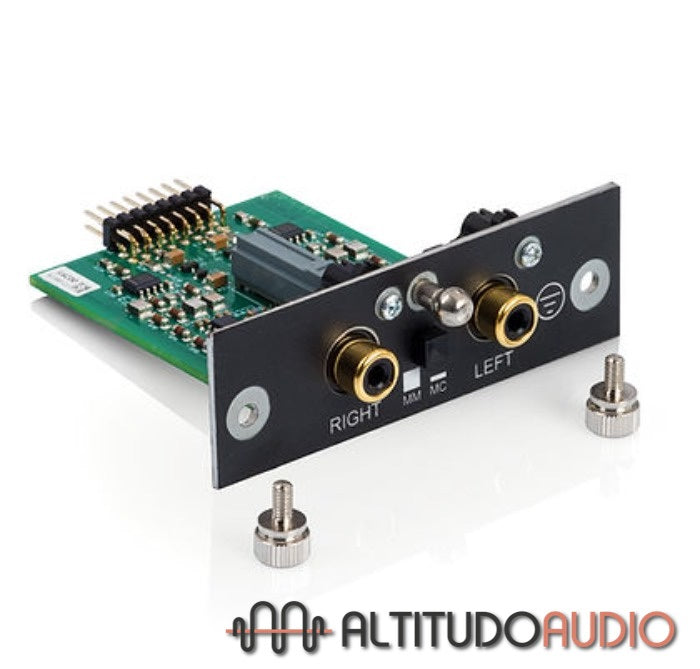

Elipson MPH II

Shipping : FREE in Canada

• DESCRIPTION

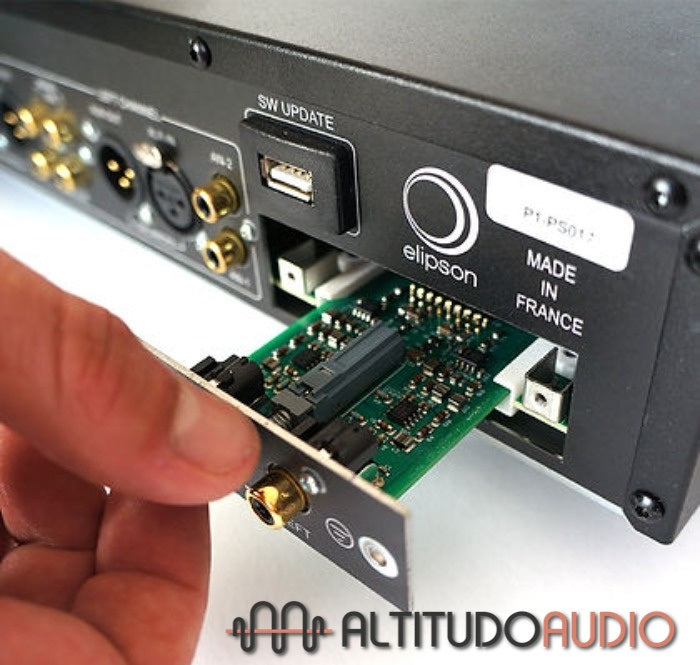

  Once easily plugged in, your preamplifier or integrated circuit automatically recognizes this module and takes into account this Phono input.

  Compatible with moving magnet (MM) or moving coil (MC) cartridges, benefiting from high performances such as high signal-to-noise ratio, high crosstalk, and wide bandwidth, the signal of your grooves will benefit from the transparency and musicality as for the other analog or digital inputs of our electronics.



  DOCUMENT
  PRODUCT SHEET




• CHARACTERISTICS

  TECHNICAL DATA

  Phono RIAA stage (MPH II) MM & MC : Moving magnet and moving coil

  Inputs : 1 x RCA Stereo + chassis

  Input Amplification (1kHz) MM / MC : 41 dB / 61 dB

  Input impedance MM / MC : 47 kΩ / 100 Ω

  MM / MC Signal-to-Noise Ratio (@ 0 dBu out) : 76 dB (A) / 83 dB (A)

  MM / MC input sensitivity : 7.5 mV / 750 mV at 0 dBu out

  Bandwidth : 25 Hz - 80 kHz (@- 3 dB)

  Crosstalk : < -100 dB

  Output impedance : 600 Ω

  Max output voltage MM / MC : 20 dBu (17,8 dBV)@ THD=1 %



  DIMENSIONS / WEIGHT

  Dimensions W x H x D : 78 x 25 x 92 mm

  Weight : 50 g
