DESCRIPTION

The MPH II and MDAC I modules are included in the P1 F version.

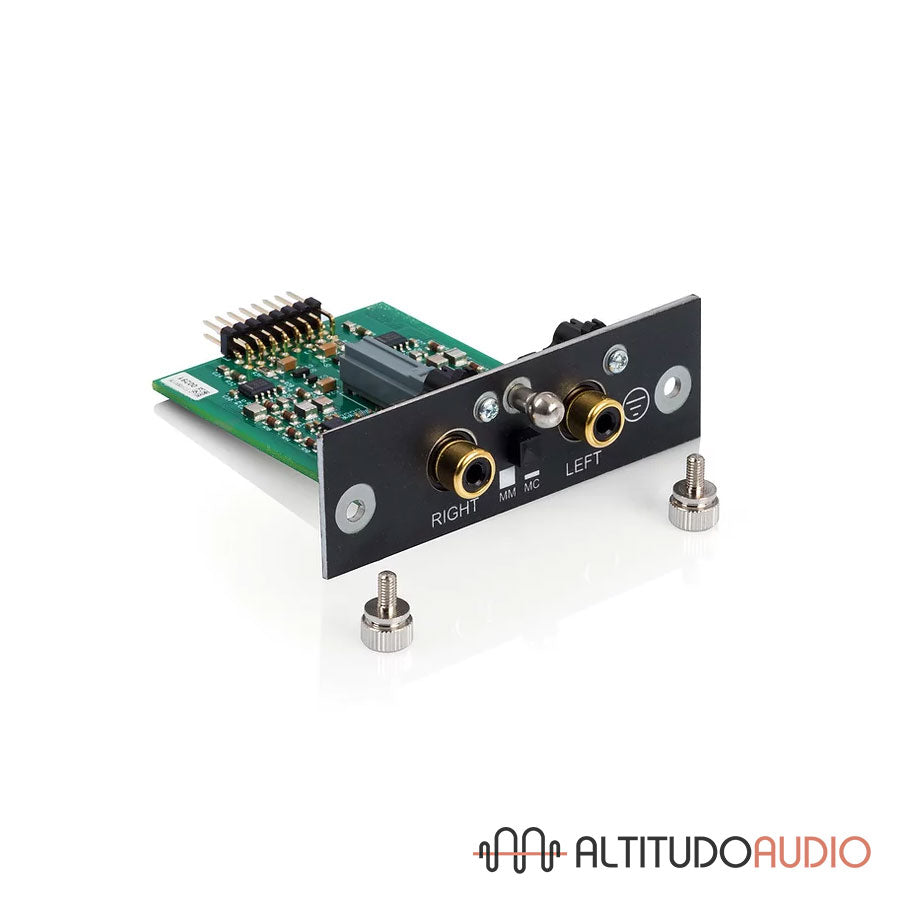

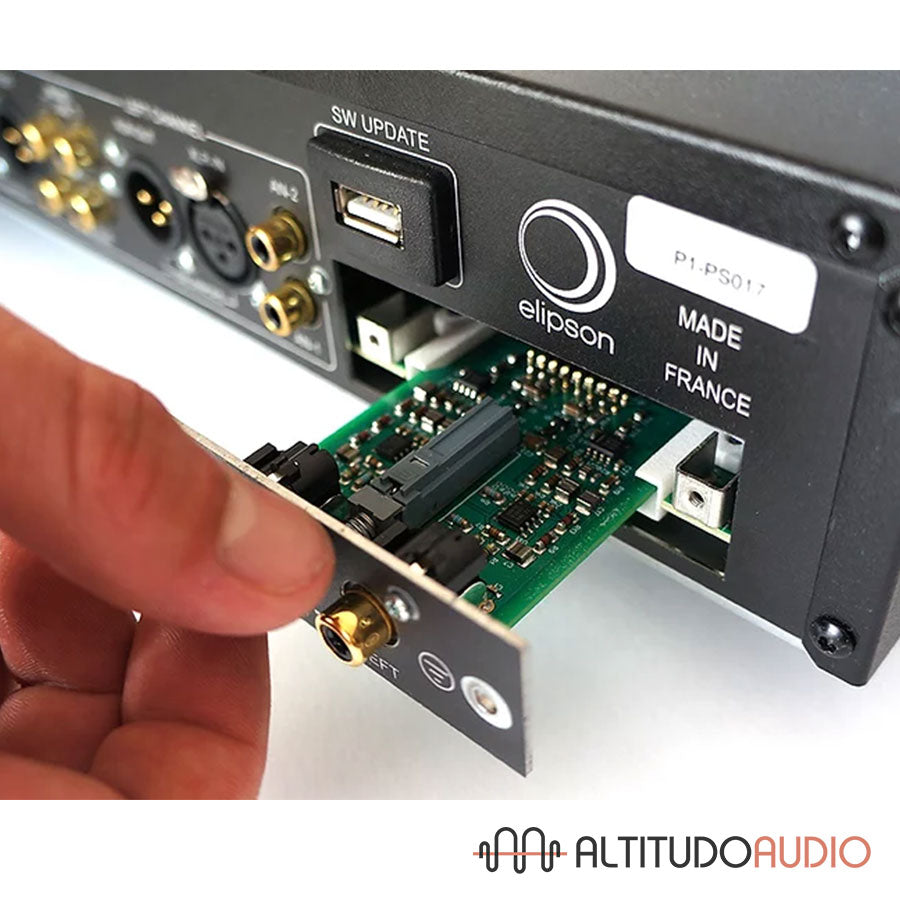

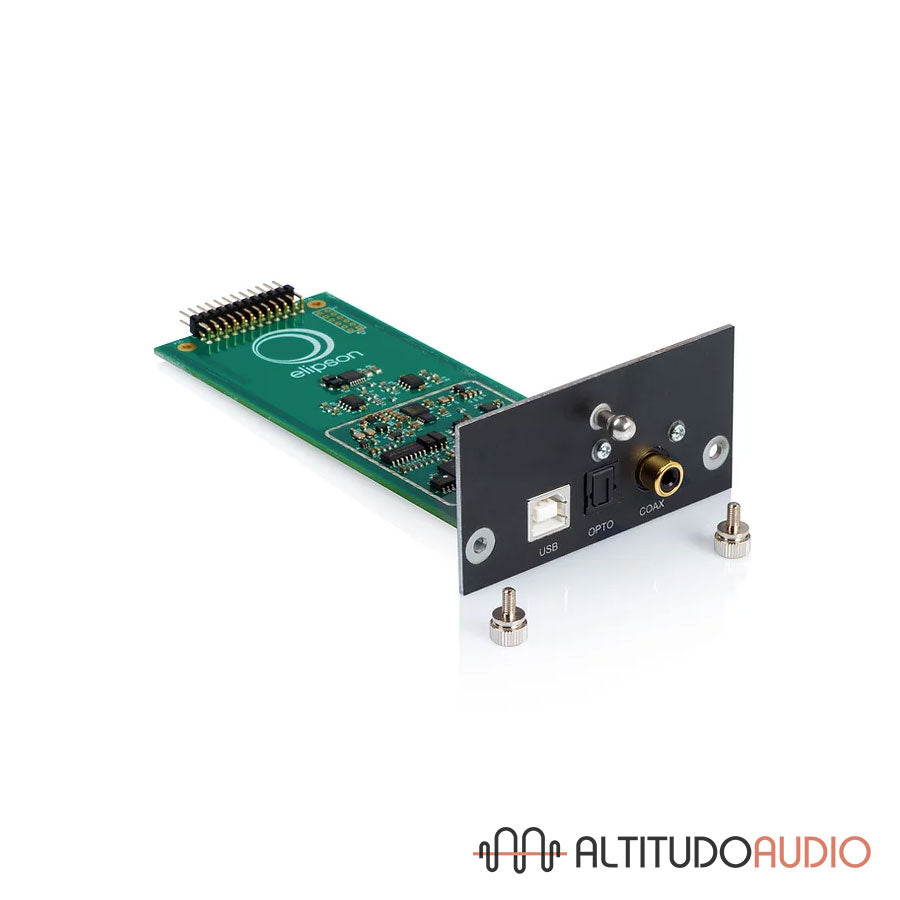

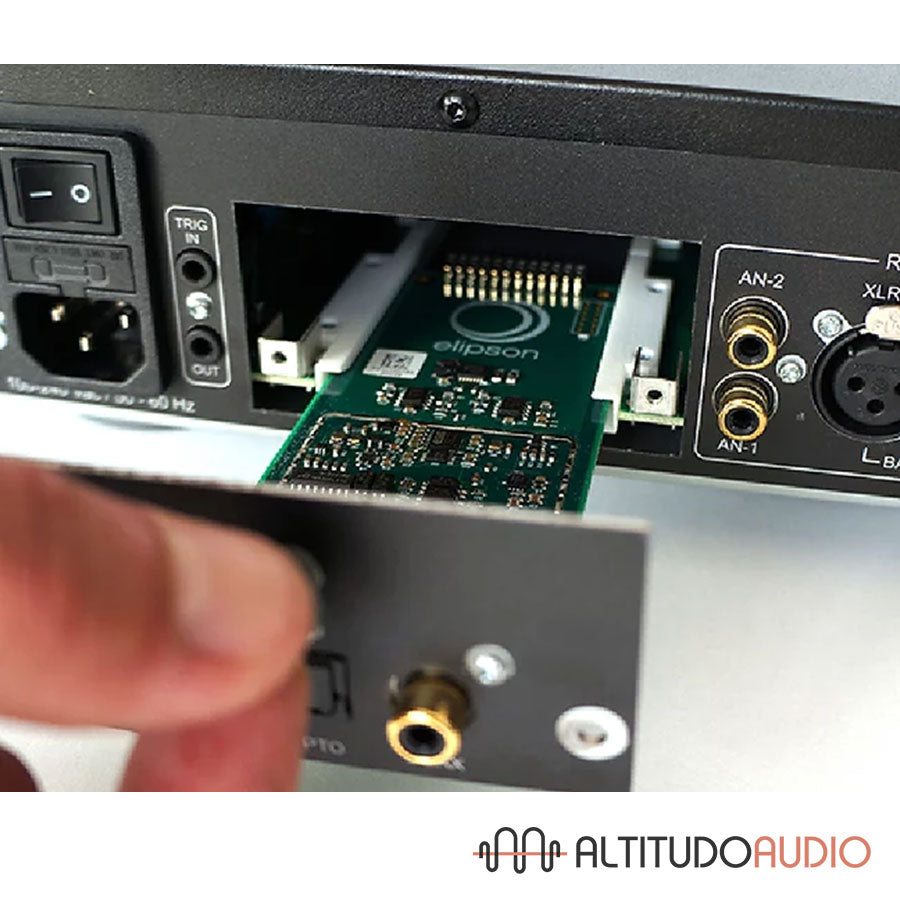

The P1 F is a modular system, equipped with line inputs in its original configuration, but it can be completed with optional slot cards: one for the Phono RIAA MM/MC stages, and another module offering three digital inputs with a resolution of up to 32 bits sampled at 384 kHz.

This modularity, for both the analogue and digital parts, is supported by internal software that can be upgraded by the user via an easily accessible USB socket. Elipson P1 is thus a device of the present turned towards the future.

Elegant and sober at the same time, the P1 is totally transparent thanks to the care taken with its circuits, allowing extremely low noise and distortion.

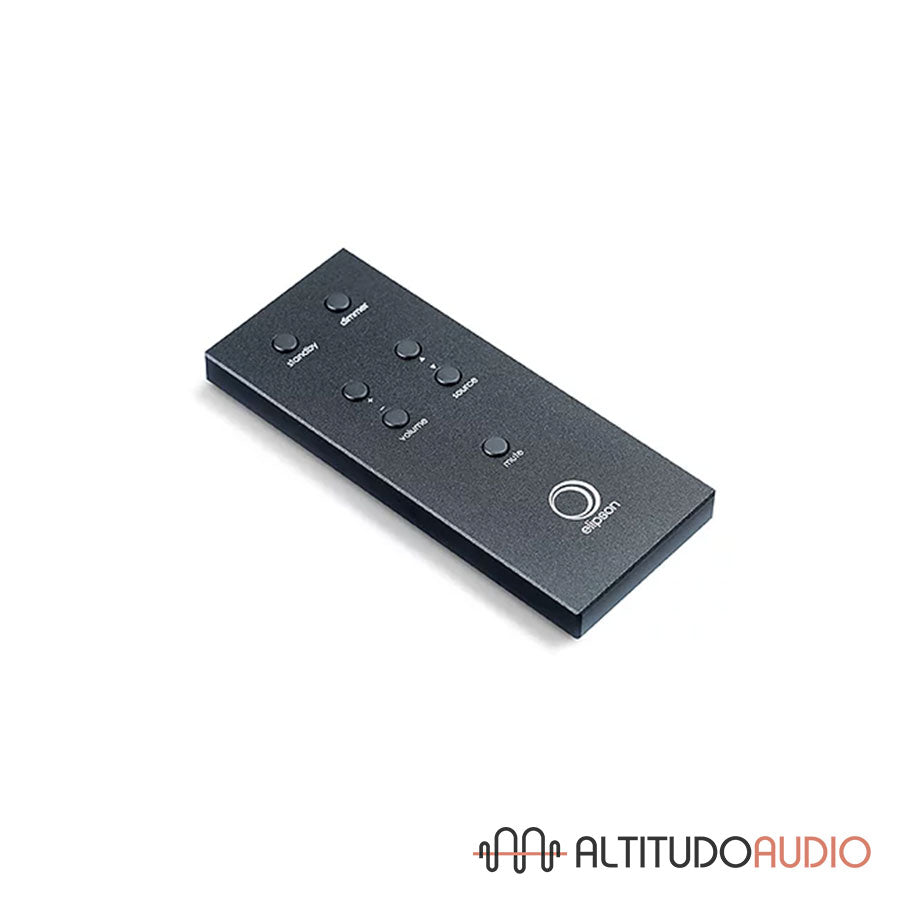

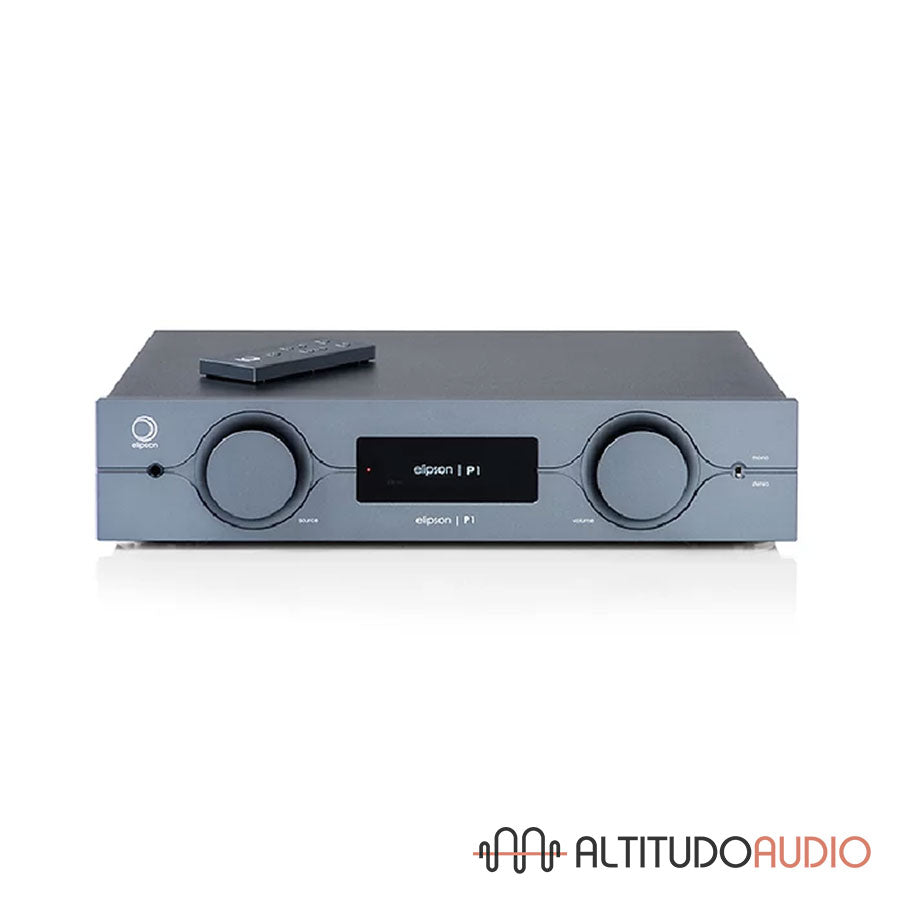

Complete with multiple possibilities, its interface via the front screen offers you a perfect comfort of use, completed by its personalized and elegant remote control.

The result is a reproduction of the smallest details, an airy spatialization and a perfect respect of silences.

Our range is entirely manufactured in France in our Burgundy factory.


  • CHARACTERISTICS

    LINE INPUT

    Maximum output voltage : 21 dBu (18.8 dBV)@ THD=1%.

    Crosstalk : < -100 dB up to 10 kHz

    Input impedance (balanced/unbalanced) : 500 kΩ / 1 MΩ

    Signal-to-noise ratio : 102 dB (A) @ 1 V; Dynamic 120 dB

    Total harmonic distortion : < 0.001% over the entire audio band between -16 and +16 dBu

    Bandwidth (Line): 2 Hz - 120 kHz @ - 3 dB

    Output gain (balanced/unbalanced) : 18 dB / 12 dB



    Total number of inputs : 3

    Line inputs : 2 x Line RCA + 1 x Sym XLR

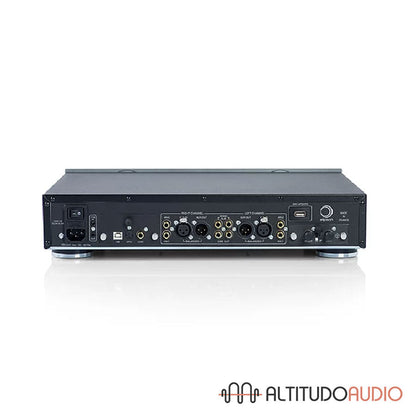

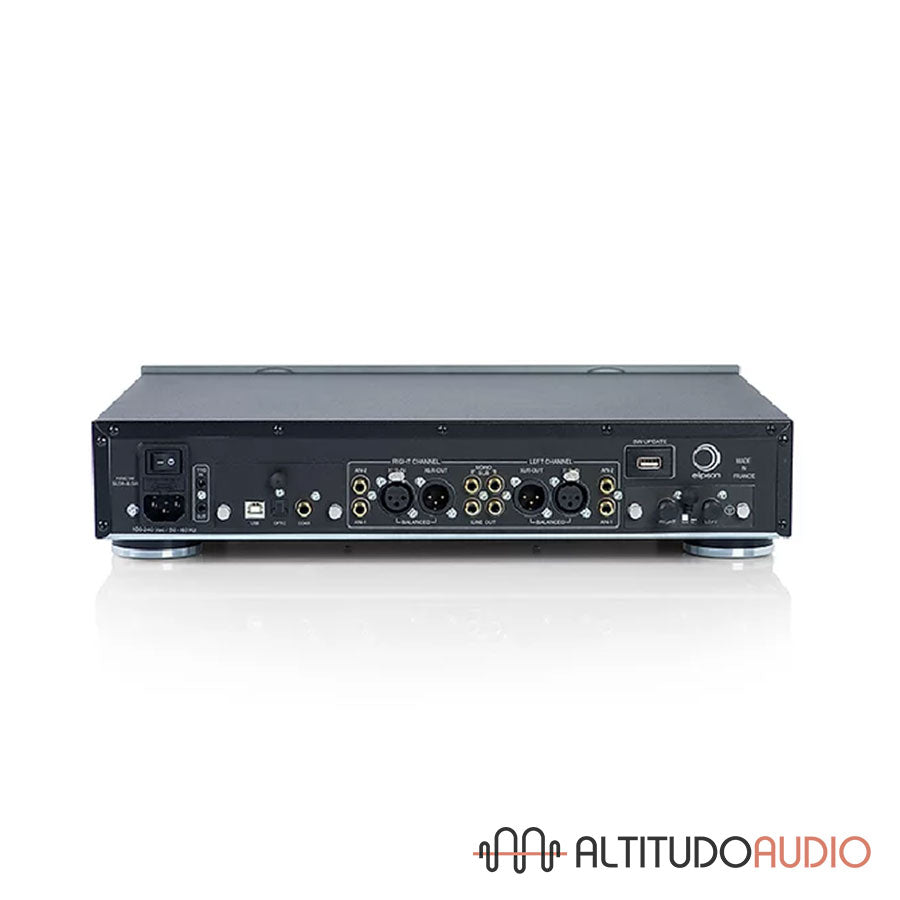

    Outputs : 1 x RCA stereo (Asym) + 1 x XLR stereo (Sym) + sub + trigger out

    Stereo/Mono mode : Yes on front panel

    Balance : Yes ± 6 dB



    HEADPHONE OUTPUT

    Output power : 150 mW / 32 W

    Harmonic Distortion : < 0,001 % (0,001%)

    Signal to Noise Ratio : > 100 dB @ 10 mW / 32 Ω

    Bandwidth : 2 Hz - 120 kHz

    Compatible impedances : 16 to 600 Ω
