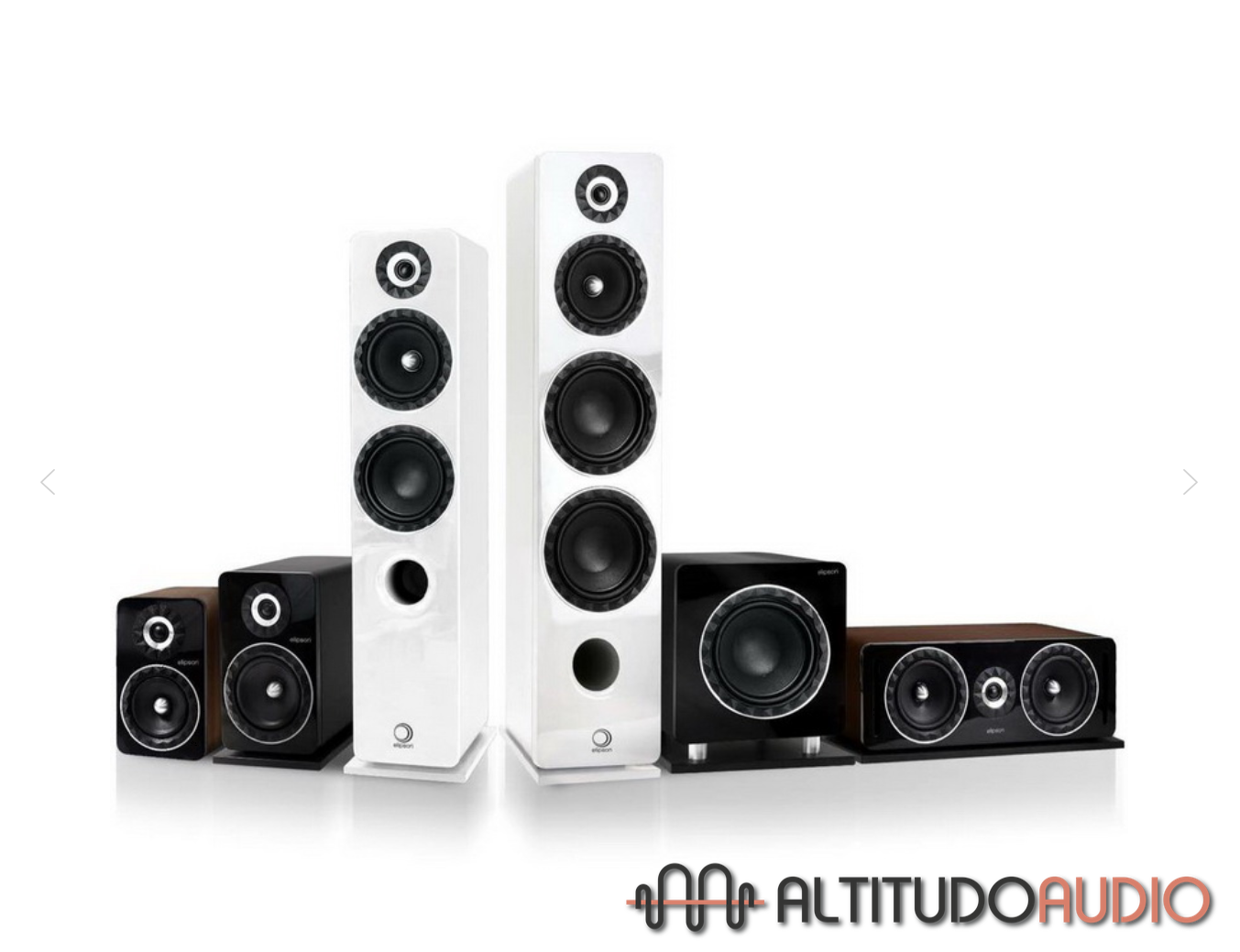

Elipson Prestige Facet 5.1 Speaker Bundle

The Elipson Prestige Facet 14F System 5.0 grand spectacle speaker bundle consists of the Elipson Prestige Facet 14F floorstanding speaker, the Elipson Prestige Facet 6B compact speaker, the Elipson Prestige Facet 11C centre speaker and the Elipson Prestige Facet SUB8 subwoofer.

Features

Elipson Prestige Facet 6B / Elipson PF6B

Design
Type: 2-way
Enclosure: bass-reflex
Power Handling: 70 W RMS
Custom-made synthetic rubber surrounds to minimize baffle effect and diffraction
Custom-designed drivers
Internal bracing
Finish: lacquered front panel, vinyl cabinet
Colors: white, black/walnut

Mid-bass speakers
: 140 mm Tweeter: 25 mm

Measurements
Frequency response (± 3dB): 57 Hz - 25 kHz
Sensitivity: 90 dB/1W/1m
Impedance: 6 ohms

Connections:
Screw terminals,
silver connectors,
compatible with bi-wiring or bi-amplification

General Information
Dimensions: W176 x H298 x D225 mm
Weight: 5.6 kg
Packaging (pair): W455 x H290 x D380 mm
Weight: 12.5 kg

Elipson Prestige Facet 14F /  Elipson PF14F

Design
Type: 2.5-way
Enclosure: Bass-reflex
Power Handling: 150W RMS
Custom-made synthetic rubber surrounds to minimize baffle effect and diffraction
Custom-designed drivers
Internal bracing

Speakers:
Bass: 170 mm,
Mid-bass: 170 mm
, Tweeter: 25 mm

Measurements
Frequency response (± 3dB): 38 Hz - 25 kHz
Sensitivity: 92 dB/1W/1m
Impedance: 6 ohms

Connections:
Screw terminals,
silver connectors,
compatible with bi-wiring or bi-amplification

General Information
Dimensions (without stand): W207 x H990 x D329 mm
Dimensions (with stand): W238 x H1011 x D351 mm
Dimensions (with stand and spikes): W238 x H1026 x D351 mm
Weight: 19 kg / With stand: 20.5 kg
Packaging (unit): W315 x H1120 x D400 mm
Weight: 22.6 kg

Elipson Prestige Facet 11C /  Elipson PF 11C

Design
Type: 2-way
Enclosure: Sealed
Power Handling: 120W RMS
Custom-made synthetic rubber surrounds to minimize baffle effect and diffraction
Custom-designed drivers
Internal bracing
Finish: Lacquered front panel, vinyl cabinet
Colors: white, black/walnut

Mid-bass speakers
: 140 mm Tweeter: 25 mm

Measurements
Frequency response (± 3dB): 55 Hz - 25 kHz
Sensitivity: 92 dB/1W/1m
Impedance: 6 ohms

Connections:
Screw terminals,
silver connectors,
compatible with bi-wiring or bi-amplification

General Information
Dimensions: W470 x H176 x D180 mm
Weight: 8 kg

Elipson SUB8 subwoofer

Speaker : Subwoofer

Power : 150 W RMS

Woofer : 8 "

Class : D

Frequency Response (±3 dB) : 35 Hz - 150 Hz

Subsonic filter : 24 dB à 20 Hz

Variable cut-off frequency : 50 Hz à 150 Hz

Standby : Auto

Input : Stereo line level, LFE

Custom-made loudspeakers : Rubber edge

Loudspeakers : On specifications

Finish : Lacquered front panel, MDF box & vinyl veneer

Colors : Black, White, Black/Walnut

Dimensions (W x H x D) : 350 x 374 x 383 mm

Weight : 15,5 kg
