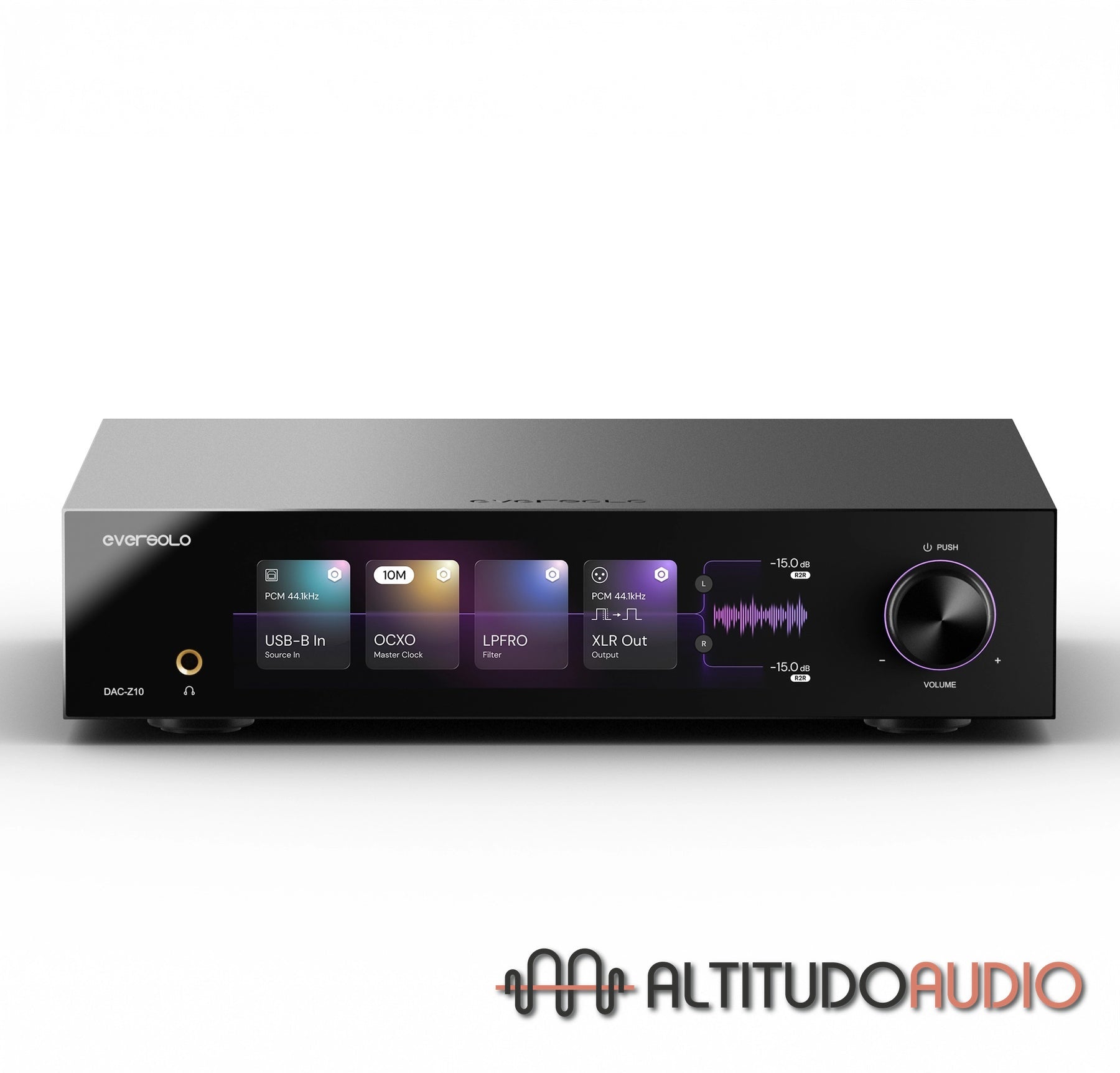

Eversolo DAC - Z10

Preorder now for immediate shipment on availability.

From Digital to Analog, the DAC-Z10 Lets Music Unfold in its Purest Form, a DAC that Reveals the Authentic Character and Finest Details of Sound

• EverSolo FIA™️ fully isolated digital and analog domains
• AKM AK4191 + AK4499 chipset per channel
• Three custom linear power supplies + three independent power channels
• High-precision R2R resistor network, separate R2R modules for each channel
• Eversolo Precision Core™️ high-precision clock system

Full Isolation Design

The DAC-Z10 is built on Eversolo’s Fully Isolated Architecture (FIA), which completely separates the digital and analog domains to minimize interference and preserve signal purity. Three independent linear power supplies individually power the left channel, system, and right channel, allowing each to operate in an ultra-low-noise environment.

Its decoding architecture features two sets of AK4191 + AK4499 DACs for independent left and right channels, combined with a fully balanced analog preamplifier that employs precise dual-channel R2R volume control. This configuration achieves superior DNR and lower THD+N, unlocking the full potential of the music.

Fully Balanced Preamplifier

The DAC-Z10 features a high-performance fully balanced preamplifier, supporting both XLR and RCA analog inputs with up to +10dB gain. Paired with a precision R2R analog volume control network, it delivers ultra-low noise and distortion, significantly enhancing dynamic range and signal integrity, allowing every nuance of the music to be reproduced with clarity and authenticity.

Eversolo Precision Core™

Phase-Locked Loop Technology
The DAC-Z10 integrates an OCXO temperature-controlled crystal oscillator and PLL (Phase-Locked Loop) technology to achieve precise clock reconstruction.

External Clock Support
Accurate timing is key to capturing every musical nuance. By supporting external high-precision clock, the DAC-Z10 takes clock stability and accuracy to the next level.

FPGA Redefined
The DAC-Z10 features a built-in FPGA that shapes IIS data and refines the clock. Every digital signal is thus optimized to its purest form before reaching the DAC, you can truly hear the difference.

Full Electrical Isolation

8-Mode IIS Digital Audio Input
Via IIS digital audio input, the DAC-Z10 offers 8 switchable modes and supports up to 768kHz/ 32Bit PCM and DSD512 Native. Its fully isolated hardware design separates signal and ground between devices, ensuring clean signals and enhanced audio clarity.

Dual Coaxial Inputs
The DAC-Z10 features dual isolated coaxial inputs, supporting up to 192kHz/24bit. This design effectively shields against external interference, preserving every detail with clarity and precision. Dual source input lets you switch devices effortlessly without any signal loss.

Isolated AES/EBU Input
To preserve signal purity, the DAC-Z10 features a dedicated isolated AES/EBU input, fully separating electrical noise between front-end and back-end devices.

Dual Optical Inputs
The DAC-Z10 supports dual optical inputs, offering greater flexibility and connectivity for your audio system. With dual optical inputs, the DAC-Z10 can connect to two audio devices simultaneously, providing a more versatile listening experience.

Pure USB Audio Input
The DAC-Z10 introduces an isolated USB Audio input, transmitting only the clean data while blocking all electrical interference.

TRIGGER IN & OUT for Linked Control
The DAC-Z10’s TRIGGER interfaces act as a command channel, enabling seamless linked control across your system.

6.35mm Headphone Amplifier Module

The DAC-Z10 has a dedicated 6.35 mm headphone amplifier module that auto-detects impedance and adjusts gain, delivering powerful, detailed sound. High, medium, and low gain settings let you tailor playback to different headphones and listening preferences.

Specifications

Model EverSolo DAC-Z10
DAC
Architecture
Dual AKM decoding modules (AK4191 + AK4499 per channel),
fully isolated left/right channels
Digital
Processing
Eversolo Fully Isolated Architecture (FIA), Eversolo Precision
Core clock system with FPGA data shaping
Clock
System
OCXO temperature-controlled crystal oscillator with PLL jitter
suppression; supports external 10 MHz / 25 MHz master clock
input (50 Ω / 75 Ω impedance)
Analog
Stage
Fully balanced preamplifier with XLR and RCA inputs/outputs,
+10 dB analog gain
Volume
Control
Dual-channel R2R resistor network volume control,
independent left/right channel modules
Performance THD+N 0.00008% (typical), Dynamic Range 130 dB, PCM 768
kHz / 32-bit, DSD512 Native
Headphone
Amplifier
6.35 mm headphone output with automatic impedance
detection, up to 1 W (16 Ω / 32 Ω)

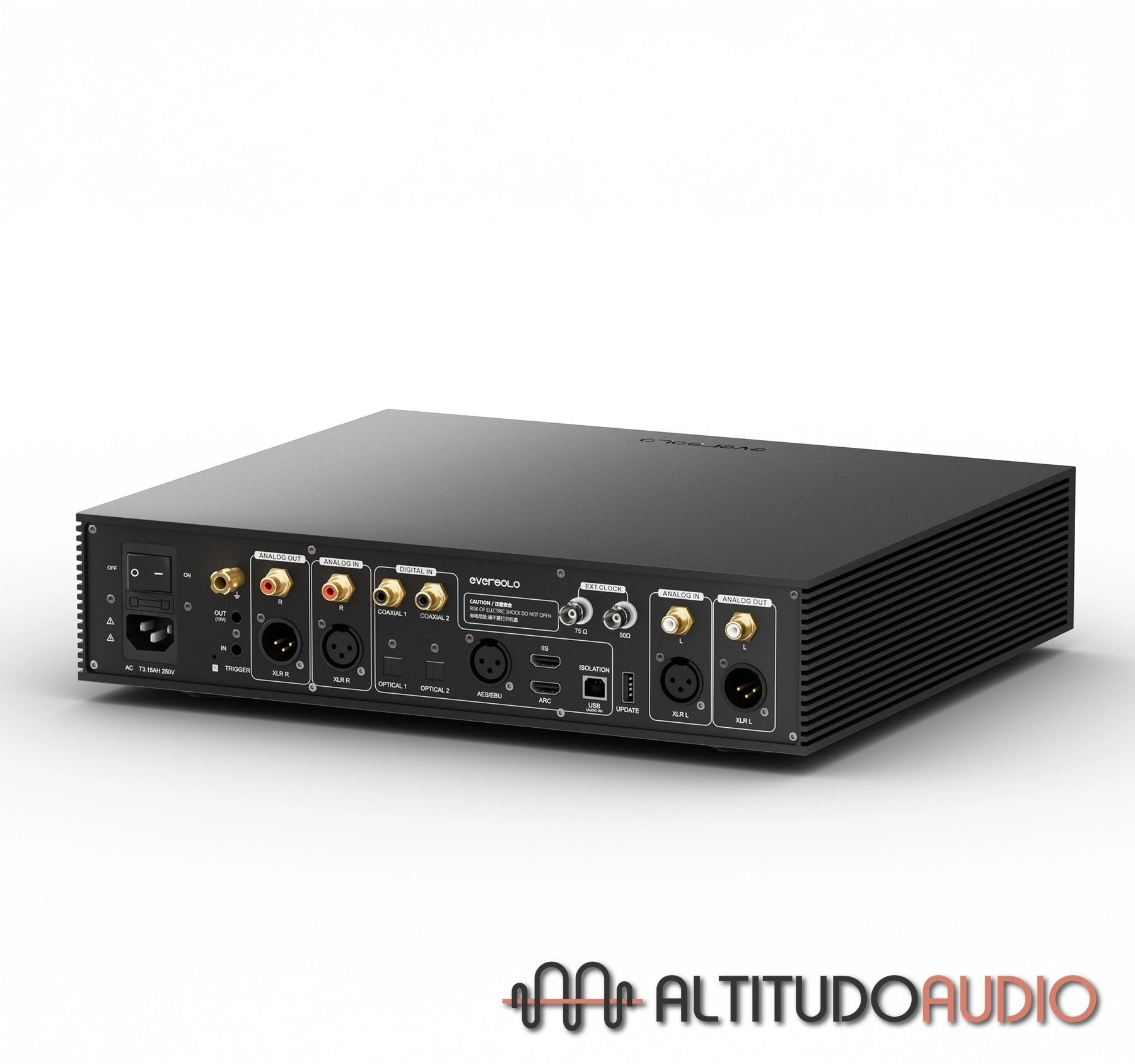

Inputs USB Audio, Dual Coaxial, Dual Optical, IIS, AES/EBU, HDMI
ARC/eARC
Outputs XLR balanced, RCA single-ended, 6.35 mm headphone
Supported
Formats
PCM up to 768 kHz/32-bit, DSD512 Native, DoP, DXD;
lossless playback over USB and IIS
Bluetooth Qualcomm QCC5125 module, supports aptX HD, aptX
Adaptive, and high-resolution wireless audio

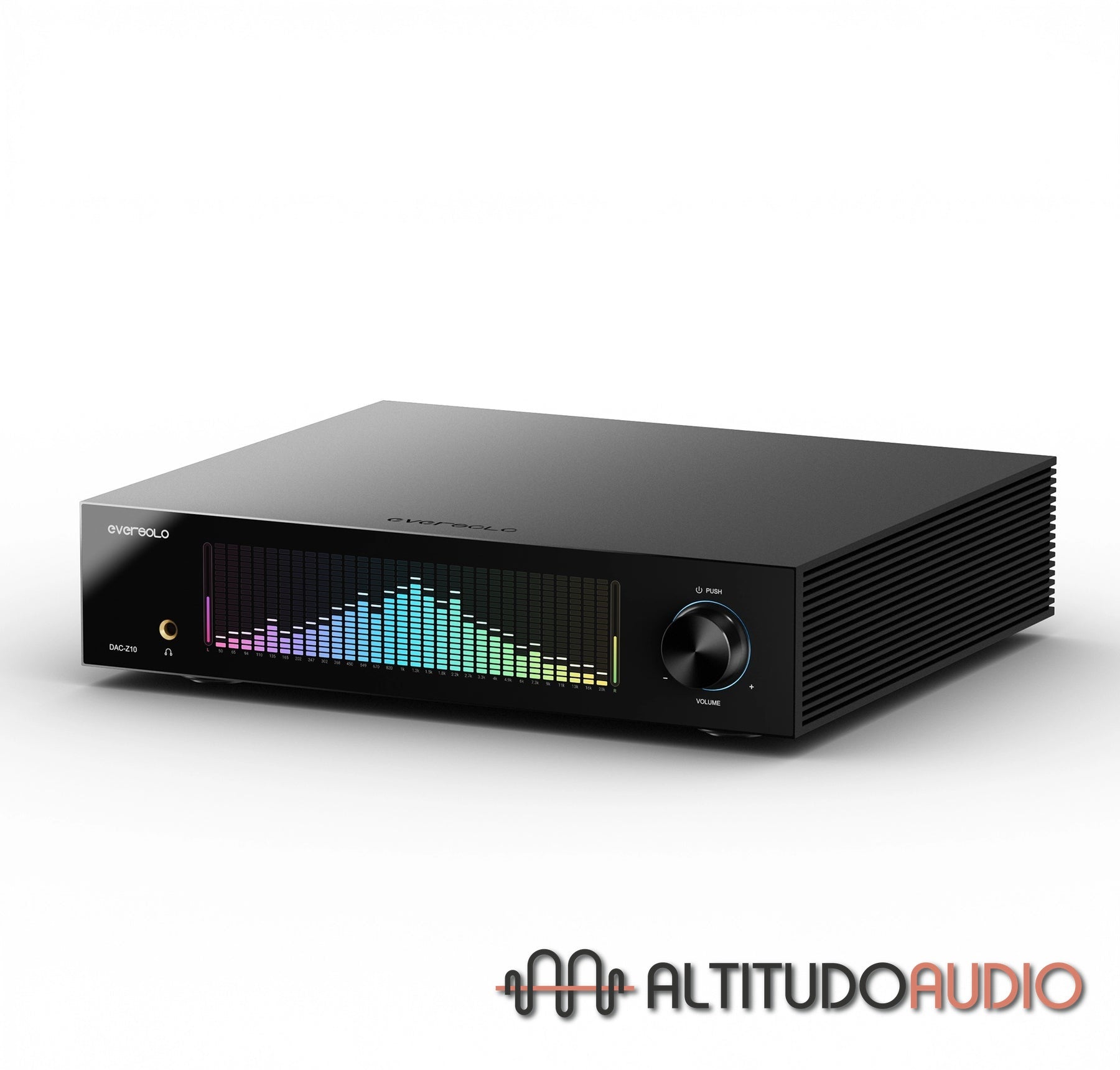

Display
8.8-inch IPS touchscreen with electromagnetic shielding,
multiple VU meter and spectrum display options, customizable
knob color
App Control Eversolo Control App for smartphone or tablet (volume, source
selection, configuration)
Construction Three fully isolated linear power supplies (left, right, and
system), precision internal layout for minimal interference
Compatibilit
y
HDMI ARC/eARC for TV and home theater integration,
external clock input for studio use
Power
Supply
Custom linear supplies for digital, analog L/R channels;
low-noise architecture
Chassis All-metal design with electromagnetic shielding, high-efficiency
thermal control

• Chassis Material: Aluminum alloy
• Display: 8.8" IPS
• DAC: L+R channel: AK4191+AK4499

In the Box

• EverSolo DAC-Z10 Desktop DAC
• Remote control
• Power cable
• USB data cable
• TRIGGER cable
• Polishing cloth
• User manual
