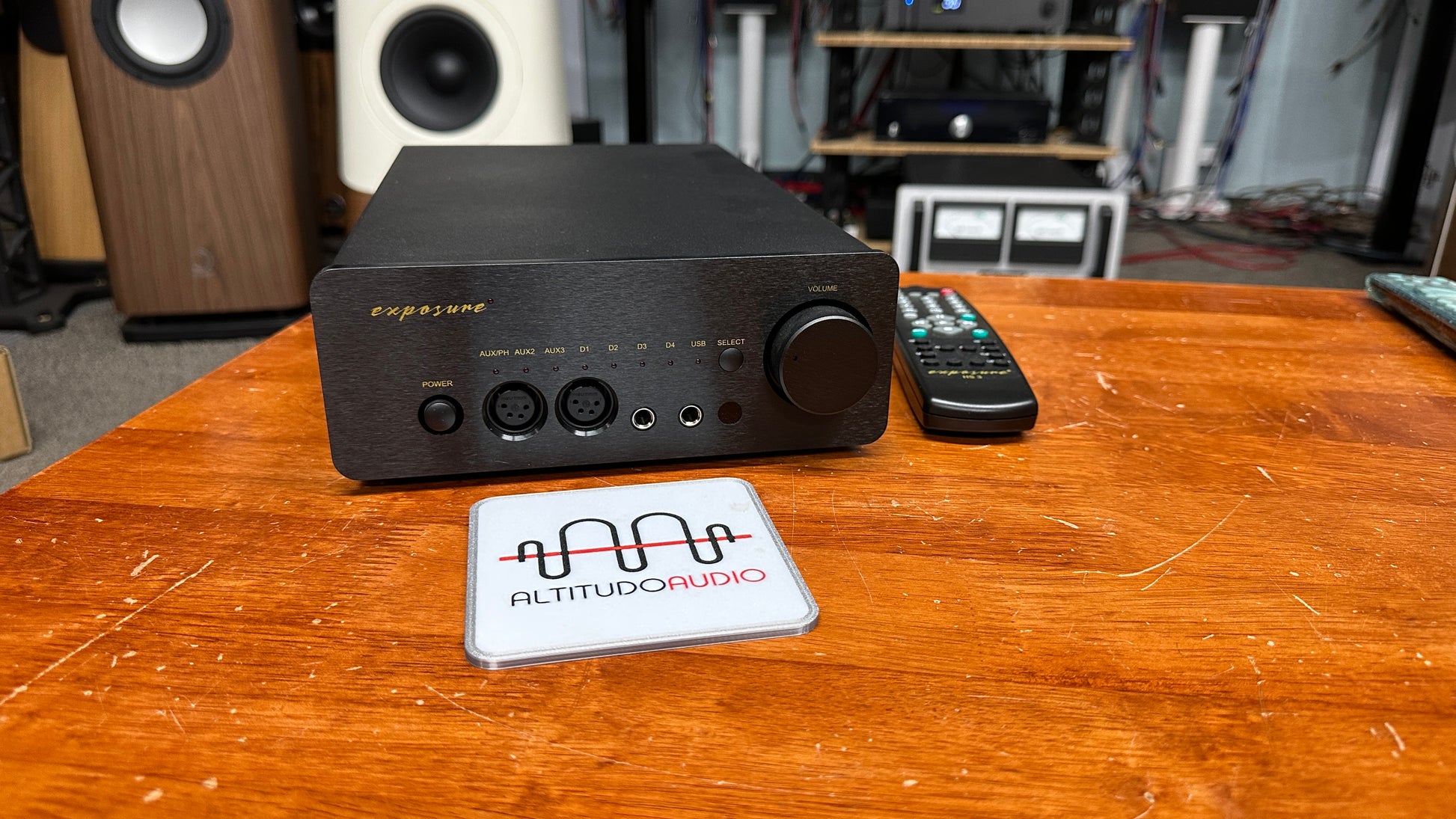

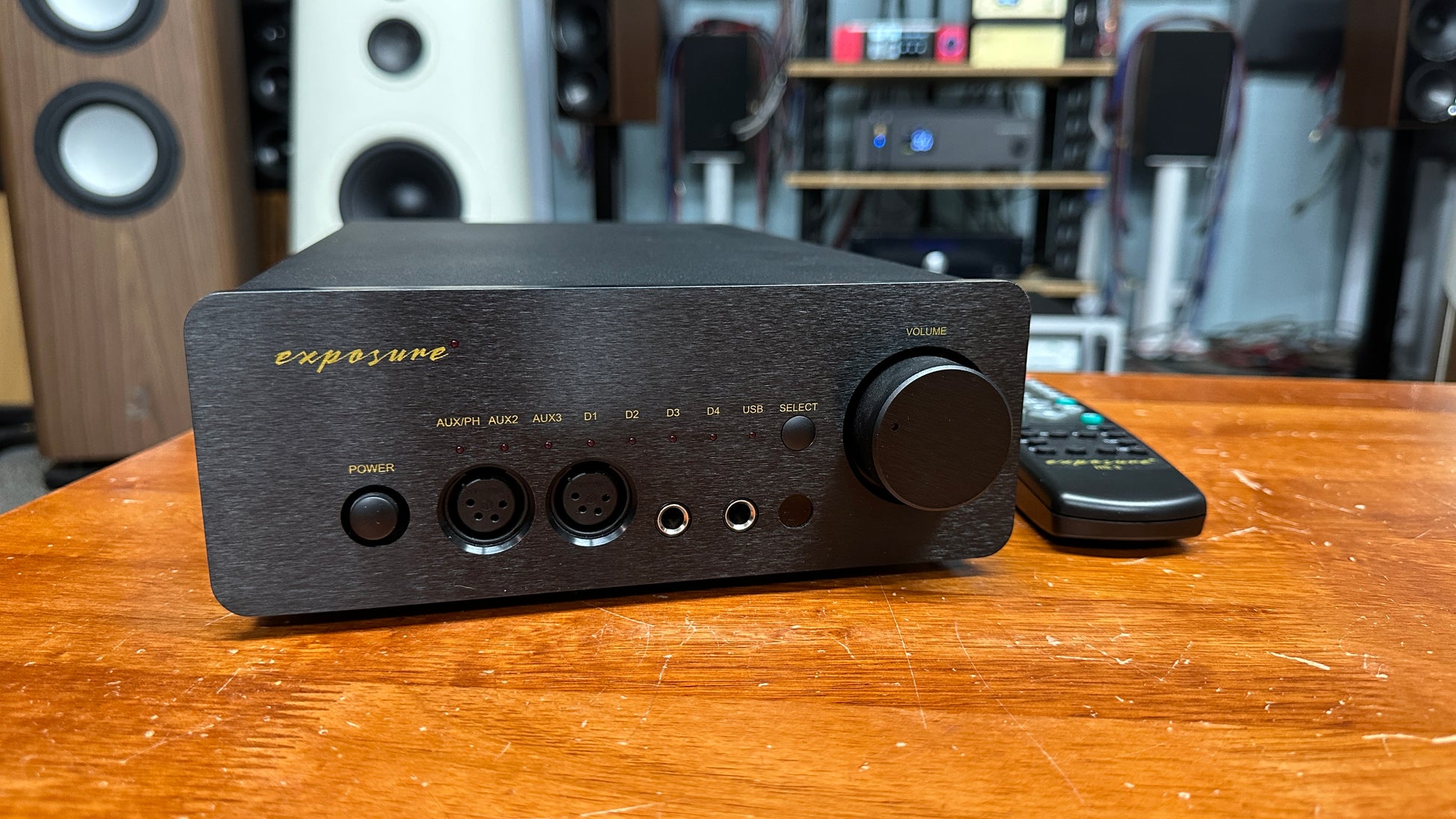

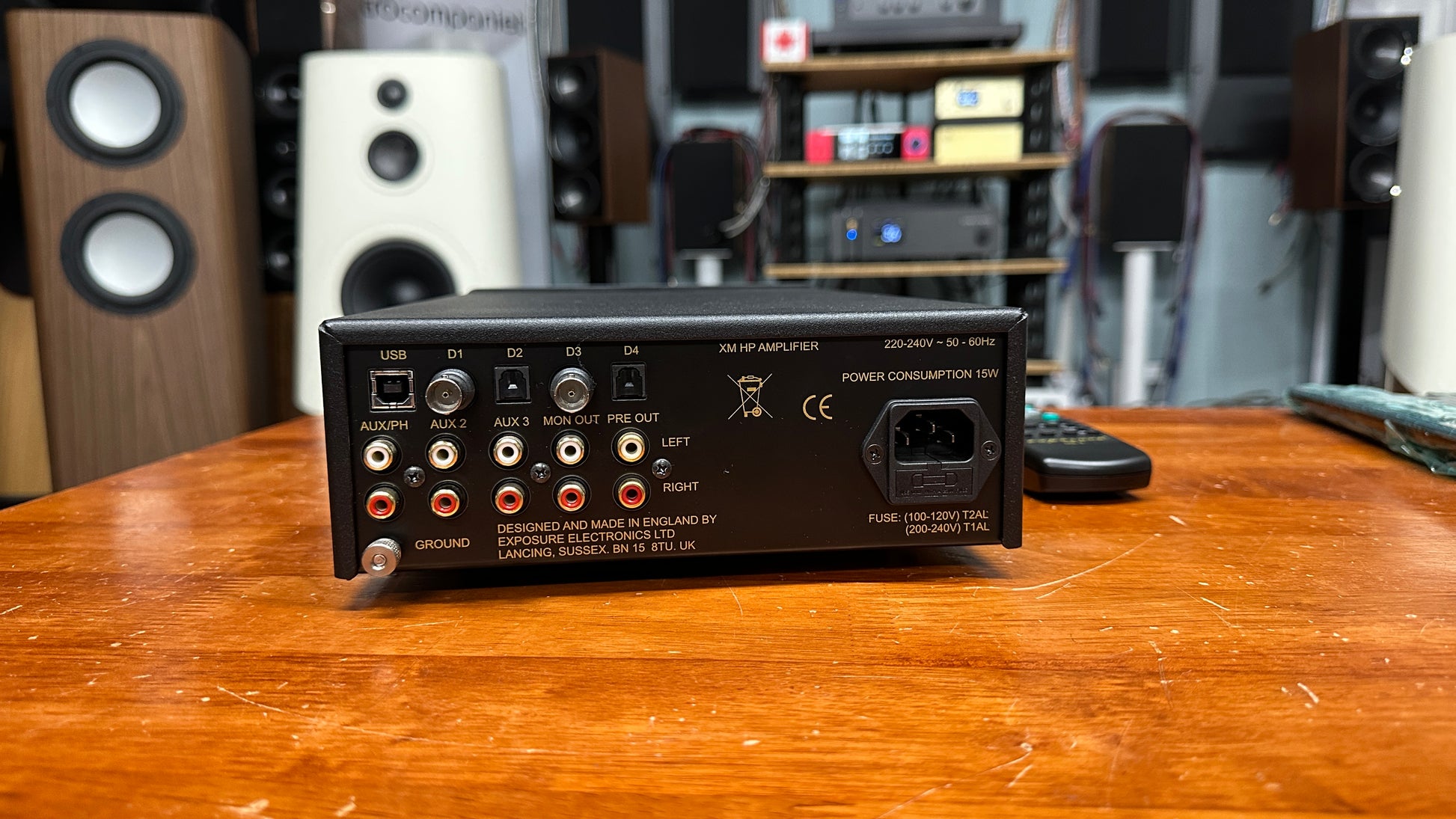

Exposure XMHP DAC Preamp Headphone Amplifier (Pre-owned)

Exposure XMHP DAC Preamp Headphone Amplifier (Pre-owned)

$2,000.00 CAD
$2,999.99 CAD $2,000.00 CAD
Sale Sold out

(Pre-owned)

*Original box & mint condition

The award winning Exposure XM HP features a pair of 6.3mm headphone sockets for use with any type of headphones, but also a pair of balanced XLR connections for use with high end headphones. Either two pairs of these sockets allow the use of two pairs of headphones at the same time. The inclusion of a high quality DAC for the Exposure XM HP opens up its flexibility and versatility. For this, Exposure have chosen to use the Wolfson WM8742 chipset.

The WM8742 DAC is capable of decoding any digital material up to 24bit/192kHz, as well as native DSD64. The addition of this DAC allows digital inputs - the asynchronous USB input is perfect for Innuos products.


Features:

  1. High quality all aluminium casework and extruded front panel
  2. Custom made toroidal power transformer
  3. All discrete audio output stage with high drive capability for low impedance headphones
  4. High quality resistors and capacitors used in the signal path
  5. 2 pairs of 6.35mm jacks and 2 pairs of XLR sockets allowing 2 pairs of headphones to be used at one time
  6. Moving magnet phono and two line level inputs
  7. Two coax (bnc) and two optical inputs and one class 2 USB input with DSD
  8. Separate pre-amp output
  9. Remote control
  10. Three year guarantee
  11. Available in black or titanium

Specifications:

  • Analogue Inputs

    Pre Amplifier Output (input sensitivity / impedance / S/N):

    • AUX/PH input MM : 2.5mV @ 1KHz, 47K ohms S/N > 73dB
    • Frequency Response : +/-0.5dB 50Hz-20KHz. High pass roll off -1.5dB @ 20Hz
    • AUX 2 & AUX 3 input line : 350mV @ 1KHz > 14K ohms output gain x3.75, +11.5dB
    • Total Harmonic Distortion : <0.005% at 1KHz : @ 1.3V RMS output
    • Frequency Response : 20Hz - 20KHz +/- 0.5dB
    • Signal to Noise Ratio ref 1.3V RMS Output : 1KHz >92dB
    • Channel Separation @ 20KHz : >60dB

    Digital Inputs

    • SPDIF inputs BNC Coax & Optical : 32 - 192KHz @ 16-24 bits
    • Total Harmonic Distortion : <0.005% at 1KHz @ 1.3V RMS output
    • Signal to Noise Ratio ref 1.3V RMS Output : 1KHz : >98dB
    • USB input : Linear PCM 44K1 - 192KHz @ 16-24 bits DSD x64 (DoP) Asynchronous transfer from host

    Headphone Output

    • Output Impedance : < 5 ohms
    • Maximum Level into 33 ohms load : @ 1KHz & 0.01% THD : 7V RMS (1.5W)
    • Total Harmonic Distortion : @ 2V output, 1KHz : <0.003% (120mW)
    • Maximum Level into 330 ohms : @ 1KHz & 0.01% THD : 7.5V RMS (170mW)
    • Total Harmonic Distortion : @ 2V output, 1KHz : <0.003% (12mW)
    • Load Impedance total all outputs : 16 ohms minimum

    General Specifications

    • Mains Supply : 110/120V or 220/240V @ 50/60Hz (factory set)
    • Power Consumption : <15W
    • Dimensions (WxHxD) : 218mm x 89mm x 363mm (inc knob)
    • Net Weight (unpacked) : 4kg
    • Gross Weight (packed) : 5kg
