The same minds that engineered JL Audio’s reference-grade Fathom® and Gotham® powered subwoofers have created an amazing in-wall subwoofer solution, centered on an innovative, thin-line driver with ground breaking technologies.

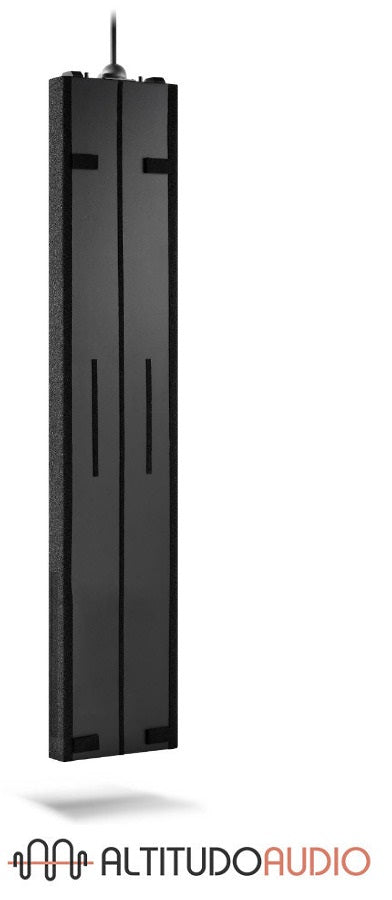

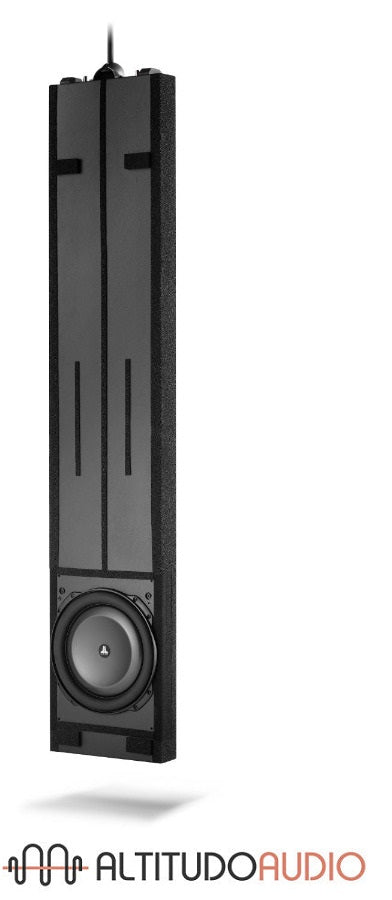

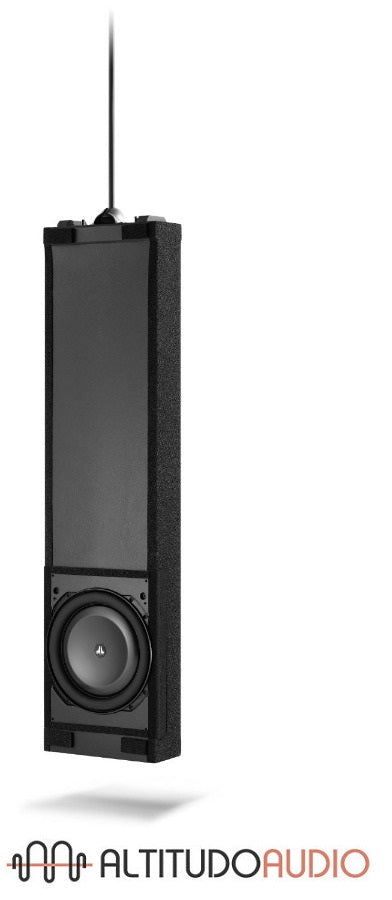

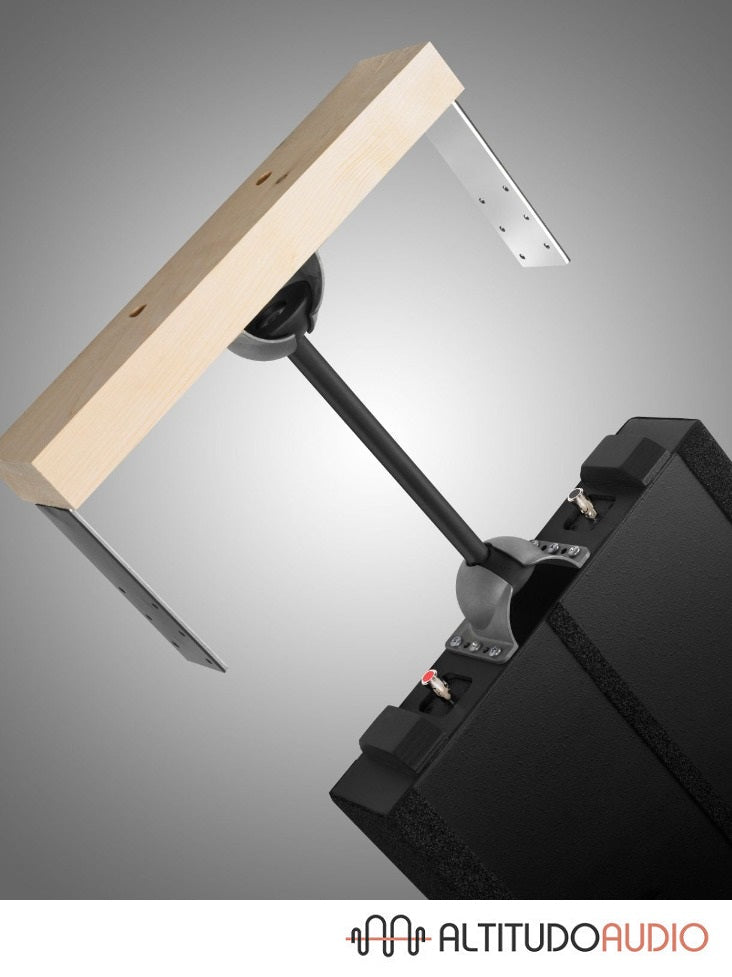

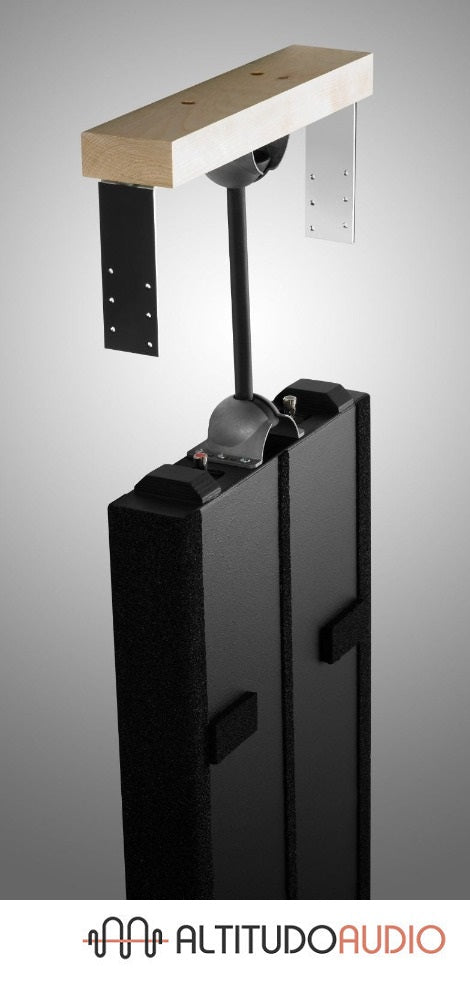

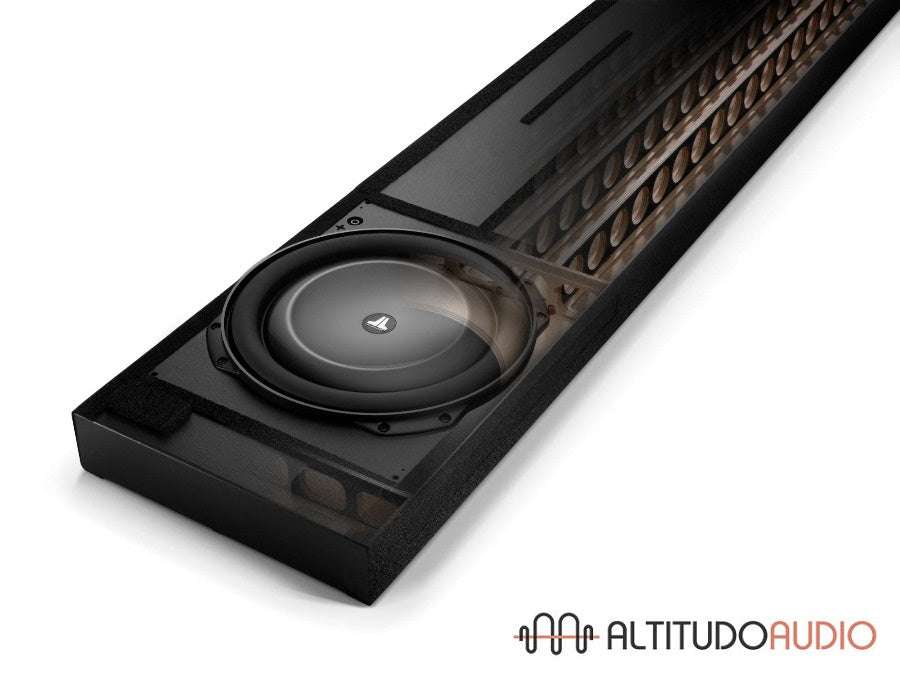

Housing this exotic driver is a critically engineered enclosure with a unique floating mount design to minimize wall excitation. The enclosure features extensive architectural features aimed at improving rigidity while keeping a very low profile and minimal wall thickness.

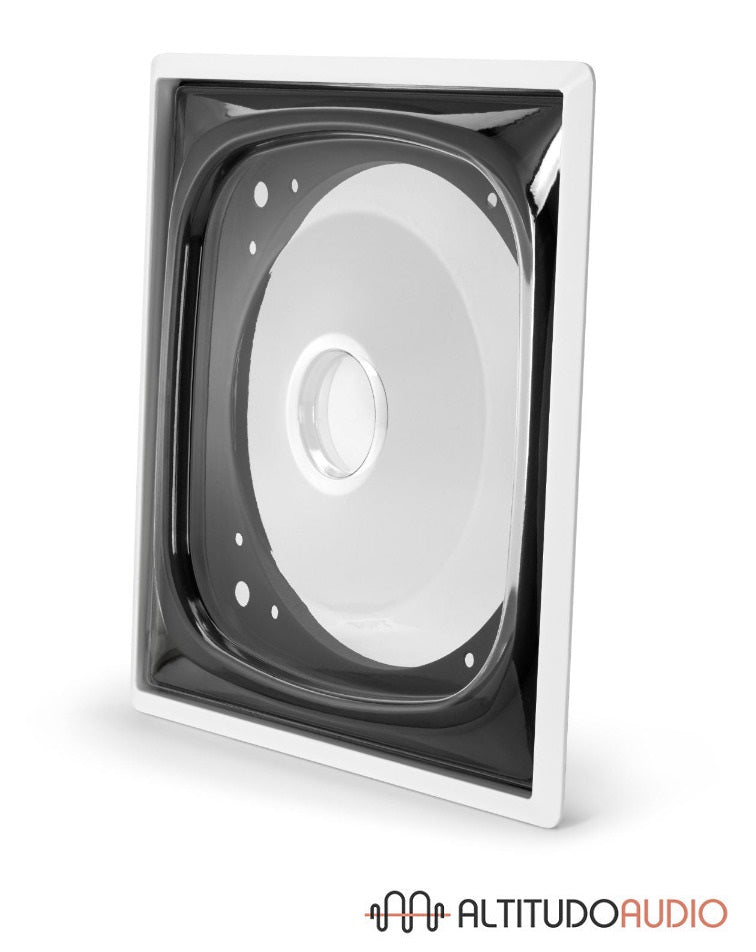

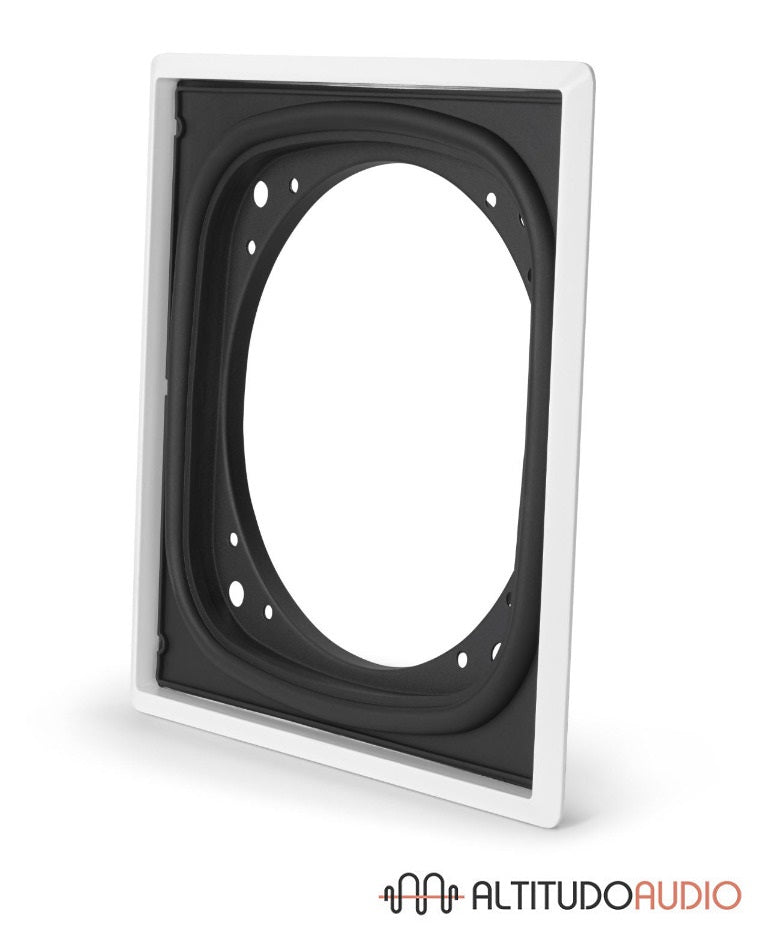

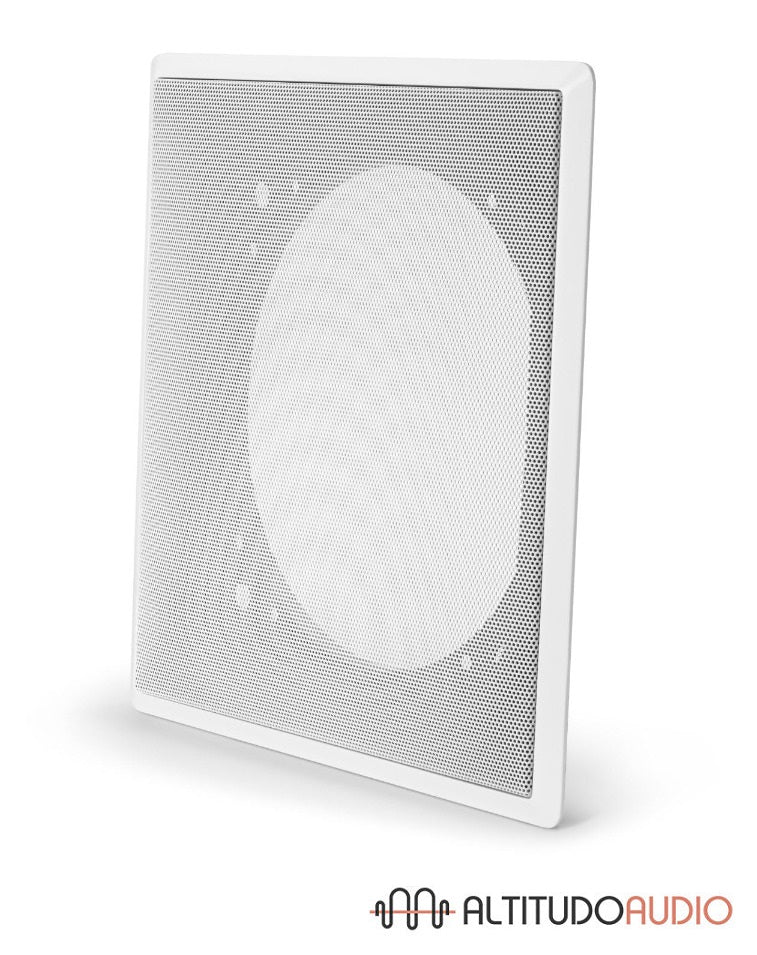

A paintable, fine steel-mesh grille, also designed to control vibration, is included for each enclosure in a system.

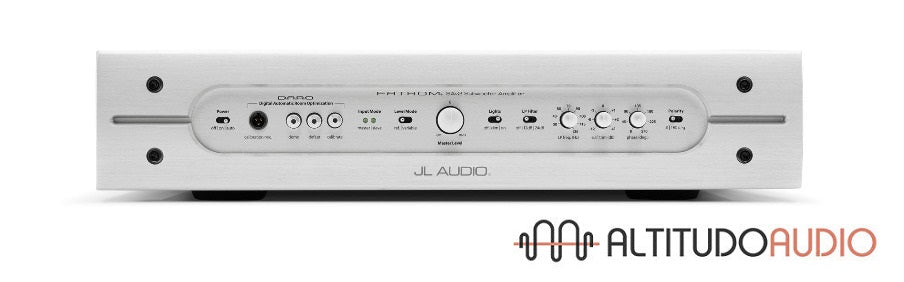

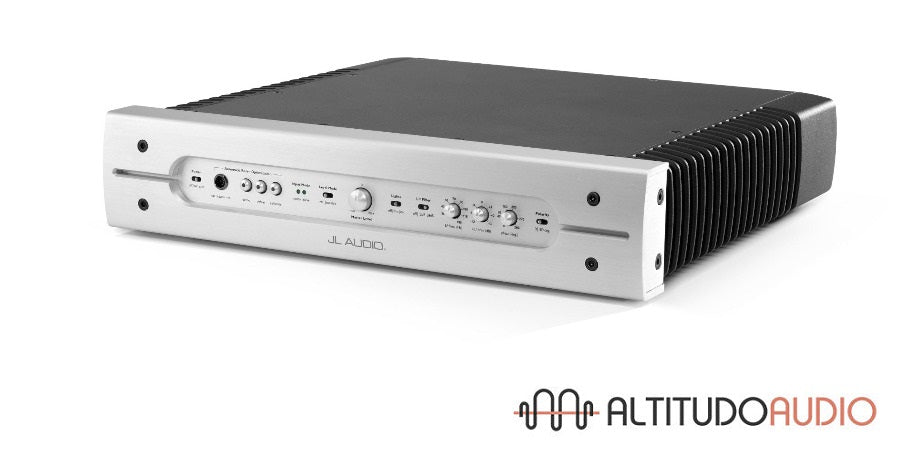

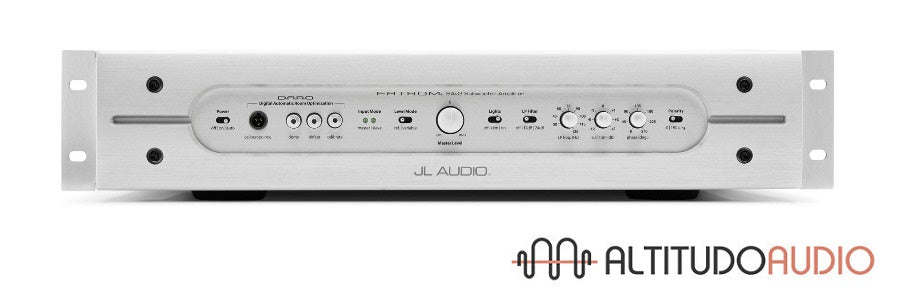

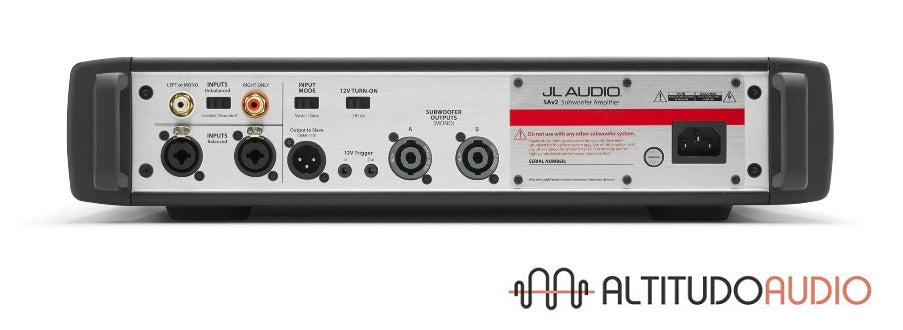

The IWSv2-SYS-113 is driven by a rack-mountable, purpose-tuned amplifier, capable of delivering up to 1 kW of clean power, and armed with serious processing features, including our acclaimed Digital Automatic Room Optimization system.
There is no need to lower your expectations when selecting this remarkable in-wall solution… it’s a real Fathom®.

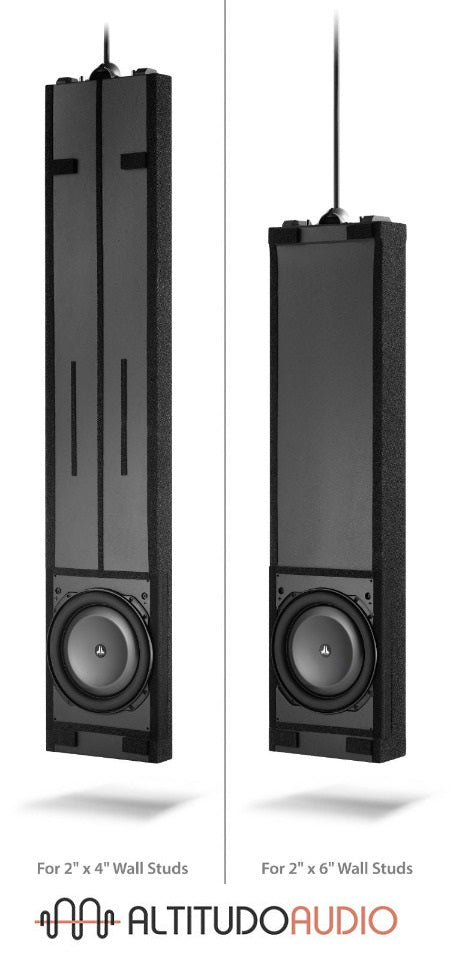

The IWSv2-SYS-113 is available to fit a variety of 2″ x 4″ and 2″ x 6″ wall studs. Consult your Authorized JL Audio Dealer for specific application information.
Enclosure Finish: Flat Black (hidden from view when installed)
Grille finish: Primer White (paintable)
Enclosure Construction: CNC-Cut Birch Plywood
Features & Specifications
Enclosure Type: Sealed
Enclosure Finish: Black Texture-Coated
Frequency Response (Anechoic): 26 Hz – 101 Hz (± 1.5 dB) -3dB at 25 Hz / 112 Hz -10dB at 22 Hz / 150 Hz
Effective Piston Area (Sd): 98.26 sq in / 0.0634 sq m
Effective Displacement: 147.3 cu in / 2.41 L
Amplifier Power: 1000 W RMS short-term
Power Mode(s): Off, On or Automatic (Signal-Sensing)
Light Modes: Off, On or Dim
Unbalanced Inputs: Stereo or Mono (two RCA jacks)
Balanced Inputs: Stereo or Mono (two female XLR jacks)
Speaker/High-Level Inputs: N/A
Input Grounding: Isolated or Grounded
Input Modes: Master or Slave
Level Control: Reference (fixed gain) or Variable, from full mute to +15dB over reference gain
Filter Mode(s): Low-Pass
Filter Slope(s): 12/24 dB/octave
Filter Frequency Range: 30 Hz – 130 Hz
Filter Defeat Function: Yes
Polarity: 0 or 180 degrees
Phase: Variable, 0- 270 degrees, referenced to 80 Hz
Extreme Low Frequency (E.L.F.) Trim: Variable, -12 dB to +3 dB at 23 Hz
Line Outputs: N/A
Output to Slave: Balanced (one male XLR jack)
Calibration Mode: Digital Automatic Room Optimization (D.A.R.O.), includes laboratory-grade microphone
