Fosi Audio

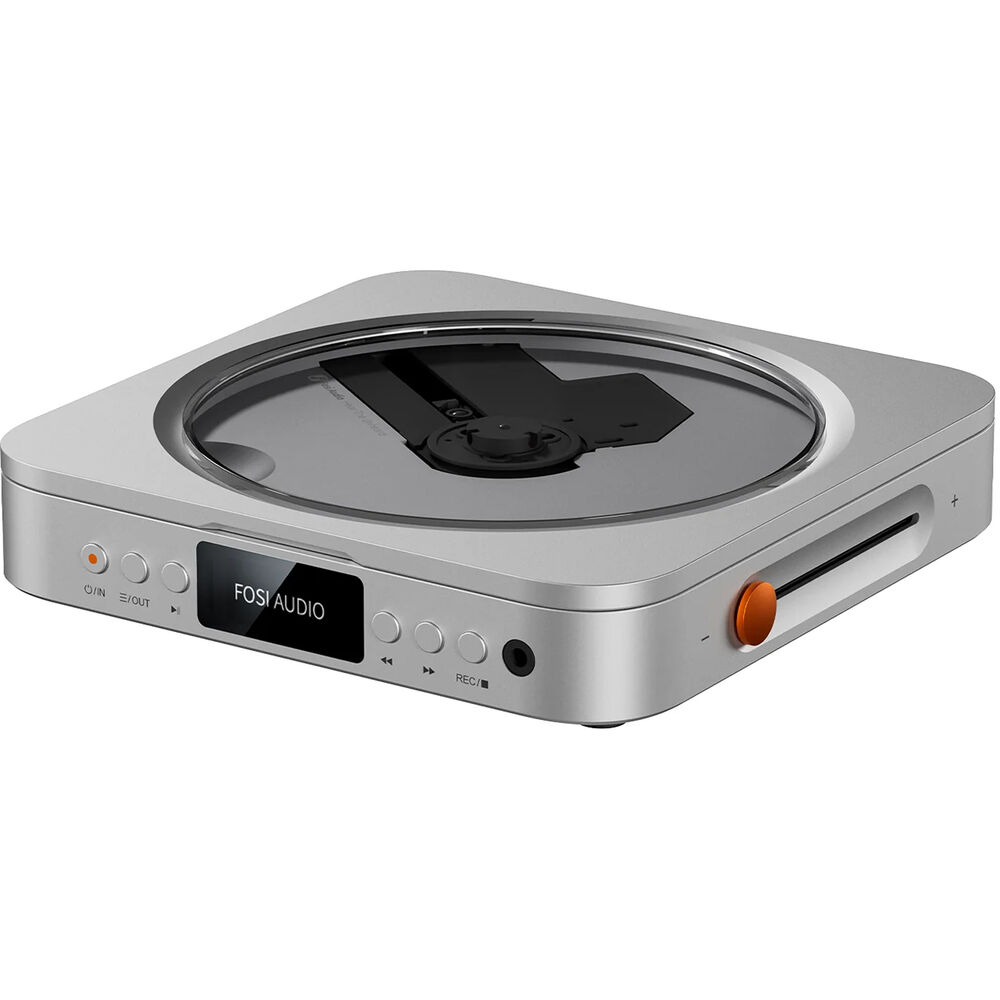

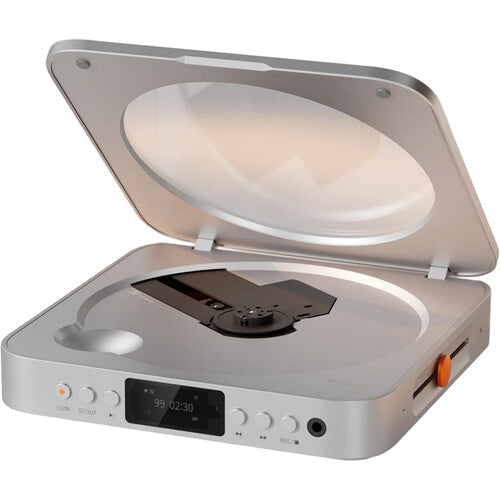

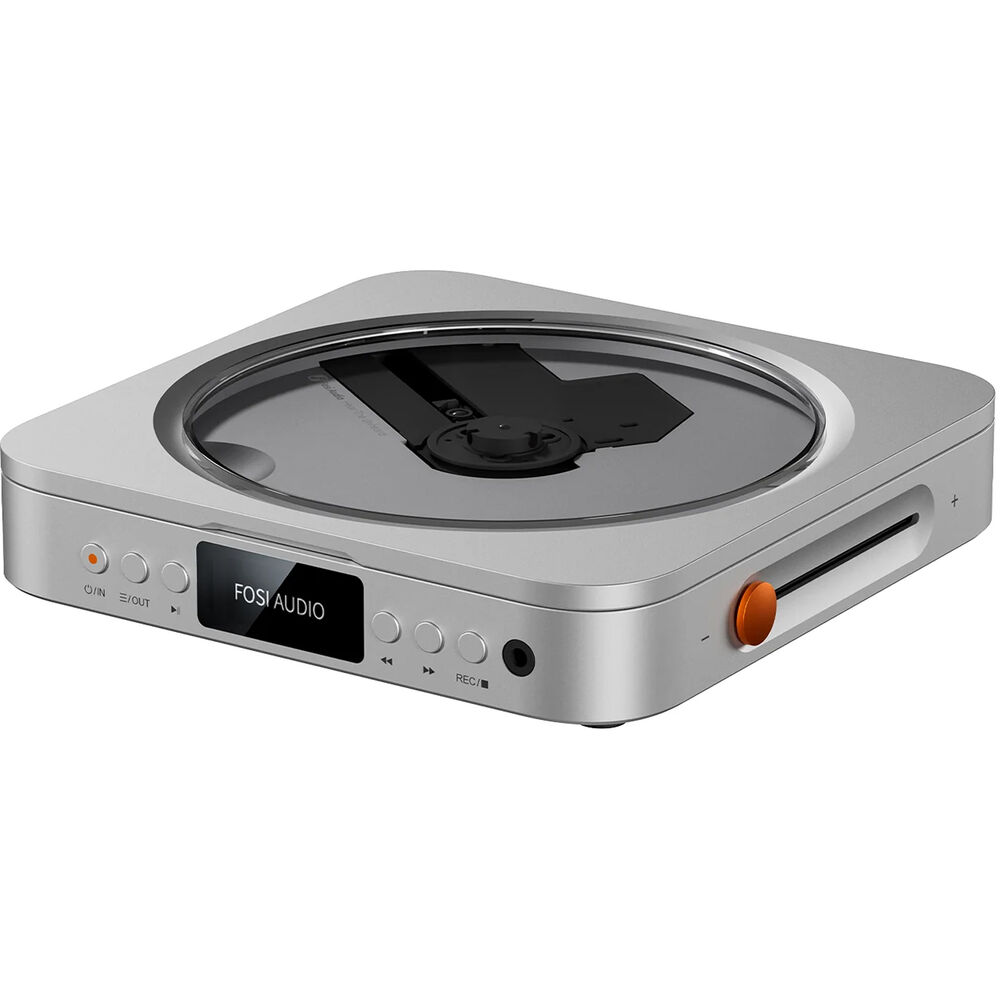

Fosi Audio Merak CD Player with Integrated DAC & Headphone Amplifier

Fosi Audio Merak CD Player with Integrated DAC & Headphone Amplifier

Regular price $199.00 CAD
Regular price Sale price $199.00 CAD
Sale Sold out
Quantity

Seamless System Integration

With optical and line outputs, it connects easily to DACs, amplifiers, or active speakers.
The included remote control allows convenient input/output switching and track selection.
A 12V Trigger output enables synchronized power with Fosi devices like ZD3 and ZA3.

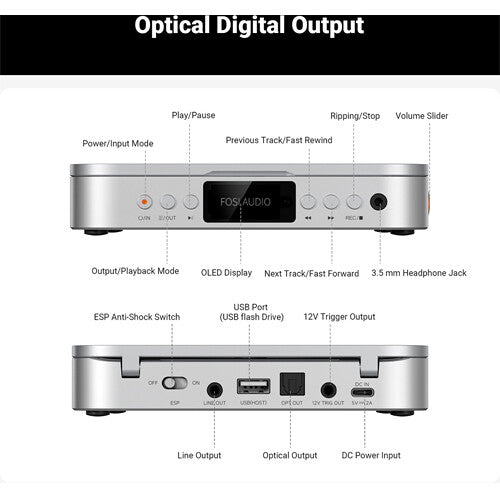

Input: USB-A (USB flash drives), CD

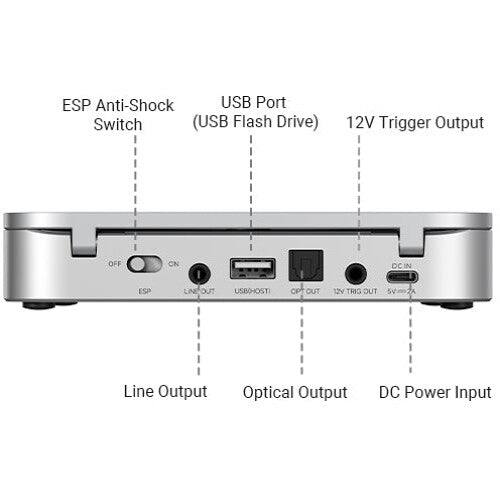

Output: 3.5mm Headphones Jack, LINE, OPT, 12V Trigger

Specification
Chipset: SC6137D + CS43131 + TPA6120

Max Sampling Rate

  • CD: PCM 16bit / 96kHz
  • USB (USB flash drives): PCM 16bit / 96kHz

Headphone Impedance: 16–300Ω

Input: USB-A (USB flash drives), CD

Output: 3.5mm Headphones Jack, LINE, OPT, 12V Trigger

CD Formats: CDDA, CD-R / CD-RW (partially readable). Original pressed discs are recommended

CD-R Formats: FLAC / WAV / WMA / AAC / MP3

SACD Playback: Only SACDs with a CD layer are supported

Formats for USB Drive Playback: MP3 / WAV / FLAC / AAC / APE / WMA

IR Remote Control: Supports a maximum operating distance of up to 7 meters

Input Voltage: DC 5V / 2A

Firmware Upgrade: Firmware can be updated online via a USB-A port using a USB flash drive

3.5mm Output Performance (CD)

Rated Output Power: L+R ≥ 210mW + 210mW (32Ω / THD+N < 1%)

SNR: 121 dB (A-weighted)

THD+N: 0.002% (A-weighted)

Dynamic Range: 121 dB

Noise Floor: ≤ 3µV (A-weighted)

LINE Output Performance (CD)

Output Level: ≥ 2Vrms

SNR: 124 dB (A-weighted)

THD+N: 0.0009% (A-weighted)

Dynamic Range: 124 dB

Noise Floor: ≤ 3µV (A-weighted)

View full details
