IsoAcoustics
GAIA Carpet Disks
GAIA Carpet Disks
Couldn't load pickup availability
Carpet Disks
Designed to maintain stable support on carpet, the solid stainless steel Carpet spikes work with the GAIA and GAIA Neo isolators to provide improved performance on thicker pile carpet and carpet with under pads.
GAIA Neo Carpet Disks
| Product | Weight Cap (Set of 4) |
Dimensions WxH |
|---|---|---|
| GAIA I Neo Carpet Disks |
220lbs (100kg) | 3.0" x 0.9" (76mm x 21.6mm) |
| GAIA II Neo Carpet Disks |
120lbs (55kg) | 2.6" x 0.9" (66mm x 21.6mm) |
| GAIA III Neo Carpet Disks |
70lbs (32kg) | 2.2" x 0.9" (56mm x 21.6mm) |
GAIA Carpet Disks
| Product | Weight Cap (Set of 4) | Dimensions WxH |
|---|---|---|
| GAIA I Carpet Disks | 220lbs (100kg) | 2.4" x 0.9" (59mm x 22mm) |
| GAIA II Carpet Disks | 121lbs (55kg) | 2.0" x 0.9" (52mm x 22mm) |
| GAIA III Carpet Disks | 70lbs (32kg) | 1.8" x 0.9" (45mm x 22mm) |
GAIA-TITAN Carpet Disks
| Product | Weight Cap (Set of 4) | Dimensions WxH |
|---|---|---|
| GAIA-TITAN Cronos Carpet Disks | 620lbs (280kg) | 3.9" x 0.9" (99mm x 22mm) |
| GAIA-TITAN Rhea Carpet Disks | 420lbs (190kg) | 3.1" x 0.9" (79mm x 22mm) |
| GAIA-TITAN Theis Carpet Disks | 320lbs (145kg) | 2.7" x 0.9" (69mm x 22mm) |
How to install GAIA Carpet Disks
Tilt the speaker or subwoofer to raise the GAIA’s above the ground, then position the carpet spikes underneath the GAIA’s and lower the side back down. Repeat the process on the other side by tilting the other side of the speaker and position the Carpet Disks underneath the GAIA’s before lowering the speaker back down.
You might need to raise and lower each side of the speaker again until the carpet spikes are positioned level on the ground and are properly aligned underneath the GAIA isolators.
The carpet disks installation is the final step. The carpet disks should not be installed until after the GAIA’s are installed and the speaker or subwoofer is in its final position.

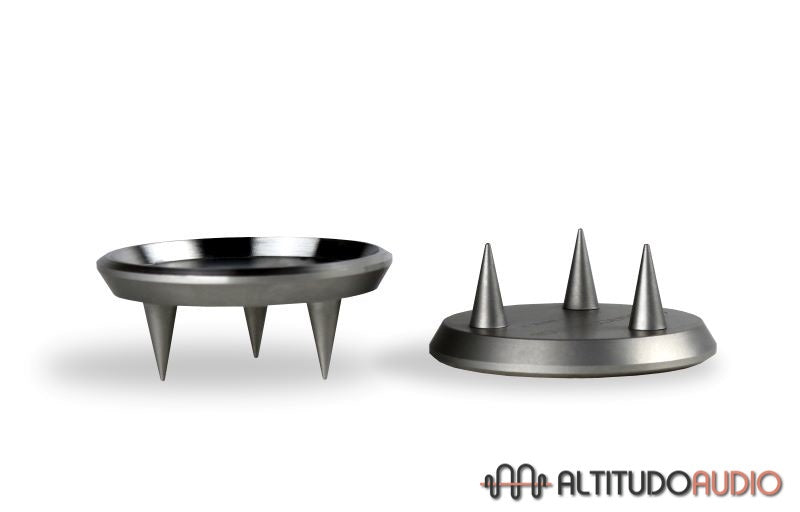

The carpet disks feature 0.6” (15mm) long spikes which provide a strong connection through the carpet to provide a solid foundation for the GAIA isolators.
