Galion TS120 tube integrated amplifier *Special Edition
Shipping : FREE in Canada
"Life can be calm and rough like the sea but music will always carry us through"

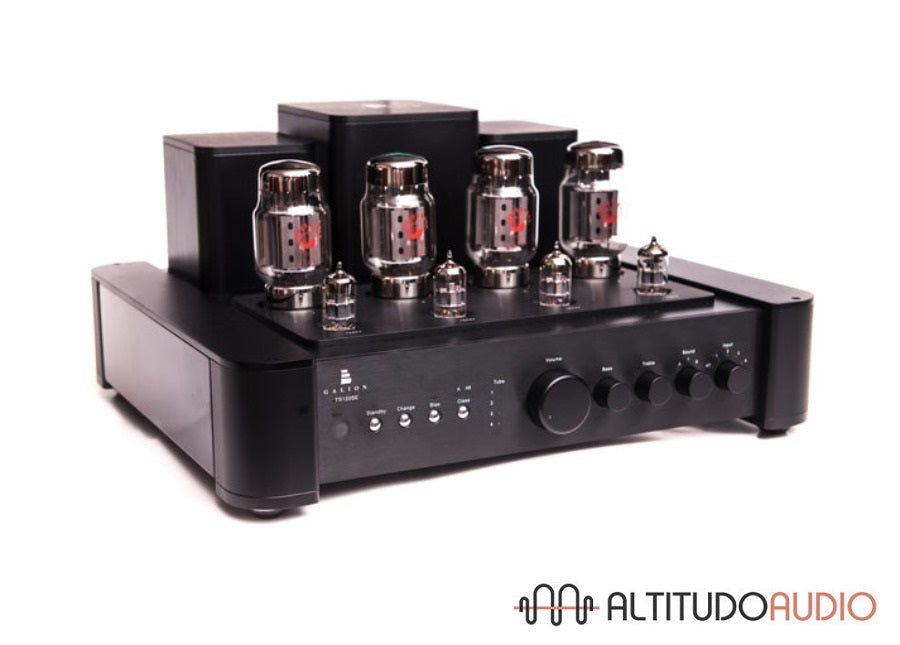

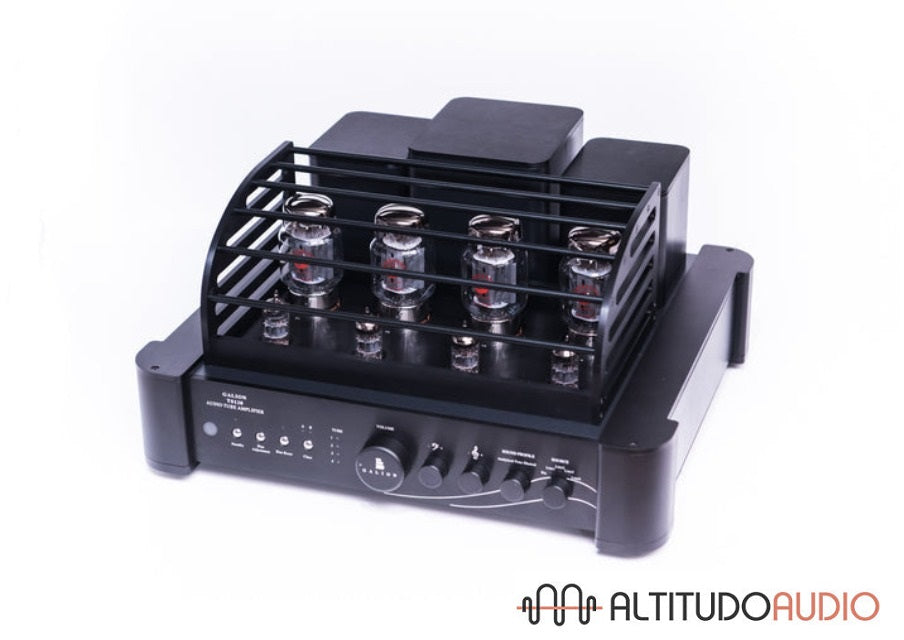

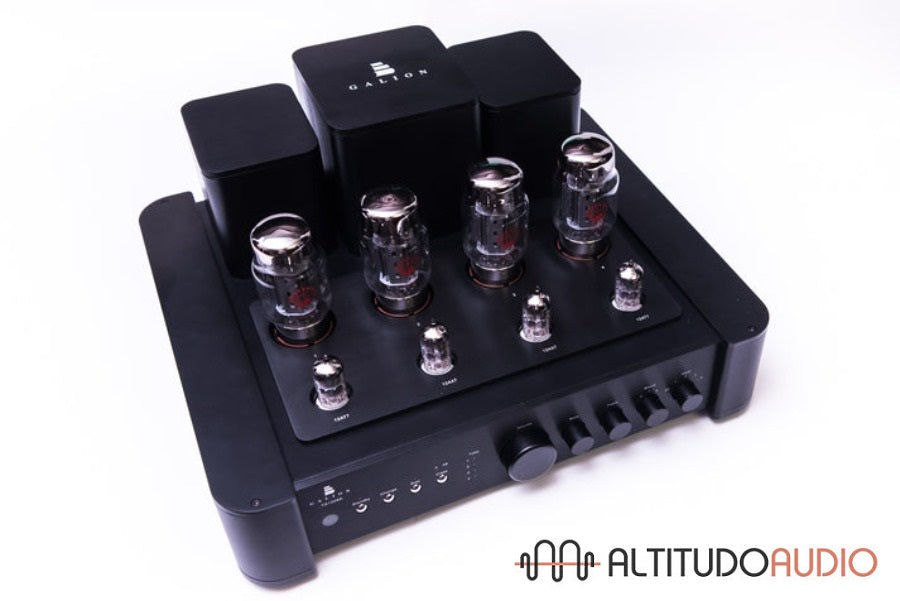

Galion TS120 tube integrated amplifier
-
One of the few amps in the world that can run either in class A or class AB mode
(Not triode or ultra-linear mode like most other tube amps) - Easy to bias
- 30W RMS in class A mode. In class A, the current almost double
- 50W RMS in class AB mode
- Tone control
- Stereo subwoofer out
- Pre-In / HT bypass
- Auto protection Mode
- Ground noise reduction
- Remote control with standby ability
The Galion TS120 Special edition
Smoother midrange and a more neutral presentation compared to the normal edition
Top of the line Clarity capacitors
High-quality secret Jupiter capacitors
High-quality VitaminQ Jupiter capacitors

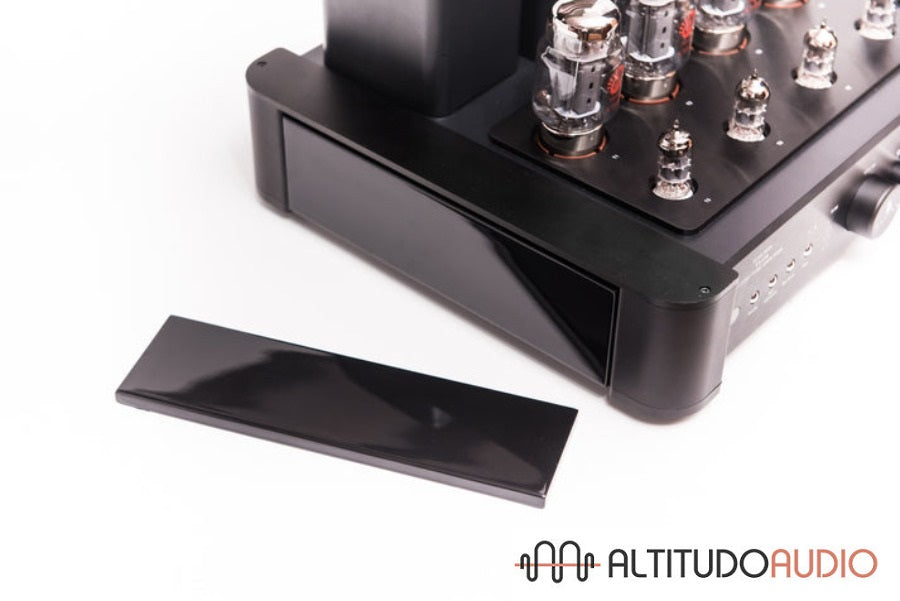

Piano wood side panel
The Galion TS120 highlights
-
An elegant and modern design
Amazing build quality.
-
Class A or class AB
Unlike most tube amplifiers on the market which can run in either triode or ultralinear mode, the TS120 can run in class A or class AB mode. In class A mode, you will get to enjoy a linear and extremly clear midrange which is unique to class A amps.
-

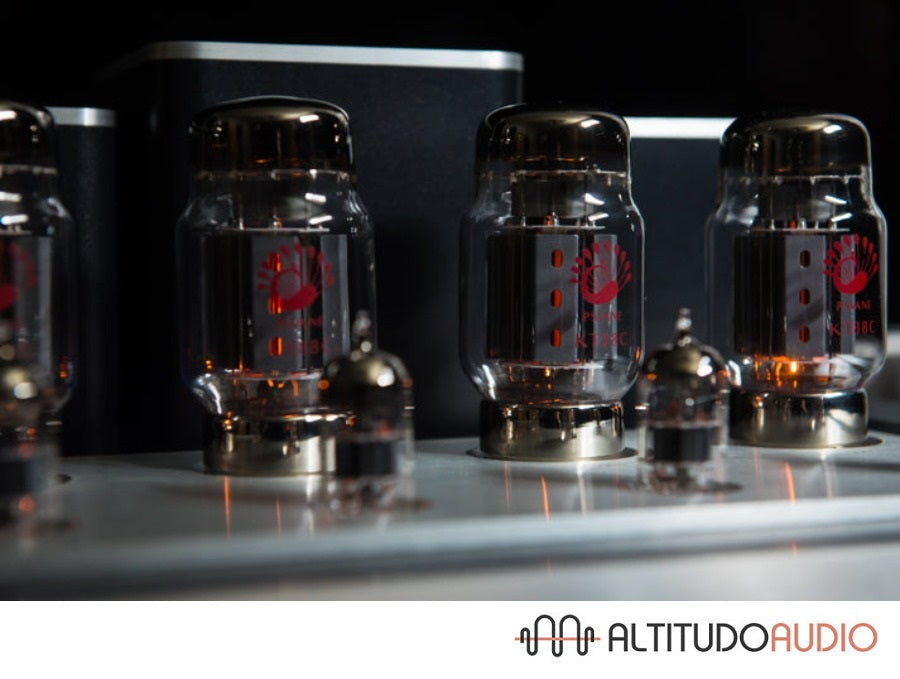

KT88 or KT120 power tubes
Instead of supporting every tube under the sun, the TS120's voltage has been optimized for 6550, KT88 and KT120 tubes only. The idea behind this decision is so we can bring out the very best of these tubes. No compromises.
-
Choose your sound profile
Unique to the TS120, you are able to fine tune the sound slightly with the sound profile selection
-
Subwoofer out
With the possibility of connecting the TS120 to dual subwoofers, you will never have to worry about not having enough bass for your system.
-
Pre-In / HT bypass
Seamlessly integrate your home theater setup with your 2-channel setup with the TS120 thanks to the HT bypass feature.
-

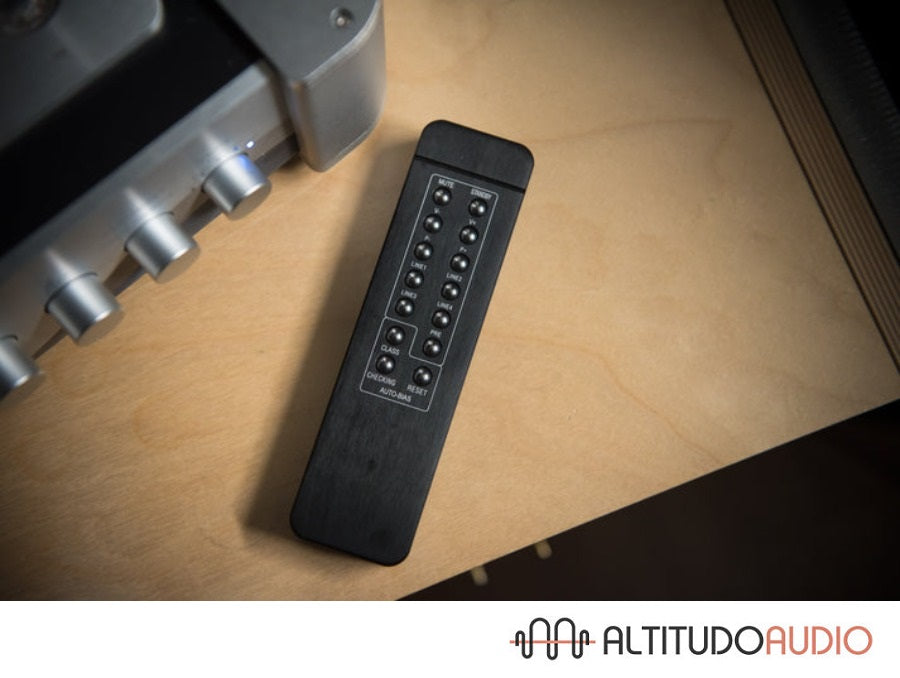

Remote with standby feature
Unlike 99% of the tube-integrated amps on the market, you can put the TS120 on standby with your remote.
-
Precision Auto-Bias
No need for meters or screwdrivers to bias the TS120. You can even do it from the comfort of your chair with the remote.
-
Soft-start
The TS120 is programmed with a soft-start feature which will extend the life of your tubes.
Owner's manual for TS120
Download
Specifications
| Measurement|Value | |
| Class A RMS Power | 30W+30W |
| Class AB RMS Power | 50W+50W |
| Class A Max Power | 75W+75W |
| Class AB Max Power | 100W+100W |
| Class A Distortion THD（1KHz/30W） | ≤0.15% |
| Class AB Distortion THD（1KHz/30W） | ≤0.25% |
| Class AB Distortion THD（1KHz/50W） | ≤0.25% |
| SNR | ≥90dB |
| Line Input Sensitive | 420mV |
| Pre-In Input Sensitive | 1.5V |
| Frequency Response (30W) | 12Hz - 80KHz |
| Frequency Response (50W) | 17Hz - 65KHz |
| Input Impedance | 50K Ω |
| Dimensions | 17" x 14.1" x 8.3" |
| Shipping Dimensions | 20.5" x 17.7" x 13" |
| Weight | 65 lbs |
| Standard Tube Complement | Two 12AX, two 12AT7, four KT88 |
