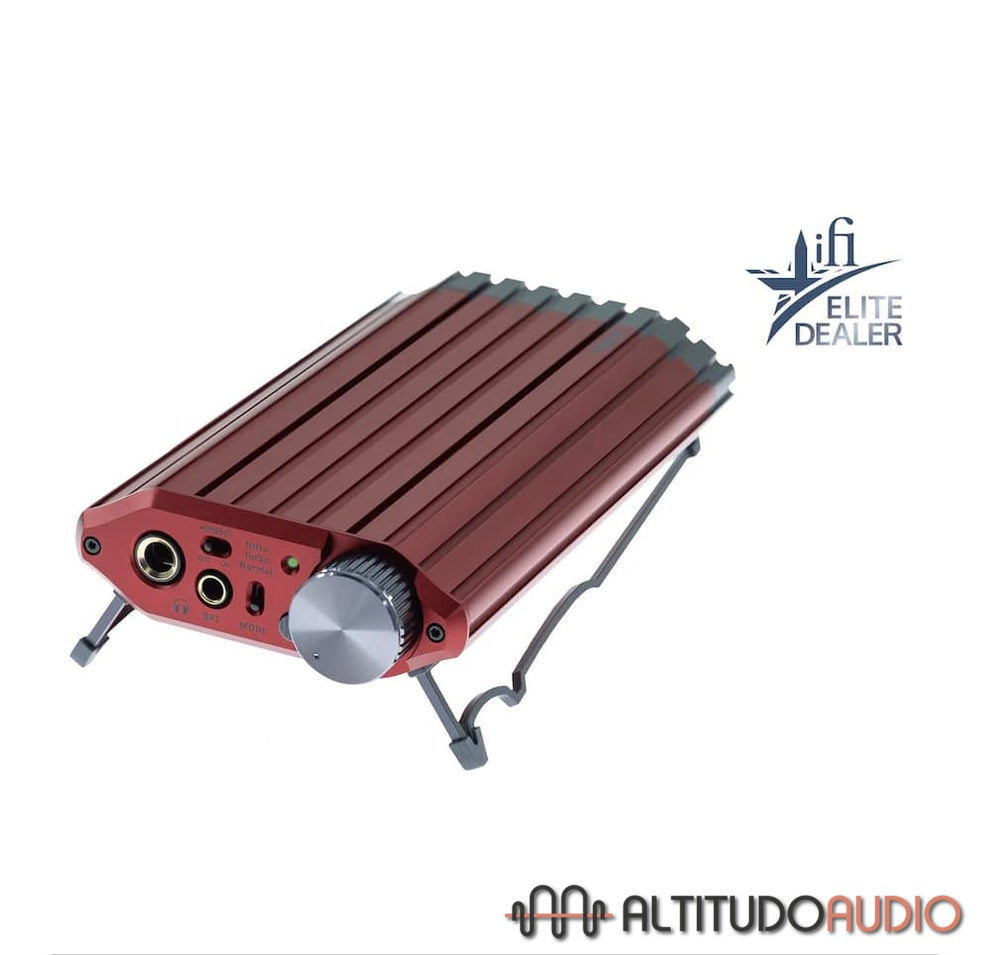

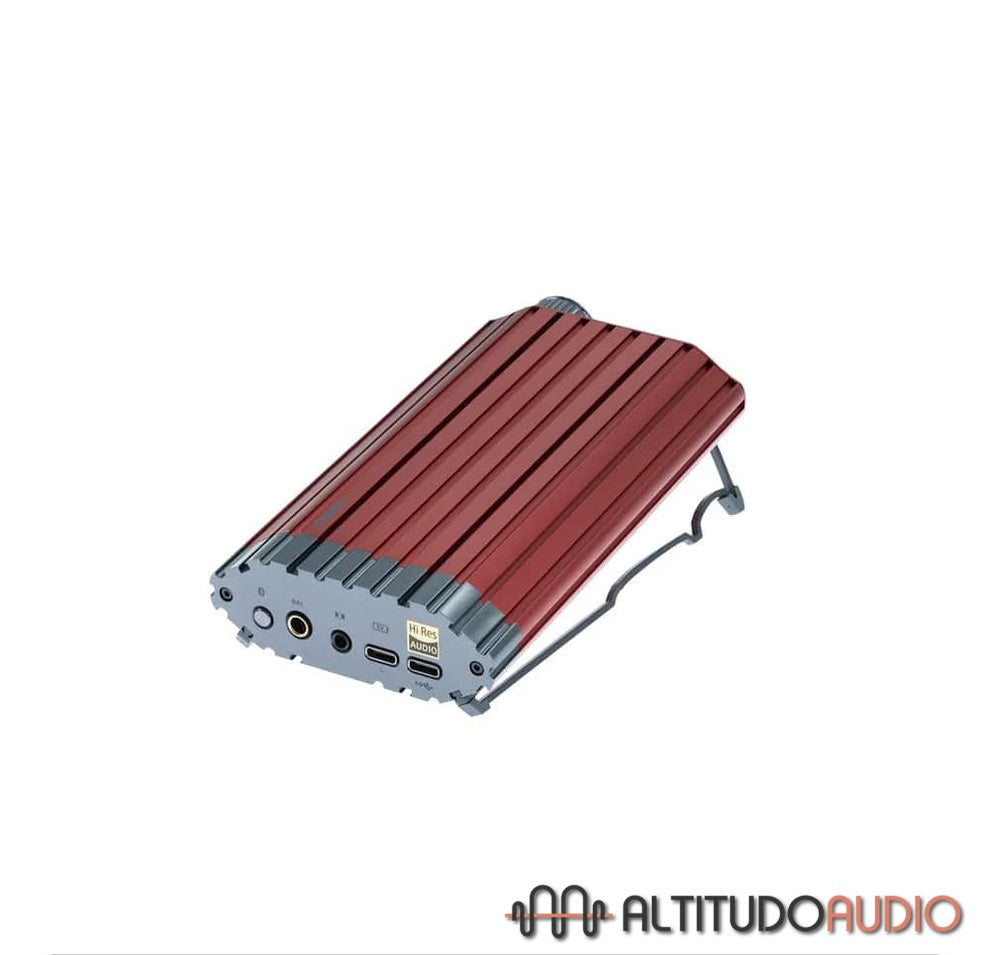

IDSD Diablo2 DAC Headphone Amplifier

IDSD Diablo2 DAC Headphone Amplifier

$1,799.00 CAD
$1,999.00 CAD $1,799.00 CAD
Sale Sold out

iFi Audio's new iDSD Diablo2 features twenty-two rails for improved cooling performance, with eight of these rails being compatible with the Diablo wings, enabling desktop stand use. Offering  3 power modes: Normal for IEMs, Turbo for mid-sensitivity headphones, and Nitro for demanding headphones, boasting a 19.2V maximum output. The Diablo 2 comes with four wings that you can customise to position it horizontally, like a desktop DAC/amp, or vertically to save space. A switch underneath activates iFi’s iEMatch technology. This feature is tailored for high-sensitivity headphones and earphones, greatly benefiting your in-ear monitors (IEMs). It removes background noise and increases the usable volume range.



Specifications:

BATTERY Lithium-polymer 4800mAh
BLUETOOTH FORMATS aptX Lossless
aptX Adaptive
aptX
LDAC
LHDC/HWA
AAC
SBC
CHARGING Via USB-C – BC v1.2 compliant up to 1900mA
DIGITAL INPUTS 1x USB-C; 1x S/PDIF (optical/coaxial)
Bluetooth 5.4™
DIMENSIONS 166x85x28.5mm
DNR ≥114dB(A)
HEADPHONE OUTPUT 1x balanced 4.4mm
1x 6.3mm
HI-RES SUPPORT 768kHz
DSD512
full MQA
MAXIMUM OUTPUT POWER Output:
4.4mm
6.3mm

4.4mm:
>19.2V/611mW (@600Ω);
>12.87V/5180mW (@32Ω)

6.3mm:
>9.6V/153mW (@600Ω);
>8.85V/2450mW (@32Ω)

xMEMS:
>28Vpp (4.4mm output)
NET WEIGHT 455g (1.0Ibs)
OUTPUT 4.4mm
6.3mm
OUTPUT IMPEDANCE ≤200Ω
POWER CONSUMPTION Nitro 12W | Turbo 5W | Normal 2W | xMEMS 8W
RMS OUTPUT POWER 4.4mm:
>19.2V/611mW (@600Ω);
>7.4/1710mW (@32Ω);
>11.5/2060mW (@64Ω)

6.3mm:
>9.6V/150mW (@600Ω);
>8.1V/2050mW (@32Ω);
>9.3V/1360mW (@64Ω)
SNR ≥114dB(A)
THD+N 0.002% @ 0dBFS 200kΩ
