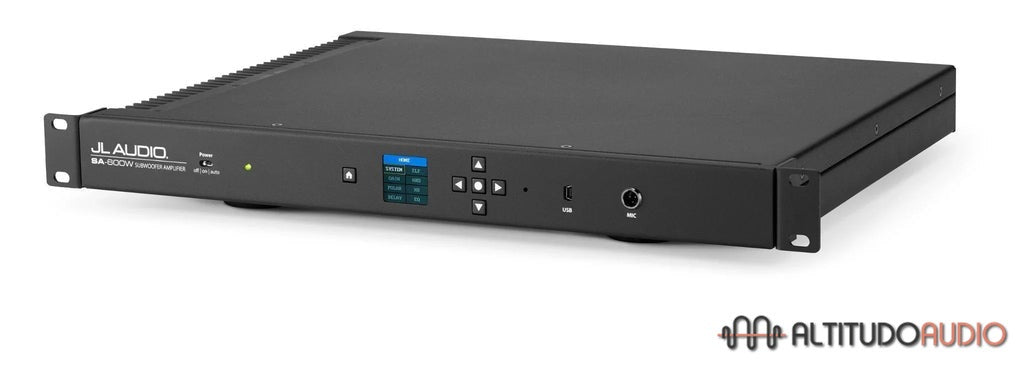

JL Audio Fathom Home Amplifier (600W)
JL Audio Fathom Home Amplifier (600W)
Couldn't load pickup availability
FLEXIBLE POWER ON DEMAND
Equipped with versatile features and a robust power amplifier section, this amplifier is an ideal choice to drive a custom subwoofer system in home theater and home audio systems.
600 WATTS OF CONTINUOUS POWER
INTUITIVE LCD DISPLAY
TWO-WAY ACTIVE CROSSOVER
FIXED OR VARIABLE LEVEL CONTROLS
BUILT-IN, OPTIMIZED EQ CURVES
READY FOR TABLETOP OR RACK MOUNTING
ADVANCED CLASS-D AMPLIFIER DESIGN
Innovative, high-speed switching design synchronizes an amplifier’s power supply and output channels, resulting in top-flight fidelity with ultralow noise and distortion.
VERSATILE CONTROL
Optimize your subwoofer integration with selectable polarity control (0 or 180 degrees) and advanced DSP features, including a 3-band parametric equalizer, active crossover and programmable delay controls.
COMPLETE CUSTOMIZATION
Our extreme low frequency (e.l.f.) trim lets you adjust the bass response from -12 decibels to +3 decibels at 25 Hz, so you can have perfect control of the low end of your system.
DIGITAL AUTOMATIC ROOM OPTIMIZATION (D.A.R.O.) TECHNOLOGY
Exclusive D.A.R.O. technology from JL Audio uses a powerful onboard DSP to automatically optimize the subwoofer’s in-room frequency response. This leads to a superb listening experience, no matter where the subwoofer is placed.
HIGH-DAMPING FEEDBACK CIRCUITRY
This proprietary, discrete control circuit design allows our Class-D switching amplifiers to maintain excellent damping factors for improved transient behavior and fidelity.
General |
|
| 12 V trigger output capacity | 150 mA (1/8" (3.5 mm) mini jack) |
|---|---|
| Amplifier Power (RMS) | 600 W x 1 at 3 Ω 450 W x 1 at 4 Ω 300 W x 1 at 6 Ω 225 W x 1 at 8 Ω |
| Power modes | off, on or automatic (signal-sensing or 12V trigger) |
| Warranty | 3 years |
Signal Processing |
|

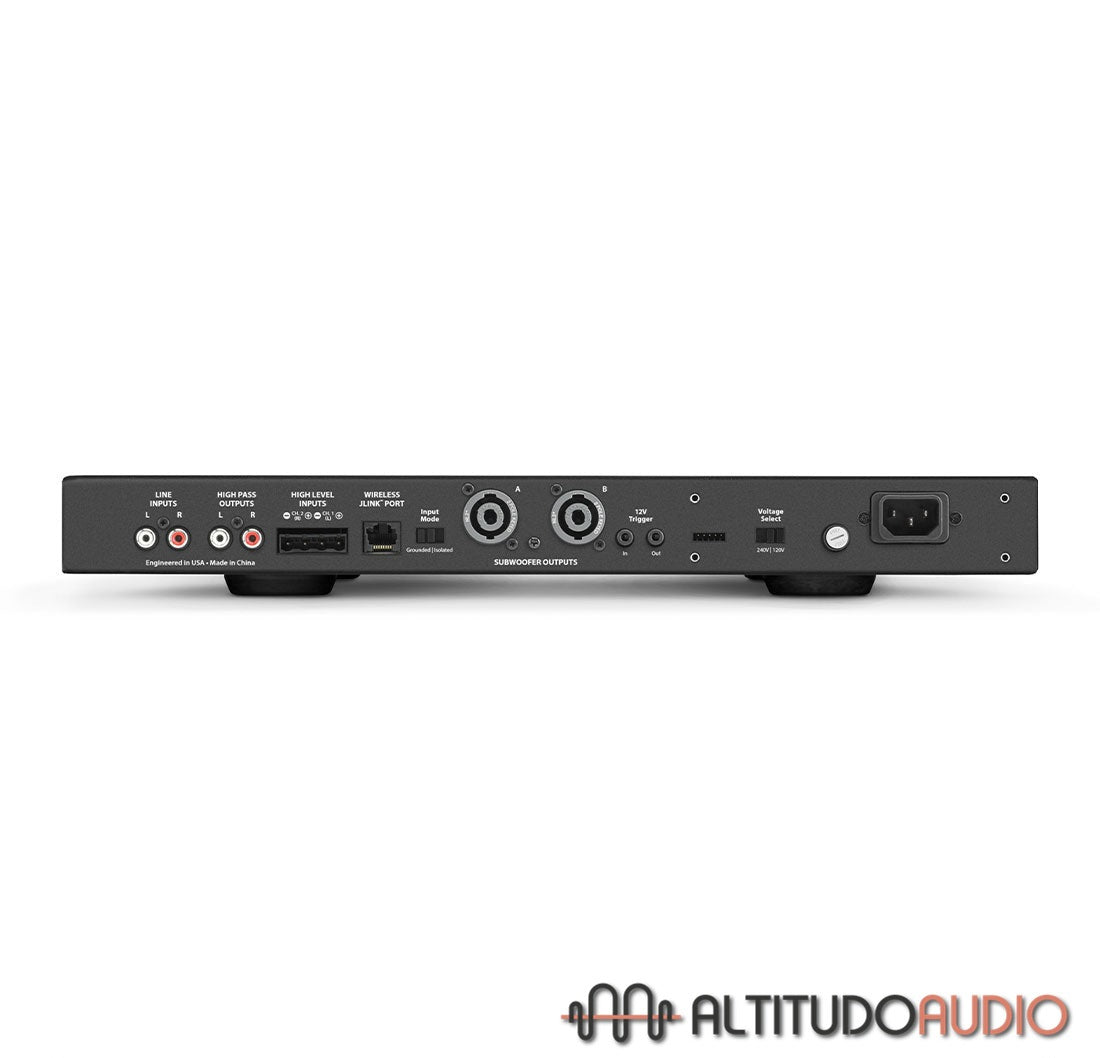

| Unbalanced input(s) | Stereo or mono (two RCA jacks - Input Impedance of 50k Ohms) |
|---|---|
| Speaker/High-level inputs | Stereo or mono (removable plug - Input Impedance of 4.4k Ohms) |
| Input grounding | Isolated or grounded |
| Level control | Reference (fixed gain) or Variable from -50 dB to +15 dB over reference gain (0.5 dB increments) |
| Filter mode(s) | Low-pass, with tracking High-pass Outputs |
| Filter slope(s) | 12/24 dB/octave |
| Filter frequency range | 30 Hz-130.1 Hz |
| Filter defeat function | |
| Polarity | 0 or 180º |
| Delay (Phase) | Variable from 0-25 ms (0.1 ms increments, Sub and HP outputs) |
| Extreme Low Frequency (E.L.F.) trim | Variable, -12 dB to +3 dB at 25 Hz (0.5 dB increments) |
| Line outputs | Stereo or mono (two RCA jacks - Pass-through or High-pass) |
| Subwoofer outputs | Neutrik speakOn® 2-Pole Connectors (uses Neutrik part: NL2FX) |
| Calibration mode | Digital Automatic Room Optimization (D.A.R.O.), requires microphone (sold separately) |
| Equalizer bands | 3 |
| Equalizer frequency range | 20 to 160 Hz (1 Hz increments) |
| Equalizer gain range | -12 dB to +12 dB (0.2 dB increments) |
| Equalizer Q range | 0.7 to 5.0 (0.1 increments) |
Amplifier Specifications |
|
| Width (W) | 16.84" (428 mm) |
|---|---|
| Height (H) | 1.75" (44 mm) |
| Depth (D) | 13.63" (346 mm) |
| Net weight (each) | 13.5 lbs (6.12 kg) |
